Высокопроизводительный мини Биохимический инкубатор LineGene машина для ПЦР анализа в режиме реального

Сохранить в закладки 60708925913:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


High Performance LineGene Mini Biochemical Real Time Dna Sequencing Pcr Machine





Product Description




dna sequencing pcr machine


































































Sample Capacity



16 × 0.2ml tubes (flat and transparent cap)
2 × 8-tube strips (flat and transparent cap)



Temperature Accuracy



Temperature fluctuation ± 0.1c (30 seconds after 55℃, 72℃ and 95℃)



Temperature Control Method



Peltie


Hot-lid Temp.Range

85-110℃ adjustable



Temperature Range



Temperature Range



Temperature Uniformity



± 0.15℃ (55℃, 72℃), ± 0.2℃ (95℃)


Power Supply

DC 24V 180 W, power adaptor needed


Dimension

L 280 × W 220 × H 240



Safety Certification



IVD, CE, MET, GB4793.1-2007, RoHS 2.0, CFDA



Maximum Heating/Cooling Rate


5℃/s (max)
Average Heating/Cooling Rate3℃/sec (55℃-95℃)

Net Weight



6.5 kg



Adapter Input Frequency



50 - 60Hz



Safety Protection and Alarm


Block, hot lid and heat sink temperature sensors short-circuit, open-circuit alarm and protection

Hot lid over temperature alarm and protection



Factory Calibrated Dyes


F1: Fam, SYBR Green I

F2: VIC, HEX, TET, JOE, TAMRA, Cy3, NED
F3: ROX
F4: Cy5






Product parameter

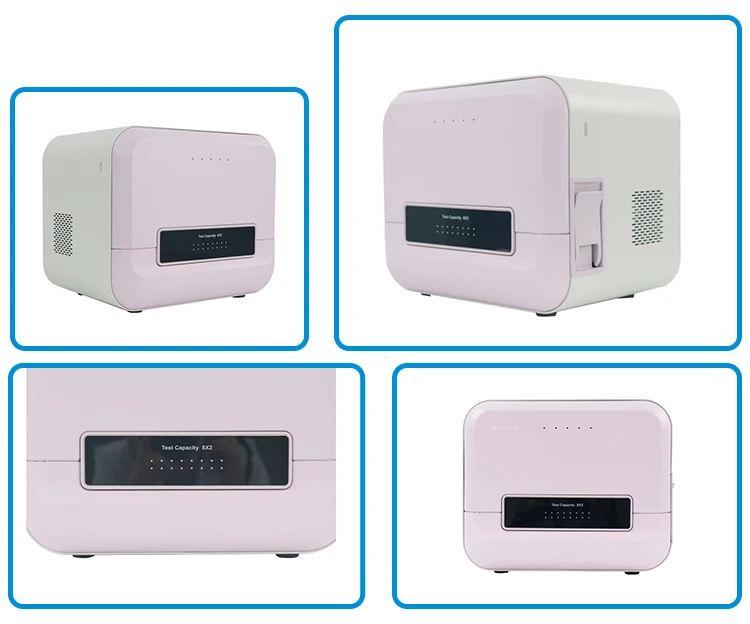

 The LineGene Mini is a portable real-time PCR instrument developed by B&B to cope with diverse and highly complex environments. This product uses a small capacity design of 16 single tube or 8 tube mode, with battery power. At the same time, the use of customized version of the Peltier module, new optical path design and top scanning, etc., in order to create a new generation of Bo-day fluorescence quantitative PCR. Although the product is small, it can be configured with up to 4 detection channels, and the detection performance can reach the same level as that of large desktop QPCR.
  LineGene Mini is suitable for real-time left-hand testing in pastures, forest farms, farms and water sources due to its ease of handling and setup. Or make rapid and accurate clinical diagnosis of disasters, epidemics, etc. in disaster-affected areas or field hospitals. Of course, it is also convenient to carry and use between laboratories.






Description:


Line Gene Mini is a portable fluorescence quantitative PCR instrument developed by the Bioer company to deal with diversified and complex environment.


 1)   small capacity design of 16 single-tube , and can be used for battery power supply.


 2)   used to create a new generation of fluorescence quantitative PCR with a customized version of Peltier module, new optical path design and top scanning.


Application environment:


1)  Field operation, such as field, forest farm, farm and water source.


2)  Disaster area or the field hospital, to make rapid and accurate clinical diagnosis of the disaster.


3)  It is also convenient for the handling and use of the lab
