Цена машины/шлифовальная машина для обработки кромок стекла

Machine price /glass edge grinding processing machine, can fill the big, small glass grinding function, more widely applicable to small and medium-sized glass grinding, and low cost, the single-phase electric work, the operation is simple.
Horizontal unilateral glass edge grinding machine for conventional glass, especially ambry door plank, king kong door plank, sanitary ware, hollow, spell mirror, Mosaic, and other industries use.

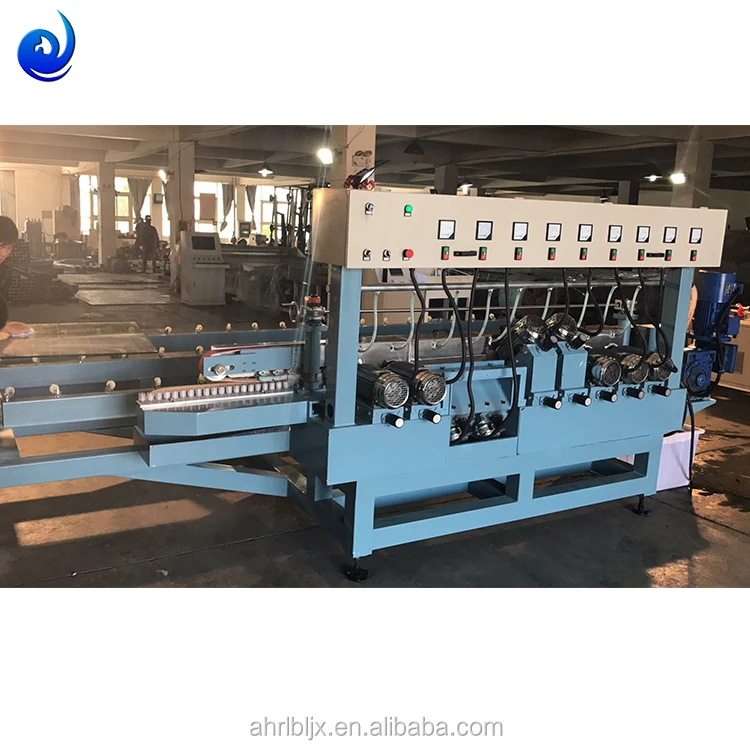

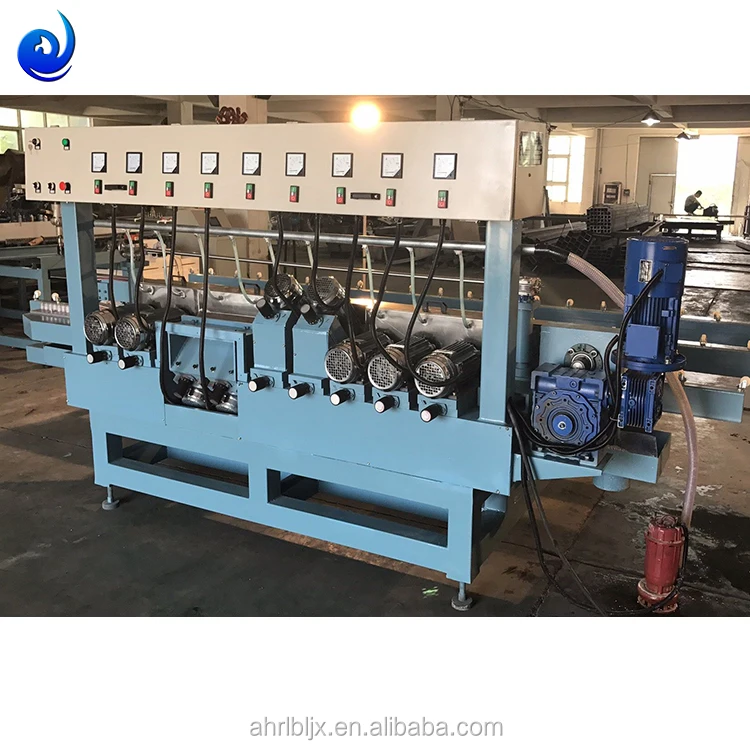

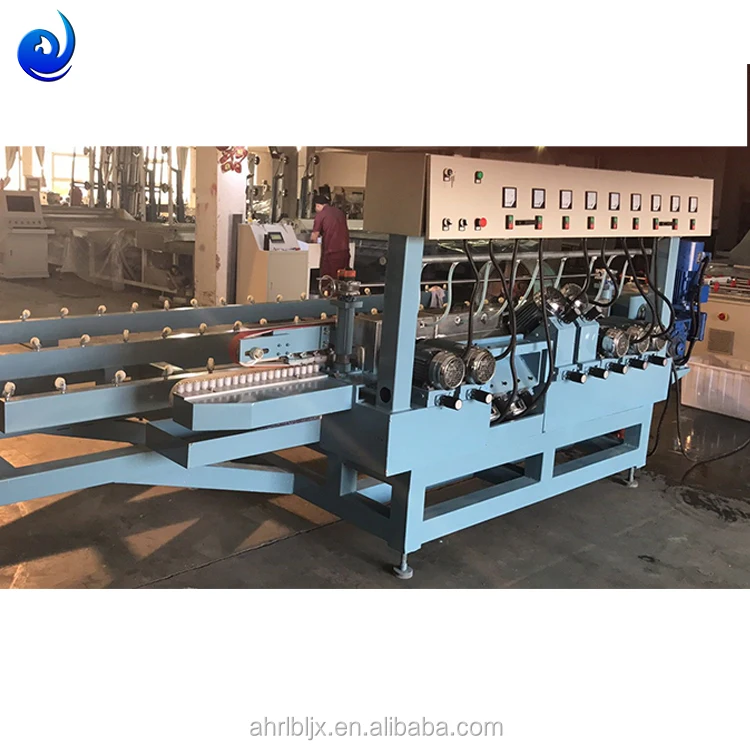

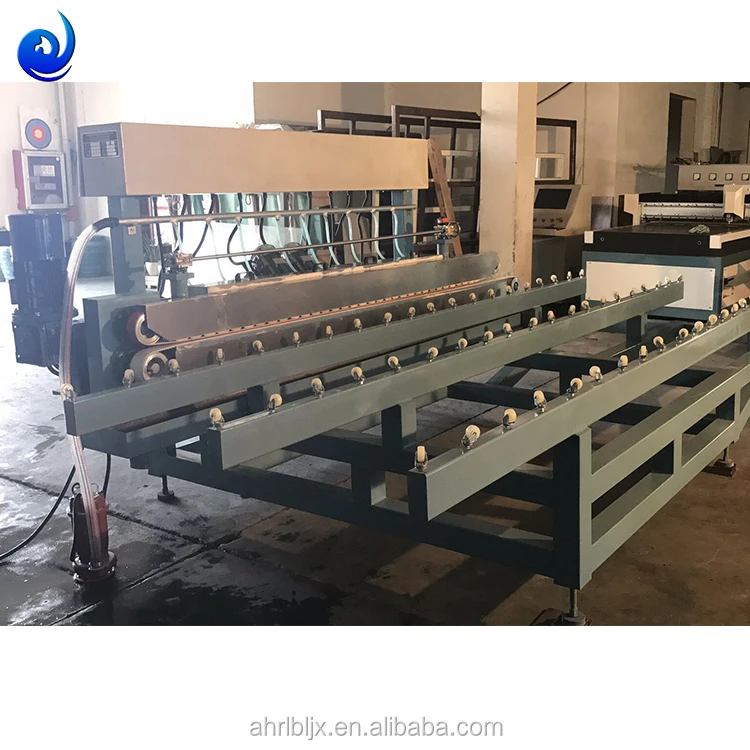

SY-2000-9 Single line glass edging machine(horizontal)

It can process glass, stones, polymethyl methacrylate, acrylic panel, etc. Comparing with regular edging size, it reduces much. The min size is 50mm. Above 1.0 can be processed. It is beyond the regular grinding size of 3mm glass. Meanwhile, the machine can guarantee accuracy of parallelism and diagonal when processing. It is the ideal choice of optical, electronic, glass crafts, window or door glass.

Introduction

YR-2000-9 Horizontal glass straight line edging machine is a high precision glass straight line edging machine designed for the markets’ demands based on the double edging machine theory. It is used for grinding straight edges and corners of different sizes and thickness flat glass, rough edging, find edging and polishing of straight line; rough edging, find edging of corners. It adopts mechanical variable speed, large adjustable range, smooth shifting, changing the feeding speed in grinding process, the belt clamps and drives the 2-19mm glass to grind, rough diamond wheel, sharp grinding, using 10S40 wheels to grind, high precision, using wool belt wheel and cerium oxide to polish, the surface is smooth. The grinded glass can be like a mirror, SY-2000-9 polishes better.

Main Specifications

1. Dimensions: (Length*width*height) 2500×2000×1800

2. Height: 800mm

3. Weight: 1500kg

4. Voltage: 380v, 50HZ

5. Power: 15kw

6. Feeding speed: 0.5m/min~5m/min

7. Processing range:

a)The maximum amount of grinding straight edge: 3mm

b)Angular maximum grinding width: 2.5mm

c) Angularity angle: 45°

d)Size: max: 2000×2000min: 50×50

e) Thickness: 1~8mm

f)Accuracy: Parallel ±15s/m; diagonal: ±50s/m

8. Nine wheels

At first, Anhui Ruilong glass machinery Co., Ltd. named Anhui Sadavax glass Machinery Co., Ltd. the products are mainly sold to domestic glass processing factories and foreign trade companies. Increased with the development of glass processing industry, Ruilong add production lines and expanded workshops began to do foreign business directly, in this way customer's can save purchasing cost. Ruilong's products is going high-end route, have been uphold the quality and technology first.

Q: Do you supply overseas engineers service for Machine price /glass edge grinding processing machine?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for Machine price /glass edge grinding processing machine?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for Machine price /glass edge grinding processing machine?
A: Yes, we will provide some additional loss of accessories.
