Система цифрового телевидения HD демодулятор ДЕШИФРАТОР DVB S/S2 CI IRD
- Категория: >>>
- Поставщик: Chengdu Shineco Technology Co. Ltd.
Сохранить в закладки 60710016093:
Описание и отзывы
Характеристики
Digital Video Broadcasting HD Demodulator Decoder DVB-S/S2 CI IRD
--- Latest Price please add skype: nancydvb
Product Description
Outline
Shineco IP to HDMI converter is all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video (CVBS/YPbPr/HDMI/SDI) output.
It is a 1-U case which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial devices.
The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, it is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Key features
Demodulation + descrambler +re-mux+decoder modules in one box
* 2 DVB-C/T/S/S2 Tuner inputs
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling (Up to 120Mbps)
* One channel video output with various interface option (MPEG2/H.264)
* Dual stereo audio output, or one Dolby Digital/Dolby Digital Plus (5.1) channel output
* Support Dolby Digital/Dolby Digital Plus Decoding and passthrough (for HDMI/SDI out)
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
* Support CC, Subtitle and Teletext
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator and decoder modules
* LCD display, Remote control and Firmware, web NMS management
* Update via USB or web
Specification
Input | |||||
2 x DVB-S/S2RF, F type | |||||
1×ASI input for re-mux, BNC interface | |||||
1xIP input for re-mux (UDP) | |||||
Demodulating Section | |||||
DVB-C | |||||
Standard | J.83A(DVB-C), J.83B, J.83C | ||||
Input Frequency | 30 MHz~1000 MHz | ||||
Constellation | 16/32/64/128/256 QAM | ||||
DVB-T/T2 | |||||
Input Frequency | 30MHz ~999.999 MHz | ||||
Bandwidth | 6/7/8 M bandwidth | ||||
DVB-S | |||||
Input Frequency | 950-2150MHz | ||||
Symbol rate | 2-45Msps | ||||
Signal Strength | - 65- -25dBm | ||||
Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | ||||
DVB-S2 | |||||
Input Frequency | 950-2150MHz | ||||
Symbol rate | QPSK 1~45Mbauds; 8PSK 2~30Mbauds | ||||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||||
Constellation | QPSK, 8PSK | ||||
Descrambling | |||||
CAM/CI Quantity | 2 | ||||
BISS Mode | Mode 1, Mode E; up to 120Mbps | ||||
|
| ||||
Output | |||||
IP Output | 1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) | ||||
2×ASI | BNC interface, mirrored out | ||||
Decode Output | Video Interface: 1xCVBS/YPbPr/HDMI/SDI Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Decode: MPEG-2; H.264 Audio Interface: 2 x Stereo/4xmono, HDMI, SDI Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo, 5.1 CH | ||||
System | |||||
Local interface | LCD + control buttons | ||||
Remote management | Web-server Management | ||||
Language | English | ||||
Upgrade | USB, web management | ||||
General | |||||
Power supply | AC 100V~240V | ||||
Dimensions | 482*300*44.5mm | ||||
Weight | 3 kgs | ||||
Operation temperature | 0~45℃ | ||||

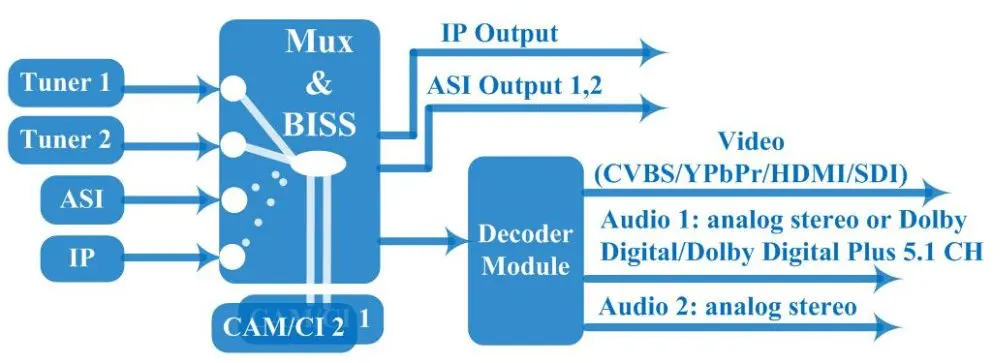

Principle chart for DVB-S/S2 CI IRD

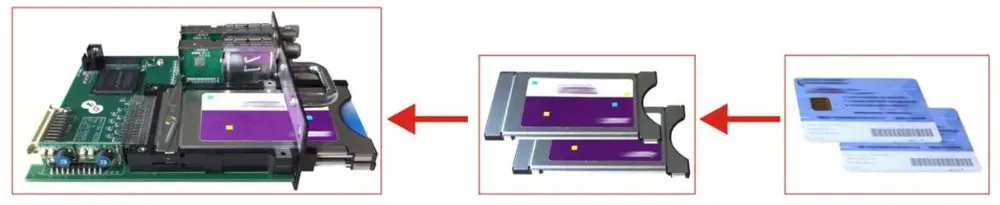

Demodulation Module = 2*RF/Loop out + 2*CAM + 2*Smartcard

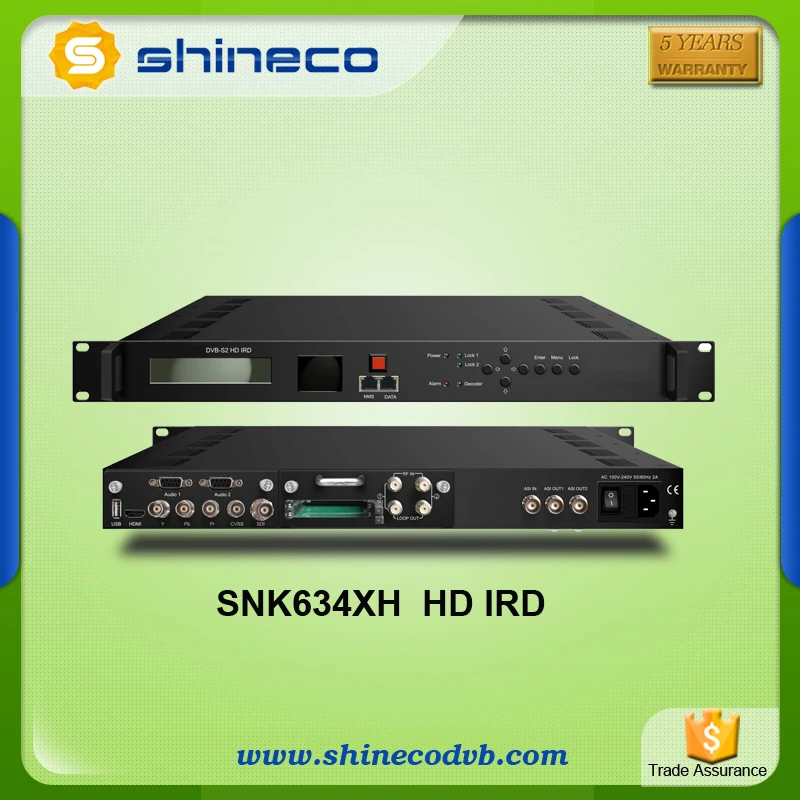

Front and Rear Panel of DVB-S2 HD CI IRD
Besides this model,we also have 4 in 1 DVB-S2/T2/C IRD with mux function, 4 in 1 DVB-S2/T2/C IRD with 48 SPTS out, 2 in 1 DVB-S2 HD IRD, HD IRD with BISS function model for you choose, if you need the details,welcome to add skype:nancydvb.

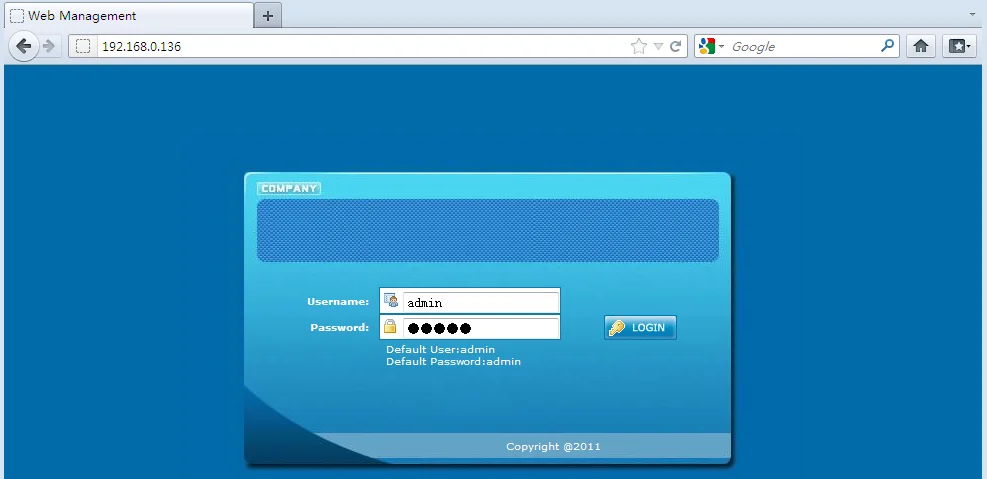

How to operation the encoder and managment page?
This DVB-S2 IRD is by web managment:
Connect the PC and the device with net cable, and use ping command to confirm
they are on the same network segment.
Hot Sales Series
Encoder support HTTP/RTP/RTMP/UDP/ONVIF series

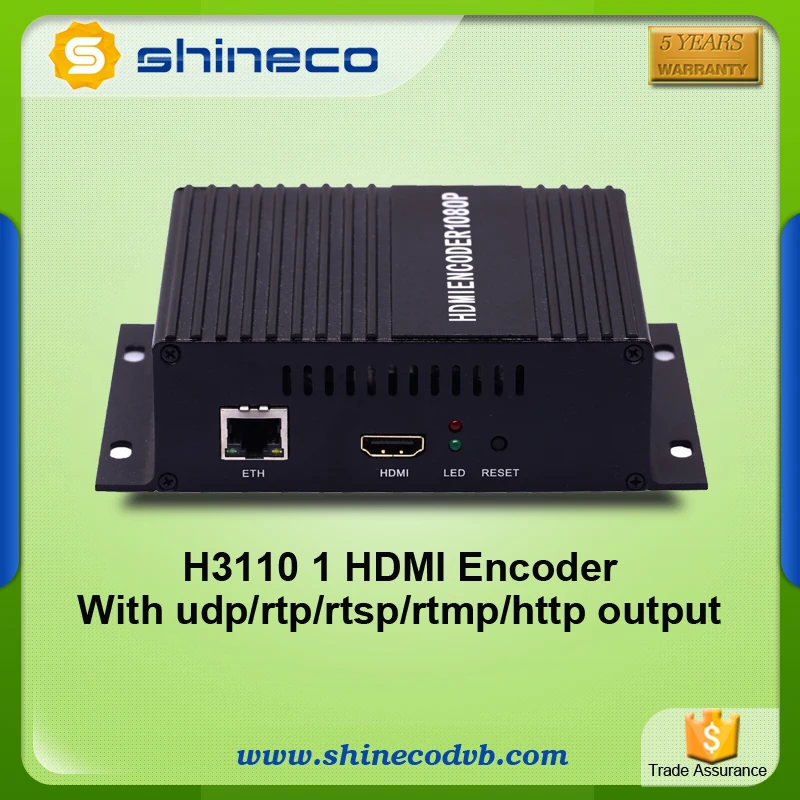

MINI HDMI Encoder MINI SDI Encoder 16 in 1 HDMI+CVBS Encoder
IRD/Gateway for DVB-S2/C/T2/ASI to IP

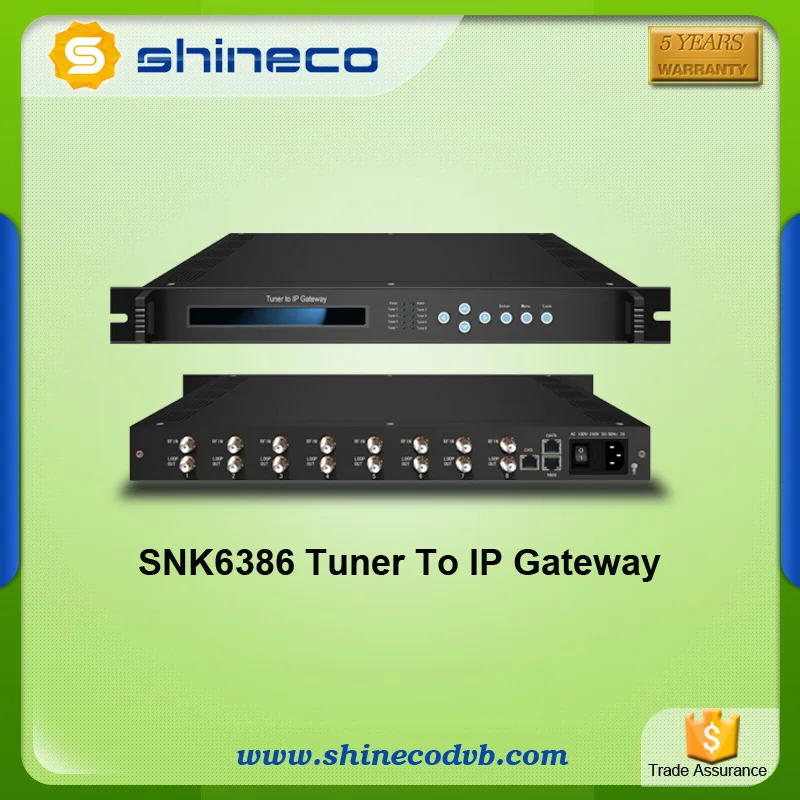

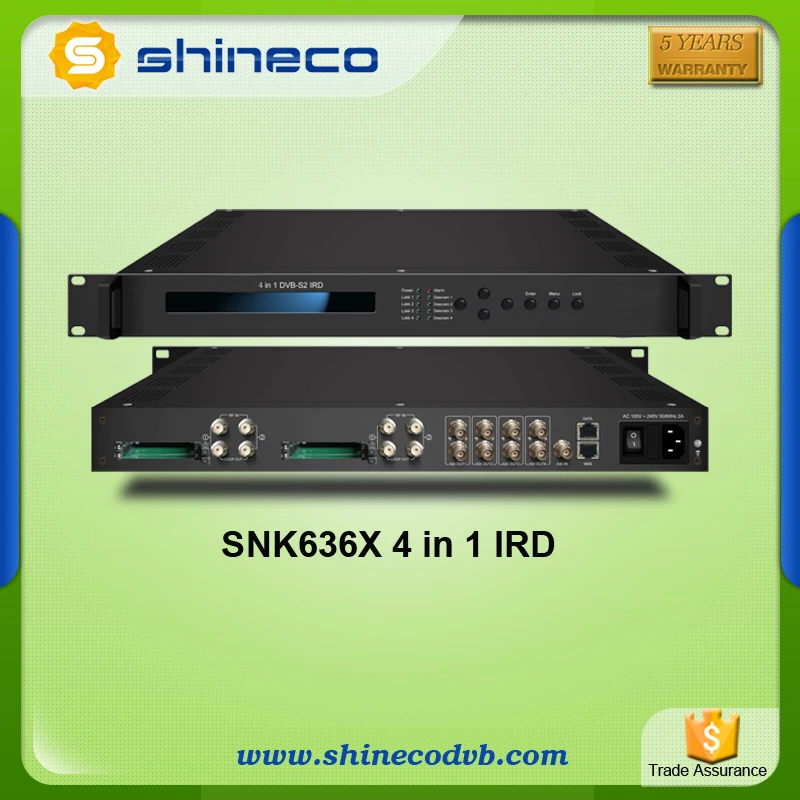

4 in 1 IRD for 48 SPTS out 8 in 1 DVB-S2/ATSC-T tuner to IP gateway
Encoder Modulator for Hotel/ Monitor/Bar/Shopping mall/Hospital System
Company Information
About Shineco company advantage?
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.
Packaging & Shipping
About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
Contact Shineco
Contact us
| company website | www.shinecodvb.com |
| Attn | Nancy Xie |
| nancy"@" shinecodvb.com | |
| skype ID | nancydvb |
Click here to get the latest Price and Solution.
Похожие товары

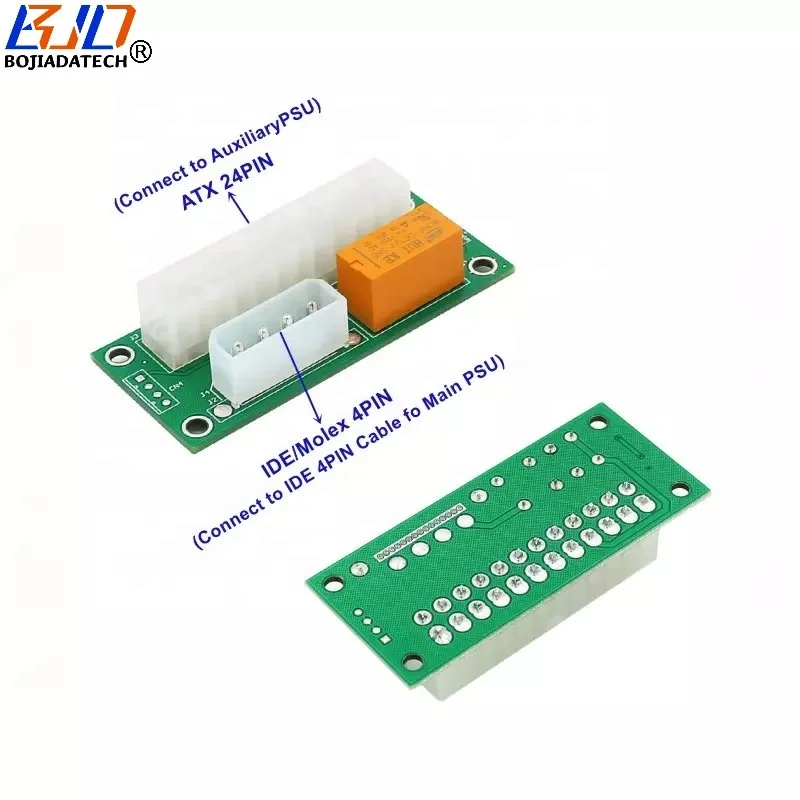

ATX 24Pin к Molex IDE 4Pin синхронный Двойной источник питания PSU адаптер Add2psu работает несколько ПК компьютерный блок питания вместе
2,60 $ - 3,20 $

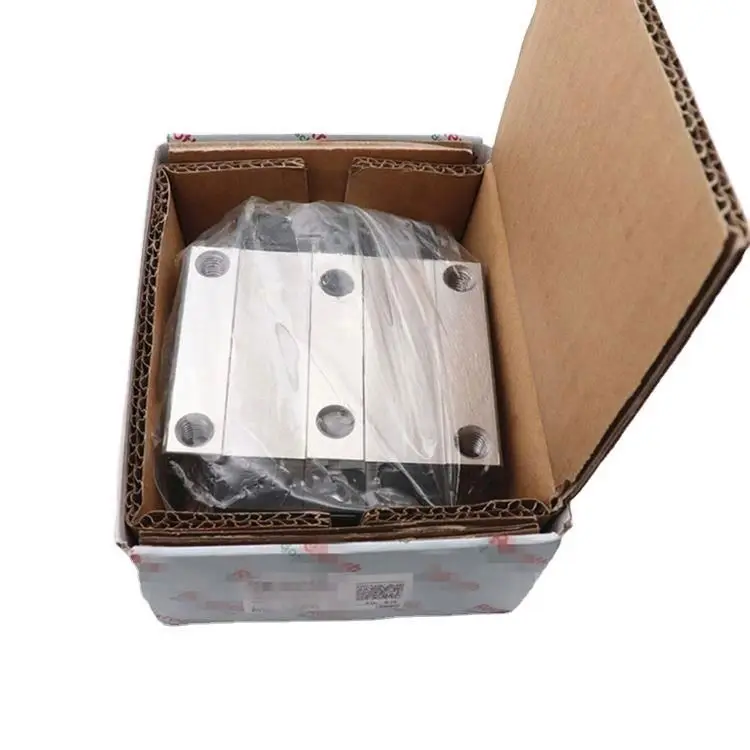

R1622 42320 линейная направляющая подшипник скольжения R162242320
41,7 Mpps 24 порта гигабитный коммутатор питания через Ethernet 4SFP Gigabit портовый коммутатор для Hikvision IP камера

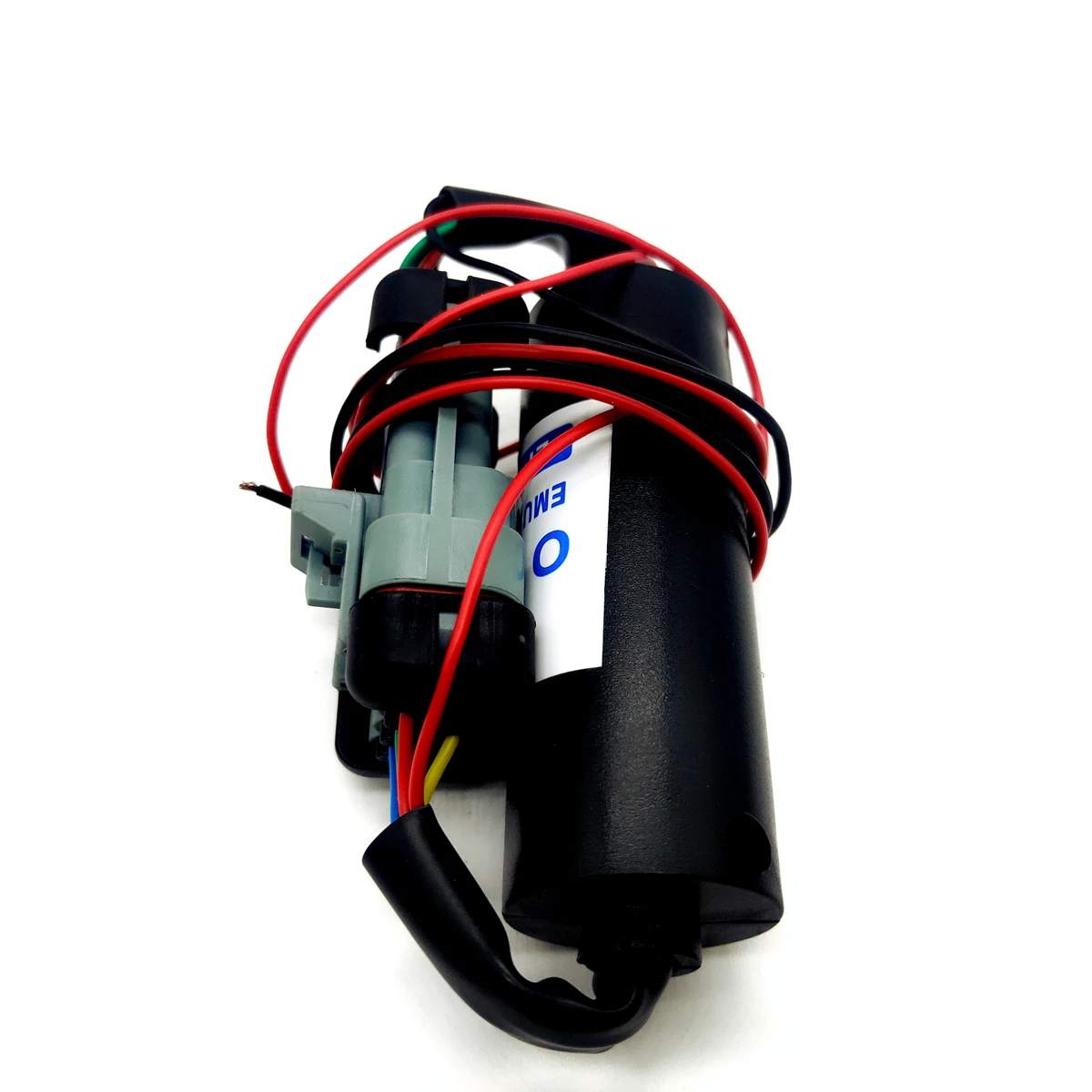

LLANO 4 баллон сжиженного газа CNG Инжектор эмулятор LN-FX12 для автомобильной последовательной системы впрыска
5,00 $ - 8,00 $

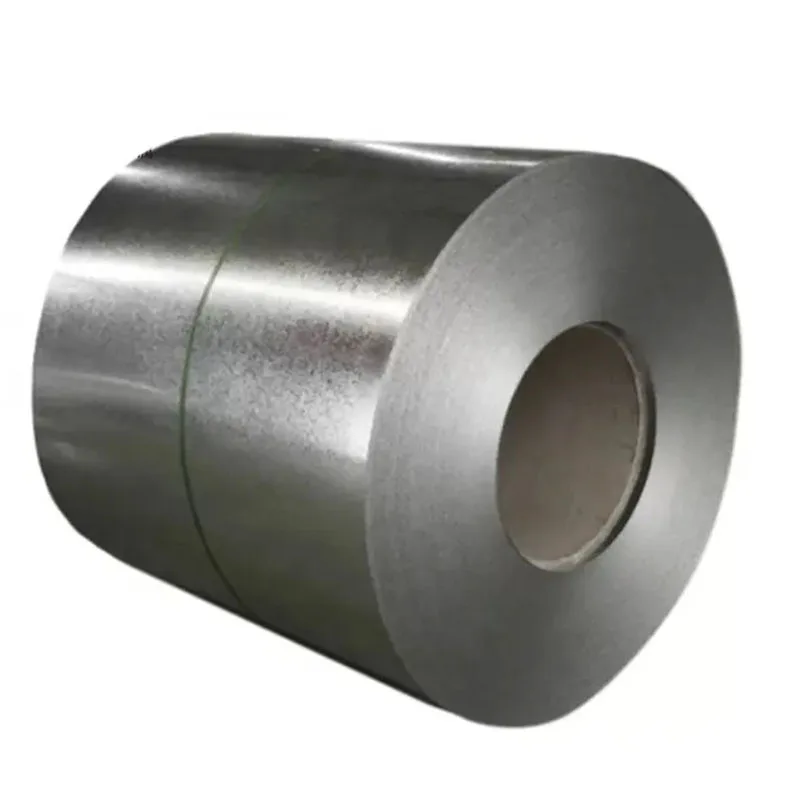

0,4 мм G550 AZ150 Zincalume Aluzinc стальная катушка для кровельного листа
