Flexible earth cable electrical 1.5mm2 H07V U H07V R bvr cables
- Категория: >>>
- Поставщик: Anhui Surxin Wire & Cable Co. Ltd. [Anhui China]Anhui
Сохранить в закладки 60711284429:
Описание и отзывы
Характеристики

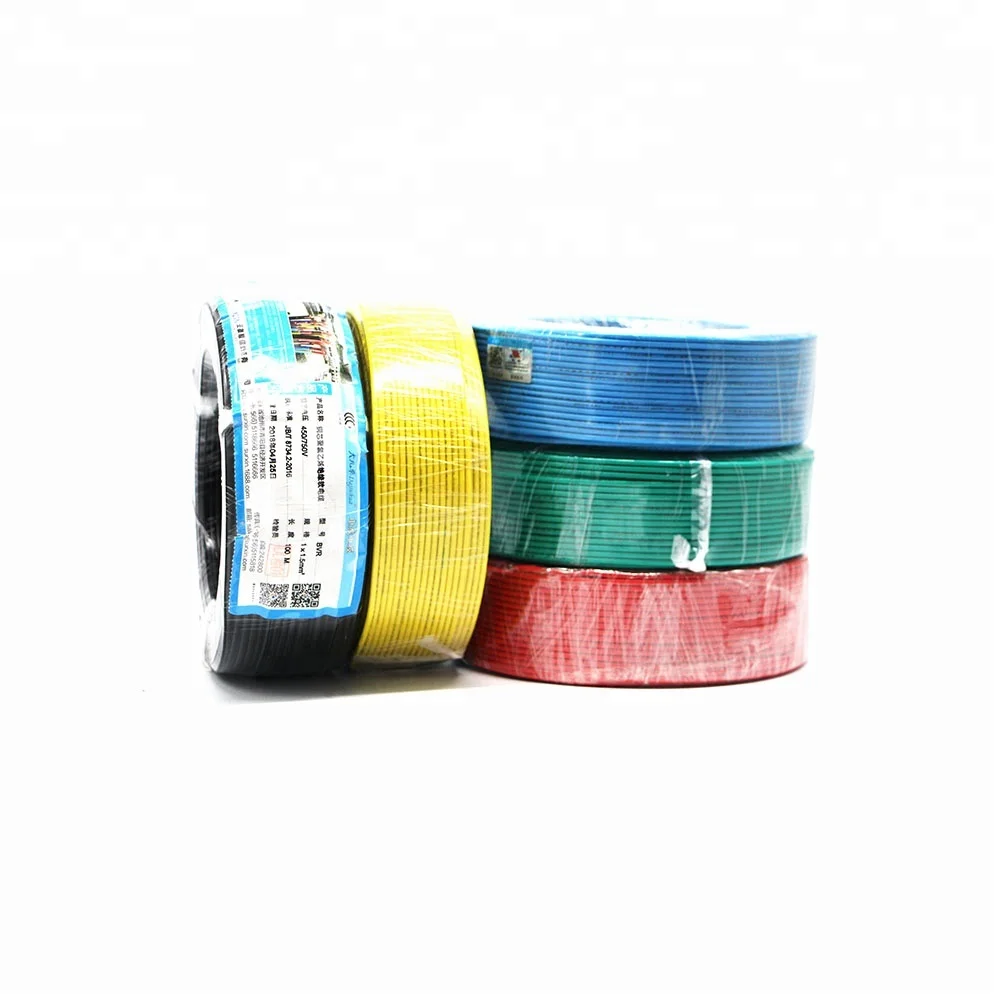

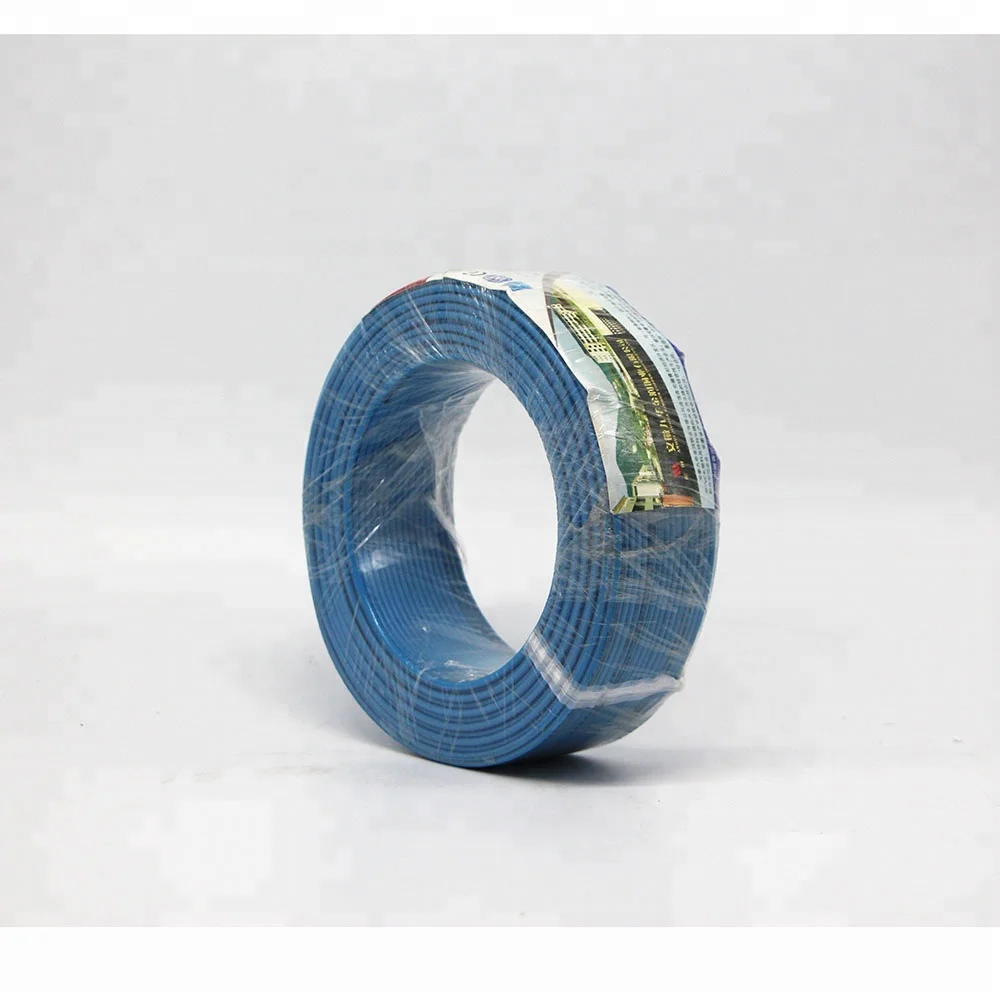

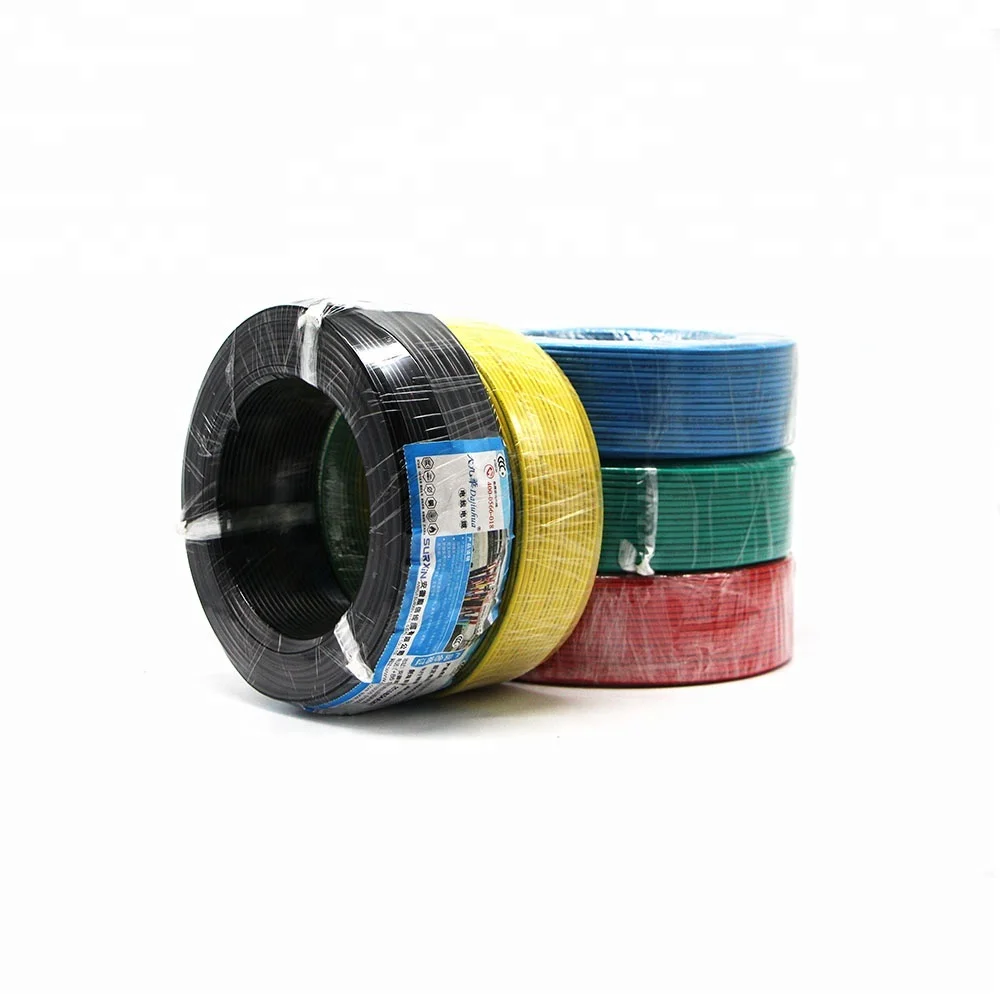

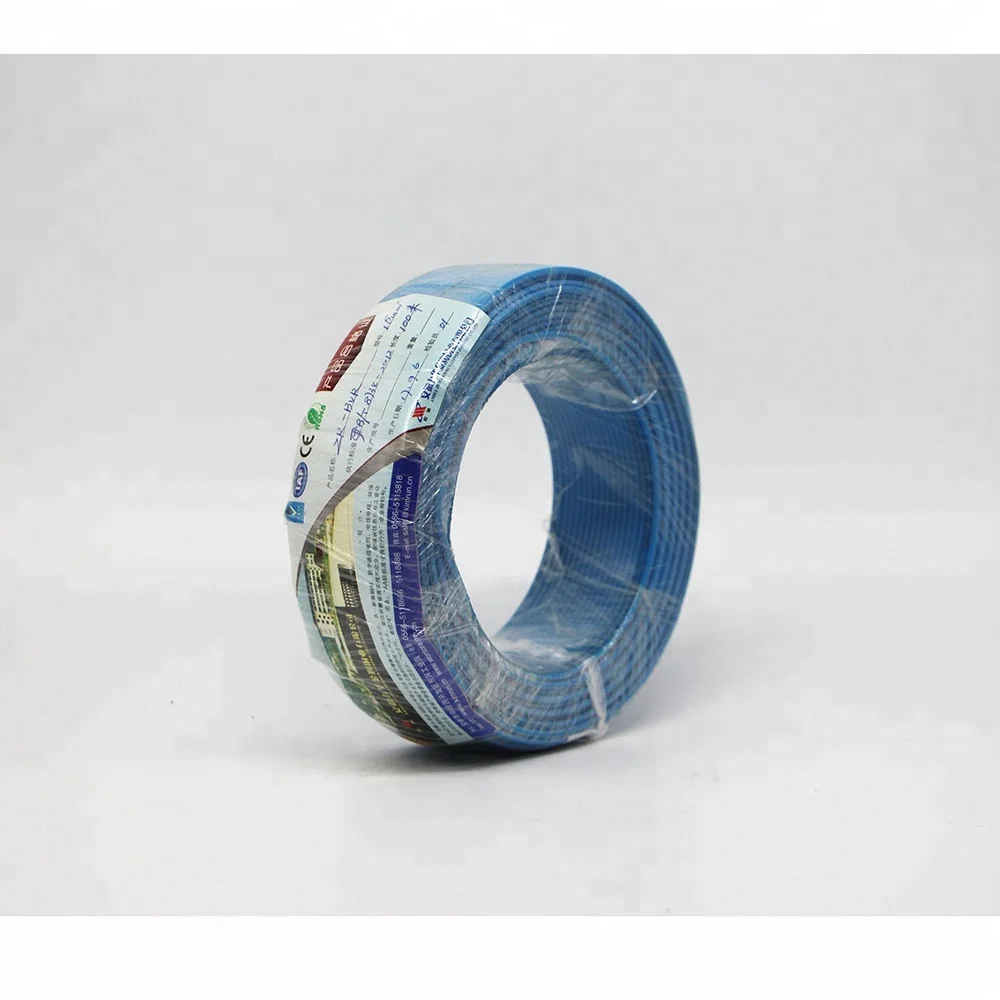

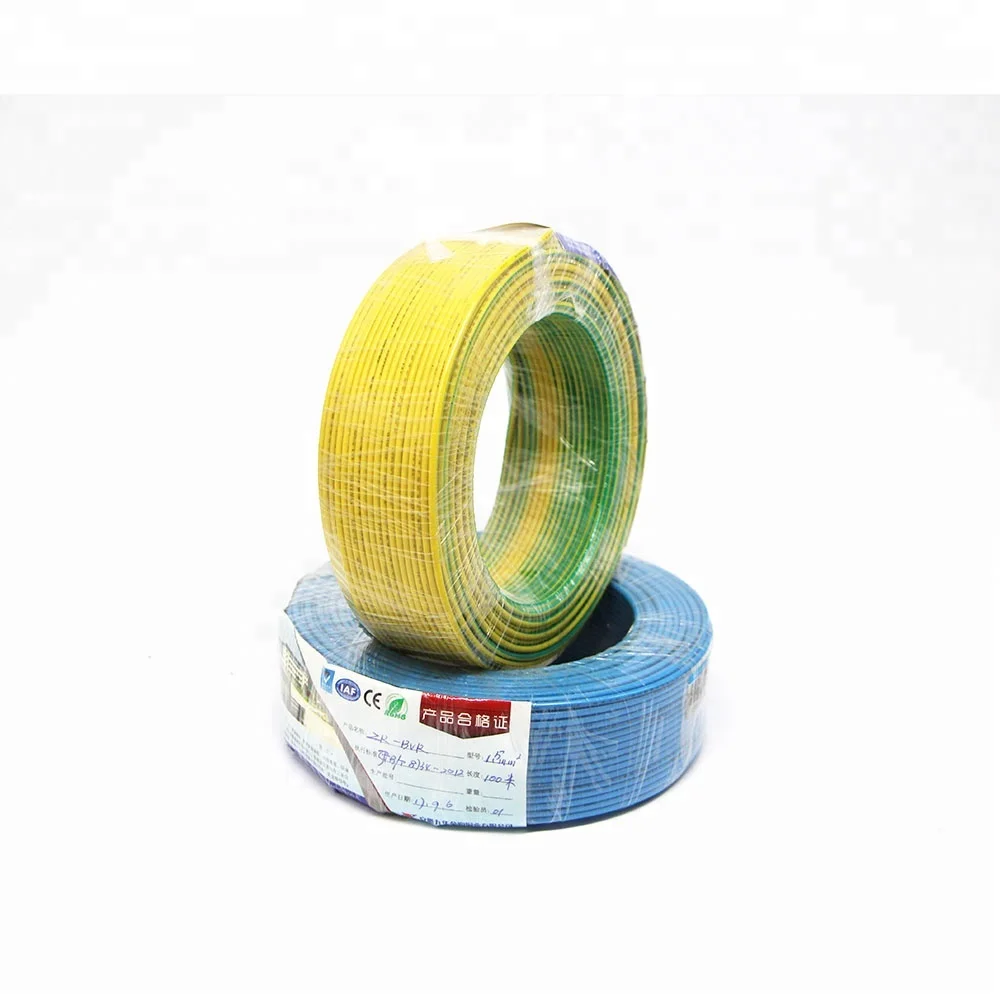

Flexible earth cable electrical 1.5mm2 H07V-U H07V-R bvr cables
Our Service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
Product Description
Nominal Sectional Area (mm2) | Conductor No./ Diameter (mm) | Nominal Insulated Thick (mm) | Max Overall Diameter (mm) | Conductor Resistance at 20 | Min Insulated Resistance at 70MΩ/KM | Weight (kg/km) |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 0.011 | 19.2 |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 0.010 | 30.8 |
| 4.0 | 1/2.25 | 0.8 | 4.4 | 4.61 | 0.0085 | 45.5 |
| 6.0 | 1/2.76 | 0.8 | 4.9 | 3.08 | 0.0070 | 65.0 |
| 10.0 | 1/1.35 | 1.0 | 7.0 | 1.83 | 0.0065 | 52.0 |
| Model Name (CHINA MARKET CALLED) | |
| BV | Copper Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVB | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| RV | Copper Core PVC Insulation Flexible Wire |
| RVV | Copper Core PVC Insulation PVC Sheath Flexible Round Wire |
| Type | Name |
| 227IEC01(BV) | Single-core non-sheathed cable with soild conductor for general purpose |
| 227IEC02(RV) | Single-core non-sheathed cable with flexible conductor for general purpose |
| 227IEC05(BV) | Single-core non-sheathed cable with soild conductor for internal wiring for a conductor temperature of 70°C |
| 227IEC06(RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70°C |
| 227IEC07(BV-90) | Single-core non-sheathed cable with soild conductor for internal wiring for a conductor temperature of 90°C |
| 227IEC08(RV-90) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90°C |
| 227IEC10(BBV) | Light PVC sheathed cable |
| 227IEC42(RVB) | Flat non-sheathed flexible cable |
| 227IEC52(RVV) | PVC sheathed flexible cable |
Packaging & Shipping
Company Information
Anhui Surxin Wire & Cable Co., Ltd. is located in Qingyang Economic Development Area in Chizhou City, Anhui Province, which is closed to one of the four Buddhism mountains, Mount. Jiuhua.
Our company was founded in 2009 with the registered capital of RMB 5 million yuan. We are professional cable & wire manufacturer with all types, such as UTP(FTP), CAT5E, CAT6, Patch cord, Coaxial cable, Alarm cable, Electrical cable, Automotive cable, Enameled wire and Copper product etc.
Our products have been sold to Europe, Southeast Asia, Middle East, South Africa and Australia, getting good reputations from our customers. We do business on a basis of quality cordiality and mutual benefits, and hope for good cooperation between us.
We would be your best supplier offering high quality products with competitive price. It is sincerely hoped that a long-term business relationship could established between us in the near future.
