Name:

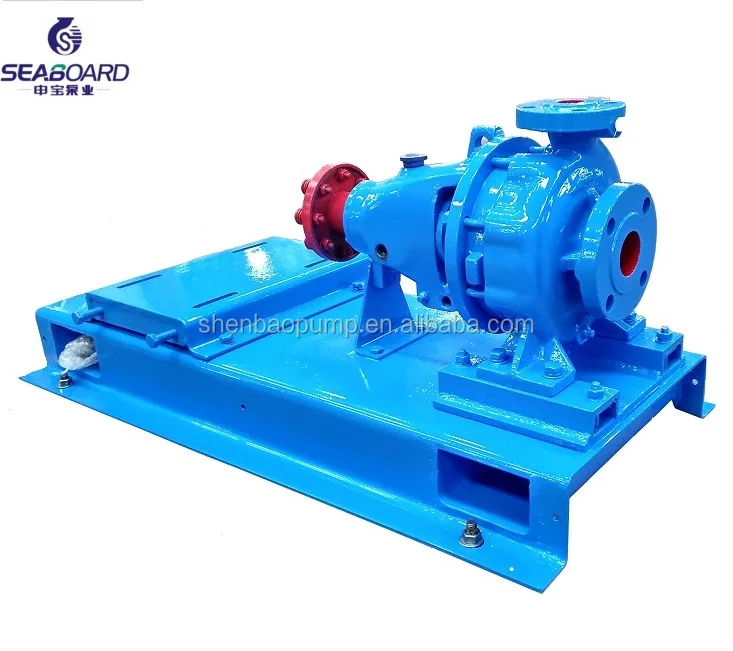

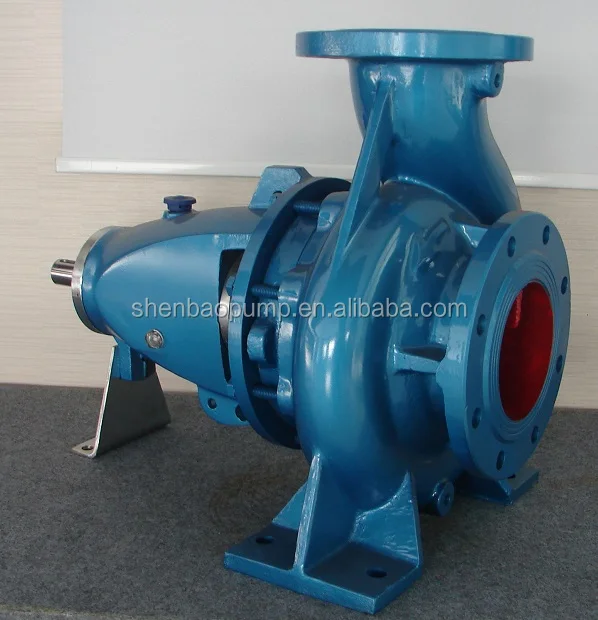

Chilled water pumps cast steel or cast iron with centrifugal theory

Description:

XA series horizontal end suction centrifugal pumps are over hung pumps and designed according to EN733/DIN24255 standard, mainly be applied to clean water or liquid with fewer solids, with the cooling device, also can be used for hot water, ethyl alcohol and other industrial process water and sea water.

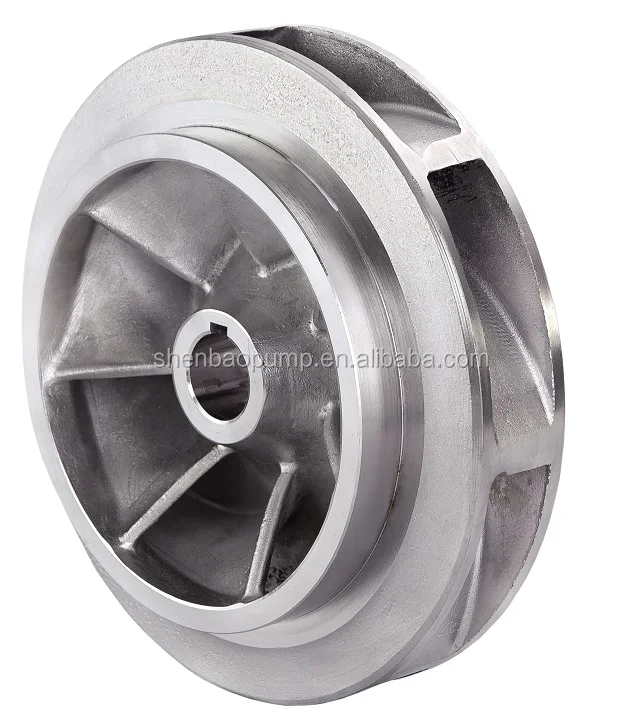

There are three different impeller type can be chosen according to different request: closed, semi-open and open impellers.

Application:                                                                                                                       Air Conditioning

Refrigeration

Fire protection

Circulating

Transfer

Irrigation

Drainage

Pressure boosting

Cooling towers

water treatment

Operation data:

 Code: XA80/26

Capacity: 115-225m3/h =31.94-62.5(L/S)

Head (H):73-89m

Speed: 2900 (r/min)

Motor Power: 55-75Kw

Efficiency: 65-76%

NPSHR: 3.95-6.25m

Impeller Diameter: 225mm (cuttable)

Diameter of Pump: inlet 100mm, Outlet 80mm

Net weight: 91Kg

Special requirementscan be making by contacting.

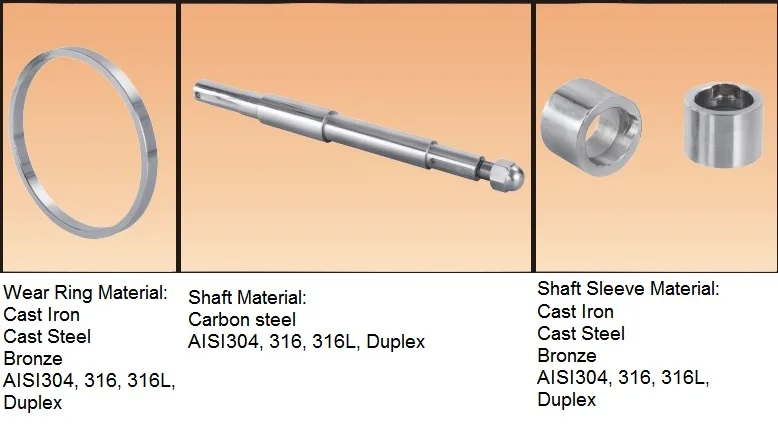

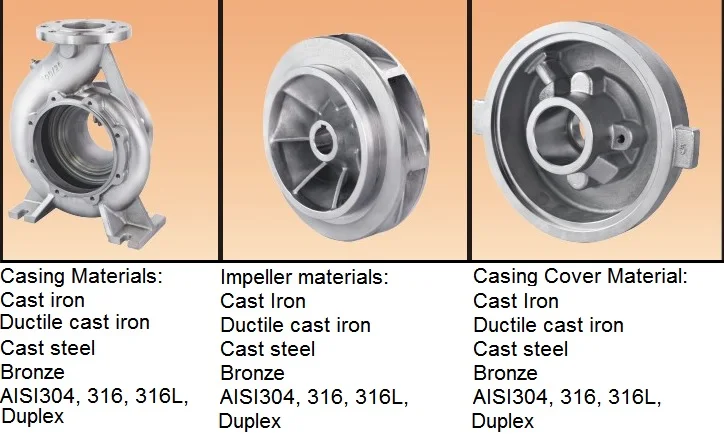

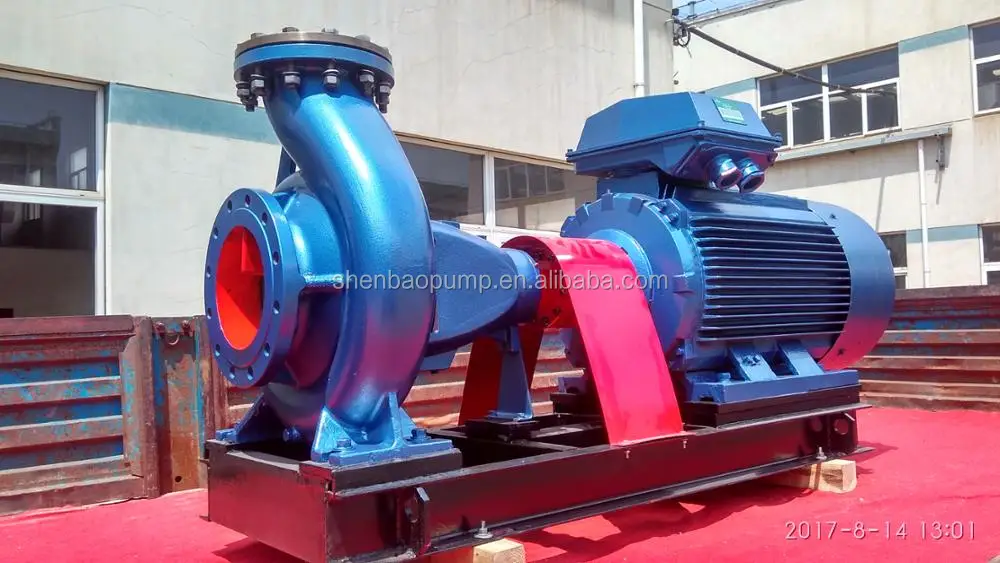

Details of Image:

Design features:

• Design strictly according to DIN24255 standard, every part can be interchangeability with other same standard brands.

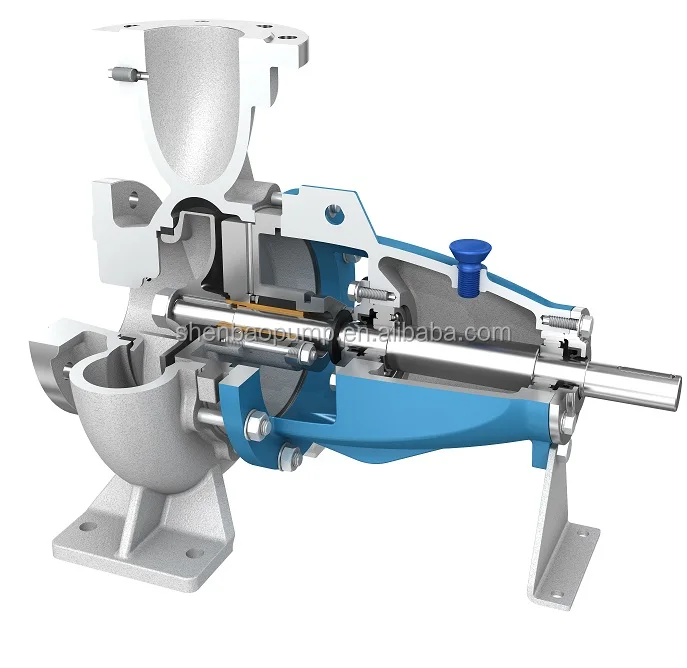

• Back pull-out design and contact the pump and motor through coupling for easy installing and dismantling.
• Five size type of shaft of bearing house for the whole series to ensure the less stock and less time of lead time

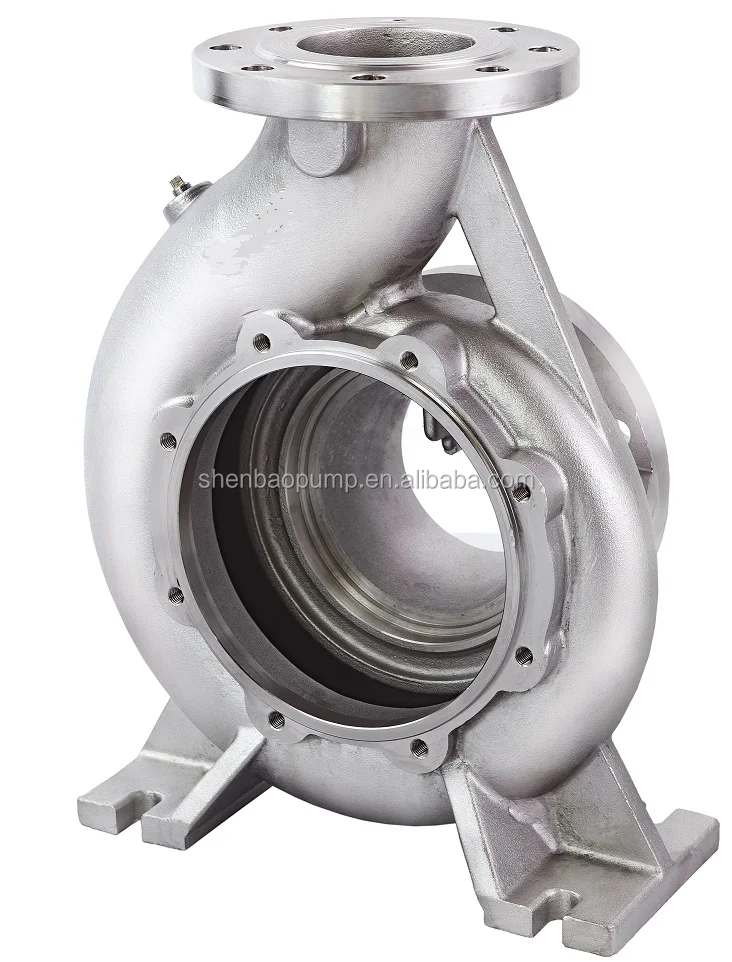

• WAX casting for casing and impeller to make sure high efficiency and wonderful surface
• Flange standard can be made to DIN, ANSI, ISO and another special standard

If you need prices, more models, our catalogues or visiting, please feel free to contact me.
