Клапан управления потоком воздуха по лучшей цене, клапан для системы парового конденсата, пневматический клапан управления втулкой
43 647,97 ₽ - 87 514,72 ₽
Паровая конденсатная система клапан управления высокого давления цена
- Категория: >>>
- Поставщик: Suzhou Delan Energy Science & Technology Co. Ltd.
Сохранить в закладки 60711700796:
Описание и отзывы
Характеристики
Products Description
MA Series Control Valve
Performance Parameters
◆Diameter：DN15~DN500
◆Pressure：PN16~PN100
◆Flow characteristics：
1、Quick opening
◆Diameter：DN15~DN500
◆Pressure：PN16~PN100
◆Flow characteristics：
1、Quick opening
2、Linear
3、Equal percentage
◆Structure：
1、Single seat
2、Sleeve
◆Body Material：WCB、WC6、WC9、CF8,etc
◆Application：Electric power, petroleum , petrochemical, water & steam flow rate adjustment . extraction system ,HP&LP heater
deaerator, condenser , chemical water
◆Structure：
1、Single seat
2、Sleeve
◆Body Material：WCB、WC6、WC9、CF8,etc
◆Application：Electric power, petroleum , petrochemical, water & steam flow rate adjustment . extraction system ,HP&LP heater
deaerator, condenser , chemical water
Product Paramenters
Valve Size | A | B | G（MAX） | ||||||||
Flange | BW | ||||||||||
mm | inches | 150lb、PN16 | 300lb、PN40 | 600lb、PN63、PN100 | 150lb、300lb、600lb | mm | Globe Type | ||||
25 | 1" | 184 | 197 | 210 | 210 | 54 | 60 | ||||
40 | 1-1/2" | 222 | 235 | 251 | 251 | 54 | 71 | ||||
50 | 2" | 254 | 267 | 286 | 286 | 54 | 78 | ||||
65 | 2-1/2" | 276 | 292 | 311 | 311 | 54/71 | 90 | ||||
80 | 3" | 298 | 317 | 337 | 337 | 54/71 | 97 | ||||
100 | 4" | 352 | 368 | 394 | 394 | 71 | 129 | ||||
150 | 6" | 451 | 473 | 508 | 508 | 71/90 | 162 | ||||
200 | 8" | 543 | 568 | 610 | 610 | 90 | 191 | ||||
250 | 10" | 673 | 708 | 752 | 752 | 90 | 250 | ||||
300 | 12" | 737 | 775 | 819 | 819 | 90 | 292 | ||||
350 | 14" | 889 | 927 | 972 | 1029 | 90 | 327 | ||||
400 | 16" | 1016 | 1057 | 1108 | 1108 | 90 | 370 | ||||
Item | Size | Operation Temperature | Type | Pressure Class | Body Material | Operation | Leakage Level |
Control Valve | 1/2" ~24" | -29℃ ~628℃ | Globe Angle | 150LB ~4500LB | WCB WC9 CF8 CF8M | Manual/ Pneumatic/ Electric/ Hydraulic | IV/V/VI |
Attemperator Spray Control Valve | 1/2" ~6" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | V |
Feedpump Recirculation Valve | 1" ~12" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | MSS-SP61 |
Globe Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Check Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Forged Steel Gate Valves | 1/2" ~30" | -29℃ ~628℃ | Parallel double gate | 150LB ~4500LB | WB36/A105/F22/F91/F92 | Manual/ Pneumatic/ Electric/ Hydraulic |
Recommend Products
●condensate pump recirculation control valve
●boiler feedpump recirculation control valve (minimum flow valve)
Installation site view
Pneumatic control valve in Indonesian chemical plant
Feedpump Recirculation Valve in Power plant(2*660MW)
Packing & Delivery
Generally packed in export wooden boxes ,and also can be packed according to customer's requirements .
Contact Us Now
Warmly welcome to call or write to consult and negotiate details.
Company Profile
● History: Since 1991, rich experience of manufacturing regulating valves, pneumatic high-pressure traps, and forged steel globe valves
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Testing facilities : Large-scale fluid laboratory, test range : 25-400mm diameter valves; 4 sets Hydraulic valves pump test desk; Handheld Spectrometer; Ultrasonic fault detector; Tensile testing machine; Shock testing machine etc.
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
FAQ
Q1: Are you a factory or trading company?
Q4: What is your hot items?
A1: We are a family business integrating manufacturing and trading, and our headquarters are in Suzhou, China
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; final Inspection before shipment;
A3: Always a pre-production sample before mass production; final Inspection before shipment;
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
Похожие товары
1630 мм DC 3 В/6 В Push Pull Type открытая рама электрический замок pick электромагнитный соленоид
328,19 ₽ - 437,58 ₽

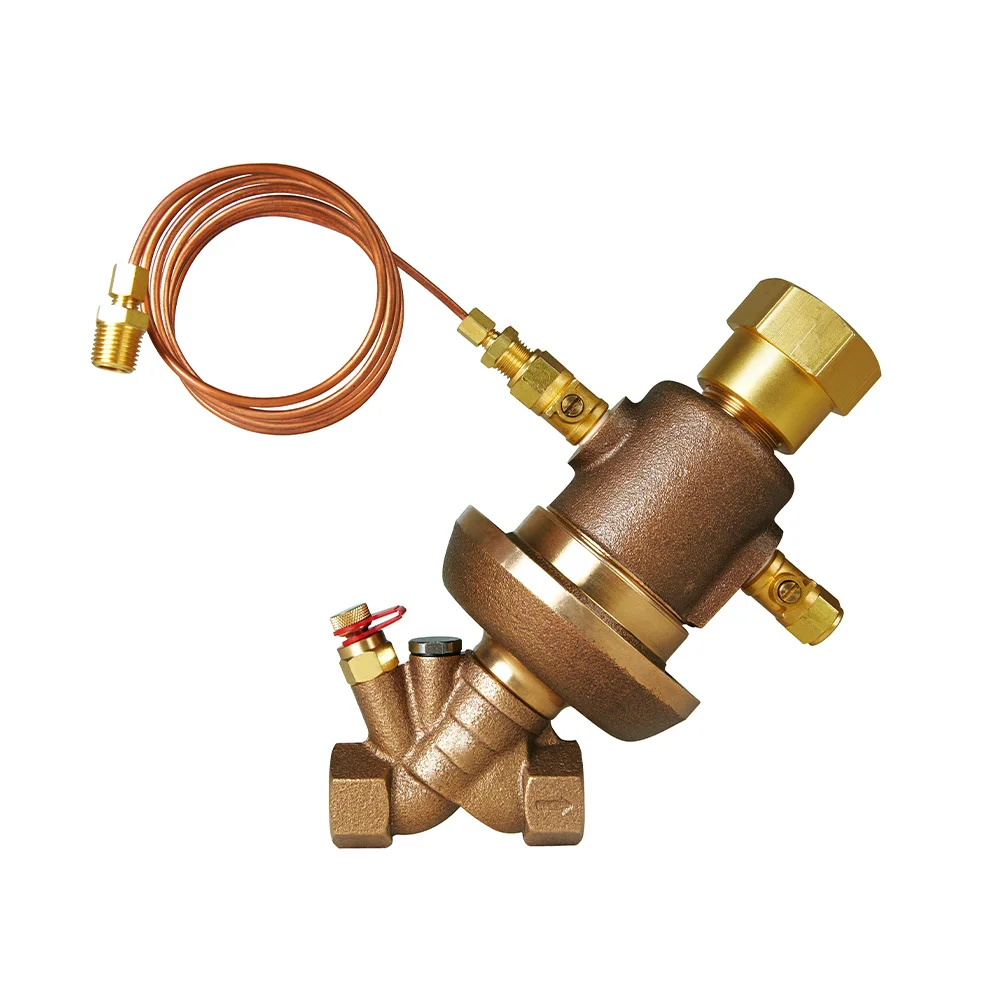

Регулирующие клапаны для регулировки перепада давления, с арматурой для измерения расхода
18 815,67 ₽

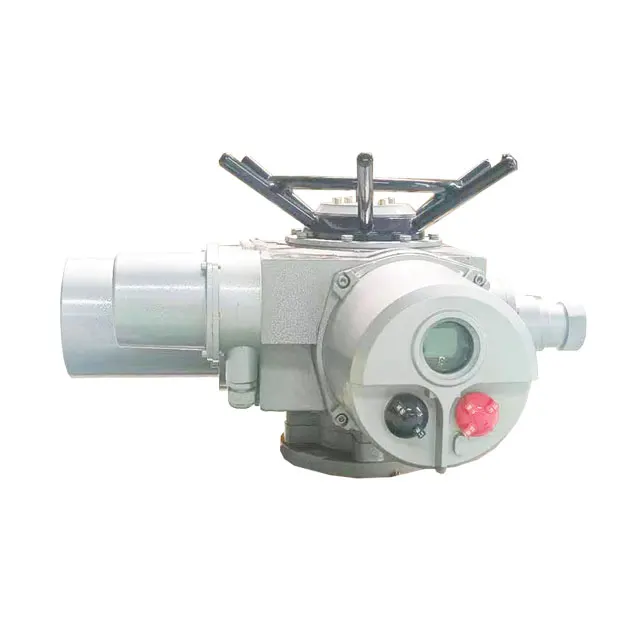

Многооборотный Электрический привод 4-20 мА, регулятор расхода 200 нм ~ 500 нм 380 В, интеллектуальное регулирование прямого подключения клапана
9 298,44 ₽ - 27 457,75 ₽

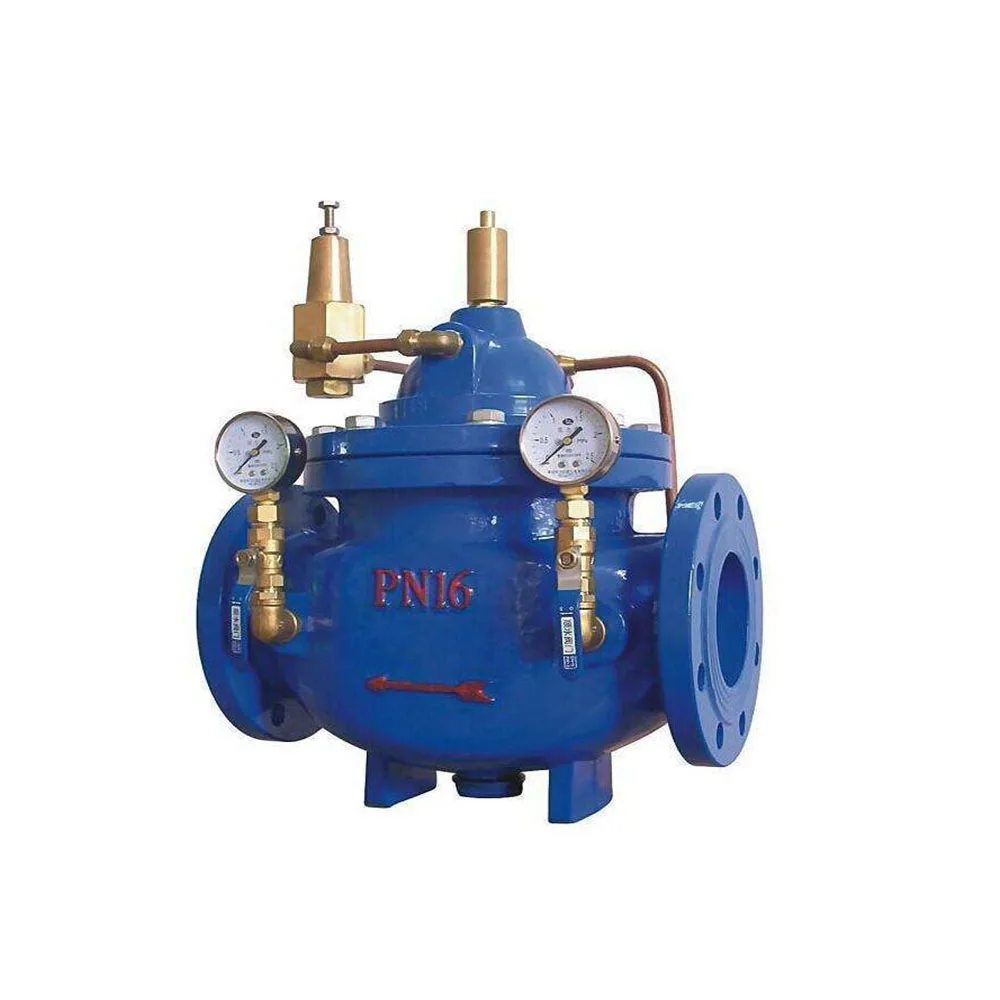

400X 125DN автоматический клапан управления расходом воды с регулятором расхода
Латунный латунный клапан радиатора TOPFLOW 1/2 дюймов для регулирования потока системы отопления
SS304 нержавеющая сталь санитарный наконечник Электрический пневматический регулятор потока регулирующие клапаны
30 422,31 ₽ - 34 360,47 ₽

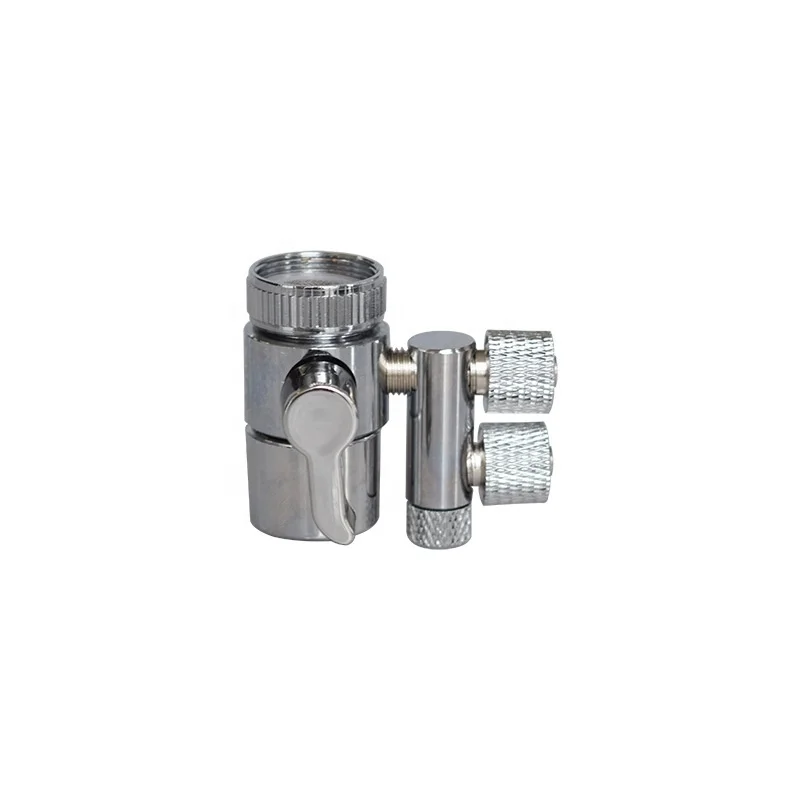

Кухонная мойка сплиттер переключающий клапан из нержавеющей стали кран адаптер переменного тока, 3-сторонний выход перепускной клапан водопроводной воды разъем
