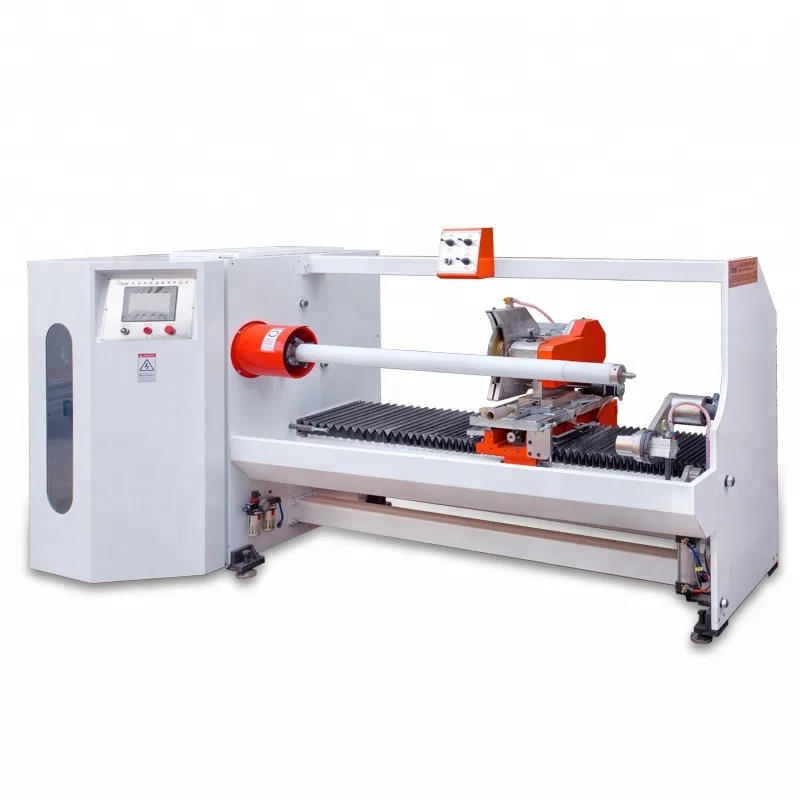

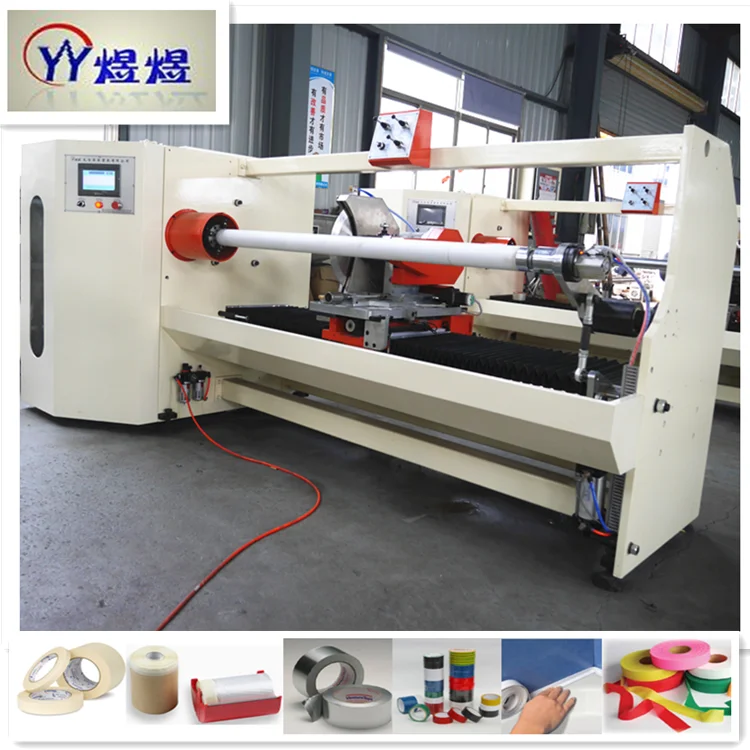

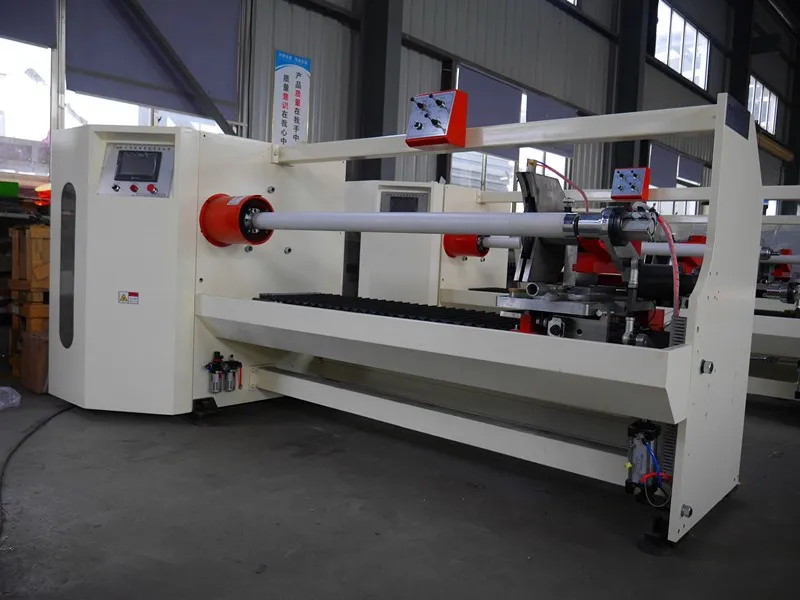

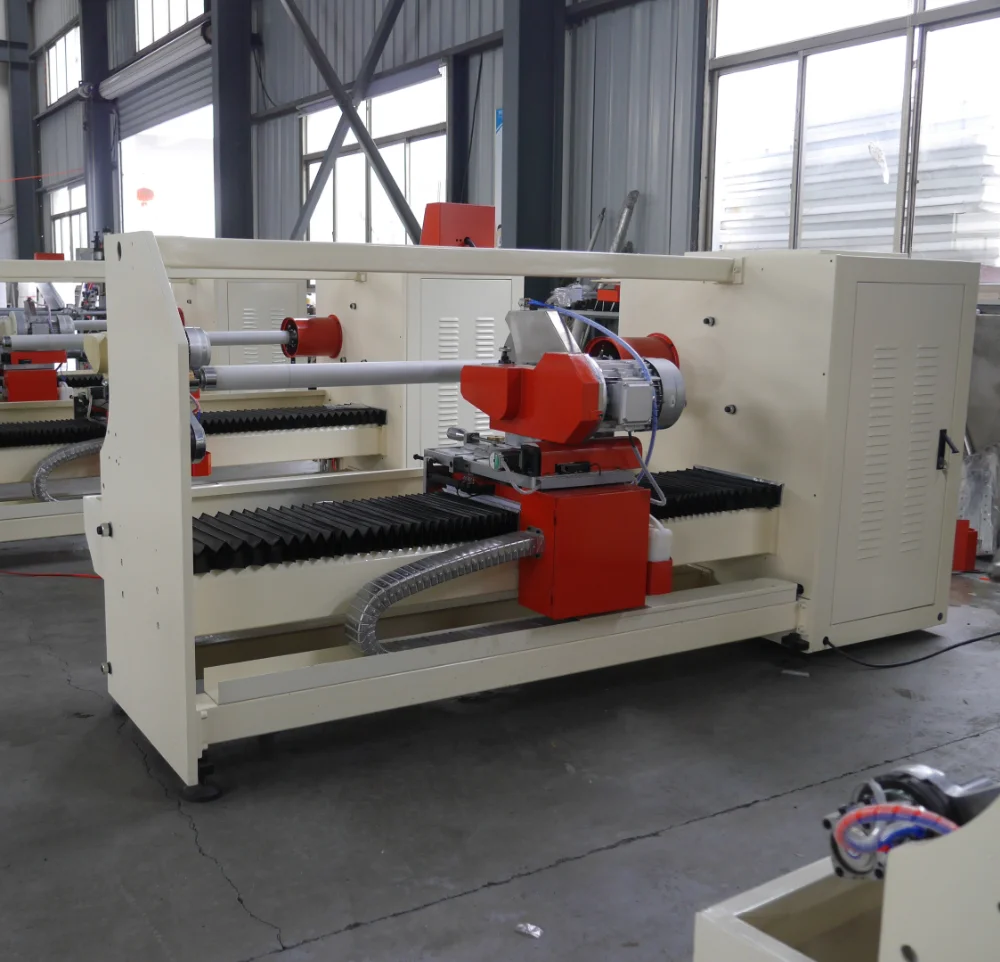

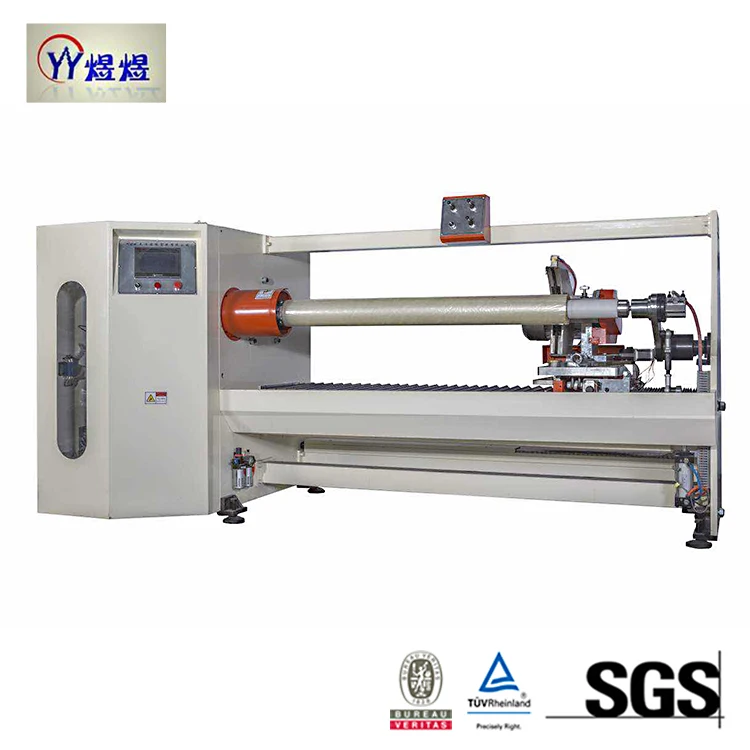

YU 701 рулон клейкой ленты с одним валом

YU 701 рулон клейкой ленты с одним валом

Категория: >>>
Поставщик: Taicang Yuyu Plastic Products Co. Ltd.

Цена:15 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Features:

1.Centralized control panel

2.Control panel provide the major functions:Material and blade running speed (LED screen display ),which counter,number of cut counter.

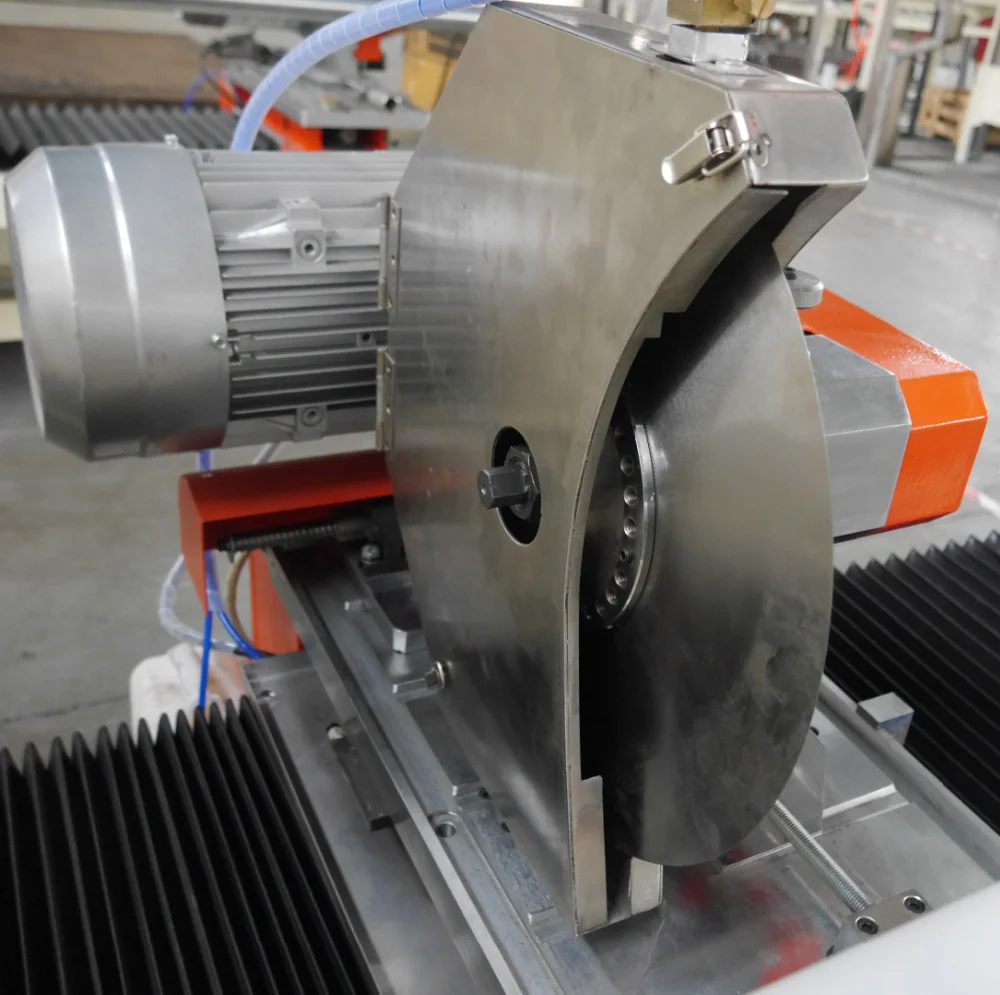

3.Cutting width setting up controlled by servo motor adjustable equipment with ball screw to secure accurate size.

4.PLC programmable control.

Application

It is suitable for cutting various log roll materials such as insulation tape,polyester tape, PVC, OPP ,PE,Masking tape,double-side tape.

Technical Parameters
Max.cutting diameter	280mm
Max.cutting speed	35 cuts/min
Max.length of cut	1300mm or 1600mm
Inside diameters of paper core	32-76.2mm
Cutting width	1-1600mm
Cutting precision	± 0.1mm
Main motor	5HP
Blade diameter	150-350mm
Blade speed	360-1800rpm
Weight	1150kg
Machine dimension (LWH)	285014301520mm

\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

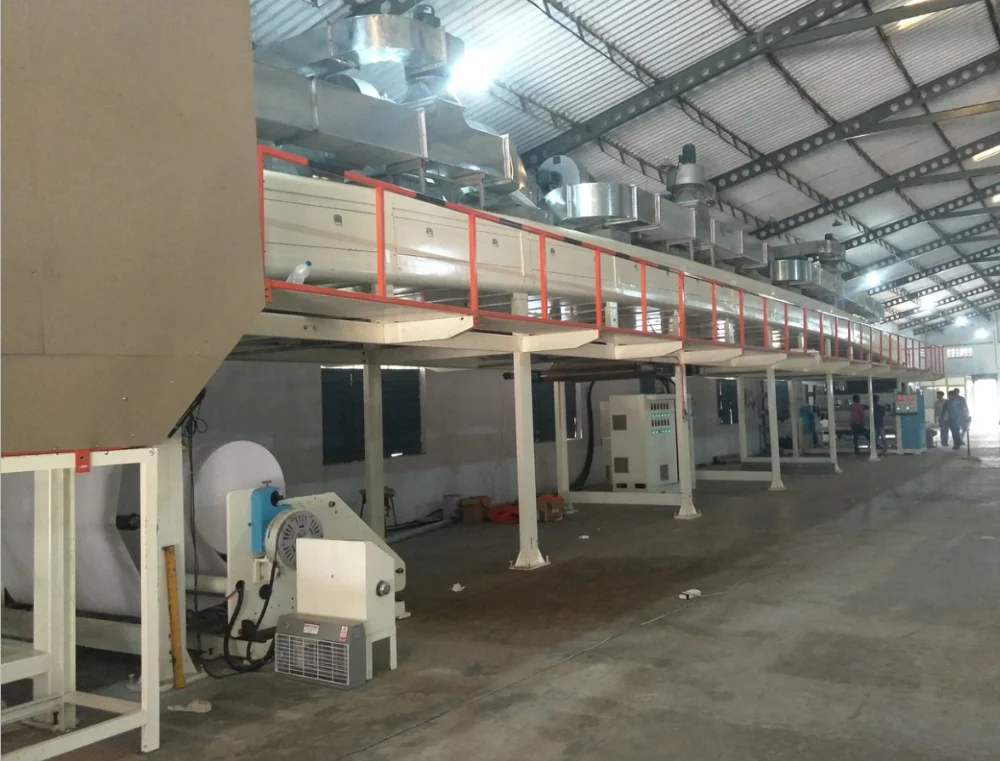

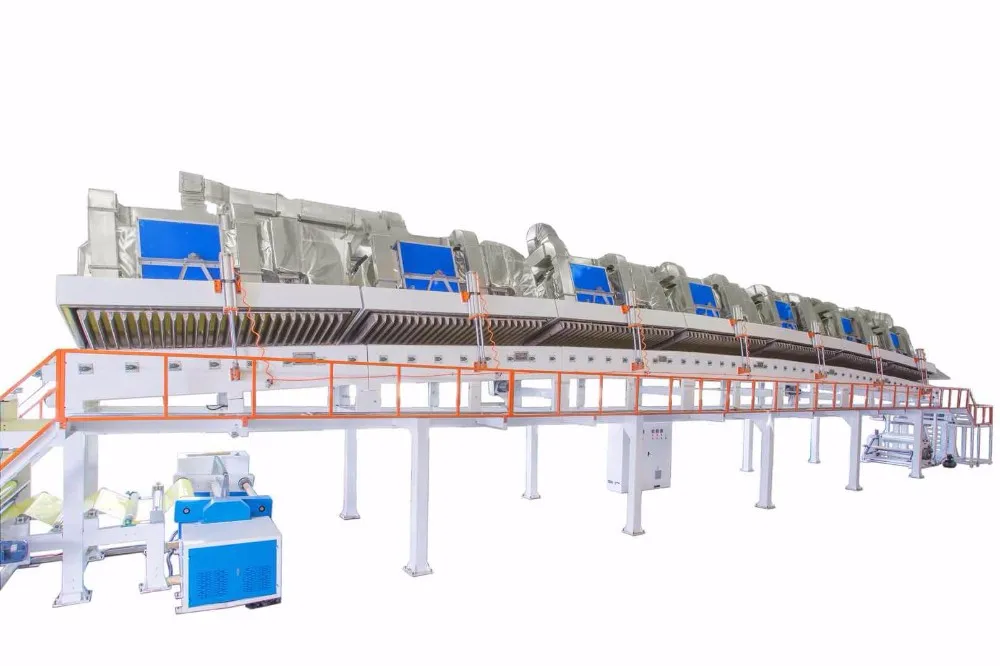

C2-02 Multifuntion coating machine

Suitable for the basis material such as release paper,ads material ,masking tape,label sticker,double-side tape,cloth tape ,relective cloth and reflective film etc.

YU-210 OPP tape slitter rewinder

Suitable for the slitting of OPP tape etc.

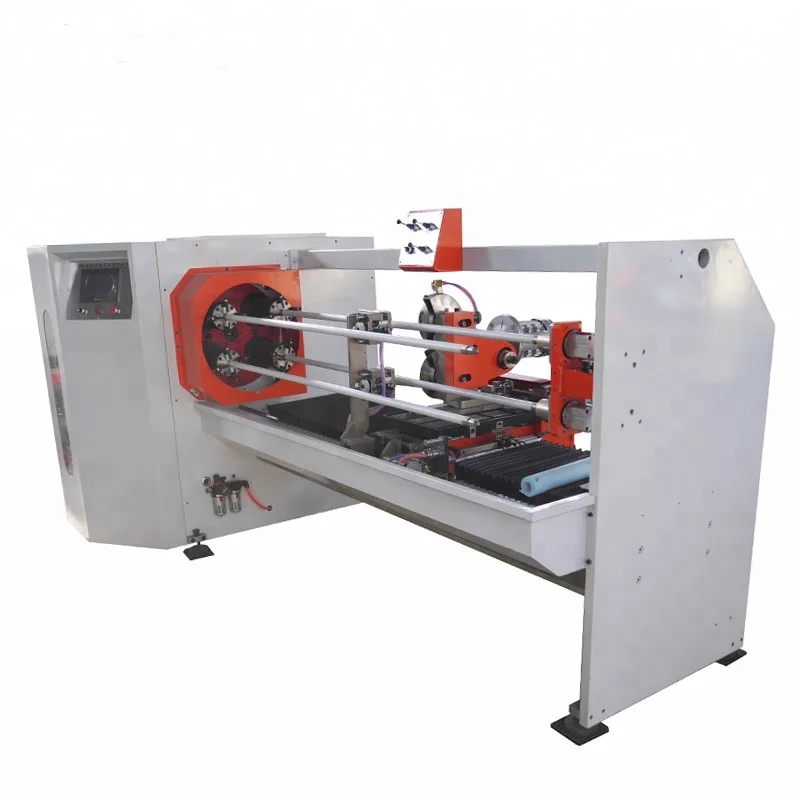

YU-701 Single Shaft Cutting Machine

Suitable for cutting various log roll material such as insulation tape,polyester tape , PVC, OPP ,PE,Masking tape,Double-side tape, Plastic films etc..

YU-3310 Duplex Center Surface Slitter Rewinder

Suitable for slitting various adhensive tape, label stocks,films,papers, such as release paper,OPP film,aluminum foil etc.

YU-802 Double shaft auto rewinding machine

Suitable for rewind various electric tape,industry tape,BOPP adhensive tape,foil film.

YU-K1300 Duplex center slitter rewinder machine

Suitable for slitter various OPP,PET.PVC,printing and packing film,laminating films.

\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t

Our Company

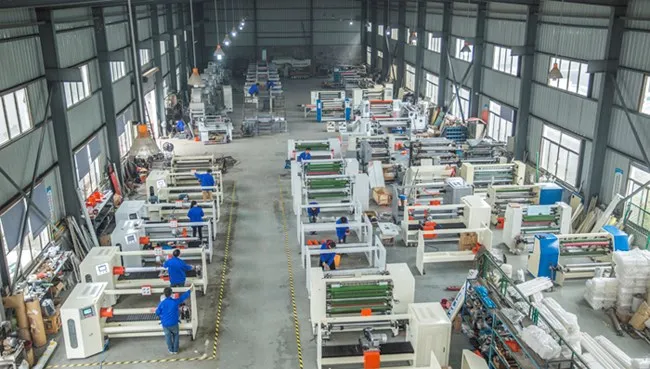

Yu Yu Plastic Co., Ltd is located in China Tape Technology Industry Park, Taicang City, Jiangsu Provience where is near to Shanghai City .The company is a professional manufacture of adhensive tape device after the Steel Machinery. We provide profeesoinal technology, perfect service,so that every customer can feel free to buy and feel comfortable to use.
