Сага лакированная HF сушилки шпона машины печи для сушки древесины HFVD100 SA

Сага лакированная HF сушилки шпона машины печи для сушки древесины HFVD100 SA

Категория: >>>
Поставщик: Shijiazhuang Saga Machinery Co. Ltd.

Цена:60 000,00 $ - 62 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

SAGA Patent RF/HF Veneer Dryer Machine Wood Drying Kiln For Sale HFVD100-SA

Description HF Dryer

SAGA Patent RF/HF Veneer Dryer Machine Wood Drying Kiln For Sale HFVD100-SA

1.High frequency heating.A new technology totally different from the traditional conductive heating.Heating wood from inside to outside because HF wave can penetrate thick wood.Where there is moisture,there is high frequency.

2.Vacuum condition.It can create a minus pressure,the moisture will be sucked out fastly.The water will vapor in a more lower temperature.It realize low temperature drying,more suitable to wood easy to spark.

3.PLC control system. The PLC comes with common hardwood drying program ready for use. The dryer can run with set program without person guiding or control, gives you perfect drying result without cracking,bending or color change.

4.Application.It is suitable for all kind of wood,from normal solid wood,like pine, walnut,merbau, cypress and so on,to veneer laminate,avoiding shrinking and bending

SAGA Model List

Model	Timber Stack Size	Capacity	Power
HFVD30-SA	1000X1000X3000mm	3m3	30KW
HFVD45-SA	1000X1000X4500mm	4.5m3	30KW
HFVD60-SA	1000X1000X6000mm	6m3	50KW
HFVD80-SA	1000X1000X8000mm	8m3	50KW
HFVD100-SA	1300X1300X6000mm	10m3	50KW
HFVD120-SA	1300X1300X8000mm	13m3	50KW

HF Vacuum wood drying Basic Diameter

SAGA Patent RF/HF Veneer Dryer Machine Wood Drying Kiln For Sale HFVD100-SA
High frequency generator size	1250x2000x2050mm
Drying tank size	7300x2300x2200mm
Cooling tank size	1500x1150x2000mm
Gross weight	10 ton
Inside diameter	1900mm
Tank thickness	12mm
Effective drying size	1300x1300x6000mm
HF input power	70kva
HF output power	50kw
Temperature monitor	Fiber optic temperature sensor,not disturbed by HF
Moisture monitor	Weighting system(SAGA patent technology),most accurate,not disturbed by HF
Cooling system	Stainless steel condenser with stainless steel water-ring vacuum pump
Control system	Fully automatic with PLC touch screen
Hydraulic cylinder	8 ton with 4 pcs cylinder
Vacuum pump	Stainless steel 7.5kw
Feeding way	Automatic
Door of tank	Ears door,more safe and powerful
Weighting system	Under the tank,can weight the wood every time

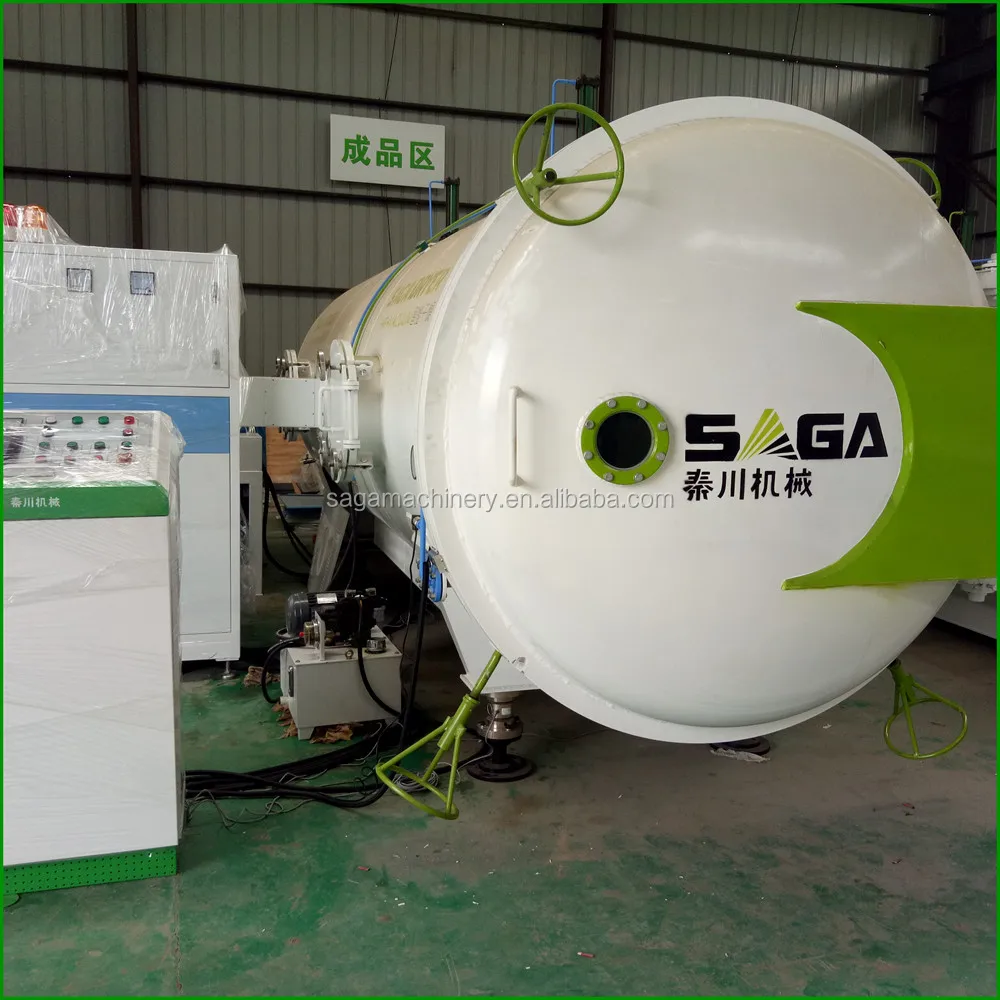

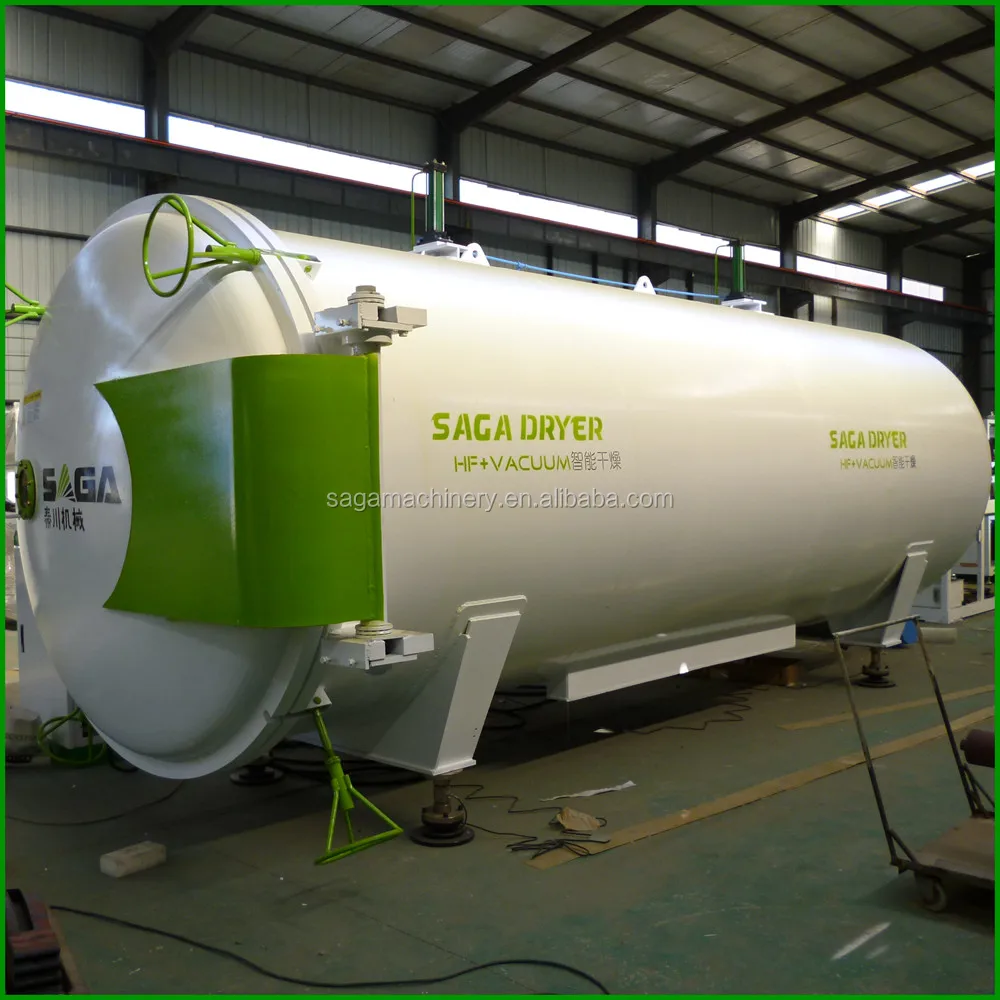

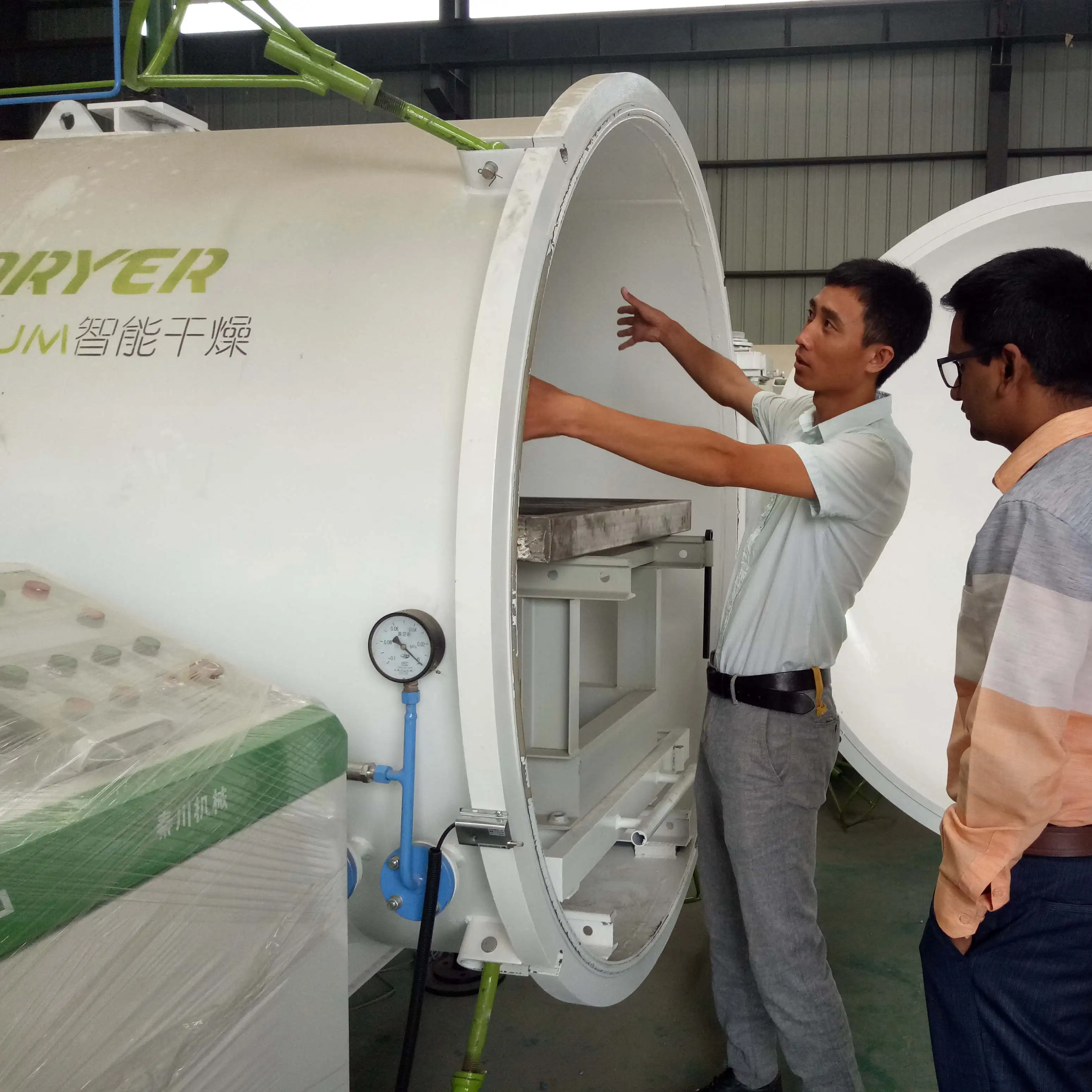

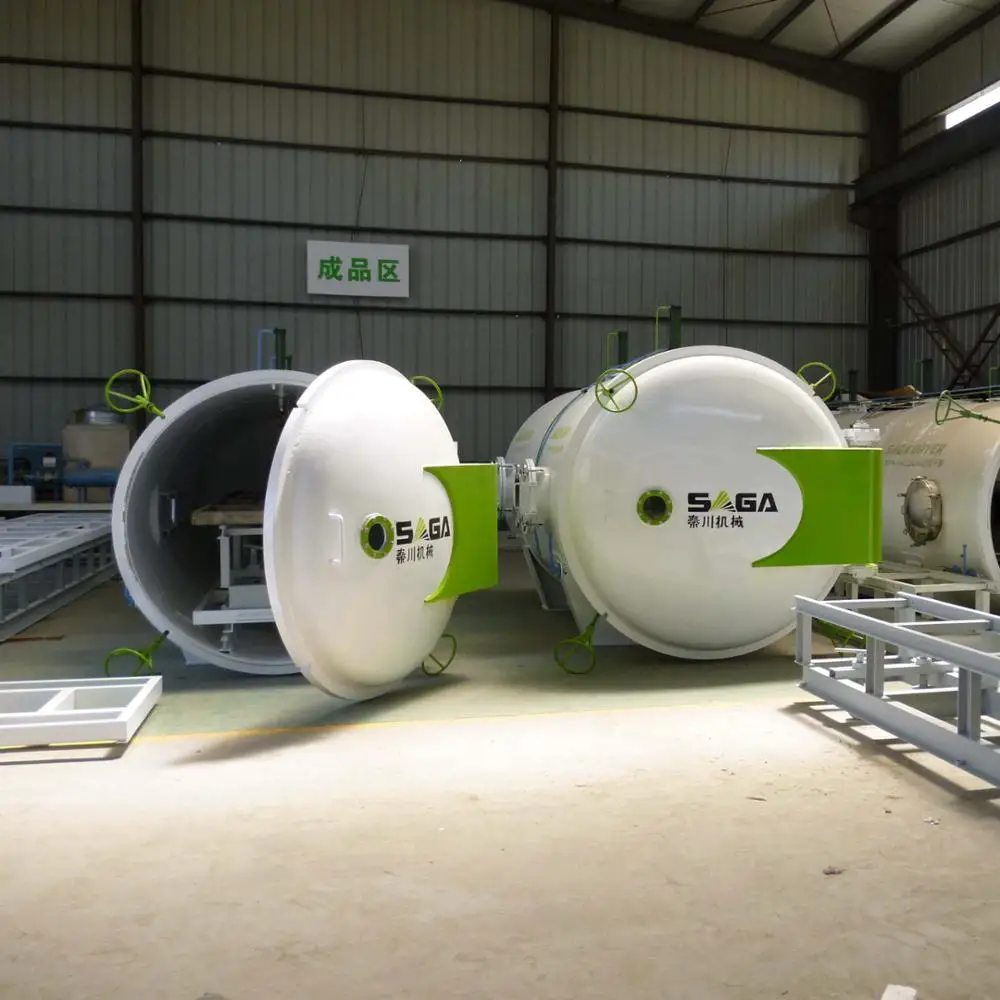

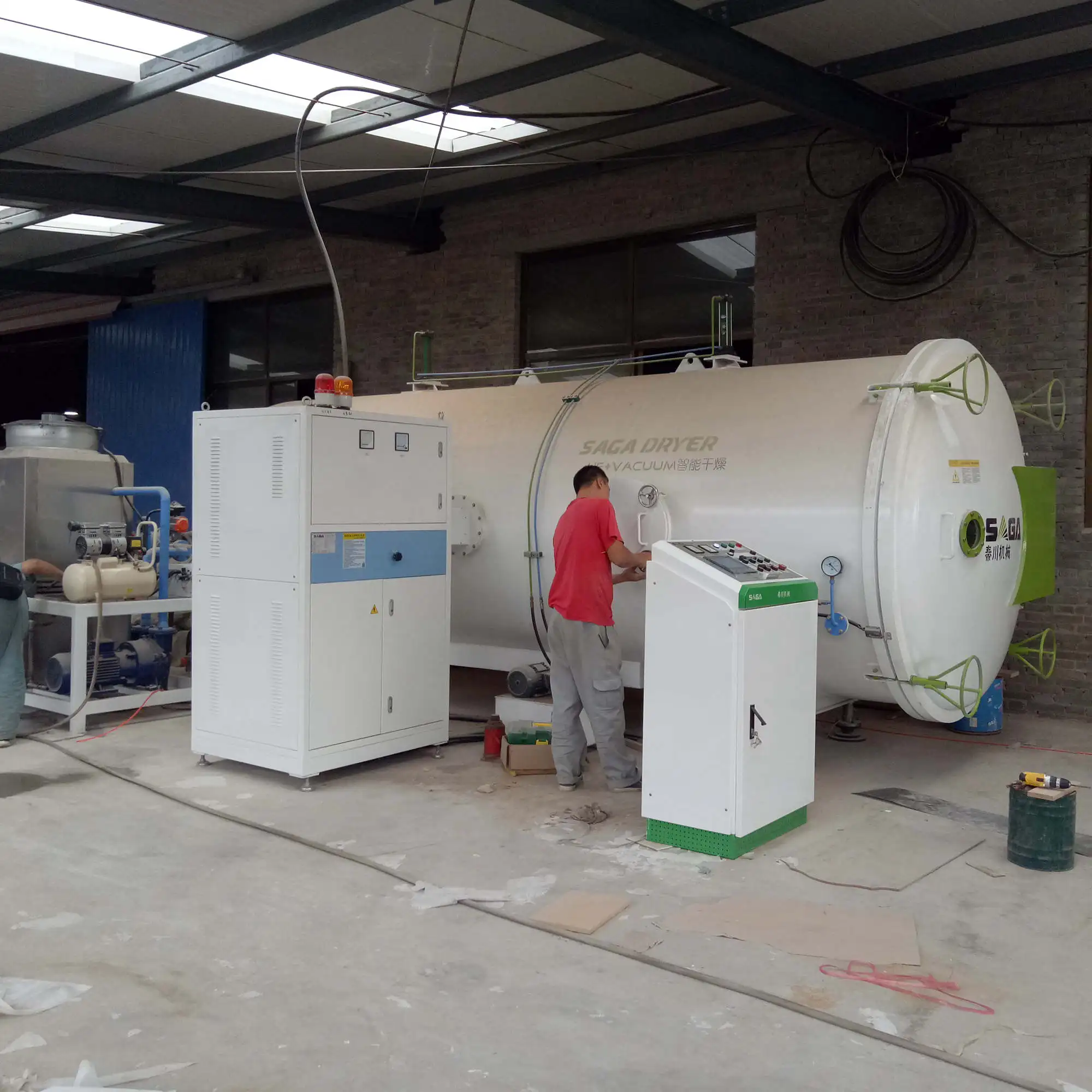

High frequency kiln Main Pictures

HF Vacuum Wood Drying Kiln Features

Fast drying cycle
Automatic feeder
Large capacity
PLC automated systems with touch screen control panel
Uniform heating
No sparking or bending problem
Veneer, panels, hardwood
Weighing testing technology
Fiber optic temperature testing

HF Vacuum Drying Principle

working principle.JPG

SAGA Certifications

Wood Drying Cases

Case	Drying time	Drying Result	Consumption
Sliced veneer	About 40 hours	High quality flatness and water content uniform	200-250kw/cbm
Surface of floor board	About 45 hours	High quality on flatness,no end cracking and deformation,no color changing	about 200kw/cbm
Middle hardwood for second time drying	About 35 hours	Reliving stress,make water content uniform and the wood stable	about 150kw/cbm
Hardwood drying	Rosewood-1 week Red sandalwood-2 week	No cracking and deformation,uniform water content,more stable	about 500-600kw/cbm,different for different wood
Bigh plank	MC from 60% to under 20%,7-10 days,like Birch,Larch,Pinus and so on	No deformation on vertical direction,no cracking problem,much stable	Different wood with different consumption
