China Top sell mechnical descaling row brush machine

 This equipment applicable for high, low carbon steel and alloy steel wire rod drawing shelling, derusting comprehensive treatment.

China Top sell mechnical descaling row brush machine

1.   Description

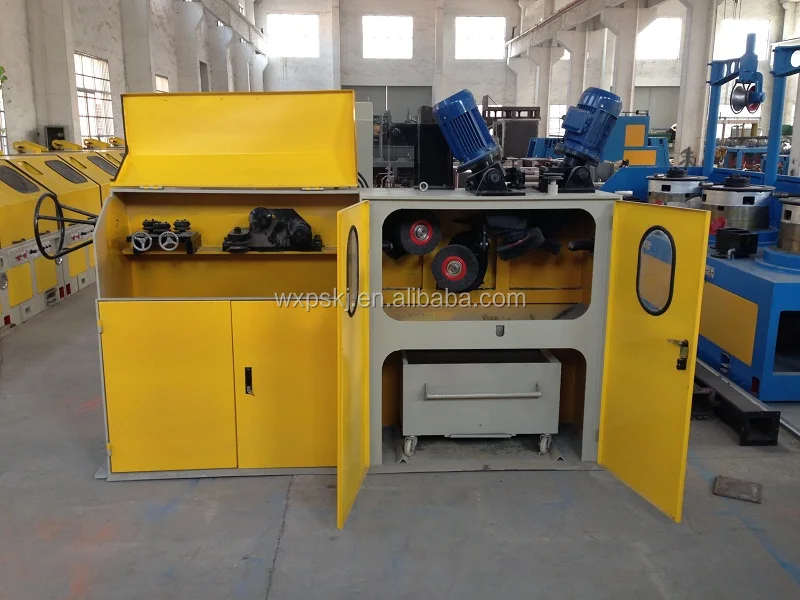

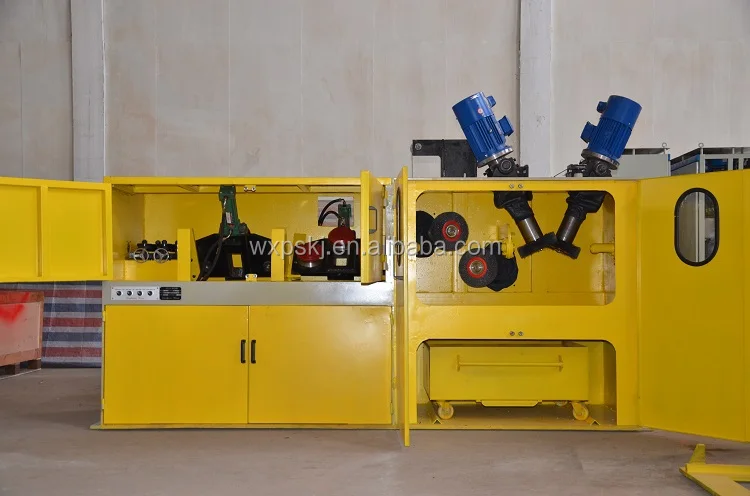

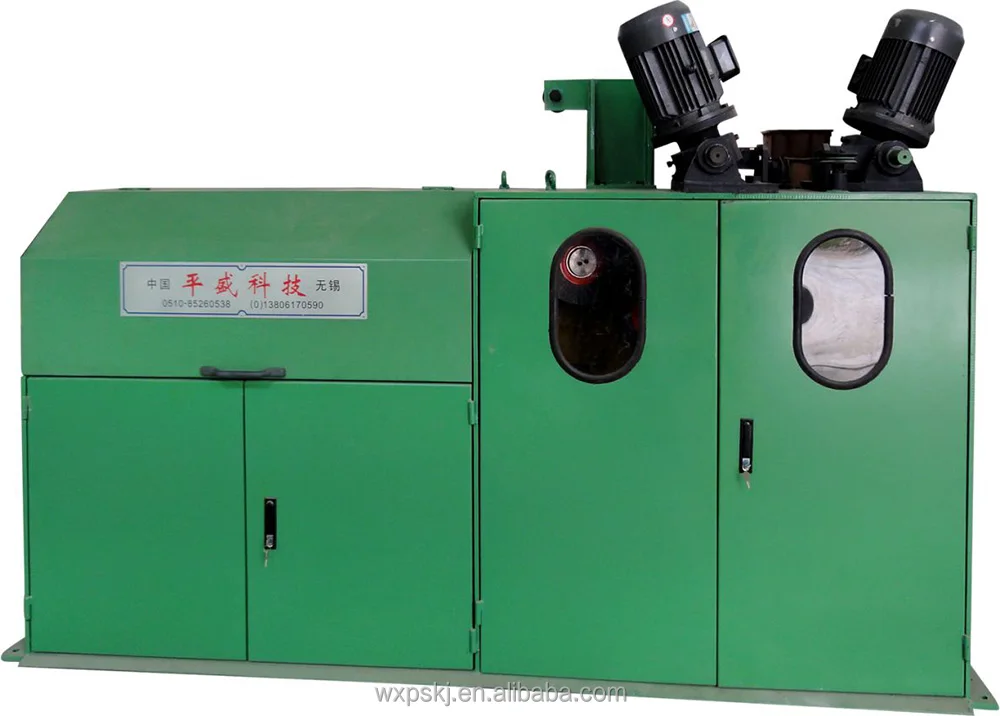

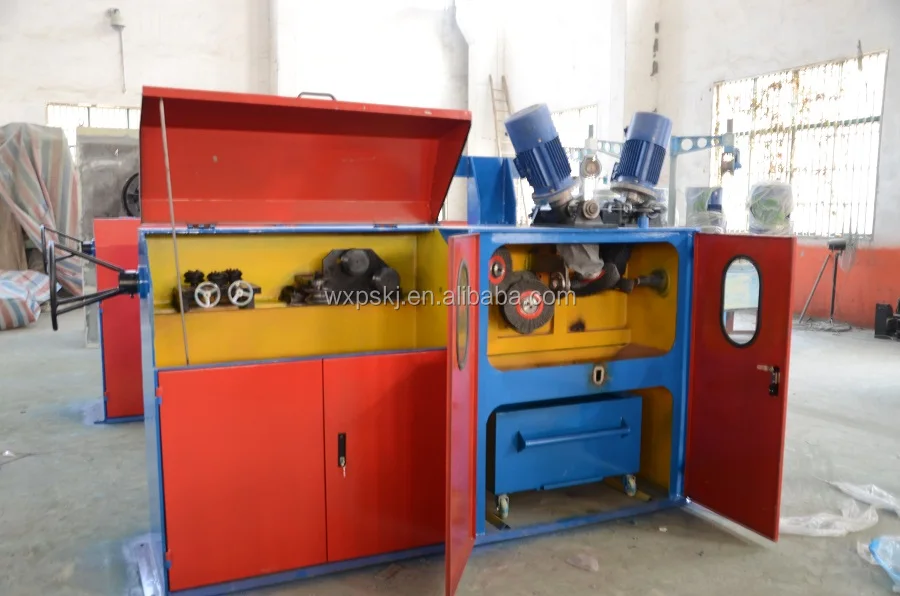

This steel wire surface pre-treatment equipment is our patent product, it has two parts, one is the descaling part, the other part is the row brushing part.

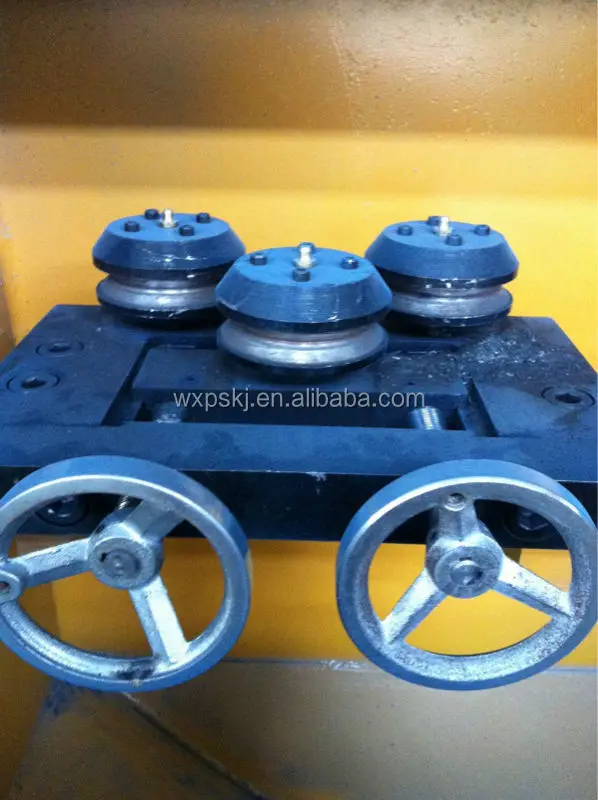

The mechanical descaling part has 4 descaling wheels and the wheel effective diameter is 75mm. The structure is welded by steel and iron plate with a scale collector is in the bottom. The four wheels are tilt mounted at an angle of 90°. Sheller wheel uses alloy material, each fixed frame has three sheller wheels. The wheels are adjustable according to the situation of oxide content, then the steel wire surface oxidation pison scattered, broken and fall into the collector, then the wire goes to the row brush machine.

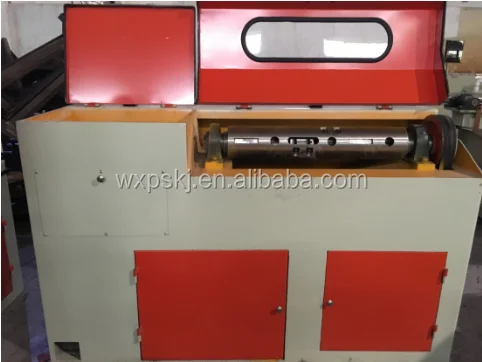

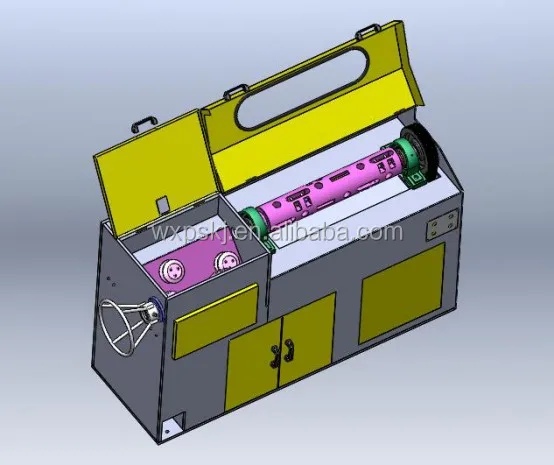

The row brush part is composed of two unit brush rollers, each roller is driven by a 2.2kw frequency motor, the rotation direction is one positive and one negative. The inlet wire diameter fix die can be changed according to the wire rod diameter. Row brushes are arranged in the special manufactured rotation spindle, are 90°successively installed, row brush always stick to do rotary friction. The spindle is directly connected to the motor through the belt, the inverter control the spindle rotation speed. It has the safety shield and observe window hole on top and the dust collector in the bottom.

The material of descaling wheel is Tungsten carbide.

China Top sell mechnical descaling row brush machine

1. Processing wire diameter: ≤Φ8mm

2. Maximum line speed: 120 m / min

3. Cleaning brush wheel speed: 1500r / min

4. Rated power: 4* 4kw

5. Size: 3670mm * 1550mm * 1870mm ( length * width * height)

6. Steel brush diameter: 420 * 250 * 50

7. Weight: 2.5kg

8. Dust remover weight: 500-600kg

9. Each device can handle the wire  ≤ 8mm,  ≤ 10 tons(8 hours)

10. Light rust-resistant wire time: 6 months

11. Each processing a ton of material of steel wire brush consumption not more than 0.01, that is also disposed wire 3500-4000 tons for a steel brush.

12. Rust removing machine for shelling wheel life treatment wire of 8000-10000 tons.

13. To achieve multi-channel united into the automatic production line, drawing cost per ton than the conventional process can be reduced to around 8 dollars

Warmly welcome !

--------------------------------------------------------------

About us

       Wuxi Pingsheng Science & Technology Co., Ltd. , one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 1985.

 1. We have gotten ISO9001:2008 standard and certificate

2. Company established year: 1985

3. Company location: Wuxi city, 125km away from Shanghai

4. FOB port: Shanghai

5. Business type: Manufacturer

6. Number of employees: 100-200

7. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi

 ------------------------------------------------------------------

Successful experience / Markets

     Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.

----------------------------------------------------------------

 Feel free to contact me with any question.
