16 or 32 64 96 IP QAM Modulator

Product Overview

SNK6194 IP Mux-Scrambling modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by SHINECO. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.

Key Features

• 2 GE input, SFP interface


• Supports up to 1024 channels TS over UDP/RTP,  unicast and multicast, IGMP v2v3


• Max 840Mbps for each GE input


• Supports accurate PCR adjusting


• Supports CA PID filtering, remapping and PSI/SI editing


• Supports up to 180 PIDS remapping per channel


• Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and  ETSI 103 197


• Support 16 multiplexed or scrambled TS over UDP/RTP/RTSP output


• 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B


• Supports RS (204,188) encoding


• Support Web-based Network management

Inner Principle Chart

Carrier Setting Illustration

Specifications

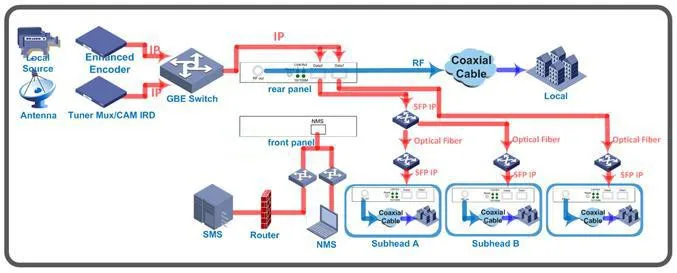

System Connection Sample (IP Based)

Advantage
