5 микрон 10 полипропиленовый фильтрующий картридж для расплава/полипропиленовый картридж/картридж фильтра

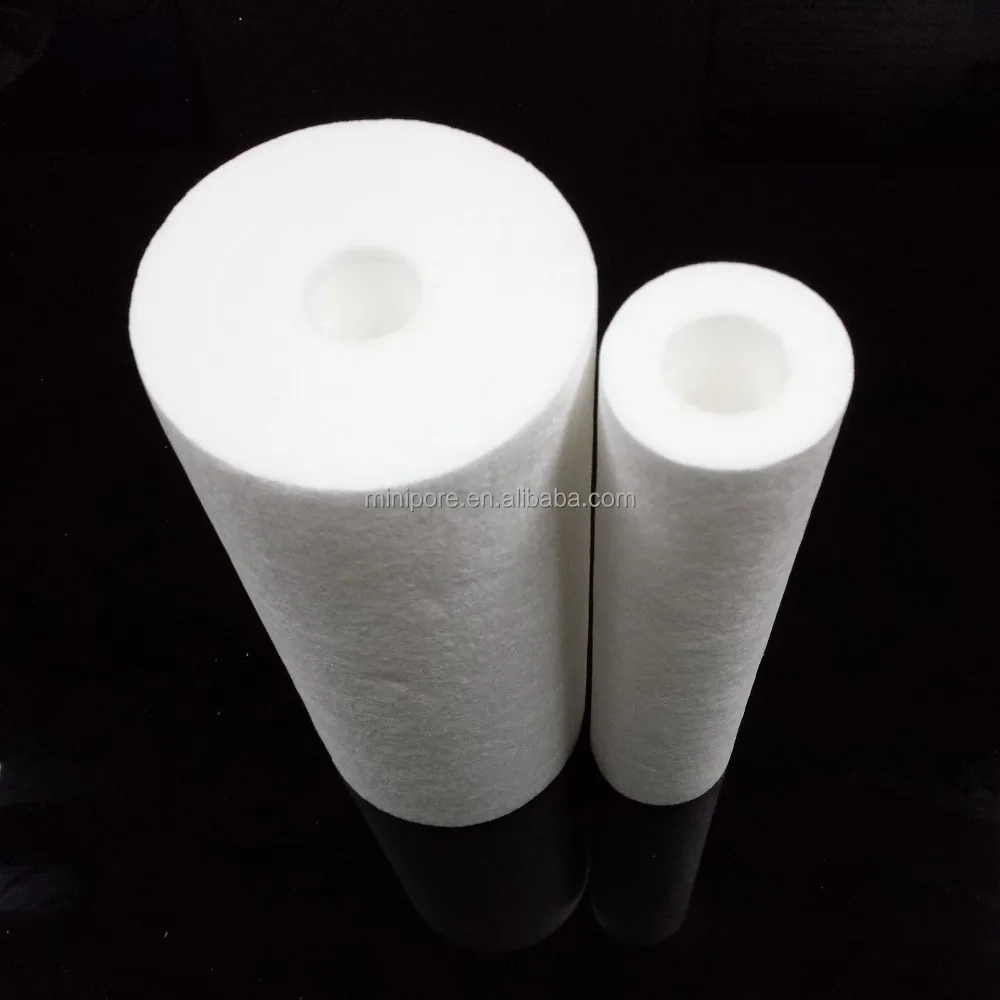

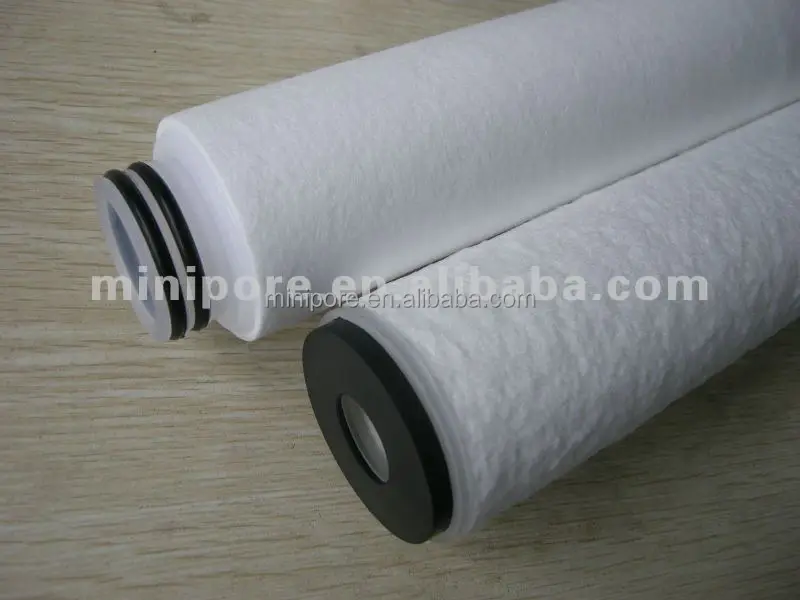

PP Melt Blown / Spun Cartridge Filters

Features & Benefits

• Absolute ratings (efficiency 99.98%; Beta rate: β 5000)

• Surface pore structure spreads water flow to reduce pressure drop

• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency

• High strength and pressure resistance

• Micro-denier melt blown filtration fiber, high removal ratings

• 100% PP for compatibility with a wide range of process fluids

• Formed by thermal bond without use of any binders and adhesives

Applications

 Drinking water treatment

• Pre-filtration for RO+DI

• Food and beverage

• Plating, Chemicals and Solvents

Material Of Construction

• Material : 100% PP microfiber

• Micron rating: 1, 3, 5, 10, ... 100um

• OD. 62-65mm/110-115mm; ID. 28mm

• Length: 5", 10", 20", 30", 40", 50", 60"

Operating Conditions

• Maximum differential pressure: 4.1bar at 20℃; 2.1bar at 60℃; 1.1bar at 80℃

• Recommended change out: 2.0bar

• Maximum temperature: 80℃

Dirt Holding Capacity

Cartridge Dimensions

A. Filtration Area:0.5㎡ each 10″length

B. Outer Diameter:69mm

C. Nominal Length:5″,10″,20″,30″,40″etc

D. Micron Rating:0.1,0.2,0.45,0.65,1,3,5…µm

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
