Product Description

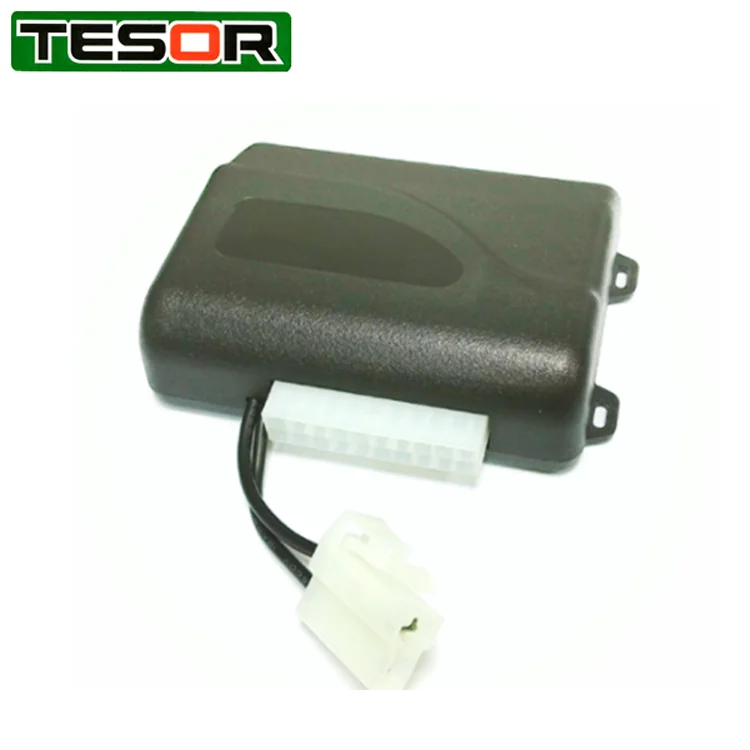

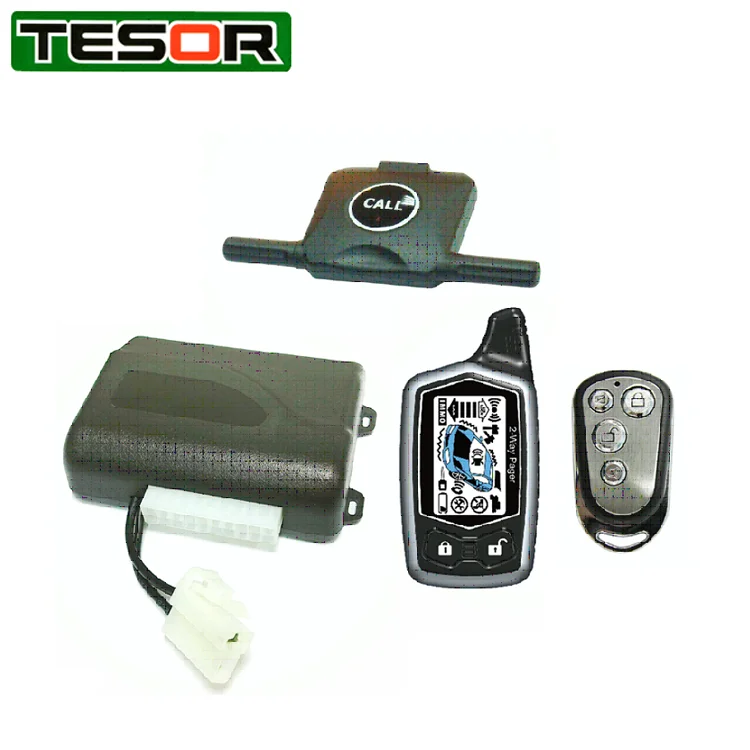

OEM Car Alarm System with Remote Engine Start



Main Features

  • Built-in 40A Engine disable relay
    Universal Central Door Lock interface
    Dual stage shock sensor
    Indicator light flash
    Independent power for light flash
    “+”/”-“ door trigger input
    Trunk trigger input
    Hood trigger input
    2nd channel output
    3rd channel output
    4th channel output
    ASK modulation
    Random code
    High output 6 tone siren
    Optional external engine disable relay
    Ignition safety lock (Programmable)
    Passive arming (programmable)
    Passive locking (Programmable)
    Passive immobilizer (Programmable)
    Turbo mode (programmable)
    2nd stage unlock (Programmable)
    Dome light supervision (programmable)
    Arm/Disarm chirp (programmable)
    Door lock pulse (1 or 2 programmable)
    Door Anti Hi Jack (programmable)
    2 way remote check in-range (programmable)
    Door lock pulse (0.8/4 second programmable)
    Dome light delay (programmable)
    Arm/Disarm by remote
    Silent arm/disarm by remote
    Remote Anti Hi Jack
    Panic mode
    Remote car finder
    Remote shock sensor bypass
    Valet mode
    Remote Status check
    Vibration mode for LCD remote
    Code learning
    Horn honk output
    LCD remote low battery indication
    LCD remote button Lock mode
    Defective zone bypass
    Disarm with triggered alert
    7 section LED indication
    Auto re-arm
    2 step disarm
    Power disconnection memory
    PIN code override mode
    Programmable PIN code



PROGRAMME  MODE  TABLE
Press lock button
Item NO by LED flash
PROGRAMMEFEATURES

Press  unlockonce

1-chirp

Press unlock twice

2-chirp

Press unlock 3 times

3-chirp
 1Ignition on safety door lock *W/I  W/O X
 2Passive arming & door lock *W/O

W/I

Without door lock

W/I

With door lock
 3Passive immobilizerW/I *W/O X
 4Channel-2 output feature   *Trunk openTurbo   2nd stage Unlock
 5Channel-3 output feature *2nd-killer Turbo Dome Light
 6Arm/Disarm chirp ON/OFF *ON   OFF X
 7Door unlock 1& 2 pulse *1pulse   2pulse X
 8Door switch Anti car-jack mode *W/O W/I X
 92-way remote check in-rangeW/I *W/O X
 10Door lock time 0.8/4 seconds*0.8sec 4sec X
 11Door switch arming delay*8sec 30sec X
 12Factory default settingPress  button unlock once, siren give 1 long chirp and all features back to factory  default.





Company Information

01







Founded in 1987, the ISO 9001 and TS16949 certified Tesor Plus Corp. is professional designer and manufacturer Smartphone Remote Control & Tracking with 2 option camera monitor, Smartphone Fingerprint Immobilizer, Smartphone Garage Remote Control, Touch-Screen 2-Way Alarm & Starter, LCD Display 2-Way Alarms & Starter, Dialog 2-Way Alarms, Frequency Jumping 2-Way Alarms, 4-Way Dialog alarms , Wireless Relay Immobilizers, Wireless Fingerprint Immobilizers, Cellphone Proximity Immobilizers & Keyless Entry, Smartphone Fingerprint Immobilizers & Keyless Entry, DIY Alarms, 2-Way DIY Alarms, ...etc. with 2 factories in Taiwan and China.


You are welcome to link to our company YouTube show casing for our company and factory introducing:
//youtu.be/cfBibsTXLHg
And see our factory profile...


Tesor is diligently engaged in developing the new innovative items by using the latest technologies and manufacturing at competitive price to keep creating new market niches. TESOR not only has many experienced in-house engineers, we also own many advanced R&D equipments. We also owns SMT/DIP/Assembly Production Lines, as well as many advanced testing equipment for RF and Digital Signals, Hi-Low Temperature, EMC-EMI Magnetic/Noise Interference High Voltage Static Electricity, Vibration/Dropping...reliability testing to ensure the innovative products with excellent quality, meet and pass key International safety and quality standards, such as CE, e13, FCC, 3C, etc.
