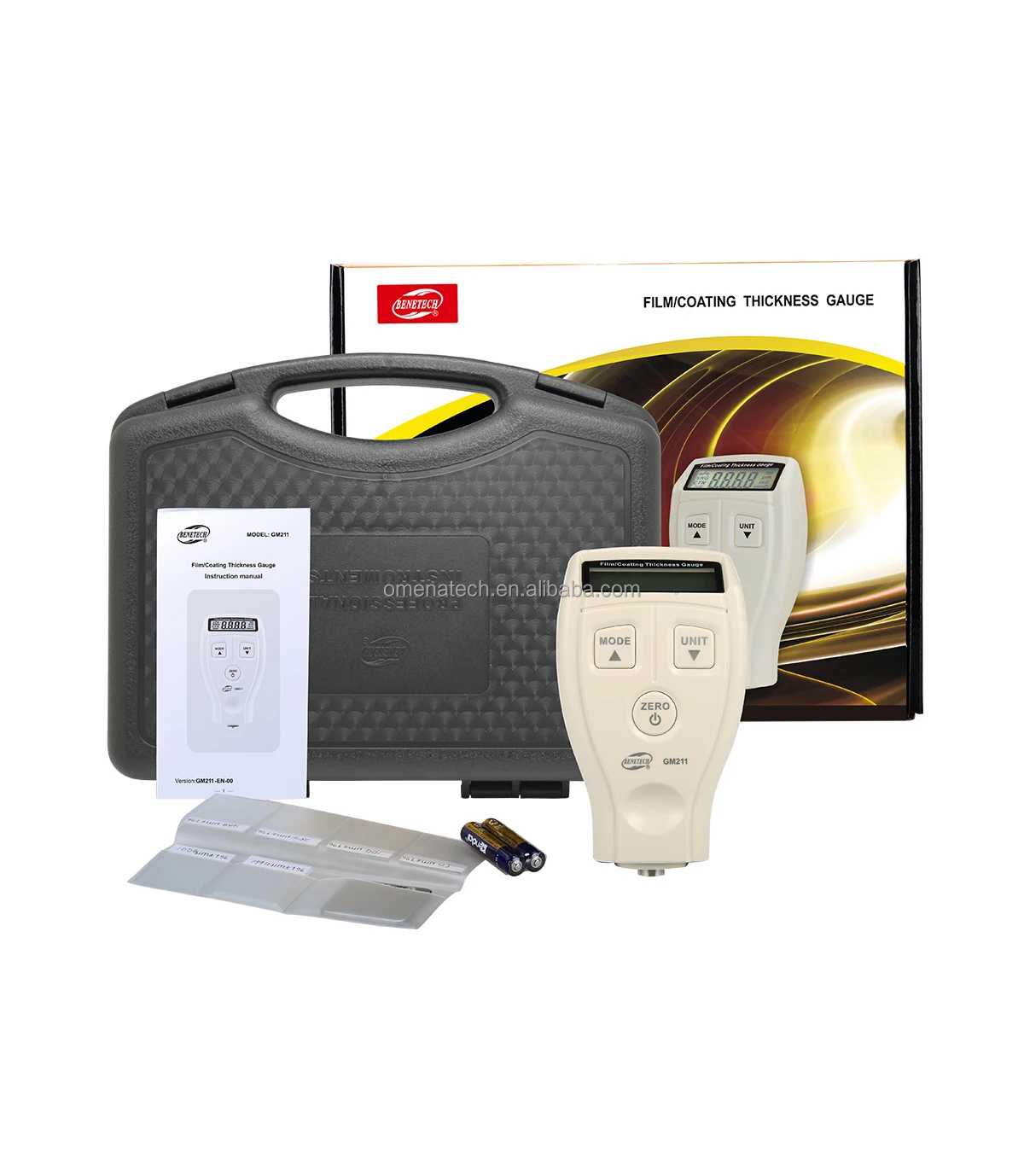

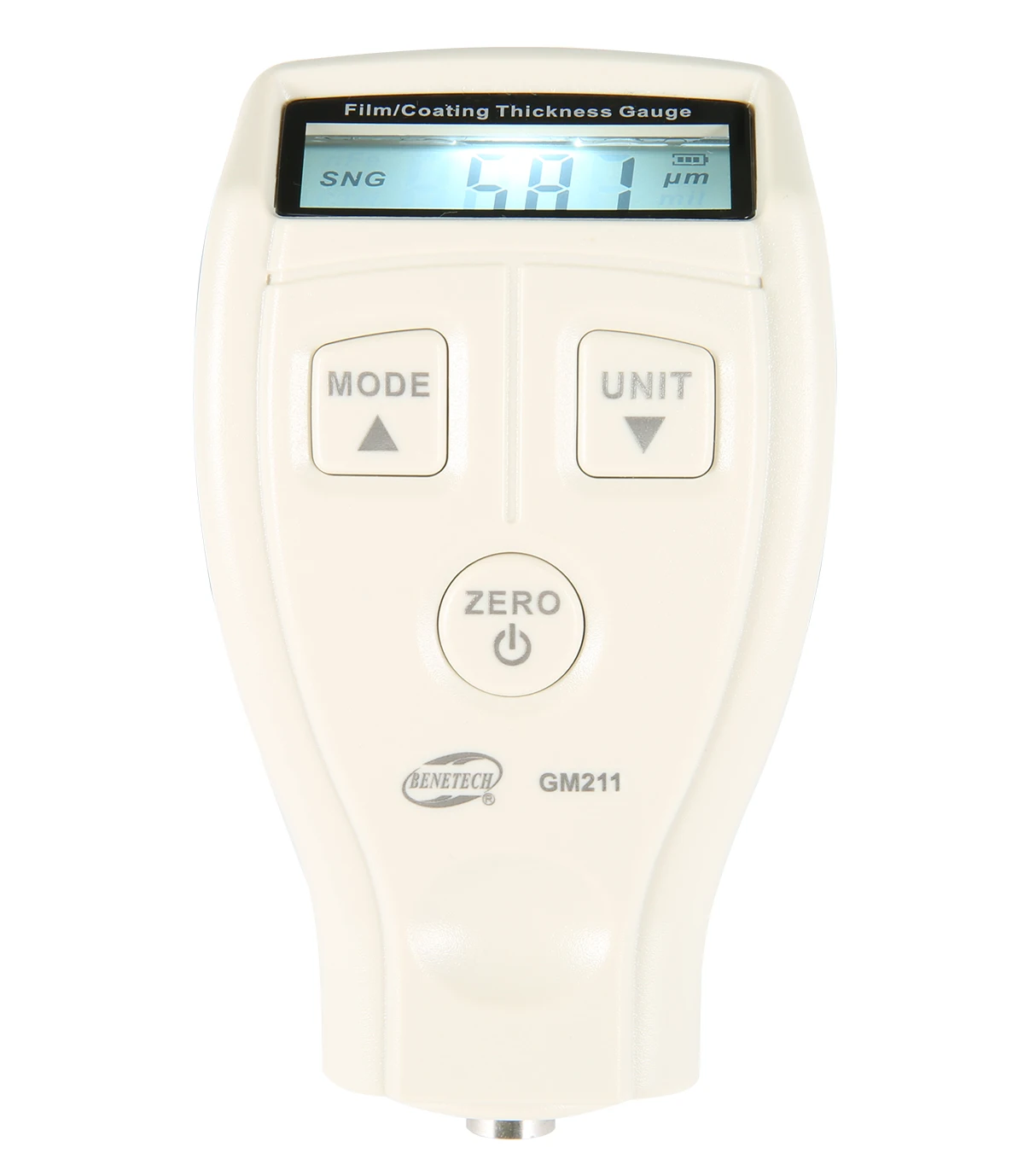

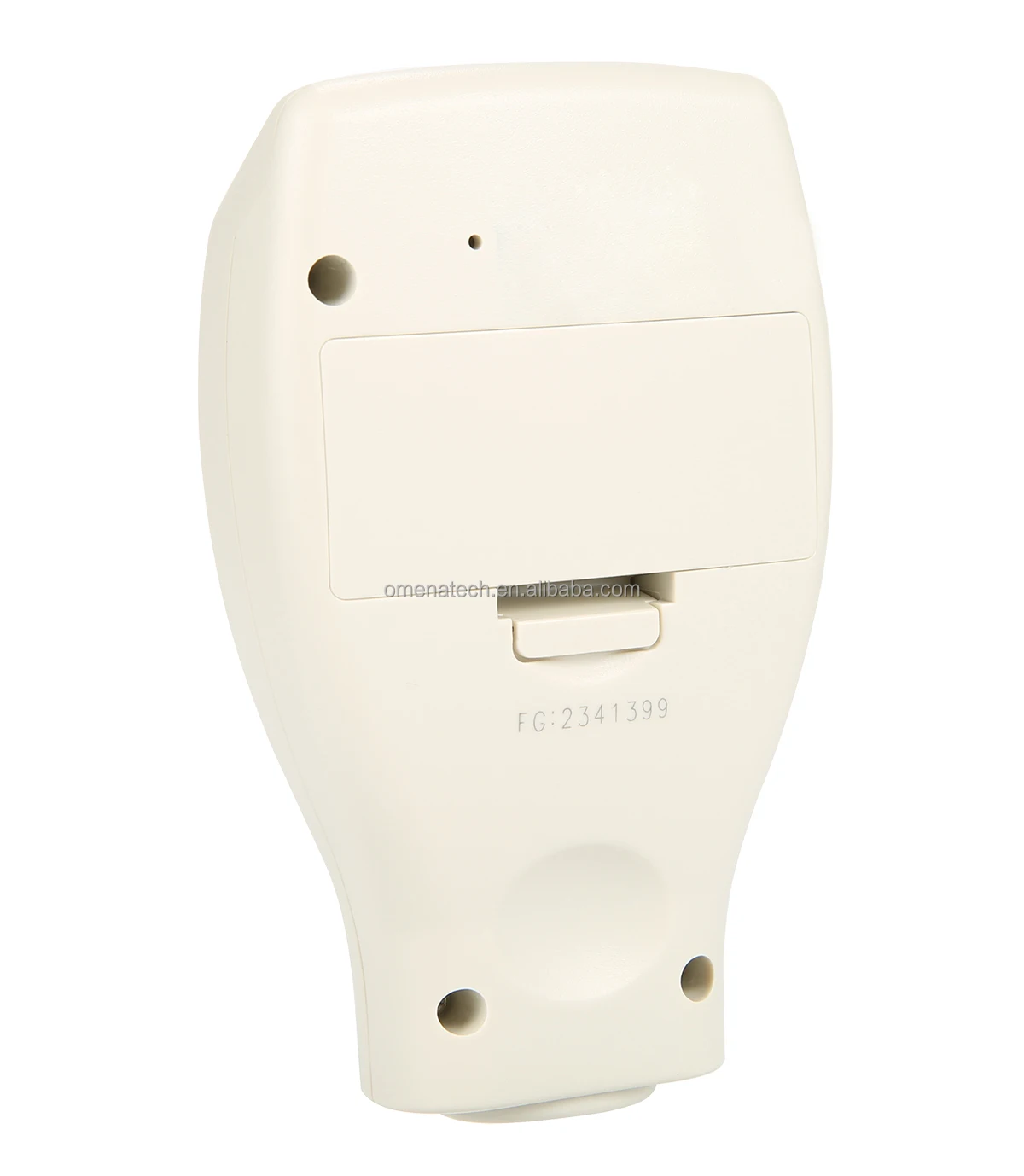

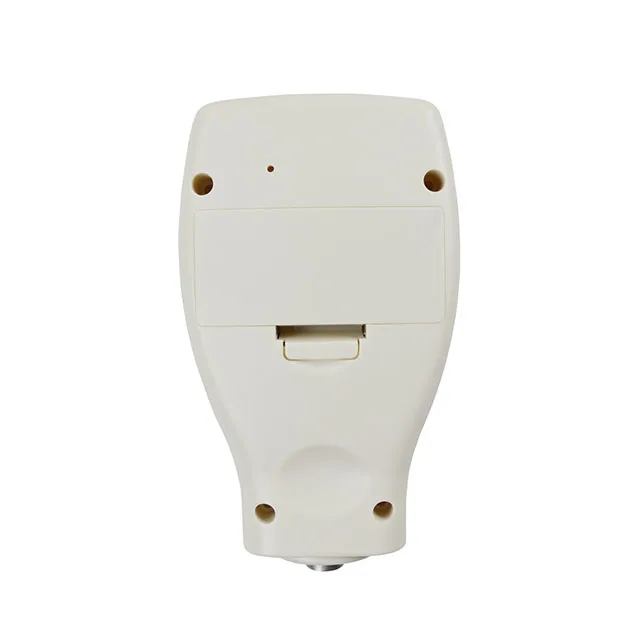

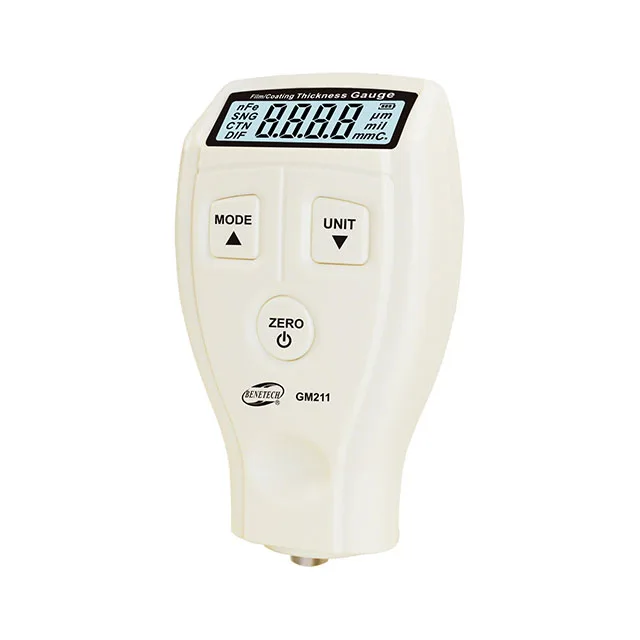

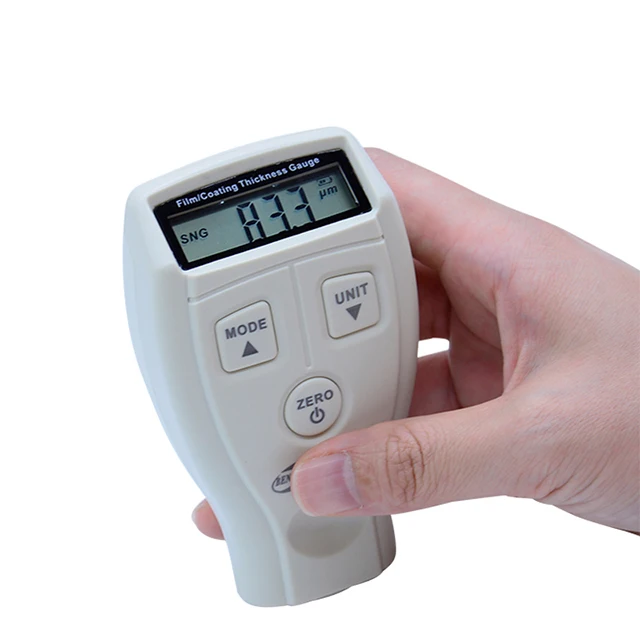

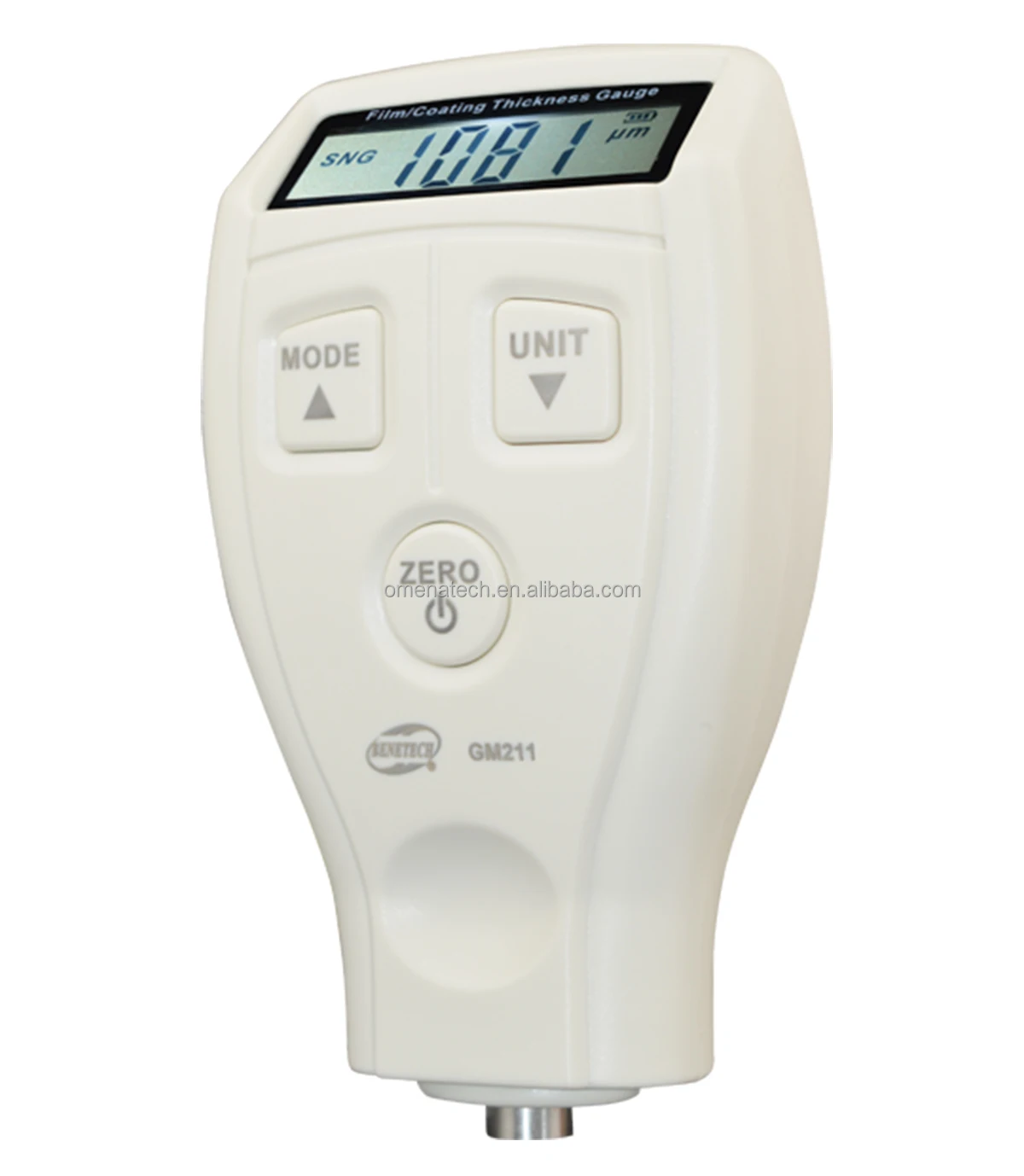

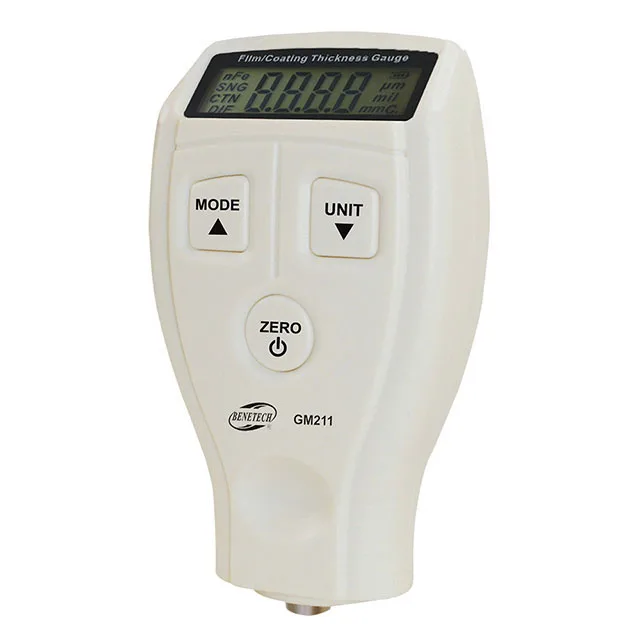

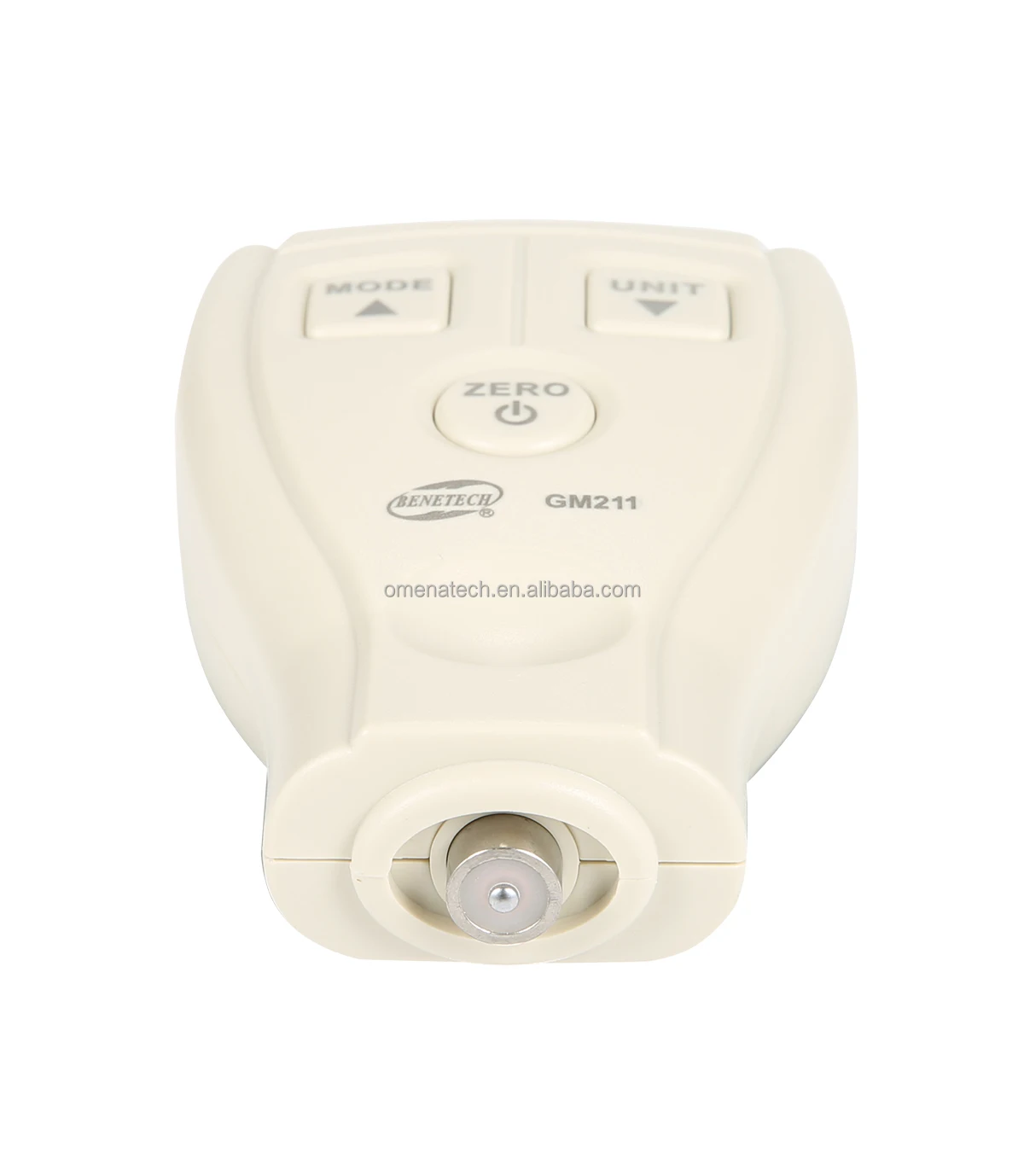

GM211 Coating And Paint Thickness Gauge

This unit can make a quick and effective measurement of the thickness of the non- magnetic metal film on the nonmagnetic metal substrate and the non magnetic film of the magnetic metal substrate, be able to identify the magnetic or nonmagnetic metal substrate automatically, widely be applied in manufacturing industry, metal process, chemical industry, and business inspection.
FEATURES:
Film/Coating Thickness Gauge possesses the following
1.Measuring the non-magnetic film on the magnetic metal substrate.
2.Thickness measurement of non-magnetic surface coatings on magnetic metal substrates.

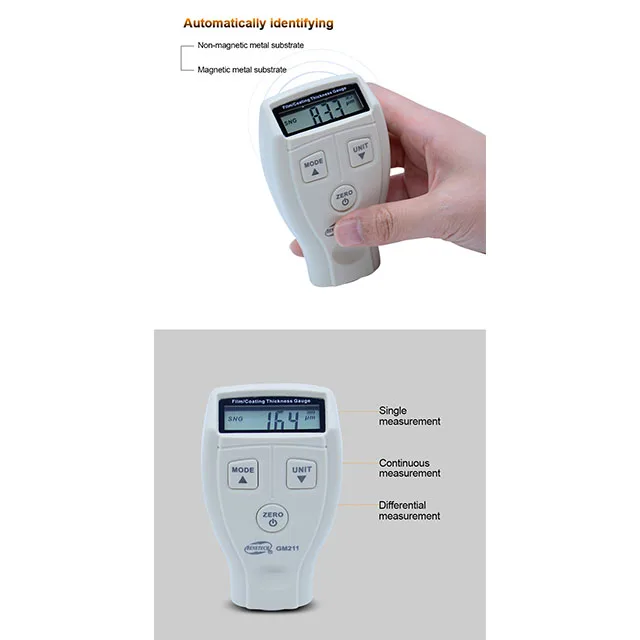

3.Automatically identifying the non-magnetic metal substrate or magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, 2-point calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8.Automatic shutdown.

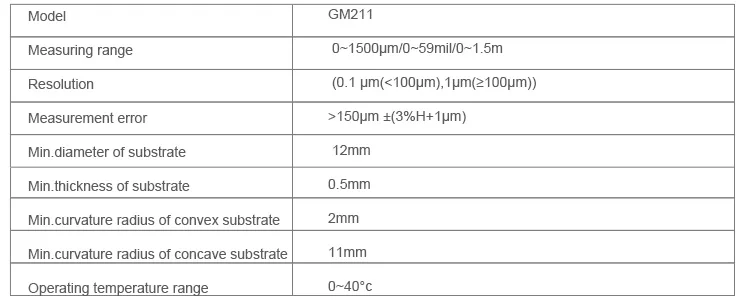

SPECIFICATION:
| Measurement ranges | 0~1500μm/0~59mil/0~1.5mm |
| Resolution | (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm |
| Measuring error | ≤150μm ±5μm |
| >150μm ±(3%H+1μm) | |
| Minimum diameter of magnetic substrate | 12mm |
| Minimum thickness of magnetic substrate | 0.5mm |
| Minimum curvature radius of convex magnetic substrate | 2mm |
| Minimum curvature radius of concave magnetic substrate | 11mm |
Minimum diameter of non-magneticsubstrate | 50 mm |
| Minimum thickness of non-magnetic substrate | 0.5mm |
| Operating temperature range | 0~40℃ |
| Operating humidity range | 10~95%RH |
| Power supply | 2*1.5V AAA batteries |
| Overall dimensions | 61.98*30.57*107.99mm |
| weight | 63.98g(excluding of batteries) |
