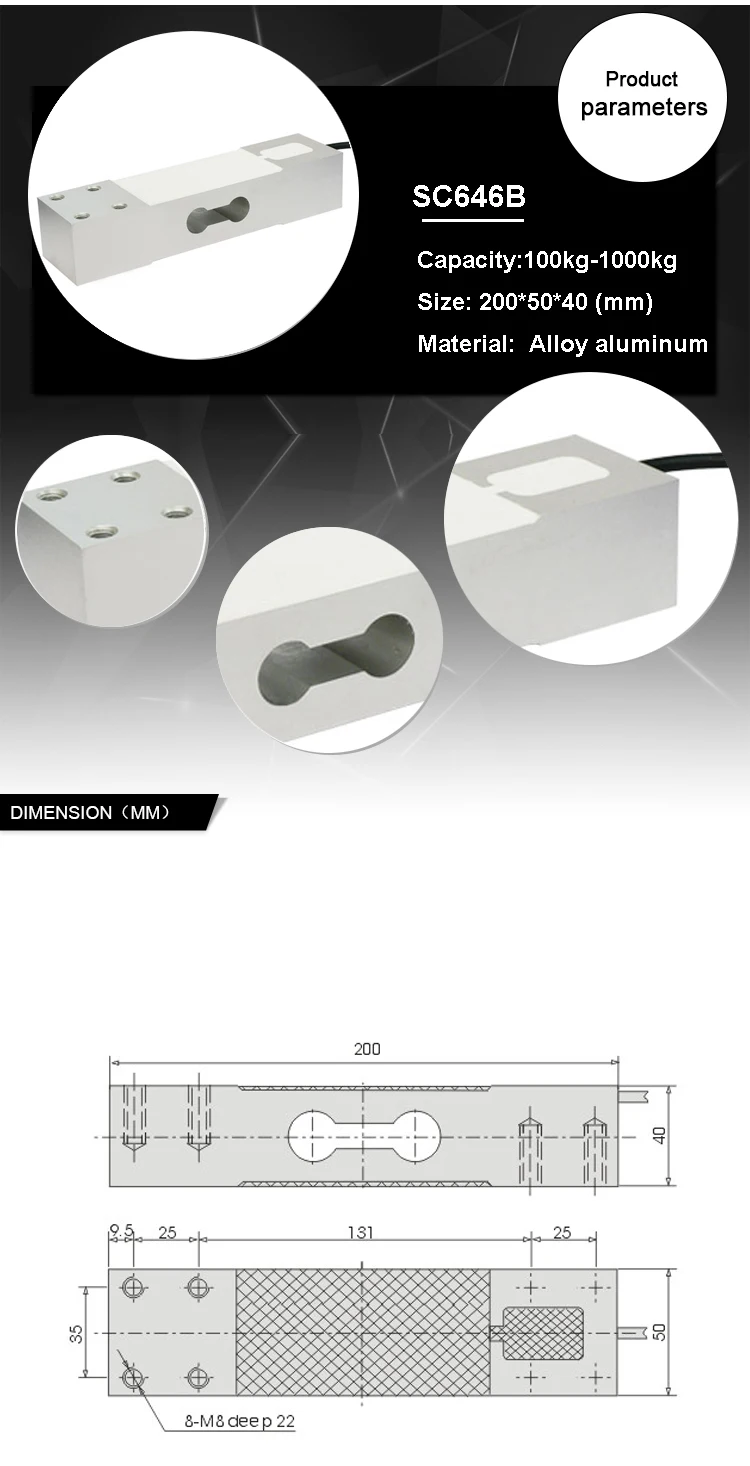

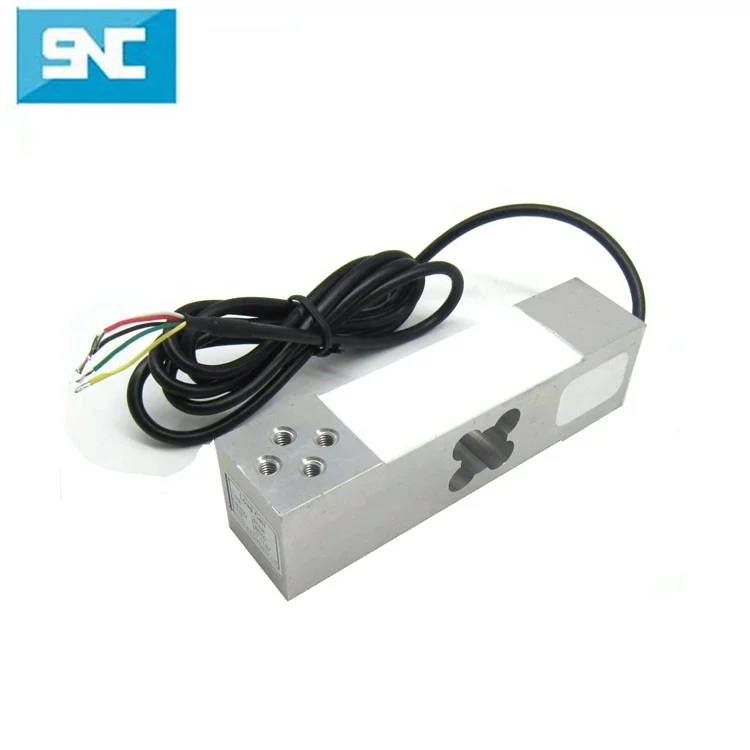

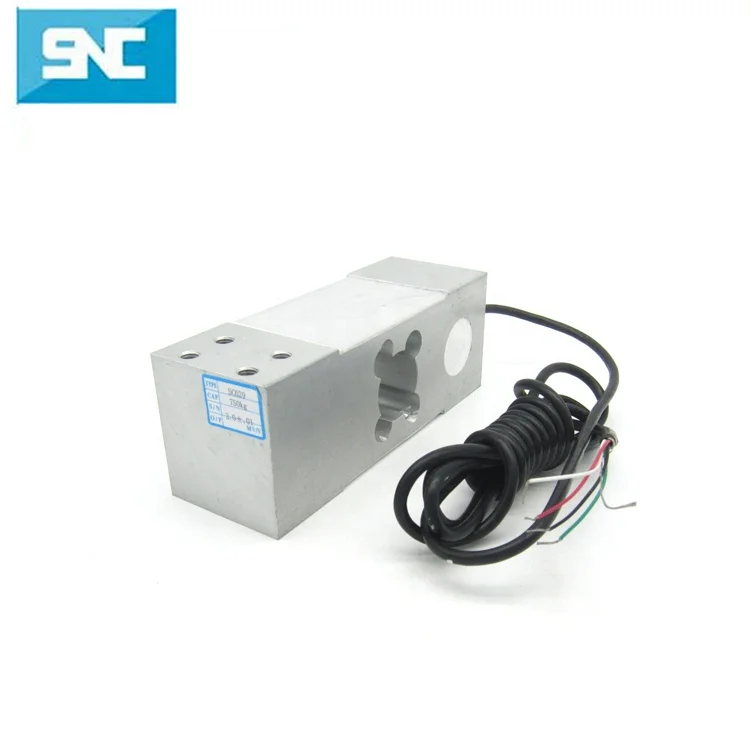

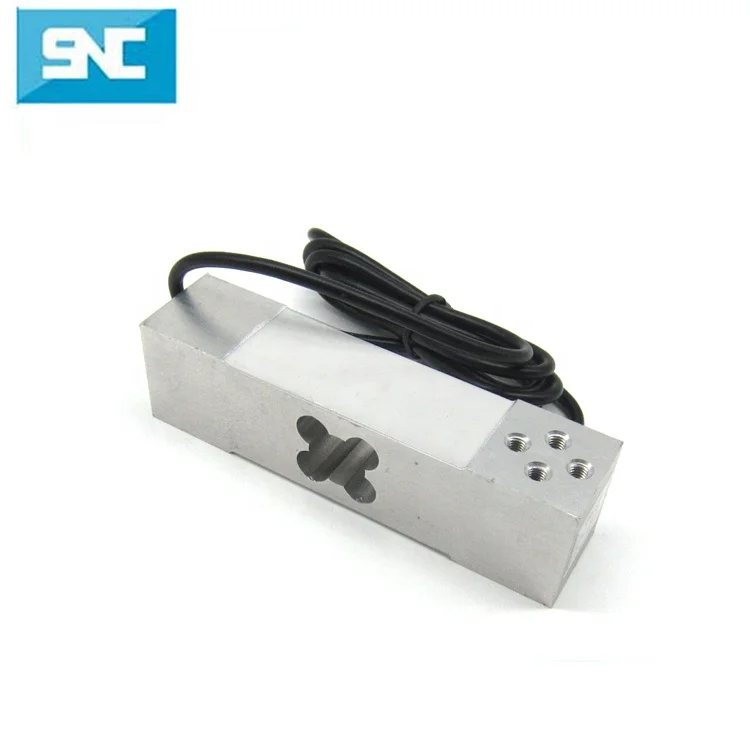

SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg






Model:SC646B


Rated load: 100, 200, 300, 350, 500,1000KG


Precision: C2


Safe overload:150%


Ultimate overload: 200%


Material: Aluminum


Apply to: electronic scale, Platform scale, pricing scale, fore test equipment









ESC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg









Product Description





































































Comprehensive error: 0.02%F.S
Rated output: 2±0.1mV/V
Non-linearity: 0.02%F.S
Hysteresis: 0.02%F.S
Repeatability: 0.02%F.S
Creep: 0.02%F.S/10min
Zero balance: ±1%F.S
Input resistance: 405±10Ω
Insulation resistance:≥5000MΩ(100VDC)
Excitation voltage: 9VDC~12VDC
Compensated temp. range: -10℃~+40℃
Use temp. range: -20℃~+60℃
Temp. effect on zero: 0.03%F.S/10℃
Temp. effect on span: 0.02%F.S/10℃
Safe overload: 120%
Ultimate overload: 150%





SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg





SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg








Related Products


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg






Production Process


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg





Company Information


Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.





Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 KgSC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg





Packaging & Shipping


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg








Why Choose Us


SC646B Economic Industrial Weight Pressure Sensor Parallel Beam Load Cell 1000 Kg





FAQ


1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.





2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.





3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.





4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.





5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments


before shipping to our clients.





6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
