Hvlp огнестойкий стеклянный цементный клеевой раствор краскопульт для штукатурки

Сохранить в закладки 60718878972:


Цена:990,00 $ - 2 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Spray machine for hvlp fire glass cement glue gypsum real stone paint

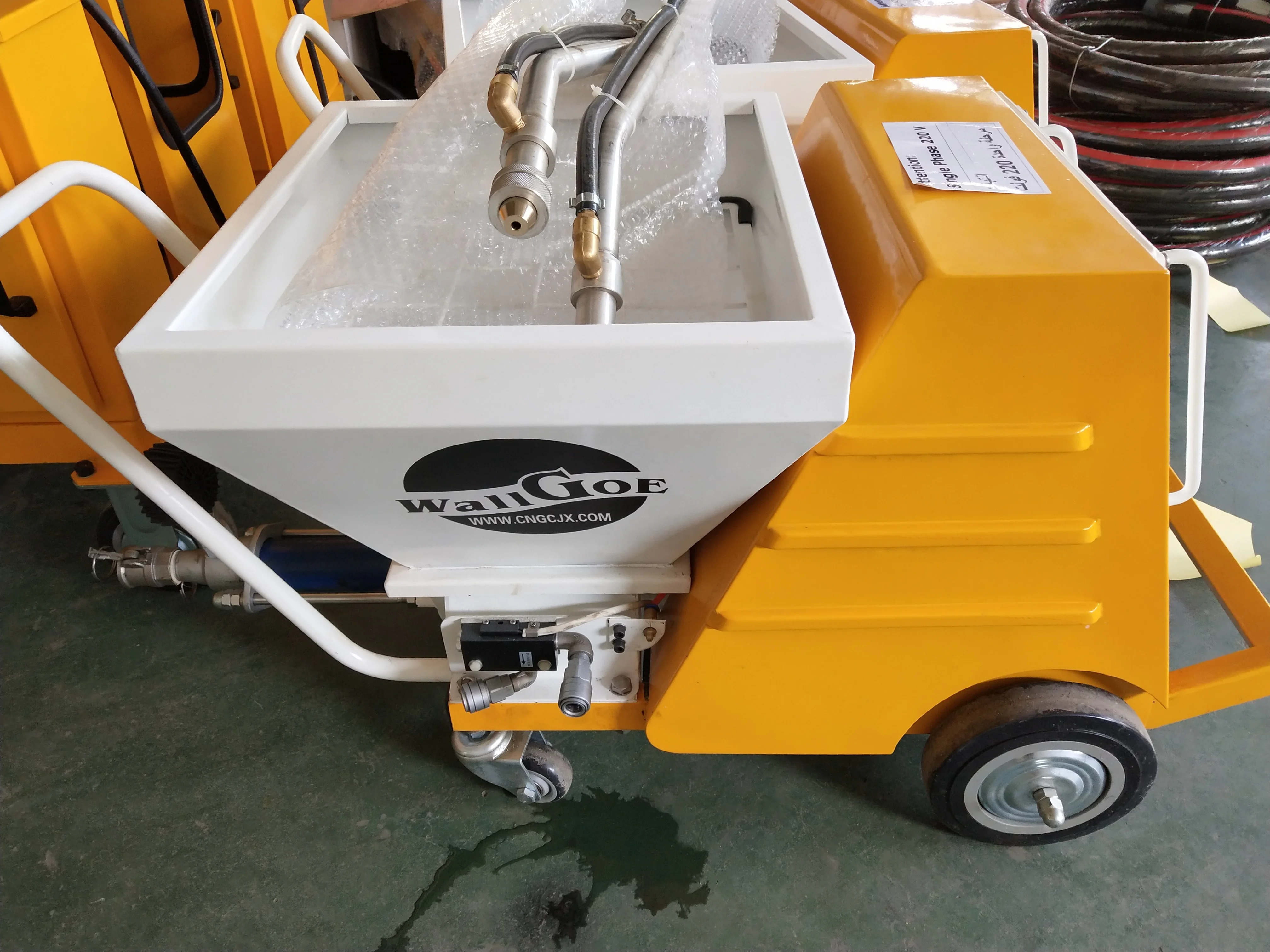

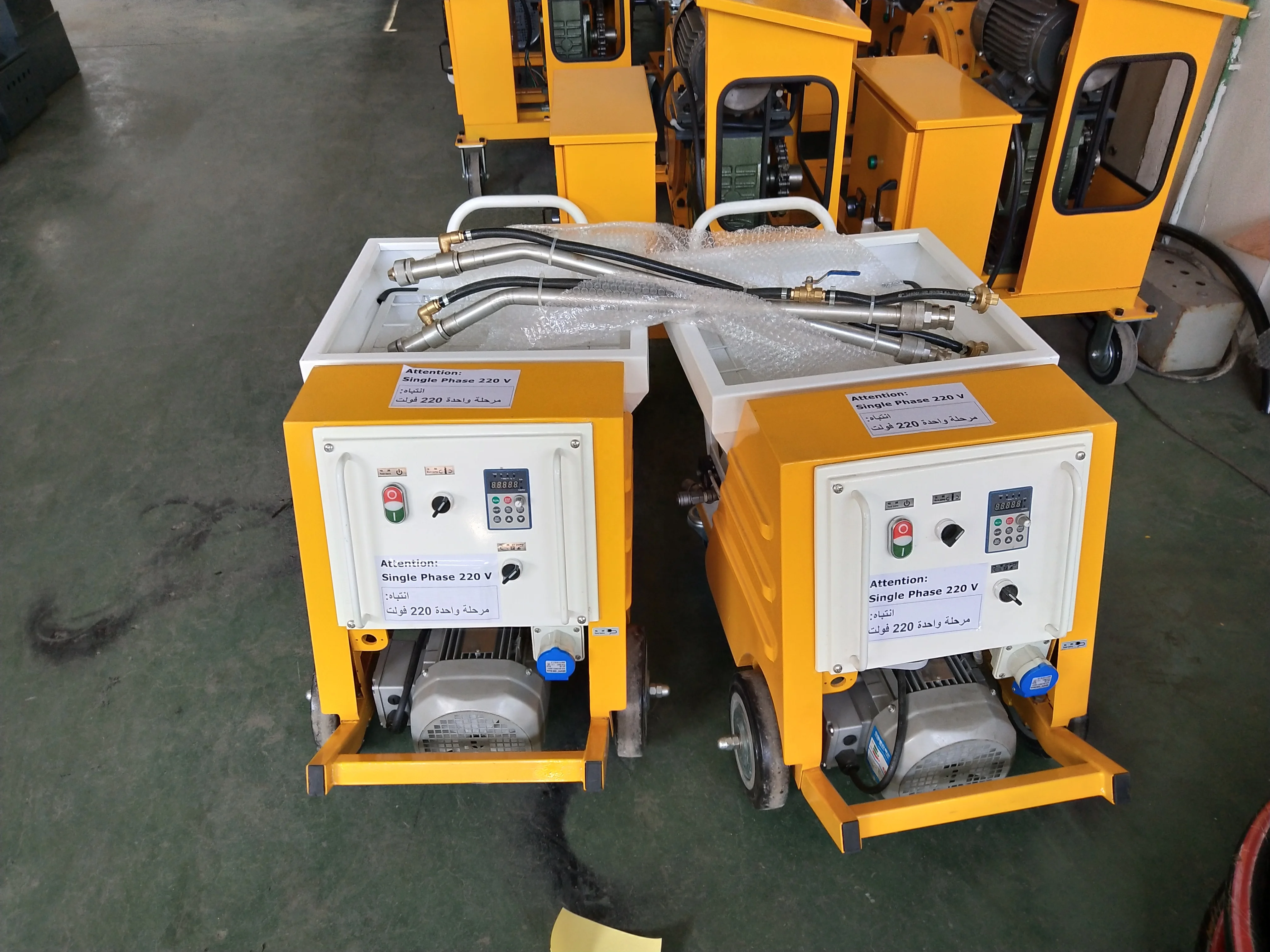

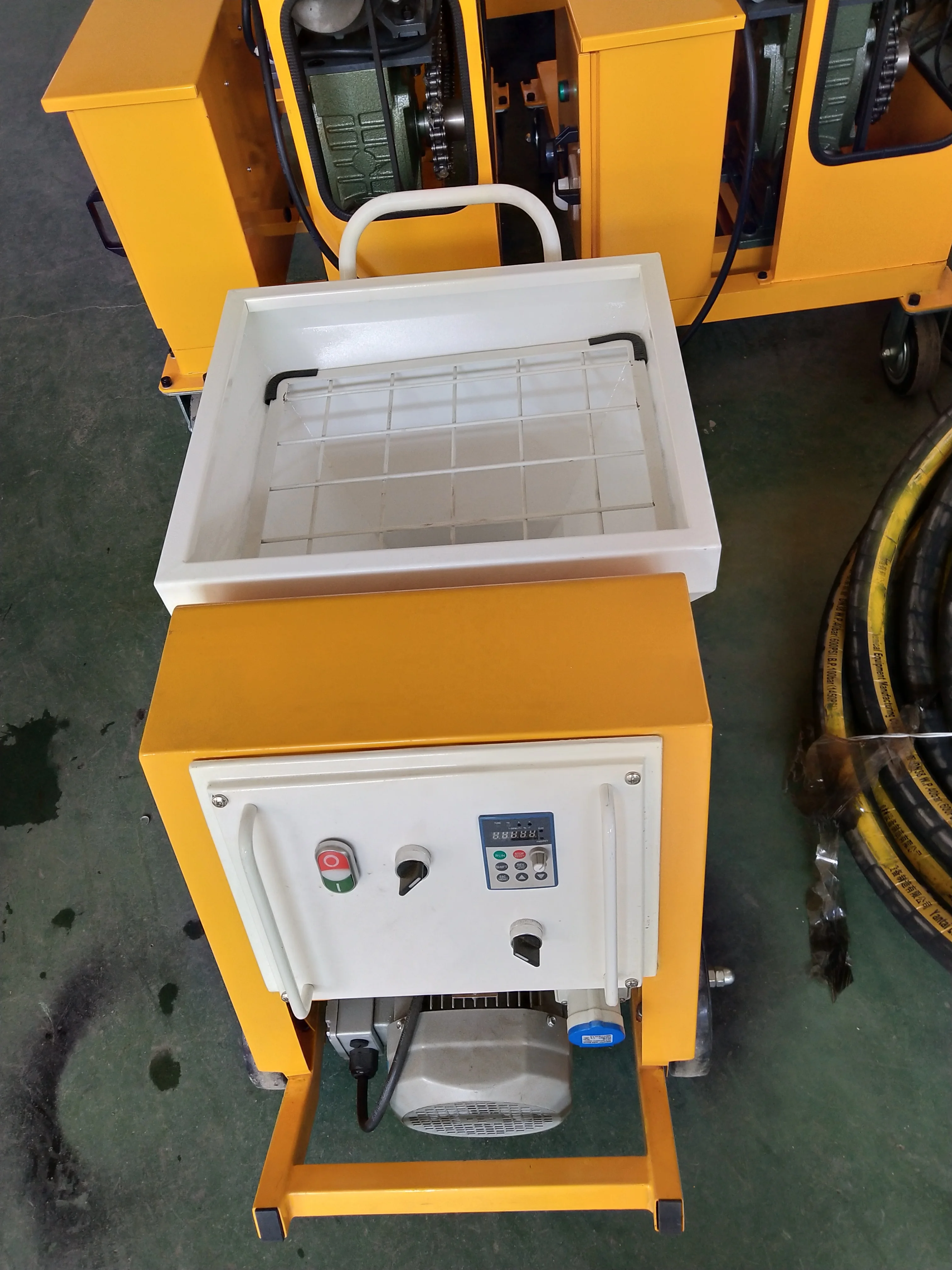

JP10 is the application of modern technology for real stone paint, putty, latex paint, gypsum mortar spray of small machinery; with variable frequency stepless speed selection flow function. Suitable for different uses and characteristics of high viscosity thin layer coating; compact structure, light and flexible. Its most important feature is the machine light weight, can be manually hand movement, can be placed in the construction basket operation.


JP20 is a small machine that uses modern technology for the construction of wall coverings with thin layer mortar. With variable frequency stepless speed selection function. Applicable to the cover of thin layer mortar, putty, really stone paint, light gypsum mortar spray. Applicable to three-phase, single-phase different power supply conditions. Pressure sensing integrated, remote control operation. Model lightweight, you can manually move hands.
































































Model



JP10-A



JP10-B



Power supply



220V 50HZ



380V/220V 50HZ



Motor power



1.5kw



1.5kw



Maximum particle size



3mm



3mm



Displacement



10L/min



10L/min



Delivery pressure



20bar



20bar



 Horizontal delivery distance



30m



30m



Vertical conveying distance



15m



15m



Hopper capacity



40L



40L



Weight



70kg



75kg



Size (L × W × H)



1100mm×450mm×500mm



1100mm×450mm×500mm

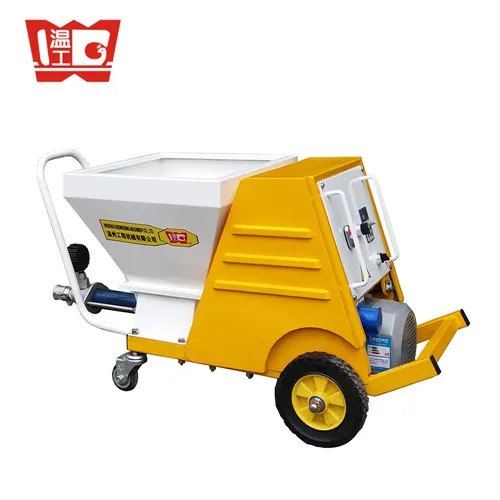

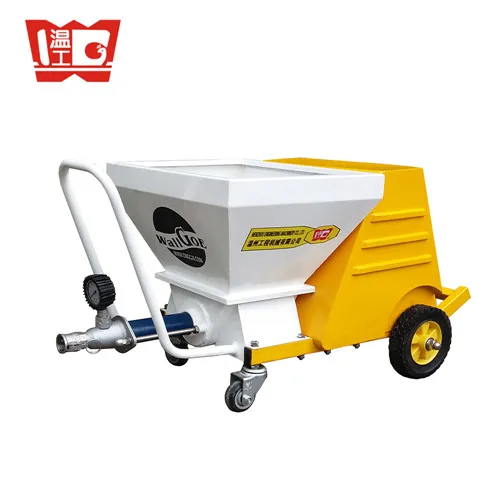

JP10 03.jpgJP10 04.jpg













JP15 is similiar as mtec mono mix


JP15 01.jpg








Spraying gun for plastering mortar



1. lots of designes: Imer, Mixer
2. light,smart
3. plastering mortar,lime,gysupm











company information


Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.





Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.





Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.













Function&Application


Infinite number of possible applications





 **Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing


**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more







Certifications





***CE certification


***ISO 9001 certification


***NGV certification




Patent & Pride from Wallgoe:





Patent & pride.jpg

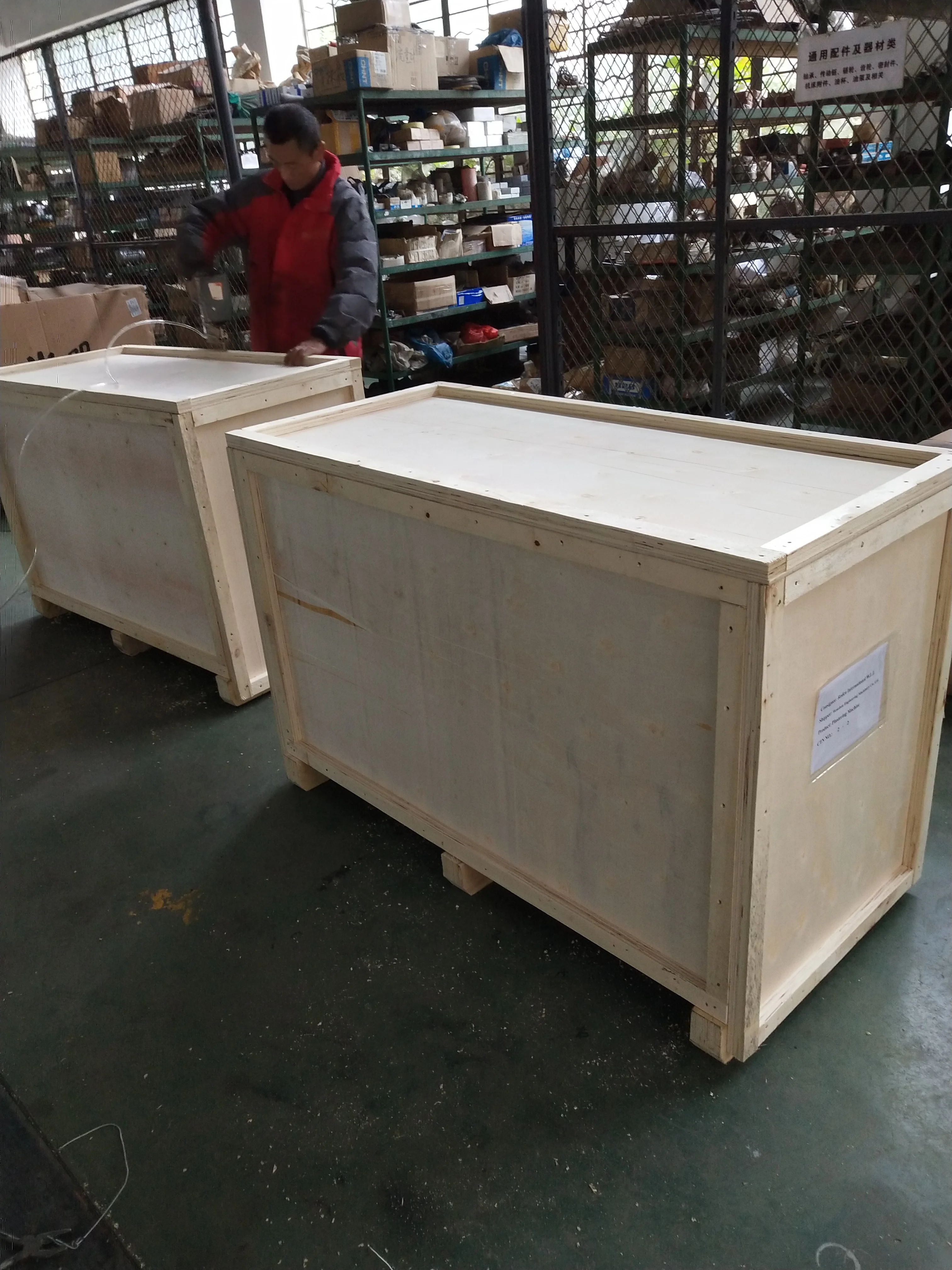

Packaging & Shipping


***Wooden case packing


Full container shipment---wooden pallent package


LCL shipment----wooden carton package


JP110 05_20180209102340shipment pic (3)











FAQ





1. Q: Which pump model or plastering machine should we choose?


A: To recommend the most suitable model, please tell us:


- Material: composition, max aggregate size


-use for plastering or grouting?


- Capacity (-m3/h) :


- Delivery distance (horizontally / vertically):


- Grouting pressure:


- Driven type: electric motor, diesel engine, pneumatic motor





2. Q: What is the vulnerable part? How many spares should we prepare?


A:Screw type plastering machine


Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.


Concrete pump:


After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.


Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.





3. Q: Can we have customized model?


A: Yes. Customized production and OEM production are available according to your actual requirements.





4. Q: Do i need technical skills to operate this machine?


A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.





5. Q: What should we do if there are some problems with the machine?


A: The Operate Instruction will help with routine maintenance and common problems.


Also, you can contact us for technical instruction by email, instant messenger or live video etc.





6. Q: What is the lead time?


A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.





7. Q: How about the package?


A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.





8. Q: How to place an order?


A: Both online order and offline order are acceptable.


It is suggested to place online order with a Trade Assurance to get full protection for first order.





9. Q :How to pay for this order?


A: Generally, TT, 30% deposit 70% before shipment;


   L/C at sight (high bank charge, not suggest, but acceptable);


   100% TT in advance (especially for small amount and spare parts etc.)





Contact


Tel: +86 577-86529608


Fax: +86 577-86529637


Mobile: +86 15258633273 (Whatsapp/Wechat)


Skype: kellyzheng55


QQ: 330363227


Email: sales @cngcjx.com
