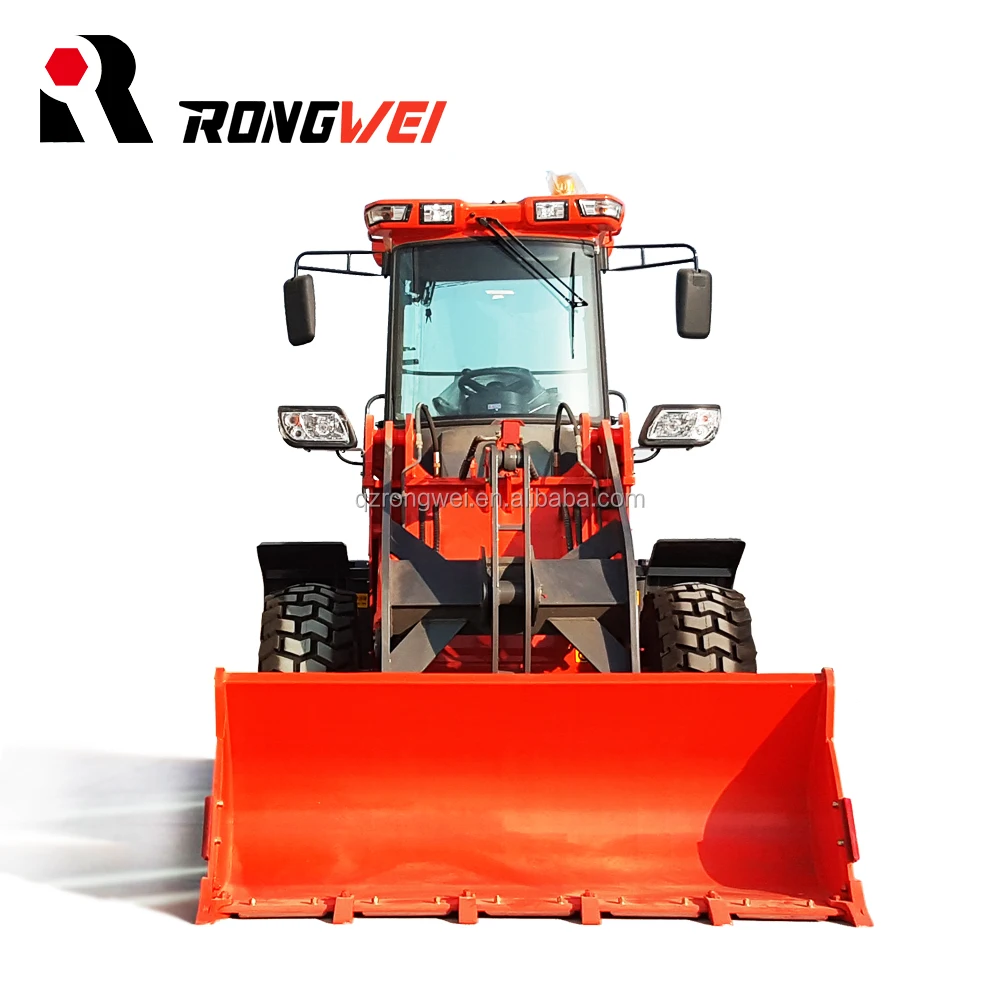

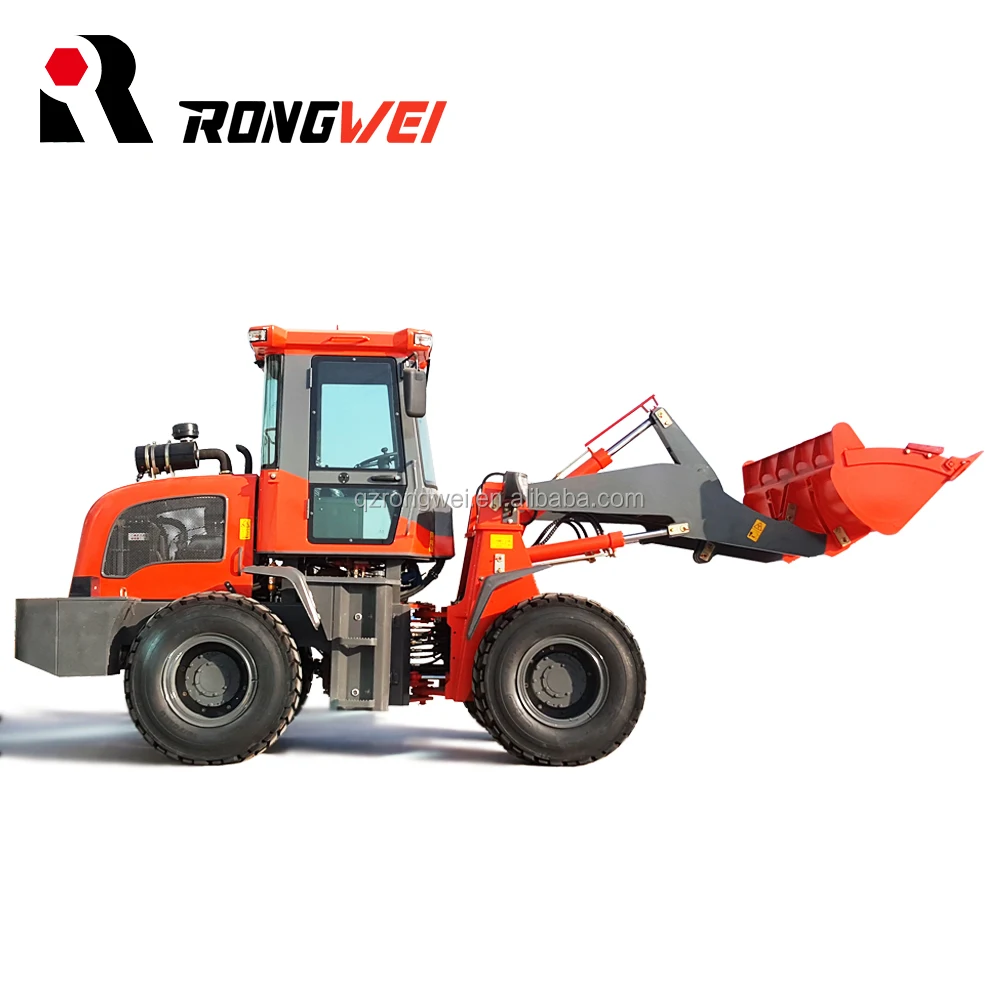

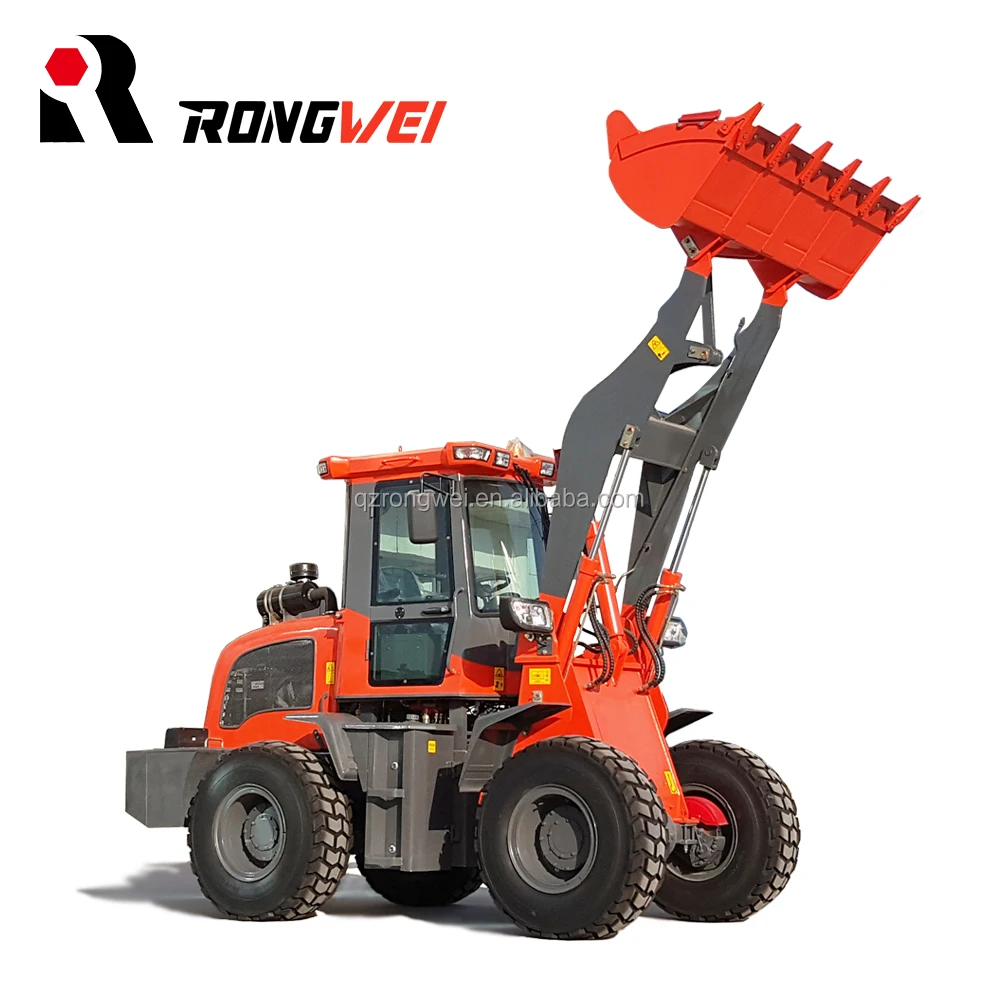

Лидер продаж малогабаритный фронтальный колесный погрузчик марки Rongwei для рынка Европы

Лидер продаж малогабаритный фронтальный колесный погрузчик марки Rongwei для рынка Европы

Категория: >>>
Поставщик: Qingzhou Rongwei Engineering Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

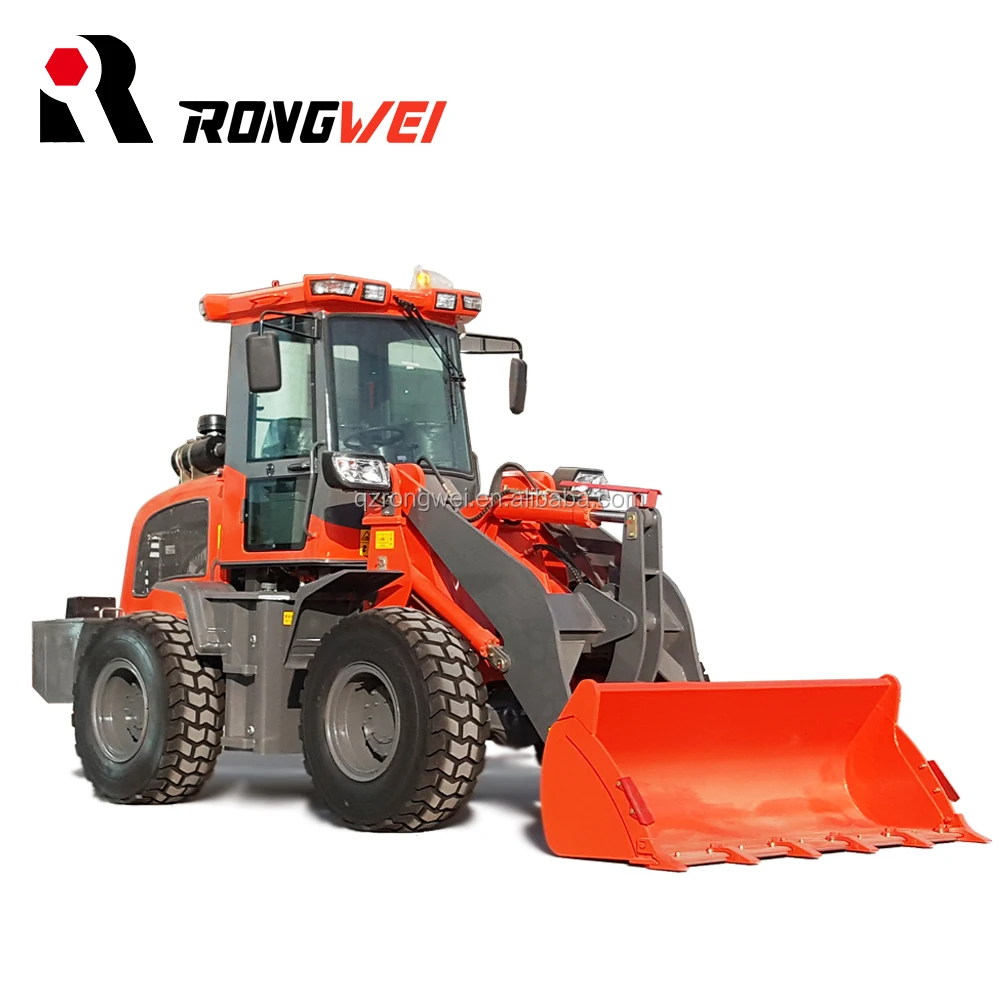

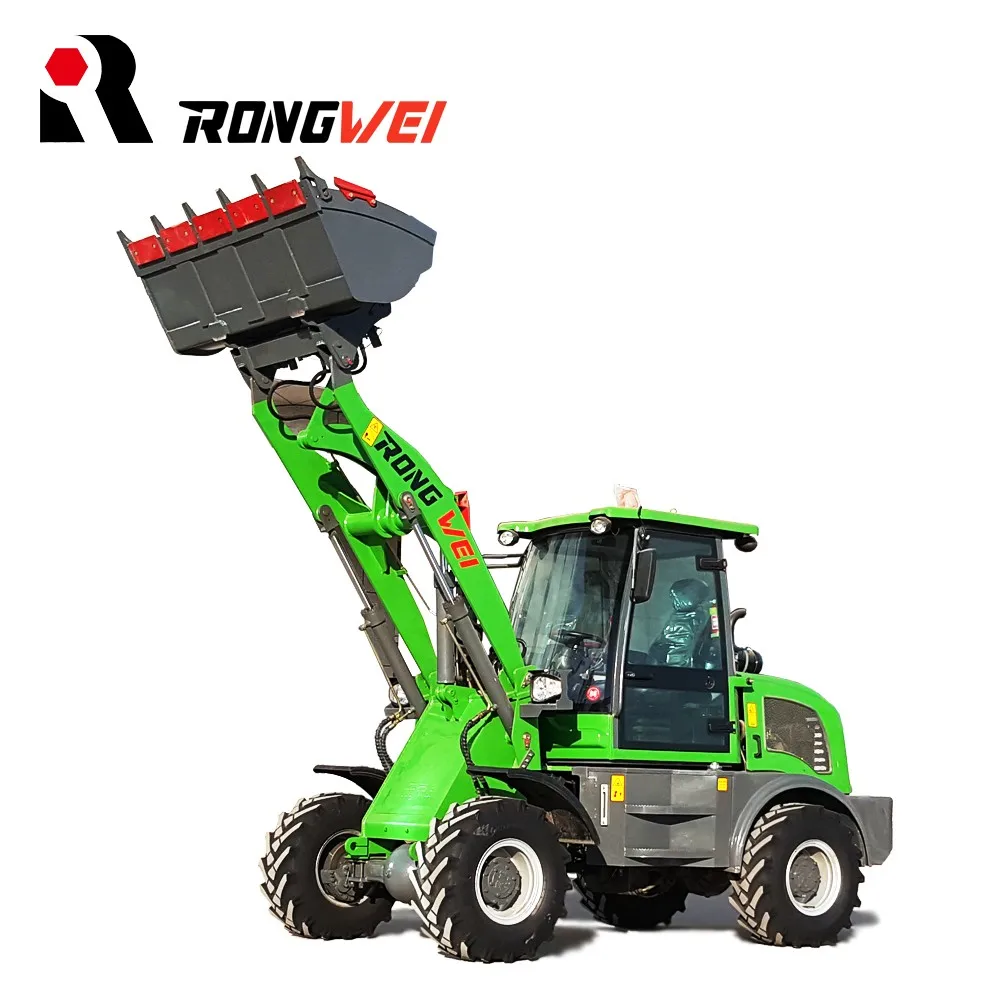

Main specification and characters of Rongwei ZL920 wheel loader

1. Latest generation.Especially for European market high reliability and productivity.\t\t
2. Main components from top brand,high reliability and productivity.\t\t
3. Joystick control,easier operation.\t\t
4. Bucket can be leveled automatically,optimized working device,higher productivity.\t\t
5. Comfortable operation environment.\t\t
6. Various working devices of attachment are available,such as Quick hitch,wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc. to meet different need.
7. High pressure and safer air assist disc brake braking system\t\t
8. According to clients request, customize higher dumping and longer arm products.

\t SPECIFICATIONS OF ZL920 WHEEL LOADER
\t Performance	\t Rated load	\t 2000kg
	\t Overall weight	\t 4800kg
	\t Rated bucket capacity	\t 1m3
	\t Maximum tractive force	\t 60KN
	\t Maximum breakout force	\t ≥61KN
	\t Maximum grade ability	\t 35℃
	\t Maximum dump height	\t 3200mm
	\t Maximum dump reach	\t 900m
	\t Overall dimension (LWH)	\t 5600×2100×2900mm
	\t Minimum turning radius	\t 5300mm
\t Engine	\t Model	\t YN 4102 turbo engine
	\t Type	\t In-line,arrangement,water cooling, four-stroke
	\t No. of cylinder-bore/stroke	\t 4-102×115mm
	\t Rated power	\t 76kw--2400r/min
	\t Maximum torque	\t 280N.m
	\t Min fuel-consume ratio	\t ≤225g/kw.h
\t Optional engine	\t Yuchai 4102 turbo engine	\t 78KW
	\t huadong 4102 turbo engine	\t 63KW
\t Transmission system	\t Torque converter	\t 265
	\t Gearbox mode	\t Power shift normally engaged straight gear
	\t Gear shift	\t 2 forward shift 2reverse shift
	\t Maximum speed	\t 25km/h
\t Drive axles	\t model	\t small hub reduction axle
	\t Decelerating mode	\t planetary reduction,grade 1
	\t Wheel base (mm)	\t 2200mm
	\t Wheel tread	\t 1570mm
	\t Minimum ground clearance	\t 240mm
\t hydraulic system	\t System working pressure	\t 16MPa
	\t bucket lifting time	\t 4.6s
	\t bucket falling time	\t 3.5S
	\t Total time for a single working cycle	\t 9S
	\t Function of leveling automatically	\t yes
\t Brake system	\t Service brake	\t hub reduction axle
	\t Parking brake	\t manual parking brake
\t Tyre	\t Type specification	\t 16/70-20
	\t Front tyre pressure	\t 0.4Mpa
	\t Rear tyre pressure	\t 0.35Mpa

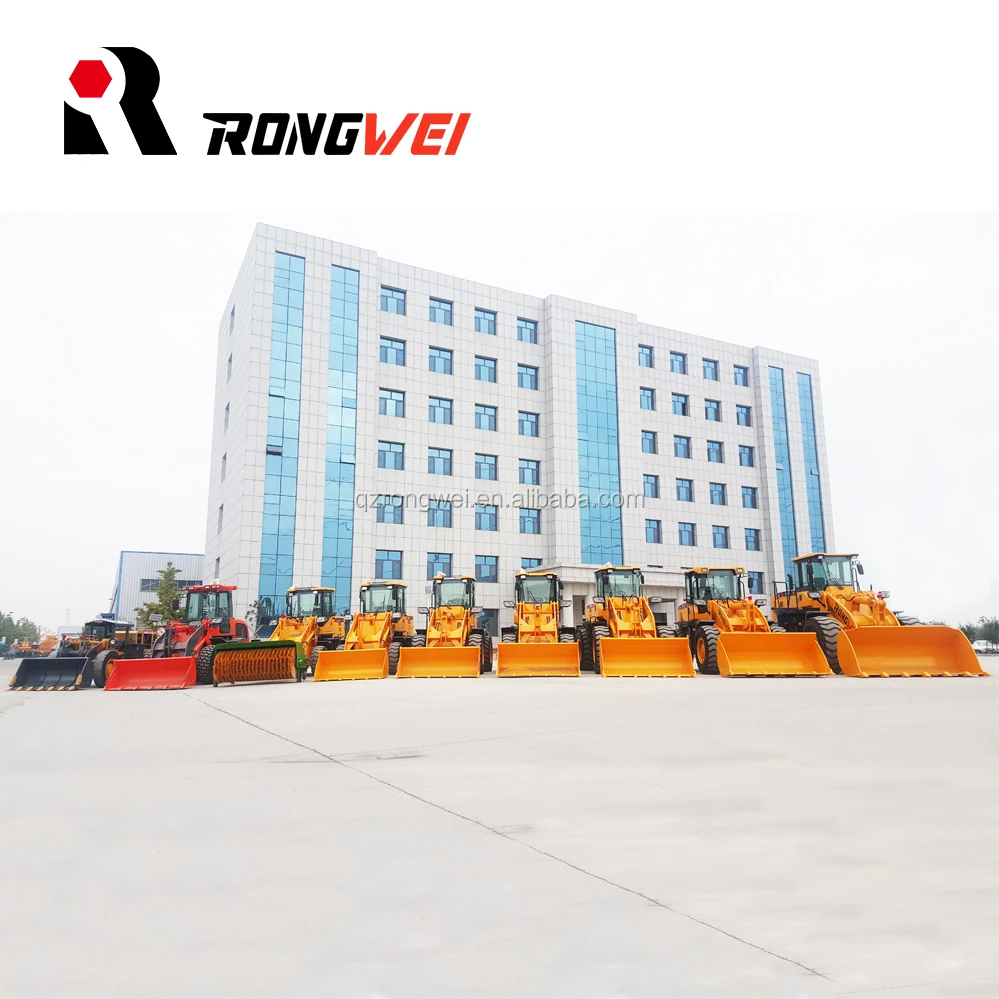

Established in 2008, Qingzhou Rongwei Engineering Machinery Co., Ltd has be a professional manufacturer and export that is concerned with design, development and production of verity of wheel loaders from 1 ton to 5 ton capacity. Our factory located in Qingzhou, Weifang, Shandong province, with convenient transportation access. All of our products comply with international quality standards and has Approved Ce Certification and SGS certification. Rongwei verity of wheel loaders has got good reputation among our domestic and foreign customers.
Rongwei brand wheel loader is multi-functional, with more than 30 durable, safe and effective attachments design for different kinds of job. We are looking forward to provide you the most comprehensive field solution and the most perfect products and service in the most critical time.
Welcome your inquiry and visit.
