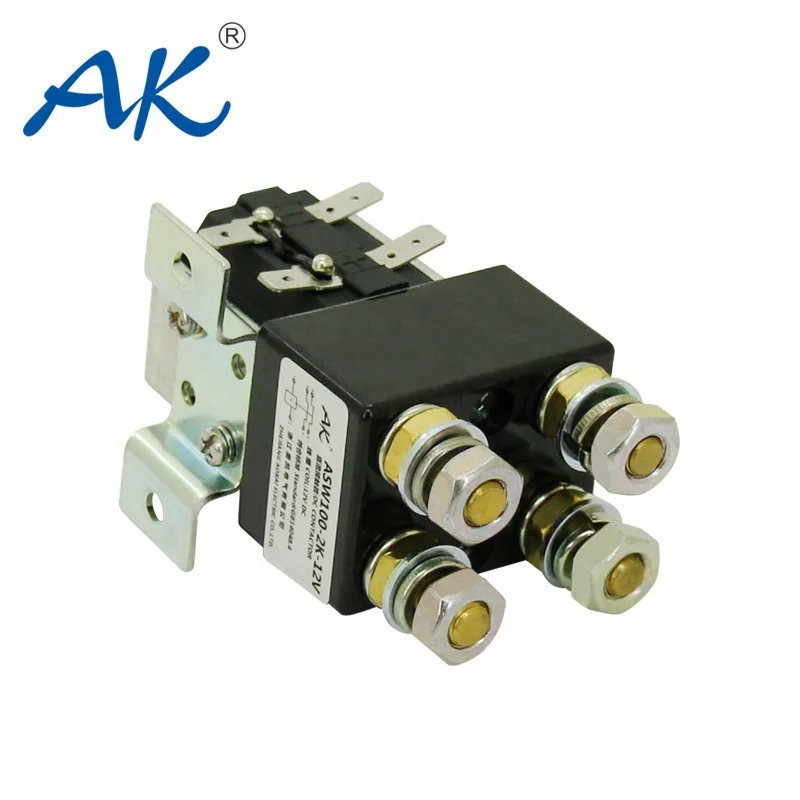

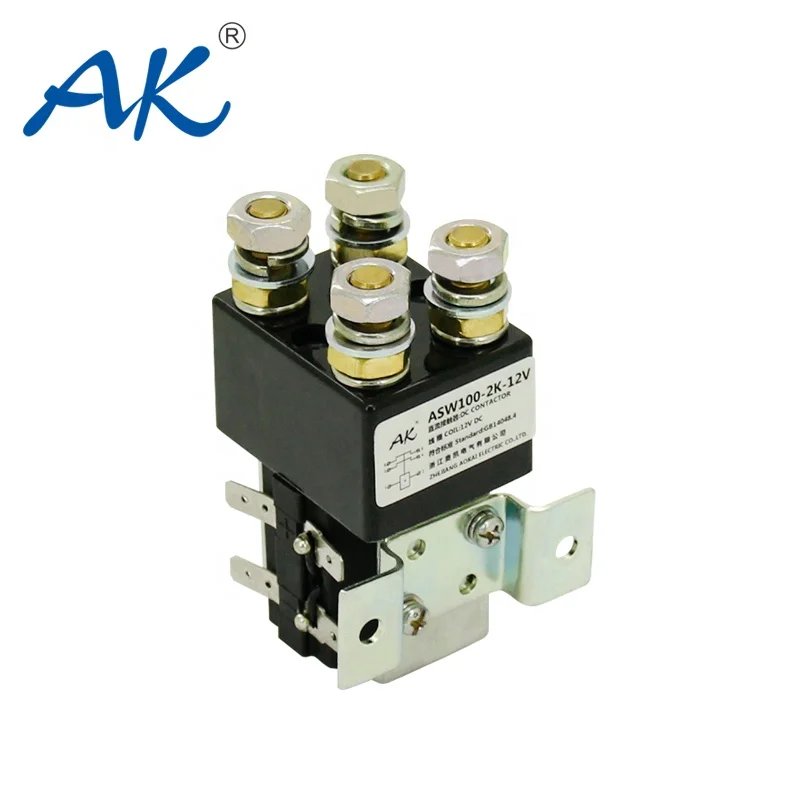

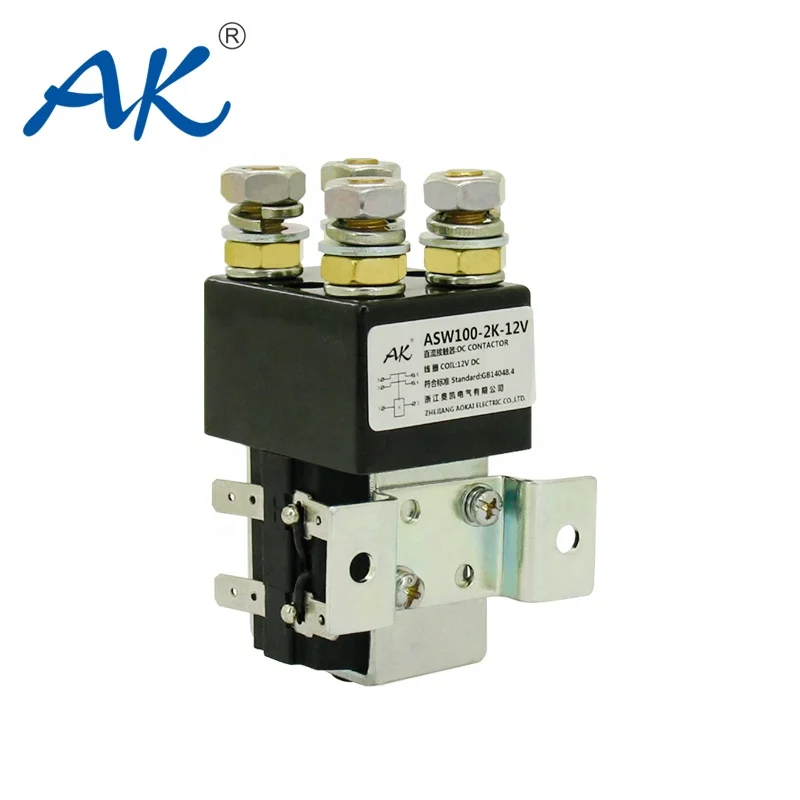

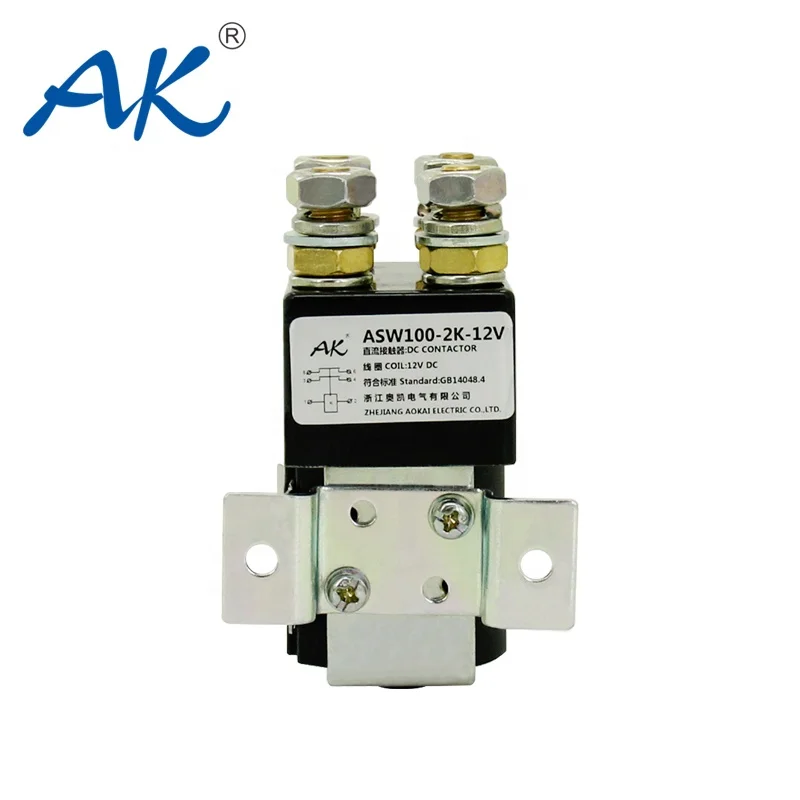

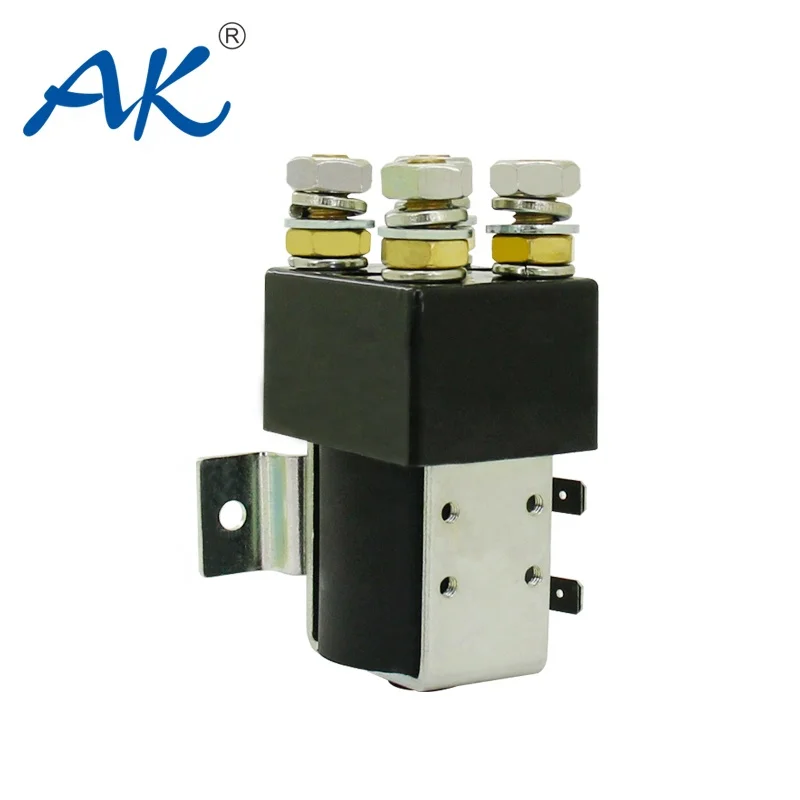

ASW100-2H 12v Starter Solenoid()-_01.jpg()-_02.jpg


SPECIFICATION





















































































Coil Rated VoltageDC12V, 24V, 36V, 48V.etc.
Main Circuit Rated Current (A)100A
Main Circuit Contact Voltage Drop Of (load:100A)

less than 80mV


Under (20±5℃), Cooling Pull-in Voltageless than 70%
Under (20±5℃), Cooling Release Voltage≥5%, ≤40%
Acceptable Fluctuation Range of Coil Voltage±20%
drop-out time≤30ms
 pull-in time≤20ms
 The Max Disconnecting Time of Contacts≤5ms
 Insulation Resistance50MΩ
 Dielectric Strength50Hz/60Hz 1000VAC/1min
 Overload Current≤7Ie, ≤1s
 Coil Consumption (W)≤24.0W
 Electrical Life 20000 times
 Mechenical Life300 Thousand times
 Working ModeContinuous
 Contacts Type2NO
 Contact MaterialAgCdO / AgCuO
 Auxiliary Contact Rated Load (Optional Parts) 2A/48VDC, 5A/24VDC
Technical StandardGB14048.4-2010

USAGE ENVIRONMENT





























Altitude≤2KmAmblent temperature-25~+55℃
International protectionIP50Installation typeIII
Way to installAnyVibration2.5g(5~50)Hz
Impact50g,11ms(Half-sine wave)

SCHEMATIC DIAGRAM


ASW100-2H .jpg


INSTALLATION DIAGRAM


ASW100-2H .jpg
