Quality Hollow Rotating Platform by Varitron from TAIWAN

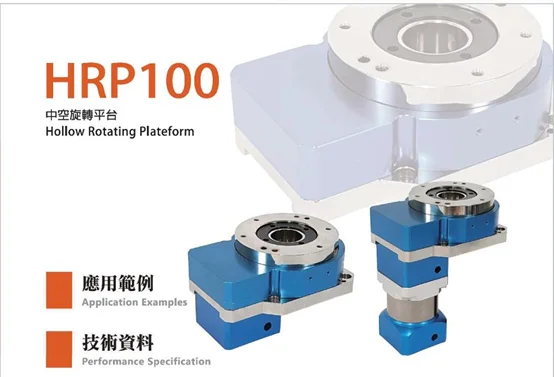

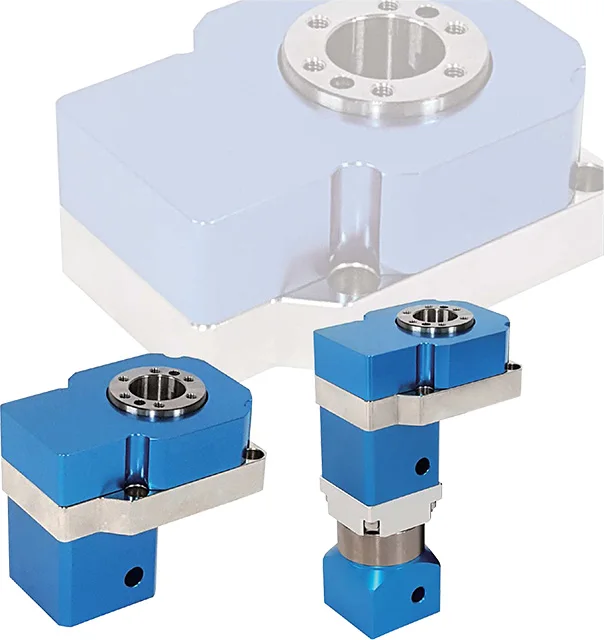

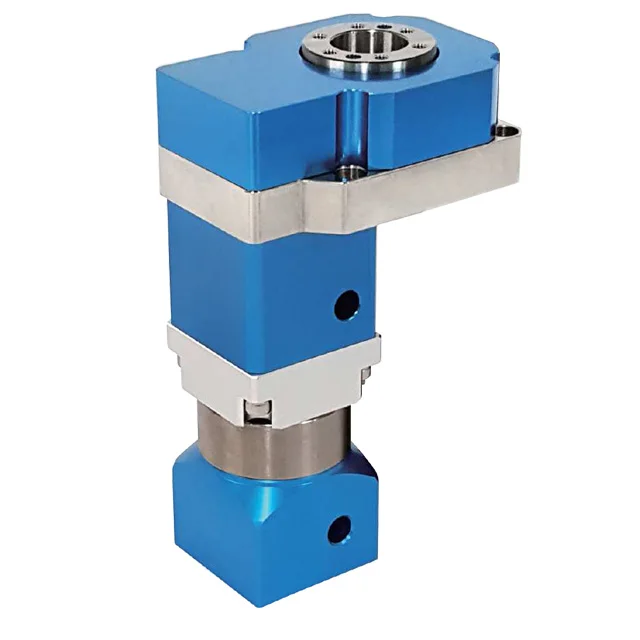

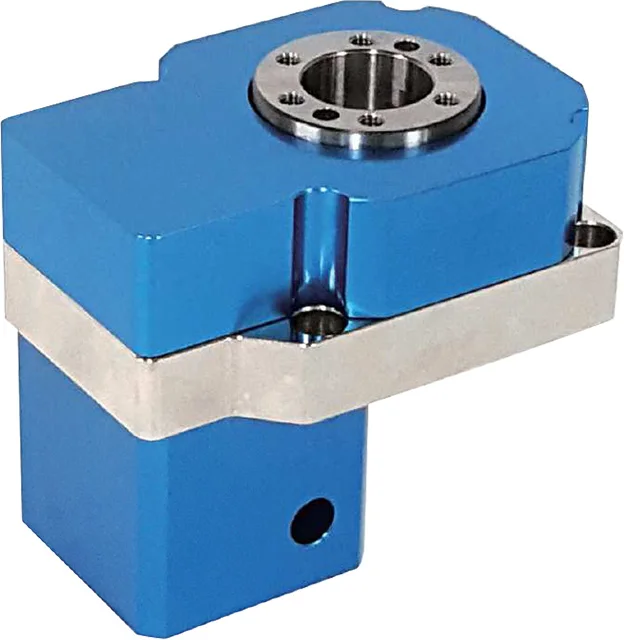

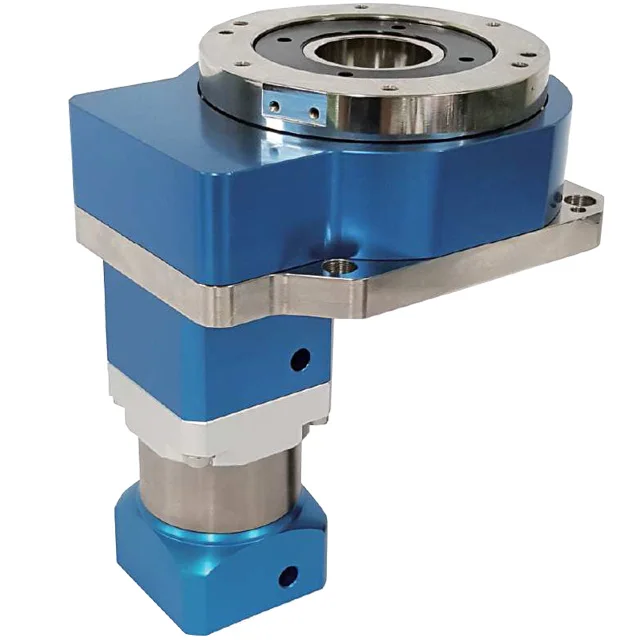

VARITRON Precision Hollow Rotating Platform HRP

Product Description

Hollow Rotating Platform.jpg

Main Features

-High Precision Gear
The Precision Hollow Rotating Platform HRP and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.(model:HRP-H)

-High Torque and Stability

High tensile strength alloy steel and improved gear hardening technics employed to maintain high accuracy and long service life.

-High Efficiency

Exceeds 95% for single stage and 92% for Double Stage.

-Quiet Operation
Feature design to reduce vibration and noise to under 65dB.

-Single-piece Gear box & Advanced Surface Treatment
The Precision Hollow Rotating Platform HRP and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Precision Hollow Rotating Platform HRP surface is anti-corrosive treated for upgrading environmental resistant and corrosion-resistant capability.(model:HRP-H)

-Integrated Planetary Arm Bracket

The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.(model:HRP-H)

-Modular Design of Motor Connection Plate
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.

-Modular Input Shaft

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.

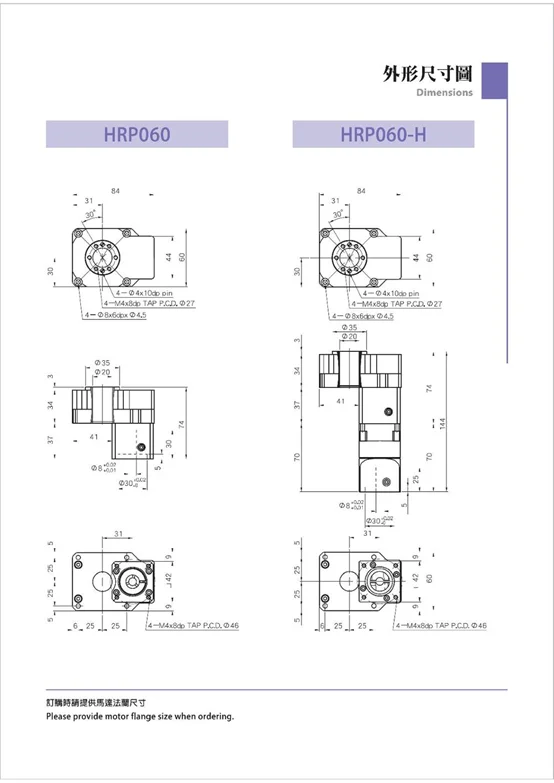

Model

Model	HRP060	HRP060-H
Hollow Rotating Platform Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	5
Service Life	15000
Input Speed	200
Ratio	5	5*(4,5,7,10)
Repeat accuracy	±10	±10
Position accuracy	≤1	≤1
Rotating platform Parallelism	±0.01
Rotating Plaform Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	1.1	2.1

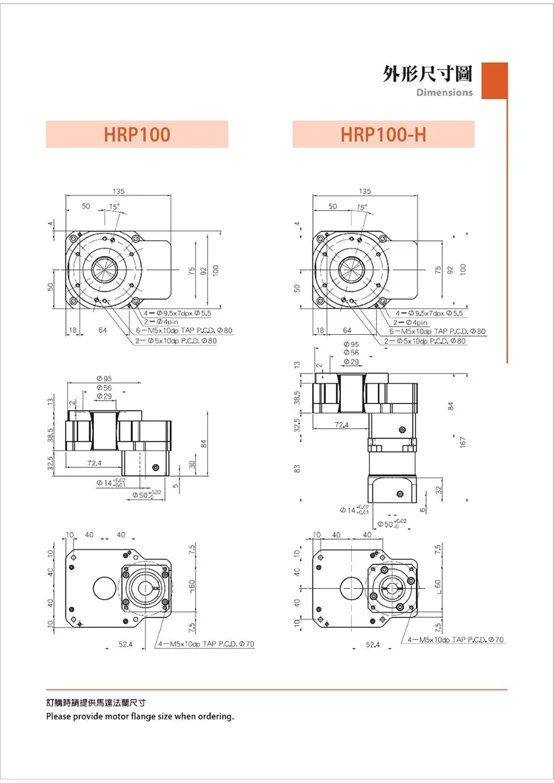

Model	HRP100	HRP100-H
Hollow Rotating Platform Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	45
Service Life	20000
Input Speed	200
Ratio	8	8*(3,4,5,7,10)
Repeat accuracy	±5	±5
Position accuracy	≤1	≤1
Rotating platform Parallelism	±0.05
Rotating Plaform Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	3	4.2

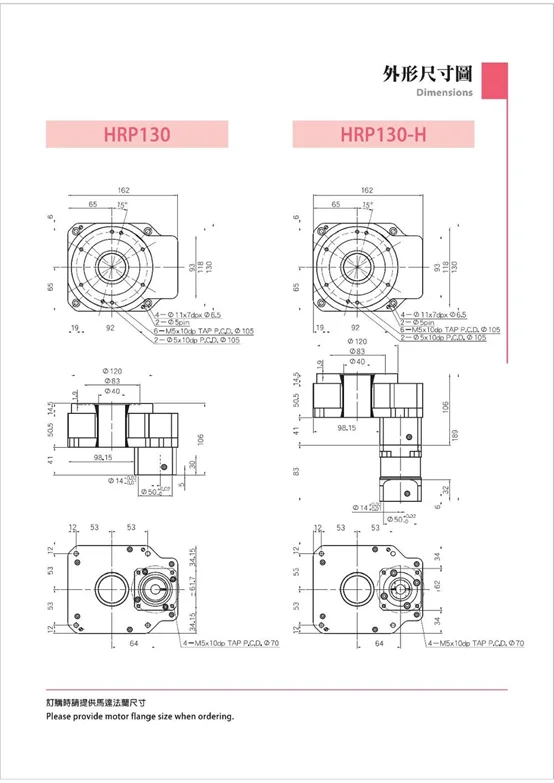

Model	HRP130	HRP130-H
Hollow Rotating Platform Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	45
Service Life	20000
Input Speed	200
Ratio	10	10*(3,4,5,7,10)
Repeat accuracy	±5	±5
Position accuracy	≤1	≤1
Rotating platform Parallelism	±0.005
Rotating Plaform Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	5	6.2

Quick Facts

Model Number	VARITRON Precision Hollow Rotating Platform HRP
Speed Reduction Method	Precision Hollow Rotating Platform HRP mechanism with designed tooth profile
Efficiency	95% per stage gearbox
Shock Load	300% as there are only compressive forces rather than shear forces on the tooth
Gear box Mounting	Flange Mounting, Foot mounting parts sold separately
Reduction Ratio	Up to 1:10 per stage 1:1000 on 3-stages
Capacity Range	100Watt to 11,000Watt
Enclosure	Totally enclosed IP55
Power Source	Servo motor, stepper motor
Backlash	DM series: below 5arcmin on single stage DH / DL series: below 10arcmin on single stage
DM series: below 5arcmin on single stage DH / DL series: below 10arcmin on single stage Reduction Gearbox Lubrication Method	High viscosity anti-separation grease
Method of Coupling with Driven Machine	Coupling, gears, chain sprocket or belt
Standard	CE, UL, CSA, CCC, ISO 9001, ISO14001
Warranty	1 Year Limited Warranty
