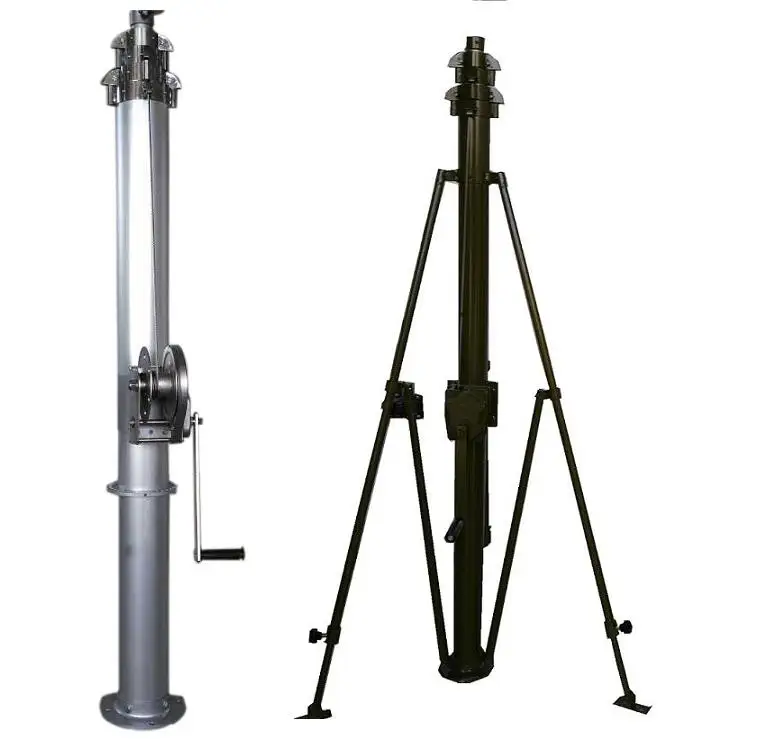

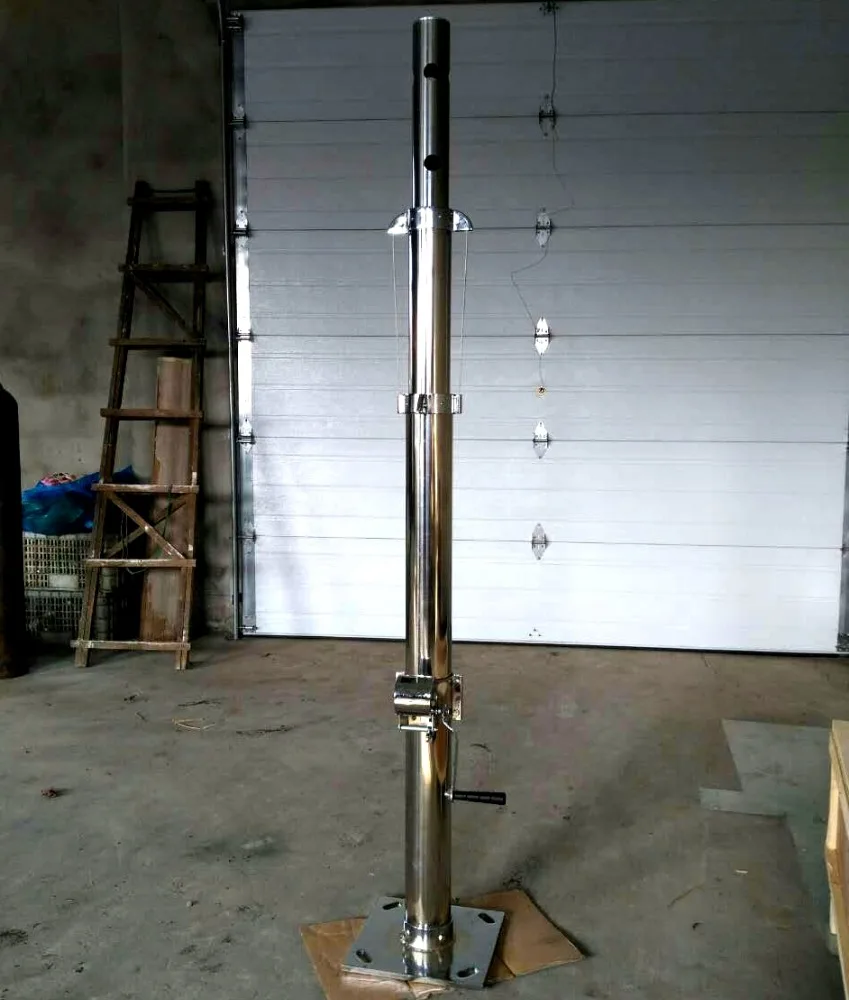

Телескопическая однополюсная мачта 5 6 метров из оцинкованной стали с максимальной полезной нагрузкой 100 кг
- Категория: >>>
- Поставщик: Tianjin Talents International Trade Co. Ltd.
Сохранить в закладки 60720736451:
Описание и отзывы
Характеристики
Product Description

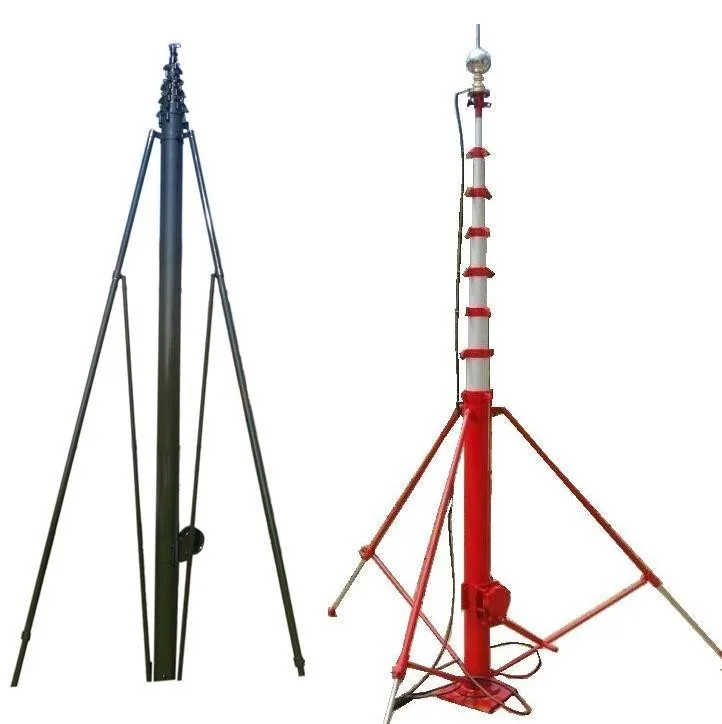

Telescopic lifting poles are mechanical winch operated, designed to be used both at land and sea.
aluminum mast are available for heights up to 45 meters. All components withstand immersion
and salt water and are designed to survive rough handling.
Telescopic masts designed for multitude purpose and can be deployed range activities including:
1. Yagi, VHF/ UHF antennas etc
2. Remote monitoring
3. Military radar
4. Lighting/ surveillance
5. Mobile patrol
6. Ham raido,,, and so on
aluminum mast are available for heights up to 45 meters. All components withstand immersion
and salt water and are designed to survive rough handling.
Telescopic masts designed for multitude purpose and can be deployed range activities including:
1. Yagi, VHF/ UHF antennas etc
2. Remote monitoring
3. Military radar
4. Lighting/ surveillance
5. Mobile patrol
6. Ham raido,,, and so on
technical data | ||||||
main spec. | Closed length: 1.5m (Bottom base included) Extended length: 6m (Bottom base included) Max load:60kg Temperature: working temp:-40--+50C Storage Temp:-55--+70C | |||||
main pole in sections | Section No. OD Thickness 1# 55mm 3.0mm 2# 69mm 3.0mm 3# 83mm 3.0mm 4# 98mm 3.0mm 5# 114mm 3.0mm 6# 132mm 3.0mm | |||||
Bottom base | diameter: 220mm Thickness: 12mm | |||||
Accessories | Guy rope--------------------------3 units Ground anchor---------3 pieces Handle lifting bar------2 pieces Tripod ---------------------1 piece Top plate-------------------1 piece | |||||
Material | Main Pole: aluminum alloy Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) | |||||
Color | Army green or customized color accepted | |||||

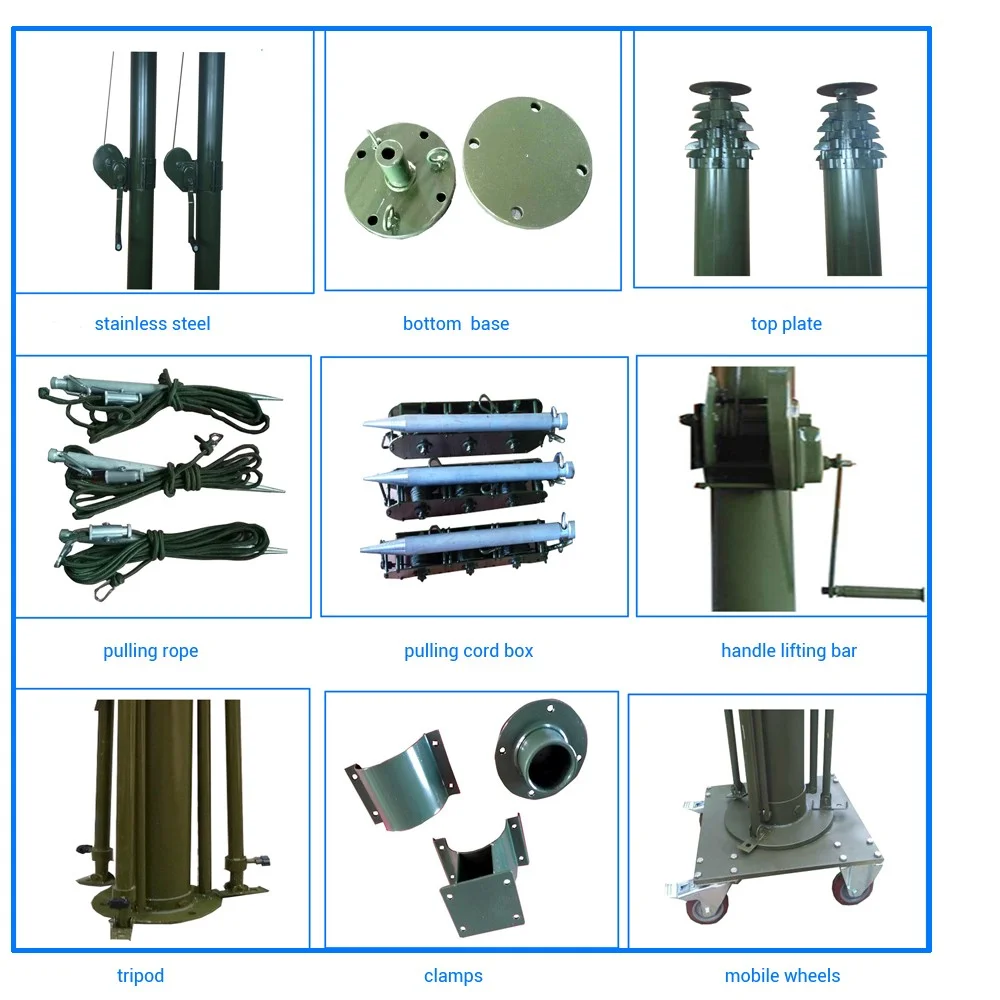

accessories
Accessories.
Usually the pulling rope used on less than 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels
used to help mobile
If you have other accessories requirement, please contact us separately.
This mast used for
This product can be used on the ground, vehicle and ship use. Widely used in public security, fire, communications, meteorology,
municipal construction, all areas of a variety of natural disasters, emergency scene nighttime rescue etc;
for nearly unlimited use
Usually the pulling rope used on less than 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels
used to help mobile
If you have other accessories requirement, please contact us separately.
This mast used for
This product can be used on the ground, vehicle and ship use. Widely used in public security, fire, communications, meteorology,
municipal construction, all areas of a variety of natural disasters, emergency scene nighttime rescue etc;
for nearly unlimited use
Packing & Delivery
After-sale service
Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description
Installation Instructions:
1）the mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2）the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic mast. Its connection must be solid and reliable.
1）the mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic mast will affect the rise and fall of itself, and if the lifting rod tilts seriously or maintain a long time, damage and danger could not be avoided.
2）the mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile. At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic mast. Its connection must be solid and reliable.

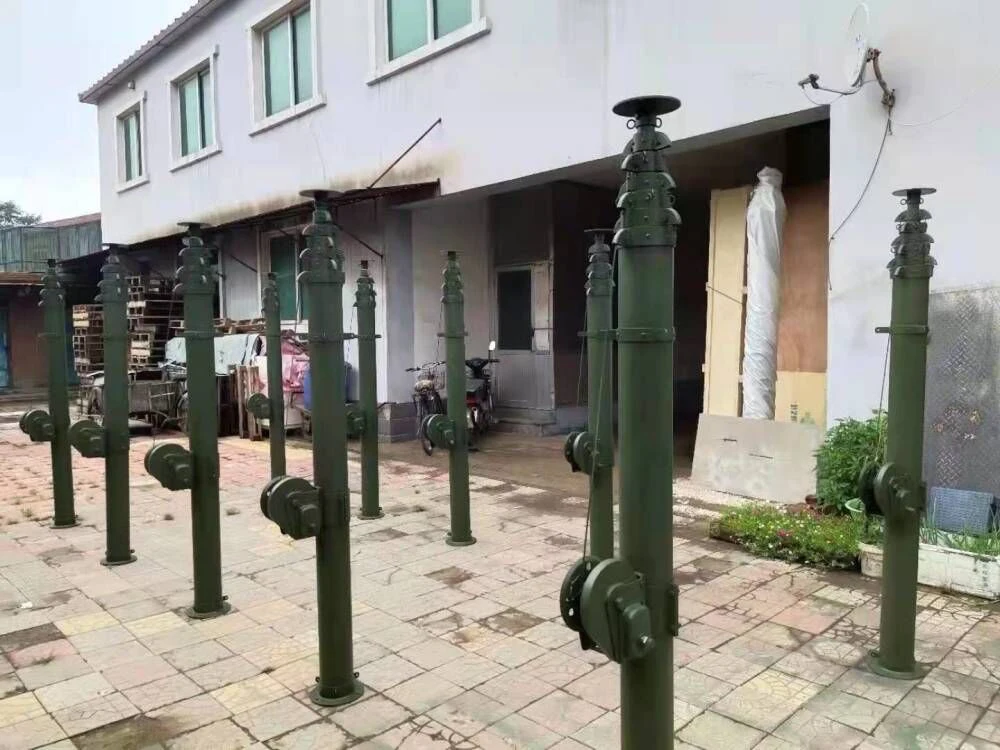

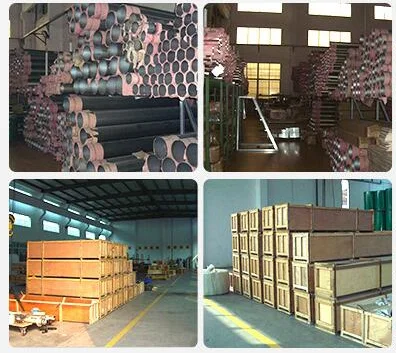

Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.

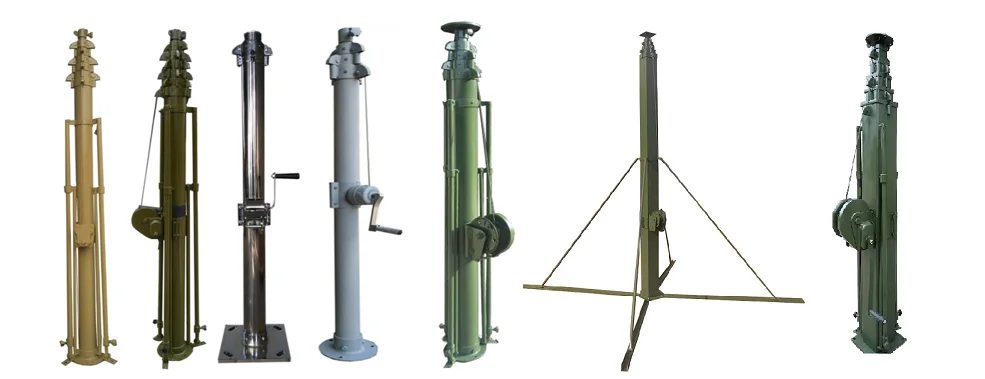

catalog of some common grade manual mast as follows----payload no more than 10kg
extended height (m) | No. of section | retracted height (m) | outer tube range (mm) | self weight (kg) |
4 | 3 | 1.6 | 60-80 | 14 |
5 | 4 | 1.65 | 50-80 | 17 |
6 | 5 | 1.7 | 50-90 | 21 |
8 | 6 | 1.8 | 40-90 | 24 |
10 | 7 | 1.95 | 30-90 | 26 |
12 | 7 | 2.2 | 30-90 | 28 |
15 | 8 | 2.45 | 30-105 | 33 |
18 | 9 | 2.7 | 30-130 | 47 |
20 | 9 | 2.95 | 30-130 | 55 |
22 | 9 | 3.15 | 30-130 | 58 |
25 | 10 | 3.4 | 30-150 | 72 |
30 | 10 | 3.85 | 30-150 | 84 |
FAQ
Q1: How long is warranty?
Q6: Do we accept OEM/ ODM?
A6: Yes
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Welcome to contact
Contact person: Ms.Grace Wang
Talents Enterprise Company Limited
T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106
Whatsapp/ Wechat:+86 18222428293
W: //www.tjtalents.cn
Похожие товары
Пневматическая телескопическая мачта мобильной связи по лучшей цене

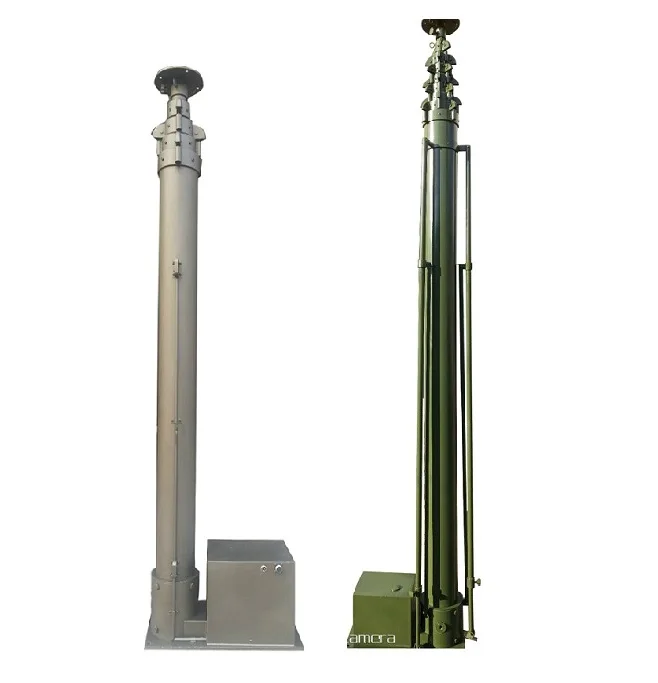

Пневматическая телескопическая светодиодная башенная мачта для прицепа 6 м
