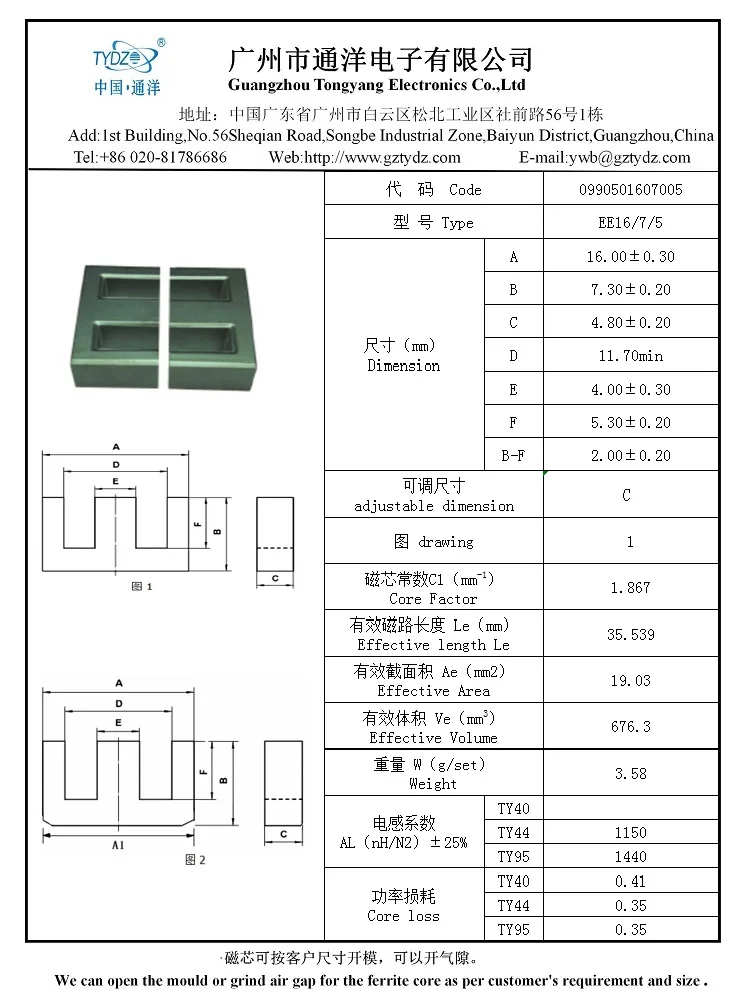

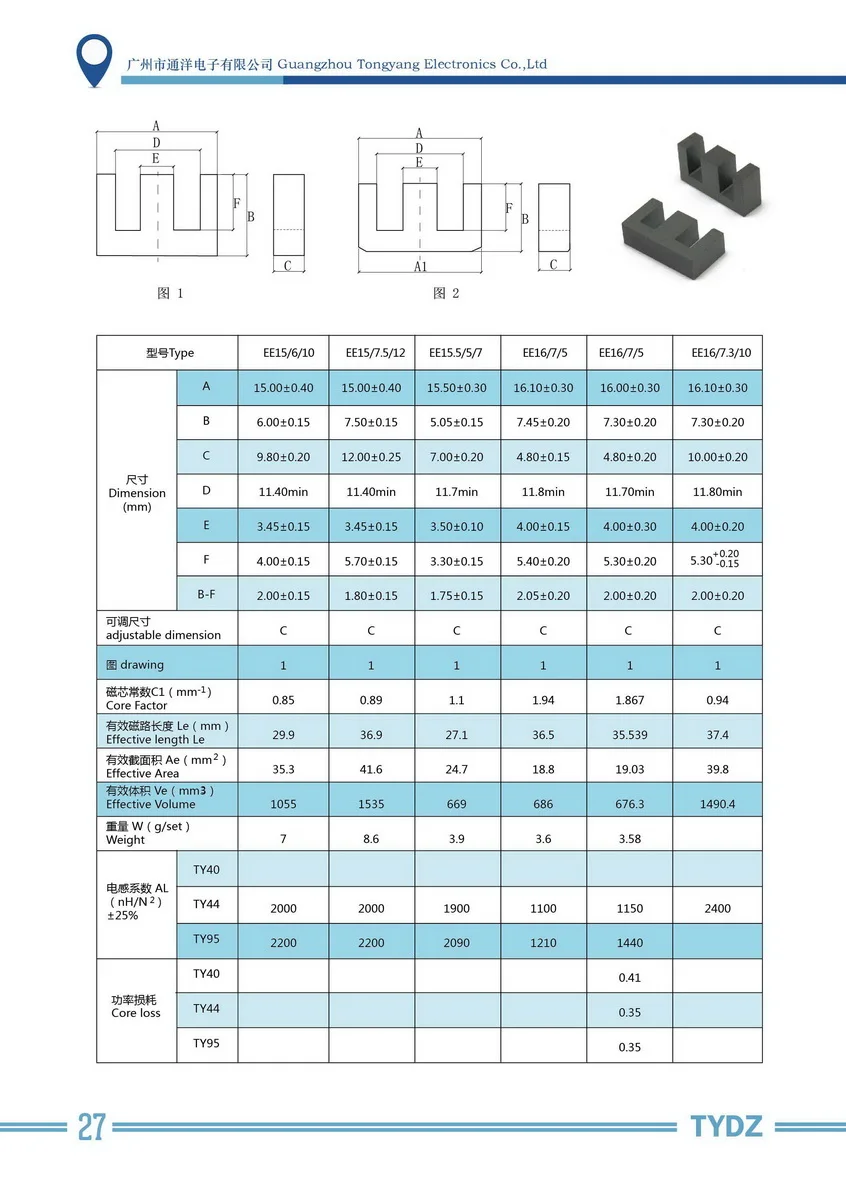

Name: Сердечник феррита EE16/7/5 для трансформатора
SKU: 60720973311
Availability: InStock

5,18 $ - 5,88 $

17,13 $ - 19,57 $

3,00 $ - 3,98 $

571,11-666,30 ₽

45 688,76-56 159,10 ₽

50 448-52 351,70 ₽

121,84-217,03 ₽

856,67-999,45 ₽

842,39-938,53 ₽

Series	Feature
EE Ferrite core& bobbin	Applied in the switching power supply,main power transformer
EF Ferrite core& bobbin	Applied in the switching power supply,main power transformer
EFD Ferrite core& bobbin	Auxiliary powr transformer,main power transformer,choke coils
EPC Ferrite core& bobbin	Auxiliary powr transformer,main power transformer
PQ Ferrite core& bobbin	Applied in the linear filter,choke,pulse transformer,drive transformer
UU Ferrite core& bobbin	Varieties of switching power supply transformer,choke coils ect.
EC/EER/ER Ferrite core& bobbin	Applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers and chokes
RM Ferrite core& bobbin	Filters, inductors and transformers for telecommunication other electronic equipment
POT Ferrite core& bobbin	Filters for telecommunication equipment, and various kinds of inductors and transformers
DR Ferrite core	Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc;
EI Ferrite core and bobbin	Various kinds of transformers and chokes
Basis Bobbin for toroidal	Pulse and wide-band transformers, various types of filters, inductors and chokes.
Ferrite rod core	Various types of inductors.

Сердечник феррита EE16/7/5 для трансформатора
