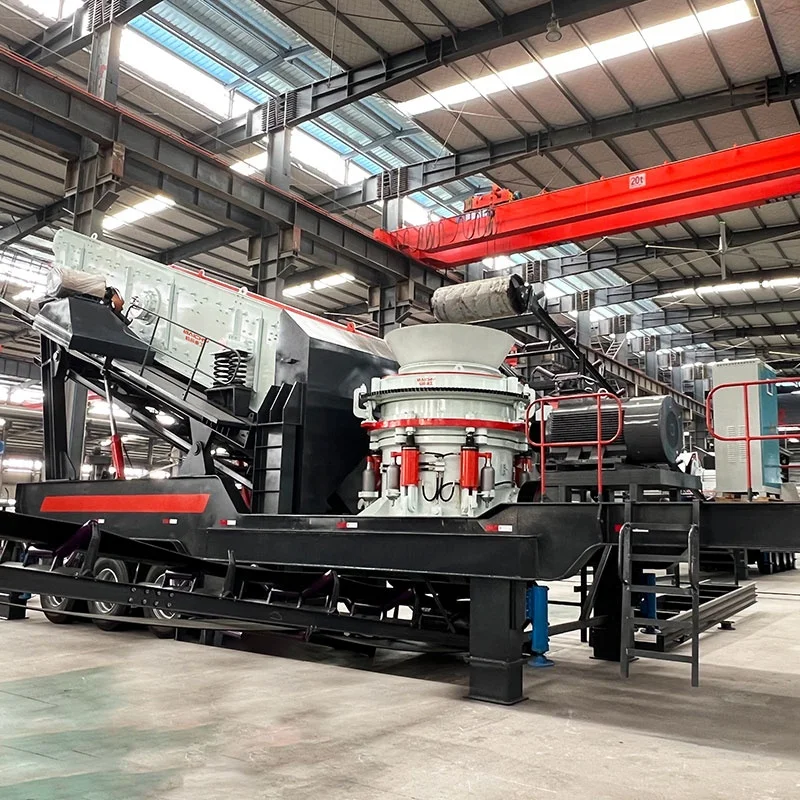

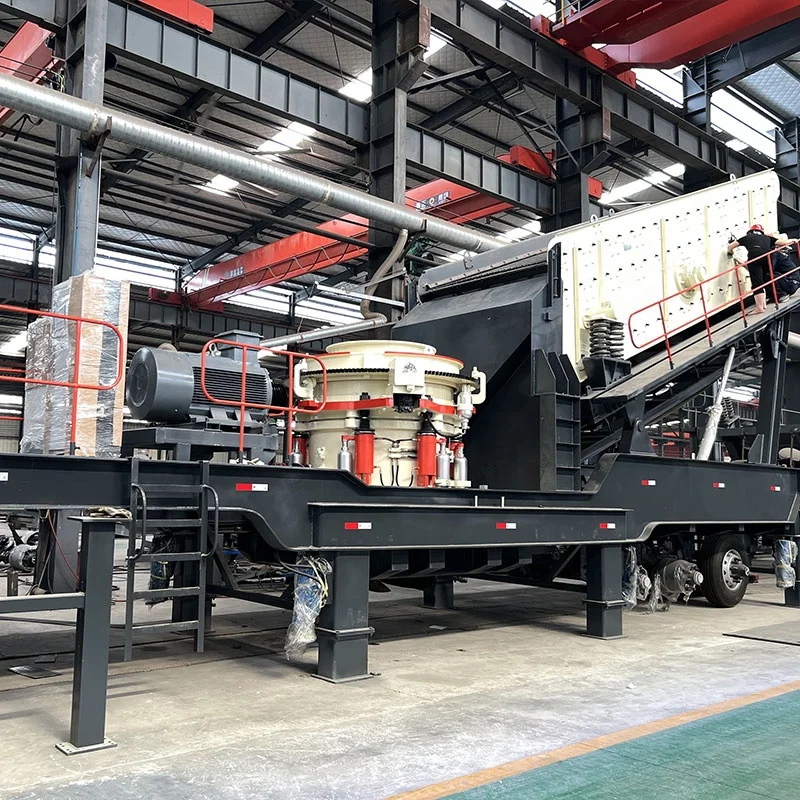

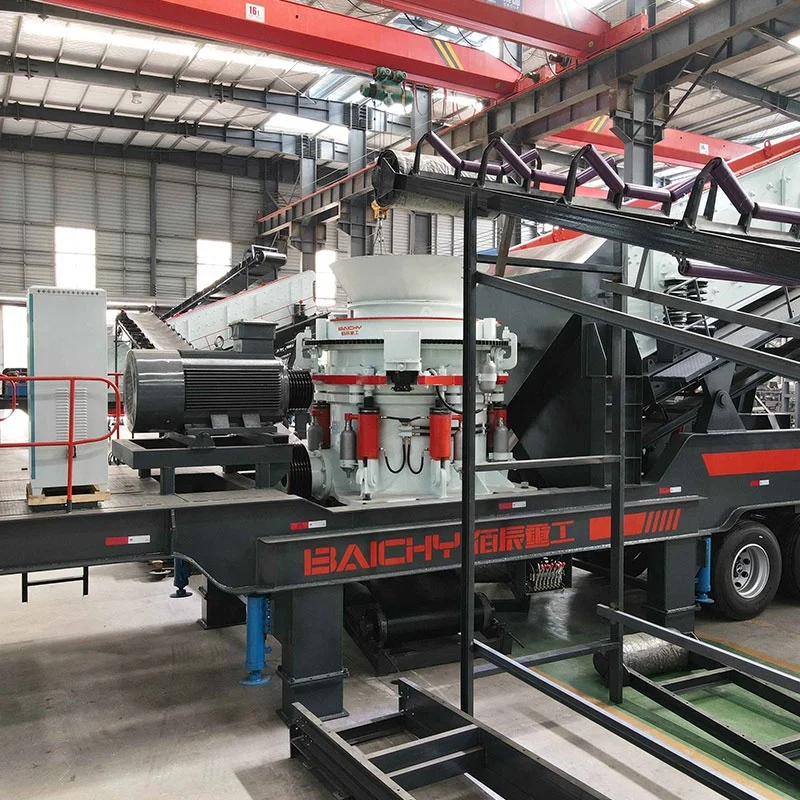

100 200 Tph Мобильная конусная дробилка для твердых камней портативная базальтового гранита гравия камня
- Категория: Energy & Mineral Equipment >>>
- Поставщик: Henan Baichy Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 60723373500:
Описание и отзывы
Характеристики
100-200 Tph Mobile Hard Stone Cone Crusher Price, Portable Basalt Granite Gravel Stone Crushing Machine, Mobile Cone Crusher

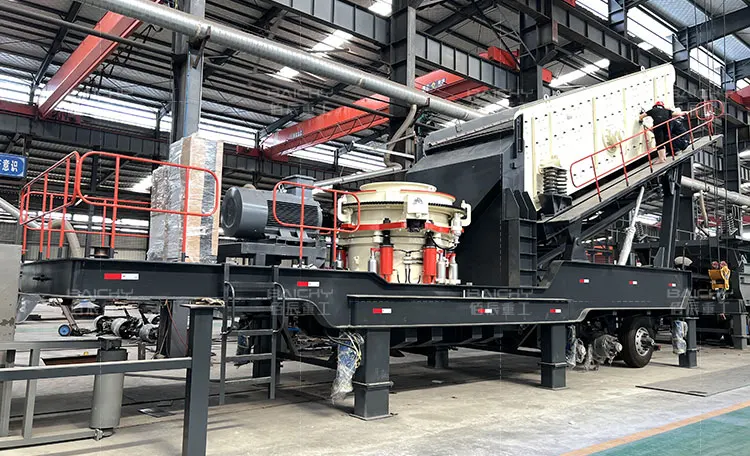

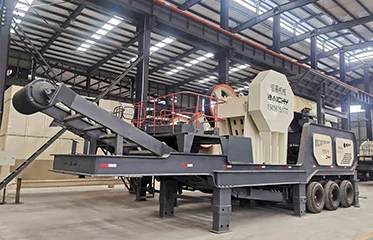

![Wheel type mobile gold ore crusher machine price, mobile hydraulic stone cone crusher plant, construction waste crushing station]()

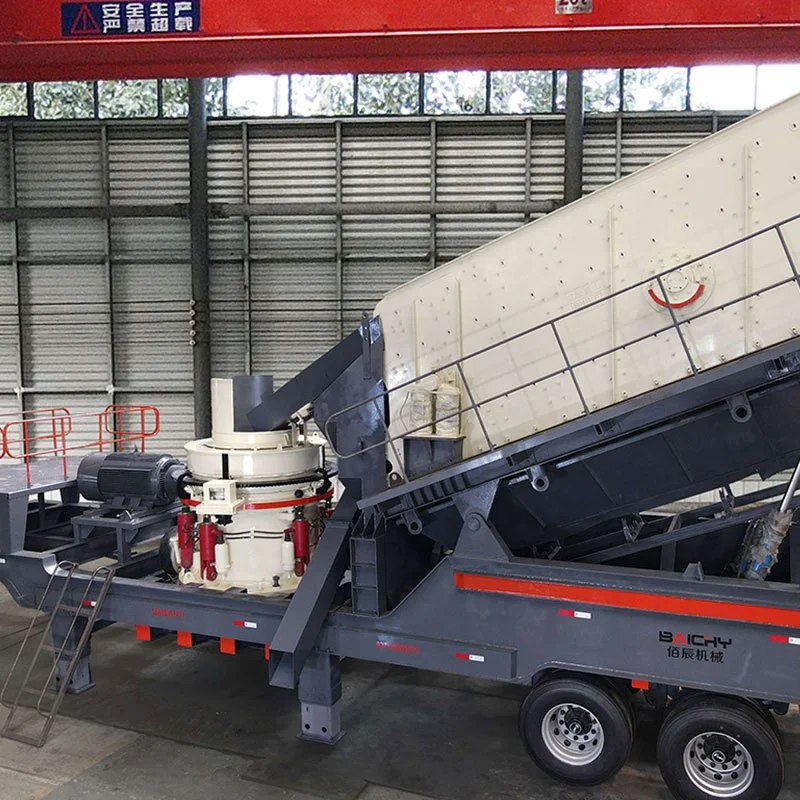

The mobile cone crusher is an efficient and flexible secondary and tertiary mobile crusher plant.
It is used in crushing medium-hard to hard stones, abrasive natural rocks, and raw materials in mining. The cone crusher delivers excellent cubic finished products in the secondary and tertiary crushing stages. Baichy mobile cone crushing plants are available in different sizes and versions for various applications.
COST-EFFECTIVE, HIGH-CAPACITY CRUSHING
Baichy mobile cone crushing plant has a robust construction for crushing even the toughest of hard rock types. Baichy features the most popular HPC cone crushing unit, which provides optimized performance, efficiency, and high capacity in crushing. The crusher is suitable for crushing hard and soft rocks such as granite, limestone as well as river gravel. The proven crusher cavity can be selected according to specific application requirements to achieve high capacity, top-end product quality, and low wear part costs. On the other hand, the optimized power transmission makes it extremely cost-effective.
If you want to know more about mobile crushing equipment, please click the link below for more details.
 |  |
Mobile Impact Crusher
| Mobile Jaw Crusher |
 |  |
Mobile Sand maker
| Mobile Crush And Screen |
Working principle
After the material is crushed by the cone crusher, it is conveyed by the belt conveyor to the vibrating screen to obtain finished products of different sizes: 0-5mm, 5-10mm, 10-20mm, 20-40mm (or other sizes).

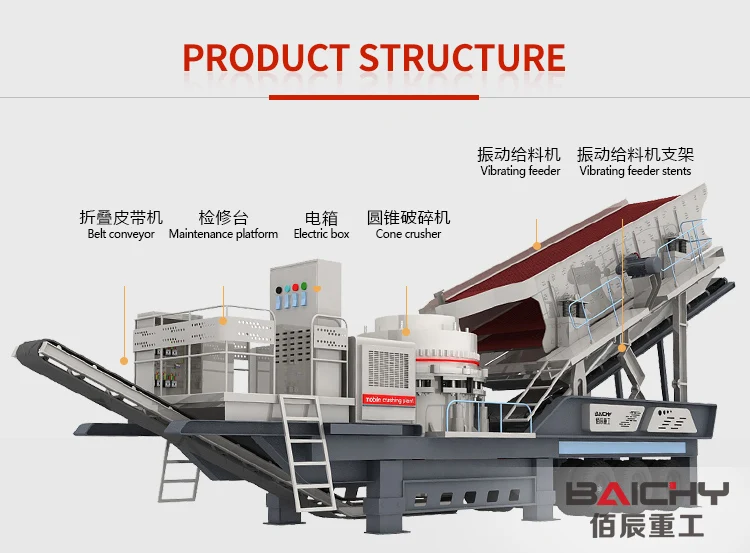

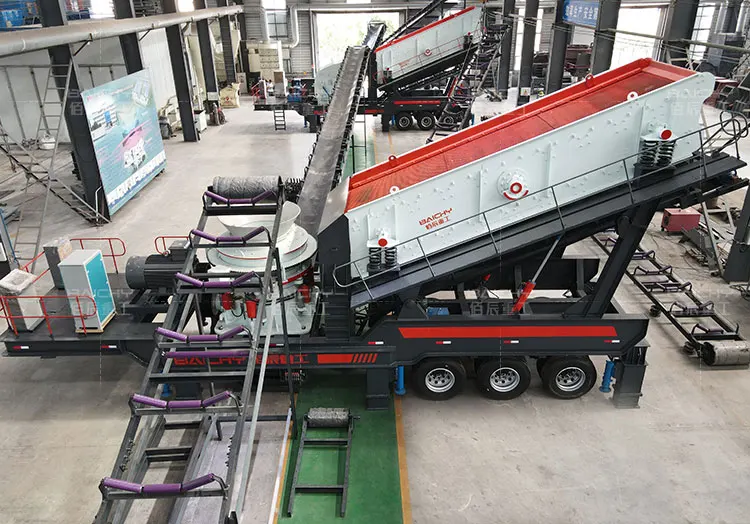

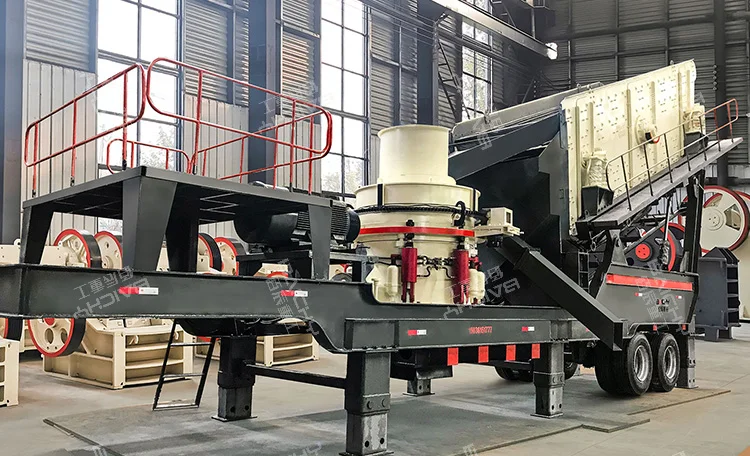

The design of the mobile cone crusher station is to put the cone crusher and the vibrating screen on the same platform, and the uppermost material can be directly flowed into the cone crusher through the hopper for crushing.
Compared with the fixed stone crushing production line, it has good mobility, can be extended with the raw material site or construction site, and has a variety of combinations to meet the processing needs of different materials.
| Model | SMC120SMHS | SMC180SMHS | SMC180SMH | SMC250SMHS | SMC250SMH |
| Transport size | |||||
| Length(mm) | 11200 | 11800 | 10000 | 12300 | 10816 |
| Width(mm) | 2743 | 2743 | 2480 | 2900 | 2743 |
| Height(mm) | 4200 | 4200 | 4160 | 4200 | 4160 |
| Alex weight(kg) | 15500 | 16300 | 14300 | 31100 | 22900 |
| King pin weight(kg) | 12900 | 14200 | 8100 | 17600 | 12800 |
| Cone Crusher | |||||
| Model | SMH120 | SMC180 | SMC180 | SMC250 | SMC250 |
| Max Feed opening(mm) | 160 | 180 | 180 | 240 | 240 |
| Setting range(mm) | 22-32 | 22-32 | 22-32 | 26-51 | 26-51 |
| Vibrating Screen | |||||
| Model | 3YK1545 | 4YK1548 | |||
| Belt conveyor | |||||
| Model | B800X8 | B1000X8 | B1000X8 | ||
How to choose a suitable mobile cone crusher plant?
According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile cone crusher plant, the user must have a detailed understanding of the humidity, hardness, and physical and chemical properties of the materials to be crushed.
According to the finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it. If users want fine-grained materials, they can choose a short-head cone crusher; if they want coarse-grained materials, they can choose a standard or medium-sized cone crusher. In short, users must have a clear understanding of the product particle size requirements they want to achieve.
Since the prices of each type of mobile cone crusher are different, users must consider their own production conditions when purchasing a cone crusher, and strive to obtain large returns with a small investment.
According to the finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it. If users want fine-grained materials, they can choose a short-head cone crusher; if they want coarse-grained materials, they can choose a standard or medium-sized cone crusher. In short, users must have a clear understanding of the product particle size requirements they want to achieve.
Since the prices of each type of mobile cone crusher are different, users must consider their own production conditions when purchasing a cone crusher, and strive to obtain large returns with a small investment.
 |  |  |
Jaw Crusher
| Impact Crusher | Cone Crusher |
 |  |  |
Sand Making Machine
| Vibrating Screen | Mobile Stone Crusher |
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning and after-sales service
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
