Product Description

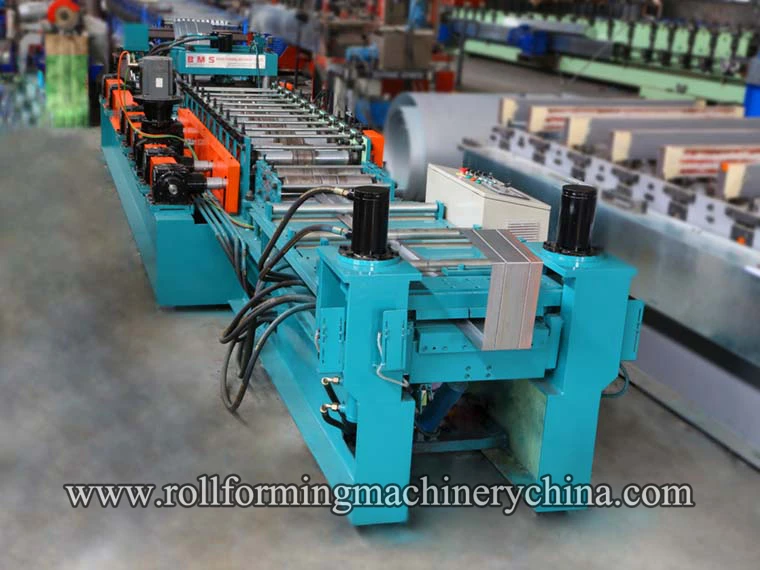

      Automatic Fire Damper Frame Roll Forming Machine

1.Main features of automatic fire damper frame roll forming machine

    The advantages of automatic fire damper frame roll forming machine are as follows:

    1.Gearbox driving,for high accurancy forming and stable long-life working

    2.Fully Automatic forming and bending, all steps only need one person. save and lower labor cost.

    3.First time in China,Made with Taiwan Technology but China Price.

    4.One machine for multi-profiles: any frame within range from 150mm*150mm to 1800mm*1800mm,

       with thickness 0.8-1mm for GI(galvanized steel) or SS(stainless steel)

2.Detailed Images of automatic fire damper frame roll forming machine

    Machine Parts

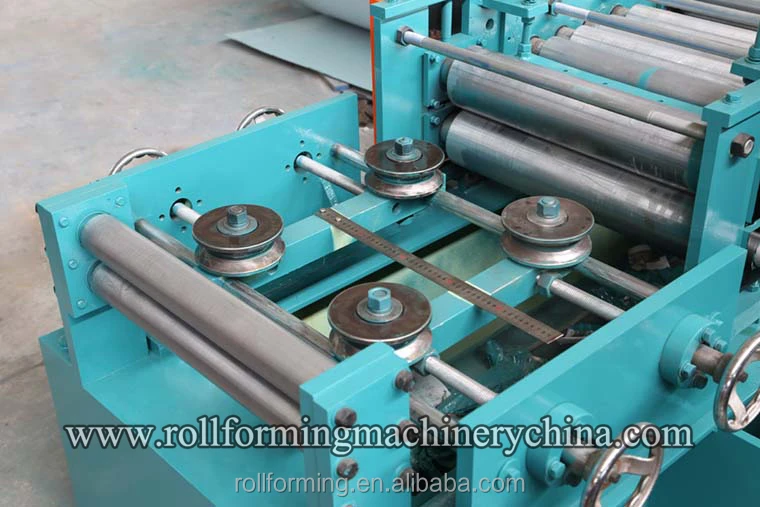

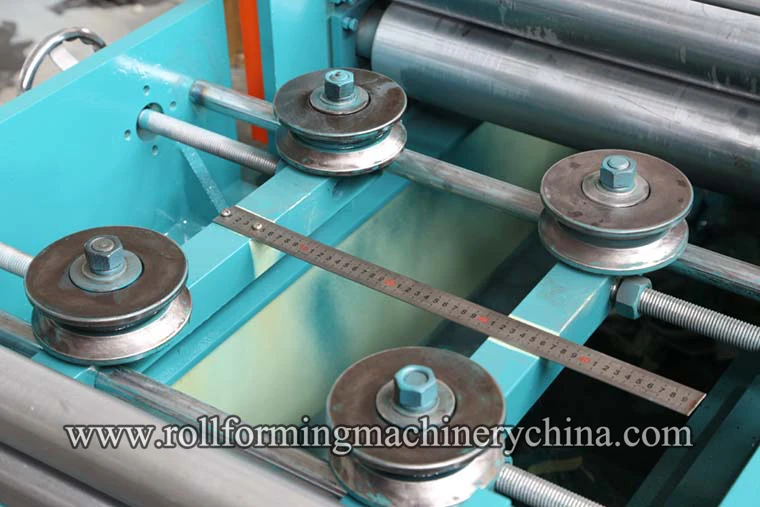

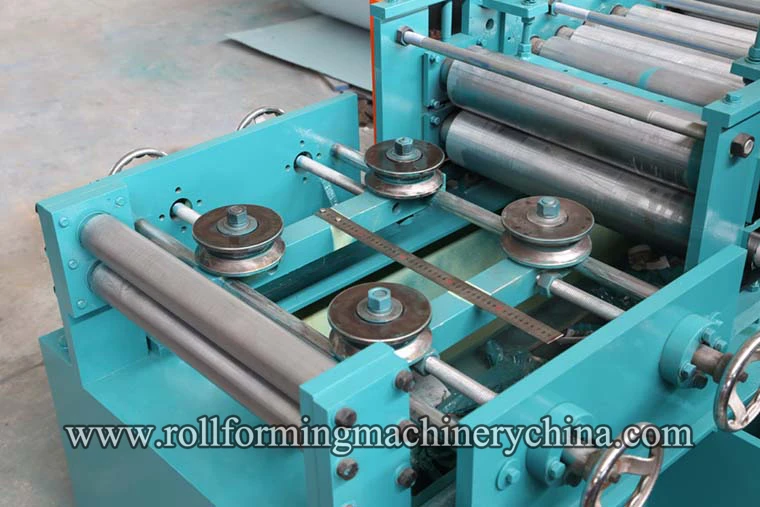

        1) Automatic fire damper frame roll forming machine feeding guide

        Brand: BMS    Original: China

        With hand wheels and measuring scale for easy control of the feeding material width finely

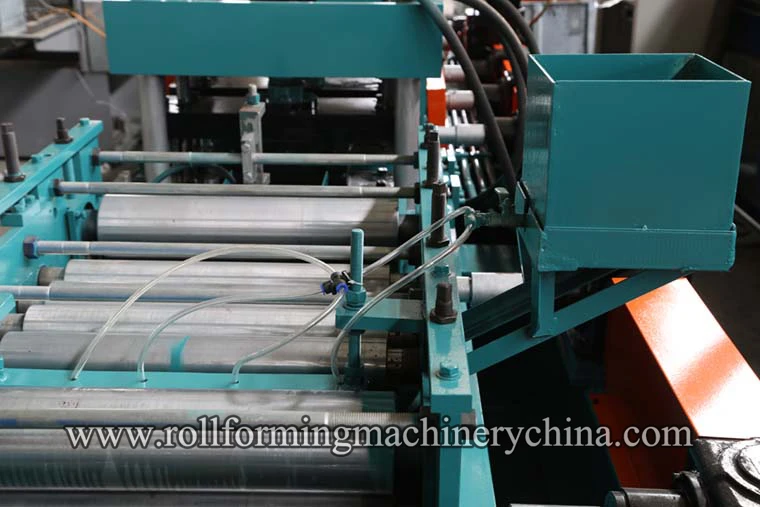

        2) Automatic fire damper frame roll forming machine Lubrication device

        Brand: BMS    Original: China

        Make material feeding more smoothly and clean rollers

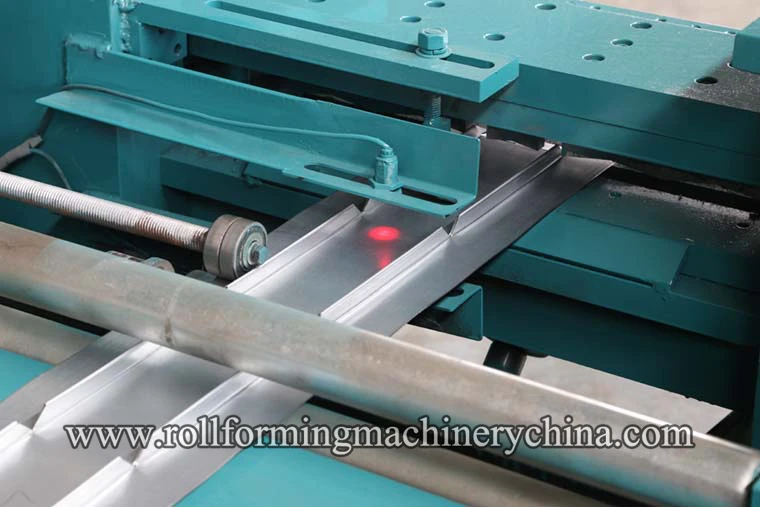

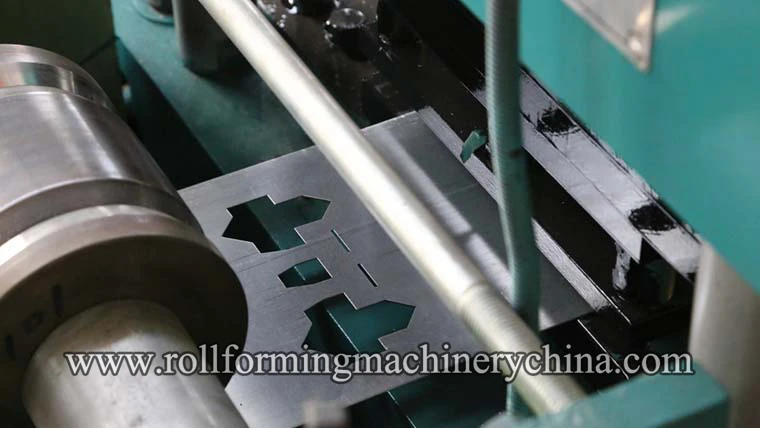

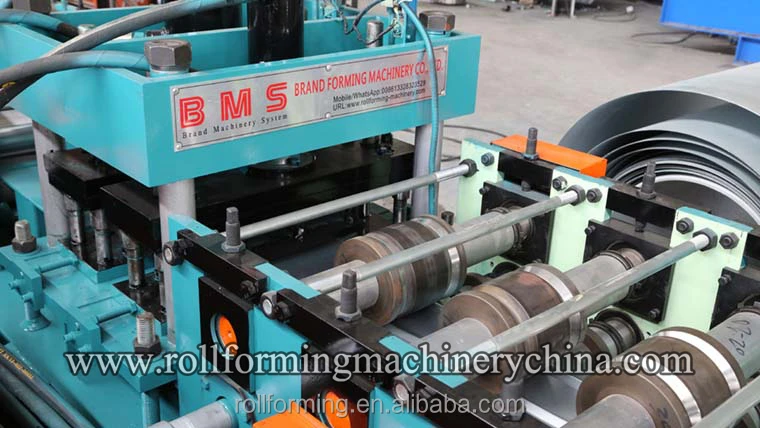

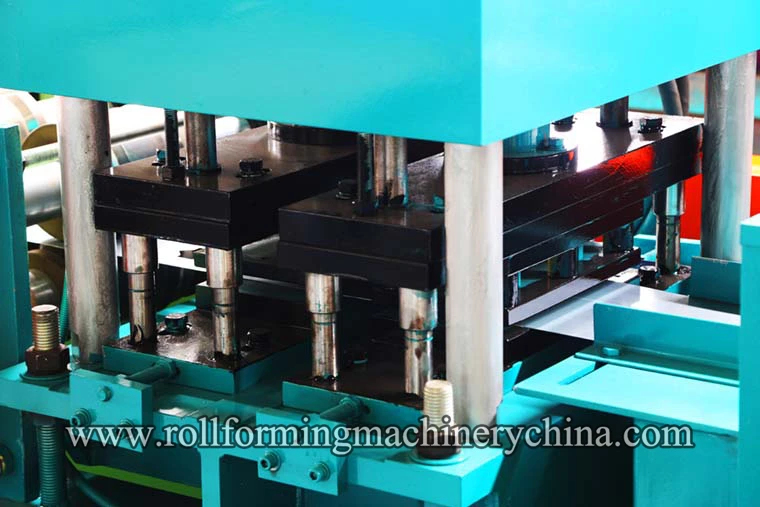

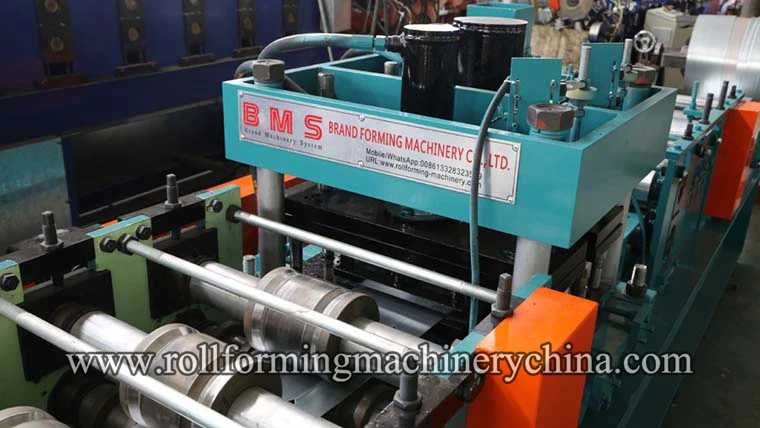

        3) Automatic fire damper frame roll forming machine punching device

        Brand: BMS    Original: China

        Three-cylinder punching with four punching molds.

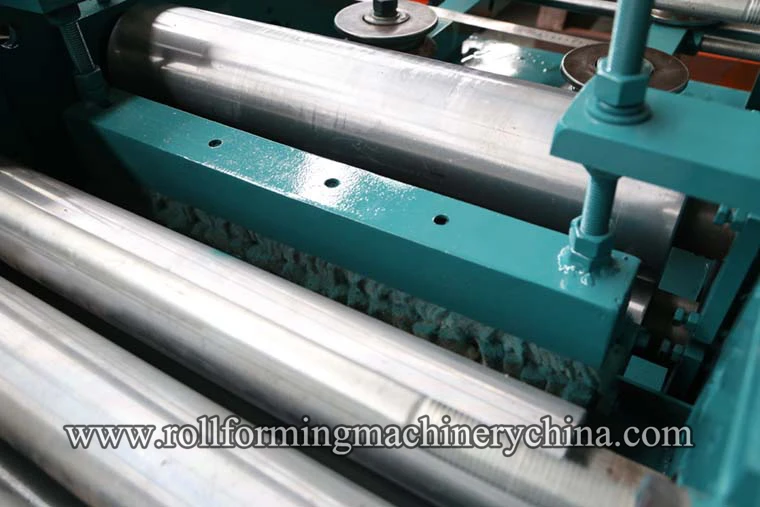

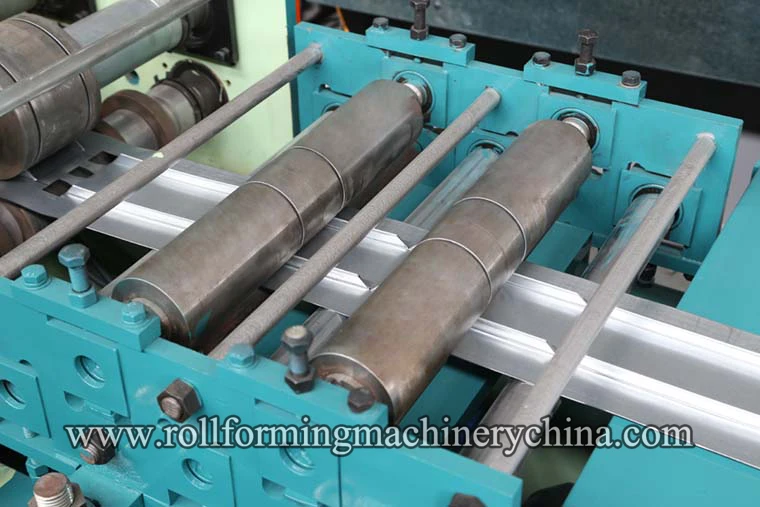

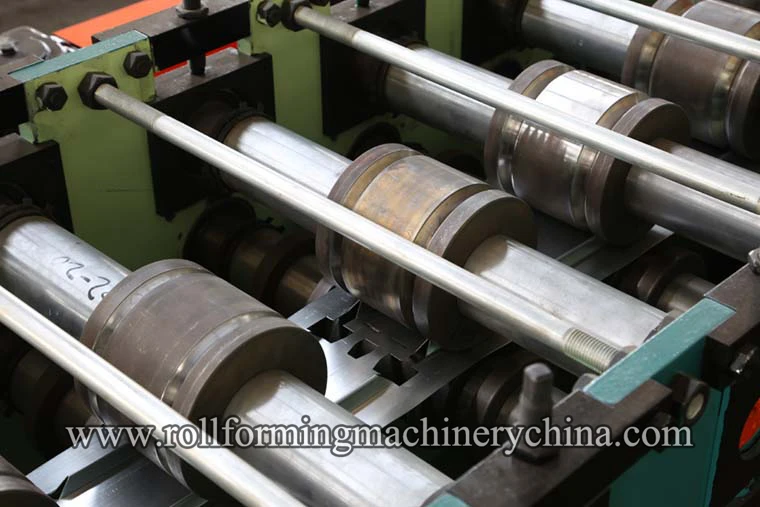

        4) Automatic fire damper frame roll forming machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality steel Cr12MOV, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body frame made from 400# H type steel by welding

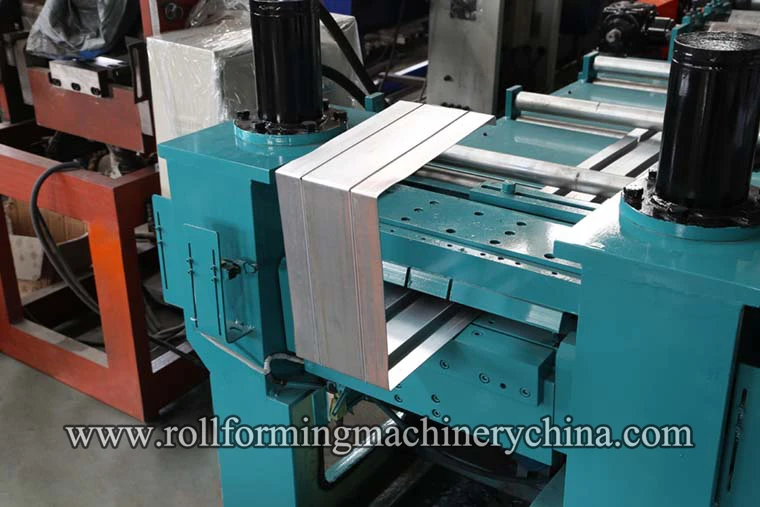

        3) Automatic fire damper frame machine hydraulic bending and cutting device

        Brand: BMS    Original: China

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

        Hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

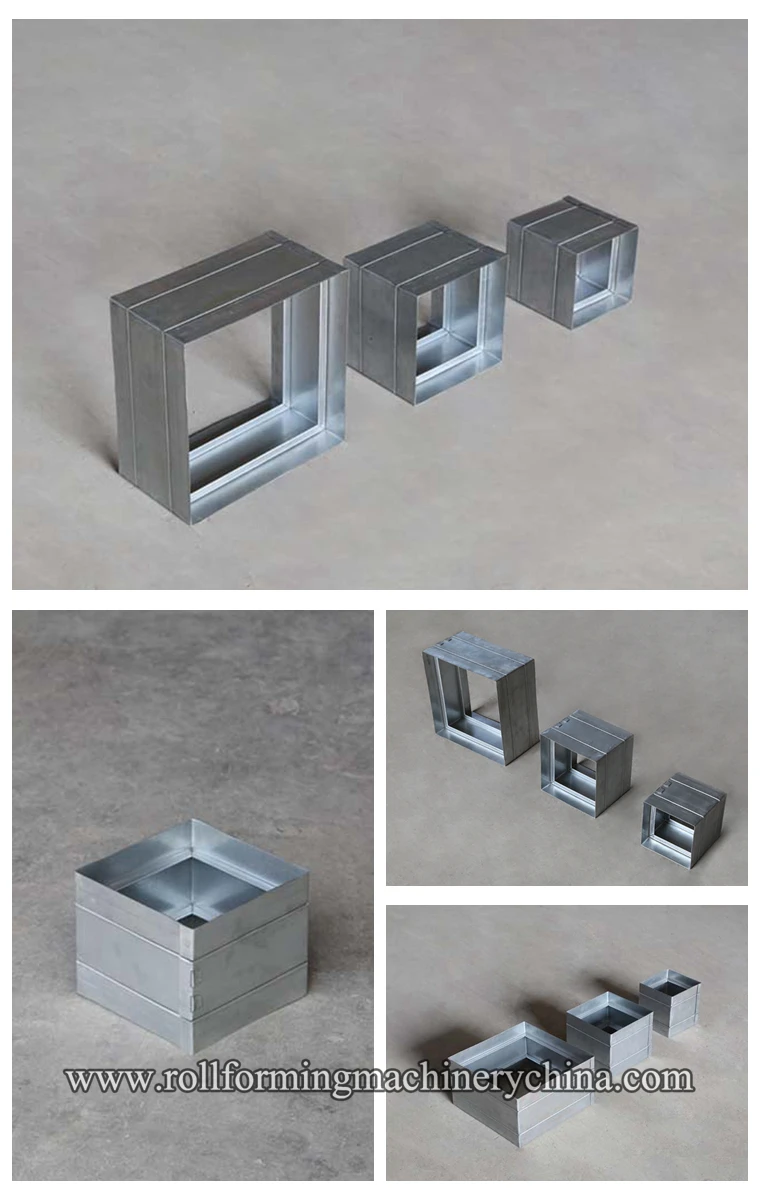

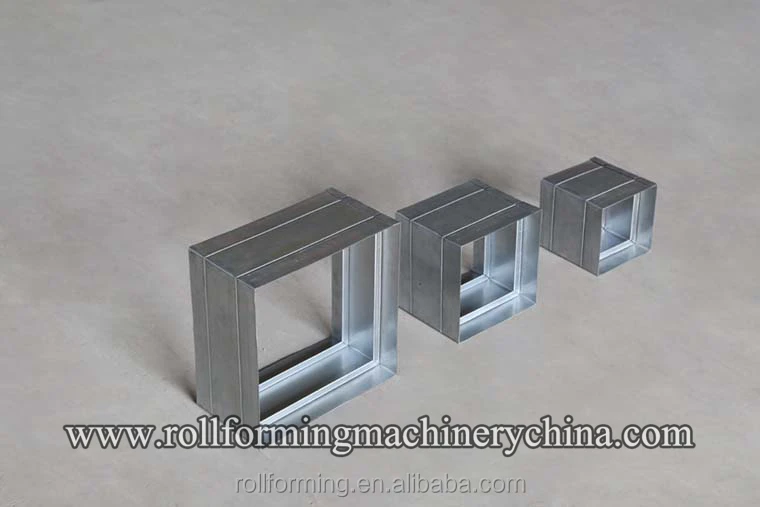

         4) Automatic fire damper frame roll forming machine sample display

        Brand: BMS    Original: China

        5) Automatic fire damper frame roll forming machine gearbox driving device

        Brand: BMS    Original: China

        6) Automatic fire damper frame roll forming machine decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 508mm, coil ID range 470mm±30mm

        Capacity: Max. 3 Ton

        With 3 tons hydraulic decoiler for option

Other details of Automatic fire damper frame roll forming machine

Suitable for material with thickness 0.8-1.0mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gearbox driving transmission, 10 steps to form

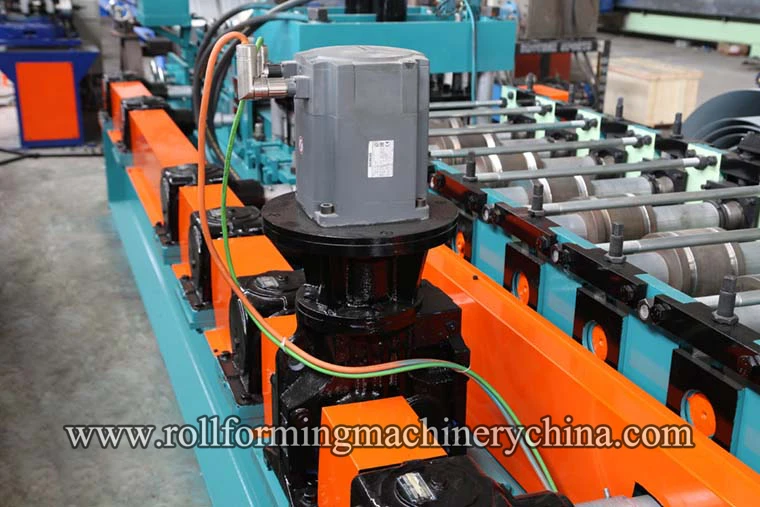

Main Siemens Servo motor=5KW , Frequency speed control. Forming speed approx.12-15m/min

PLC Control System (Touch screen brand:German Siemens ,

Inverter brand:German Siemens, Encoder brand:Japan Koyo/Omron)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

After-sale service of fire damper frame roll forming machine

1. The warranty of fire damper frame roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
