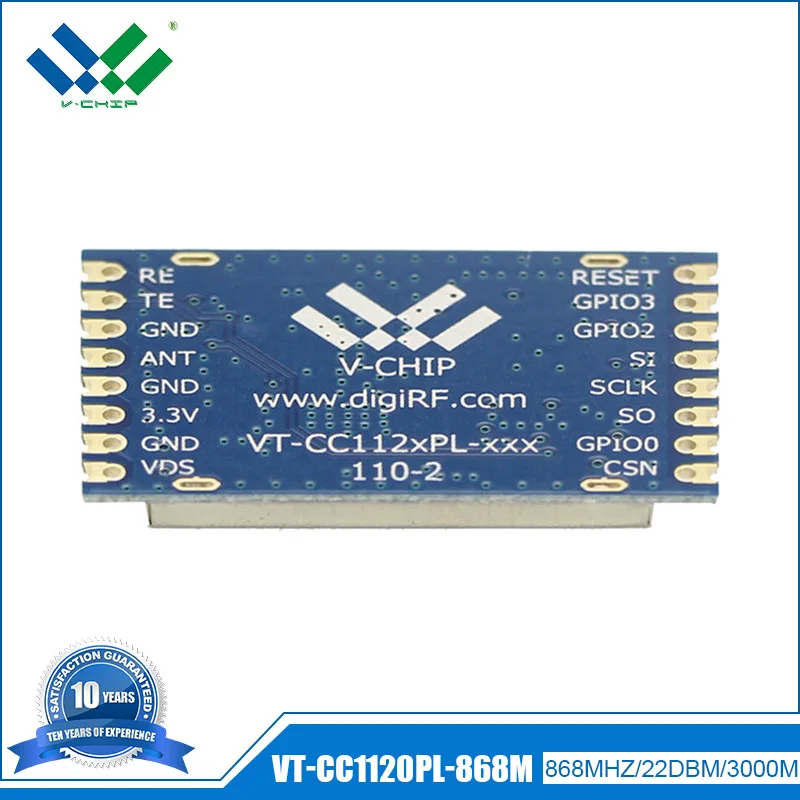

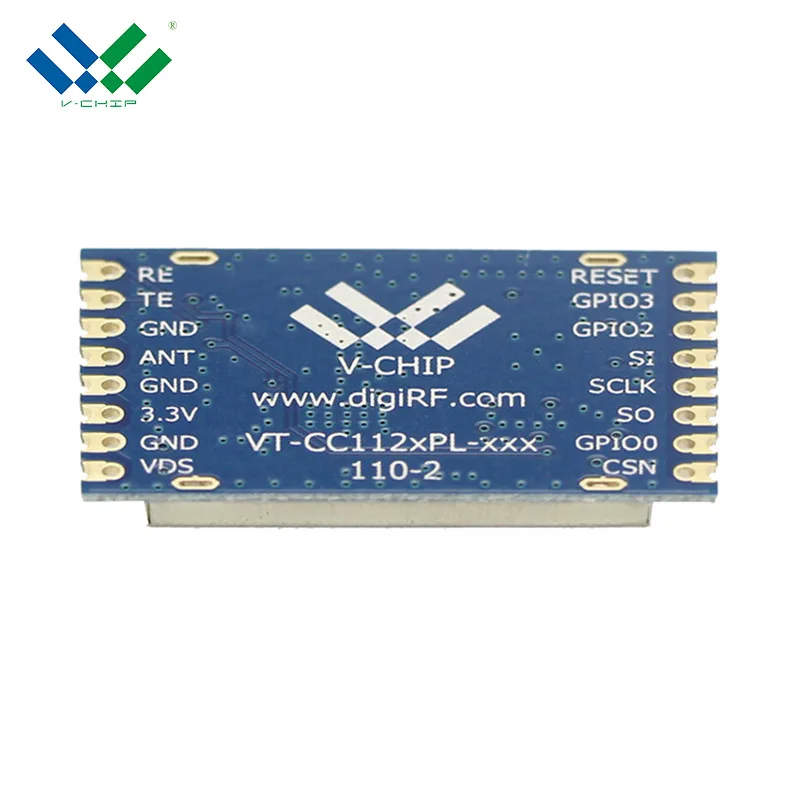

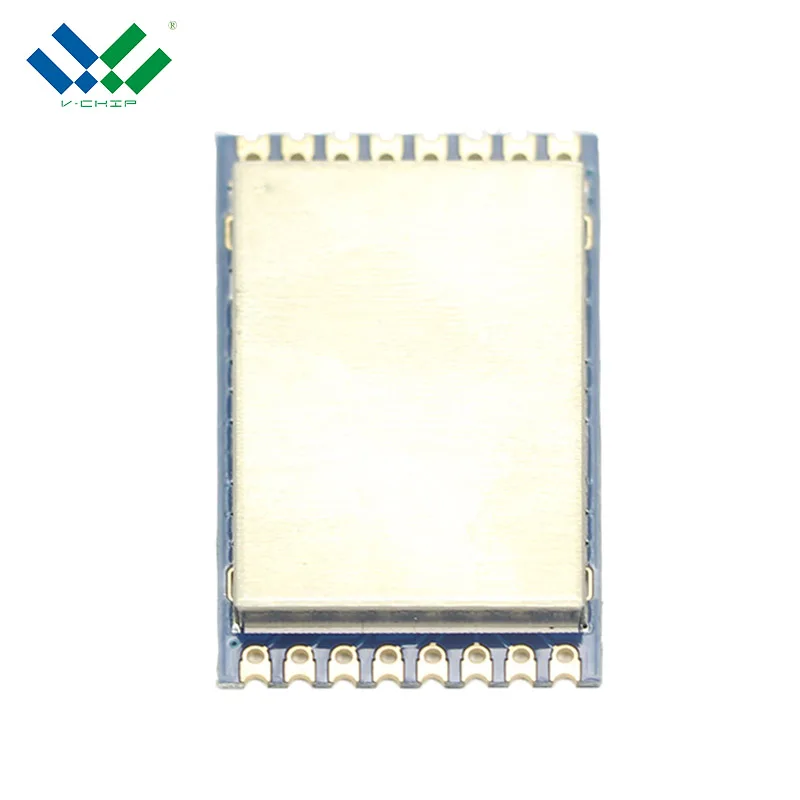

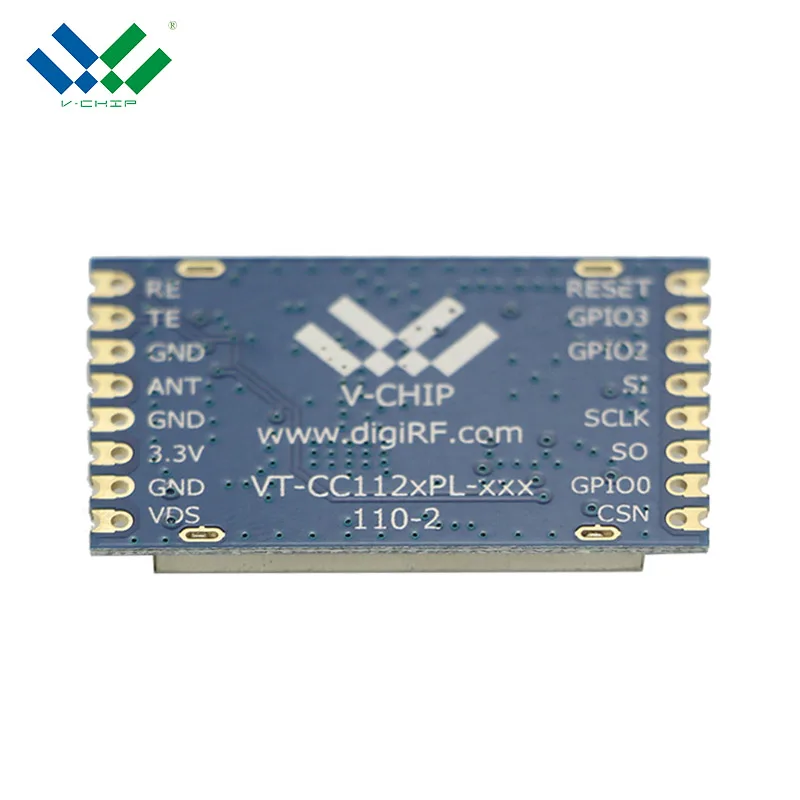

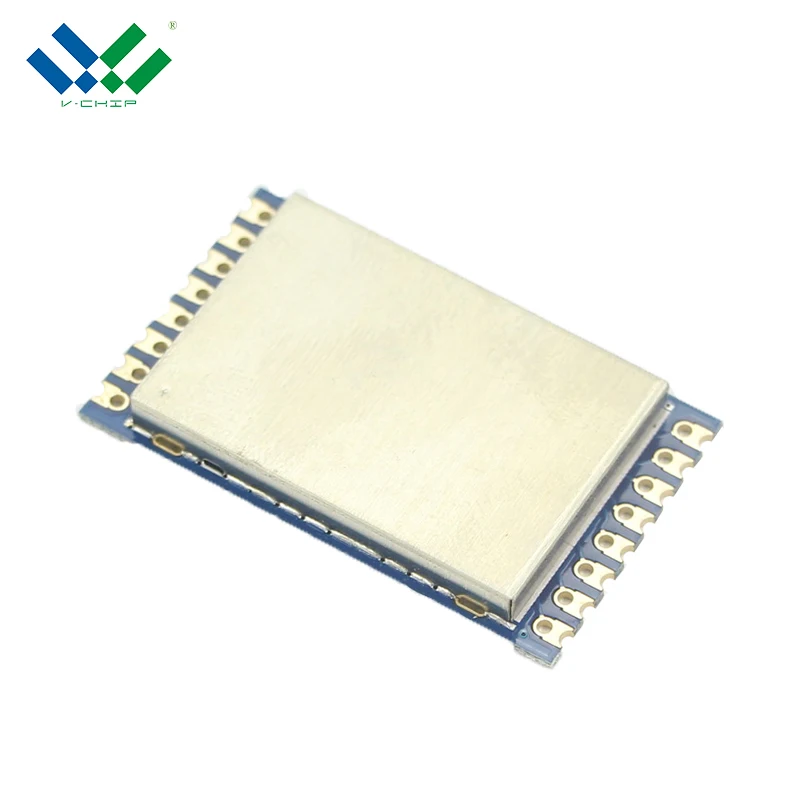

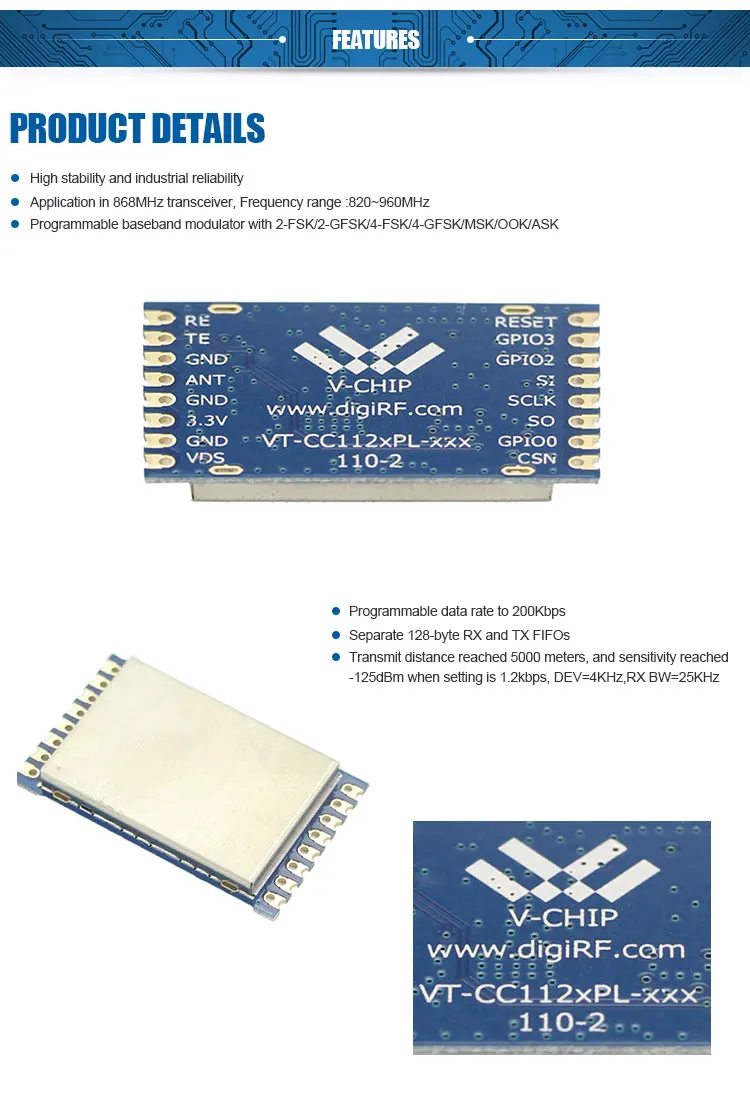

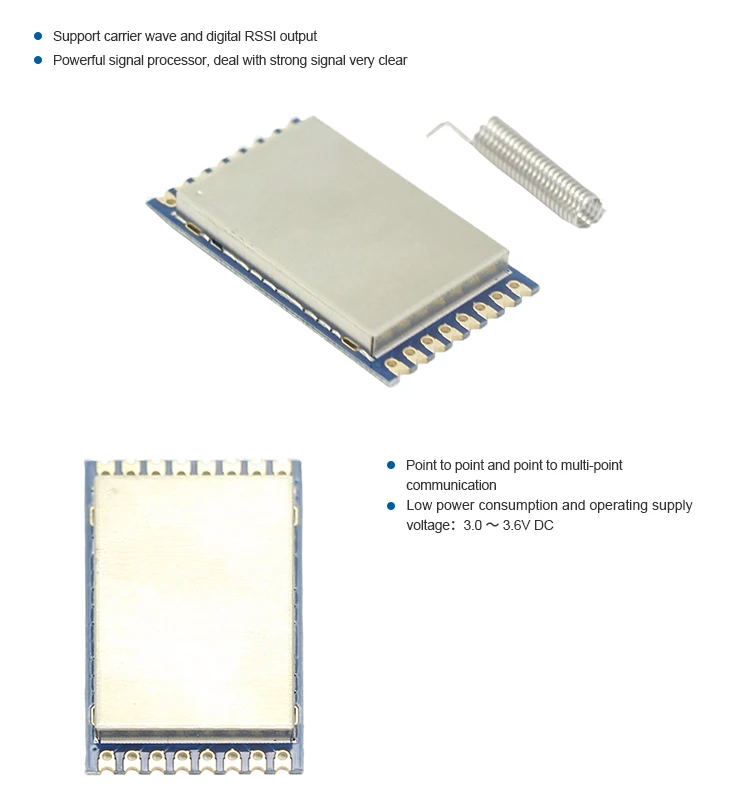

Программируемый радиочастотный модуль дистанционного управления CC1120 SPI по лучшей цене для электронной этикетки передача на большие расстояния

Parameter

Type

Condition/Note

Operating supply voltage

DC 3.0~3.6V

Frequency range

410-480MHz/820-960MHz

Programmable

Frequency accuracy

±10ppm

Modulation format

2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK

Programmable

Transmit power

MAX:26dBm(3.3V)

Programmable

Receiver sensitivity

-125dBm

1.2kbps DEV=4KHz RX BW=25KHz

TX current consumption

≤250mA

RX current consumption

≤25mA

Sleep State current consumption

<1uA

Transmit distance

5000M

Antenna impedance

50ohm

Operating voltage

3.0~3.6V

Operating temperature

-40~+85 °C

Storage temperature range

-40~+125°C

Dimension

36.3×22.2mm×4.0 mm(With shield cover)

Description

Reason and Solution

Can’t communication

1.The power supply connect not well, check the module VCC whether it is out of maximum rating.

2.The signal line connect not well, check the module SPI interface.

3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration.

4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication.

Communication distance is too short

1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna.

2.The work space contains a same frequency interference source, or a strong magnetic field interference, power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance.

3.The power supply is not strong. Check the voltage and the current whether it is enough.

High data error

1.The power supply ripple is too big, Change the power supply.

2.Check the module register configuration, it is recommended to set as the CC1120-datasheet.

3.There is a carrier frequency interference, change the channel.

4.The antenna unmatched to the module RF interface, change another matched antenna.
