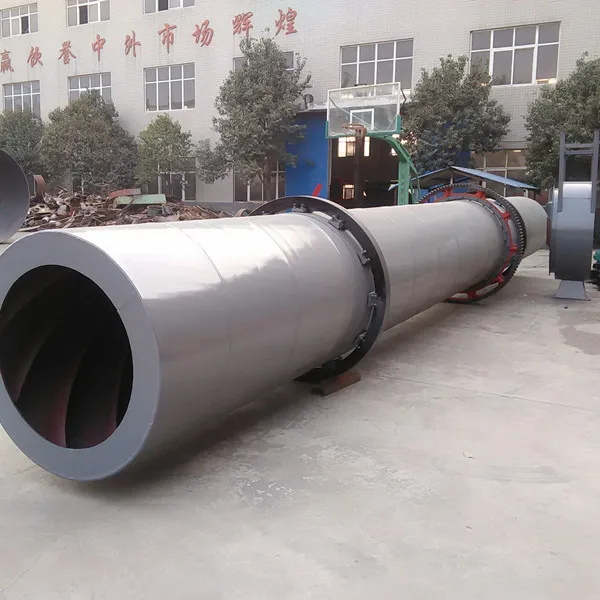

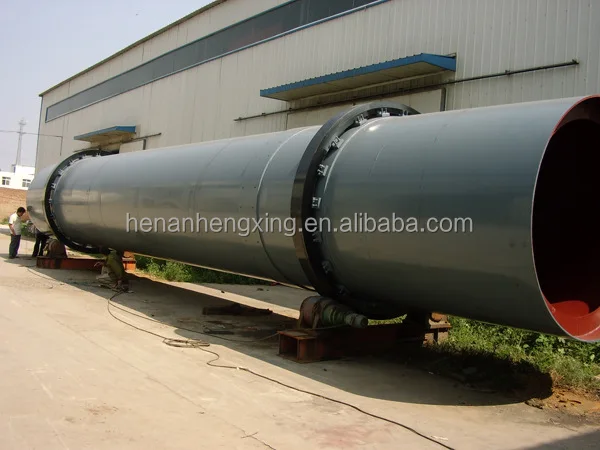

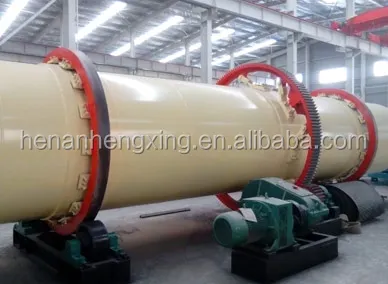

 Energy Saving Rotary Dryer For Animal Feeds,Animal Feed Rotary Dryer Machine

rotary dryer for animal feed introduction :

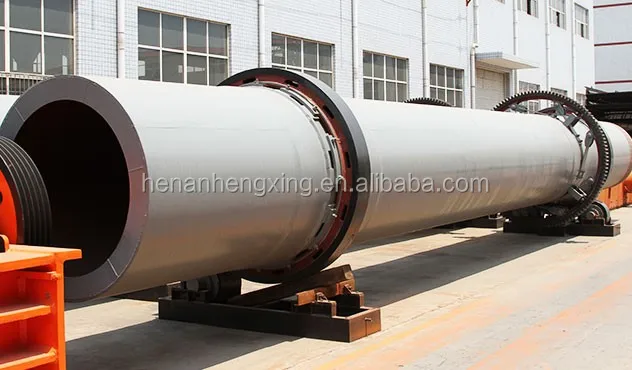

rotary dryer is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. It can be used for drying many kinds of materials limestone slag, coal powder , slag, clay stone. And it formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

The rotary dryer  has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation, and convenient and reliable operation; Therefore, the consumption of the coal and the electricity is lower than the common ones. While the production capacity is higher than 10-15%.

rotary dryer for animal feed working principle:
The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.

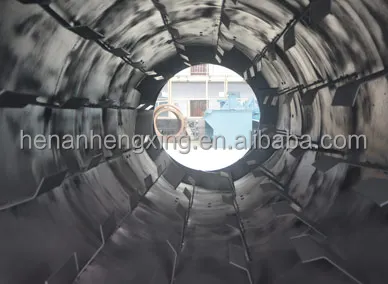

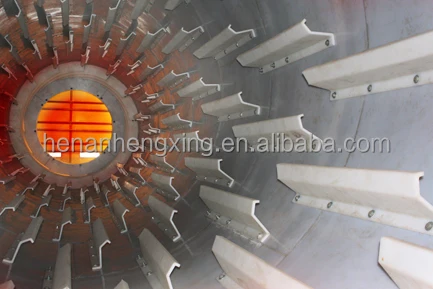

Materials are sent to hopper by belt conveyor or bucket elevator. Then, materials are sent into feeding side through the feeding pipe. Feeding tube inclination angle is greater than the natural materials for smooth flow of material. In the process, wet materials get the heat given by heat carriers directly or indirectly in the process of moving forward, which makes materials get dried further. A shovelling plate is equipped in the tube wall. The function of the shovelling plate is to lift materials constantly so that the contact between materials and air flow is improved. Then, drying rate and drying process get promoted. Exhaust air is generally divided into hot air and flue gas. Generally speaking, cyclone dust collector is needed to collect materials in exhaust gas. If further process is needed to reduce dust content, exhaust air should enter the bag filter or wet dust emissions. Even sometimes mutillevel dust control system is required before exhaust air is emissed. the the kaolin clay rotary dryer complete the drying process

rotary dryer for animal feed main models and technical parameters:

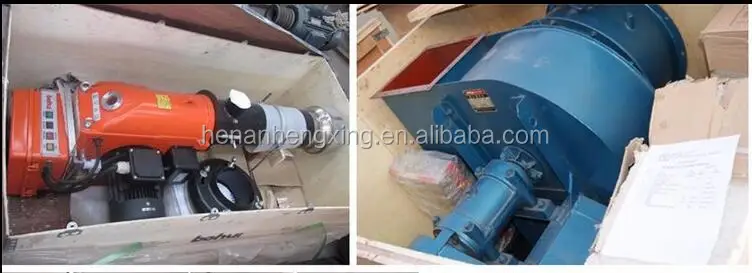

rotary dryer for animal feed Auxiliary equipment gas burner and draught fan :

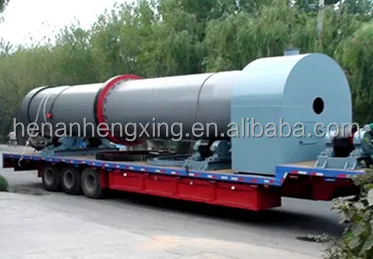

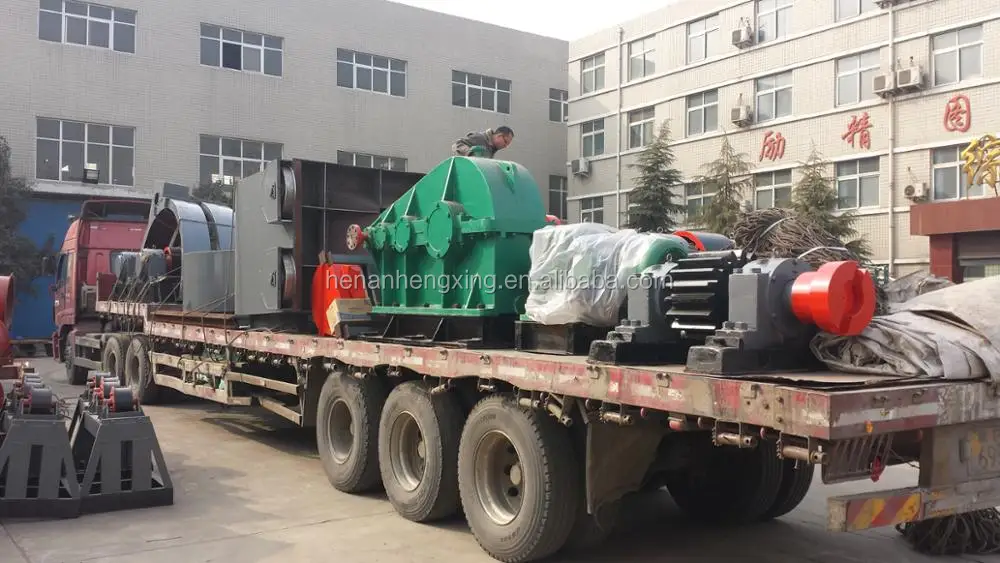

rotary dryer for animal feed package and shipping :

rotary dryer for animal feed Installation and Commissioning
we are able to guide the overall installation of whole set production line, including stone crushing production line and ball mill production line,rotary dryer production line, etc., which will allow you to start the normal operation of equipment immediately and successfully.

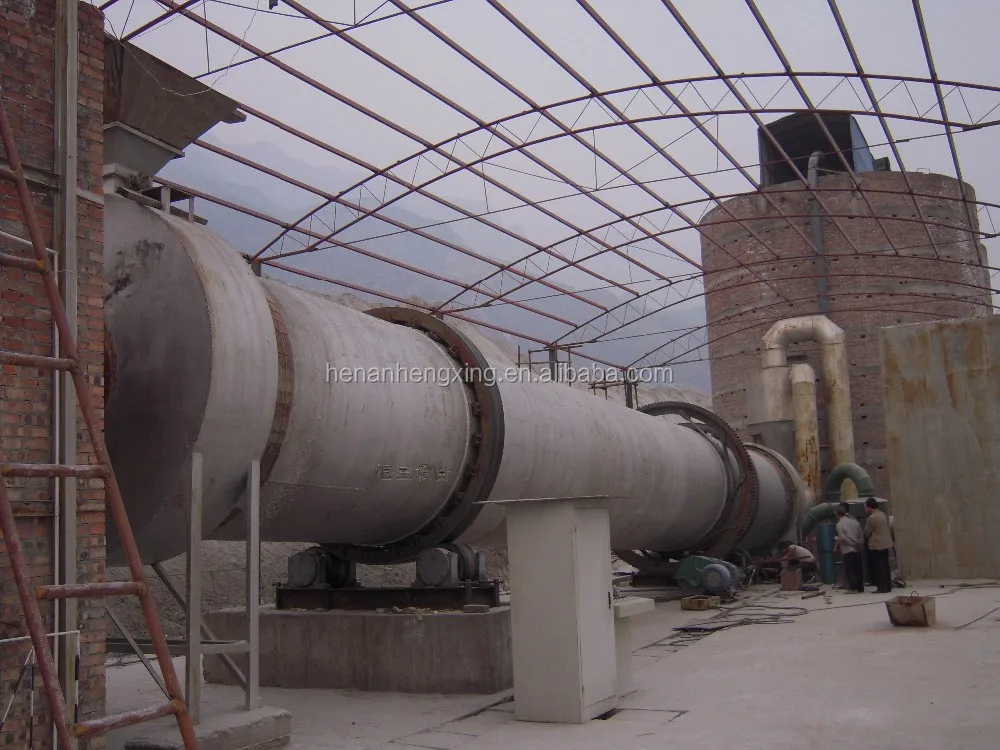

rotary dryer for animal feed installation site :

Customer Service

Testing

If ore sample is provided by customers, we may do free spectrum or other testing. The testing reported is conducted by Mineral Prospecting Institute, and ranks the top in China.

Reagent Recipe

According to requirements for final products, we may provide free reagent ratio and dosage to customers.

Workflow

After knowing detailed information from customers, our technicians will provide the workflow and configuration for free.

Local Design

Our technicians will provide local design, layout, and tailing design for free after knowing detailed area of customers.

Guidance

Our engineer may provide 10 day’s training and guidance for free if necessary (including operation of machines, working notes and maintenance).

About our company :

Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy equipments. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral  ore dressing machines,rotary dryer,rotary kiln, AAC block making machine, briquetting machine,which were widely used in mineral processing and construction industry.

Our company is located at the National High-Tech Development Zone in Zhengzhou city, Henan province. Since the establishment of our company, a passel of scientific elites has been gathered with our modernized management system and accurate product positioning. Our company has set up the computer information-based management with production, CAD and CAPP on production research and processing design. Besides, our company has been equipped with powerful machines and equipments for machining, forging, rivet welding, carburization heat processing. With the long term cooperative relationship to the research institutes at home and abroad, we have introduced advanced technology, processing and detecting equipment for the development of the new products and promotion of our workmanship.
