Мягкий закрывающийся поворотный демпфер интеллектуальной крышки

Описание и отзывы

Характеристики

soft close rotary damper of intelligent toilet lid

1.Product picture:

2.Product Intro:

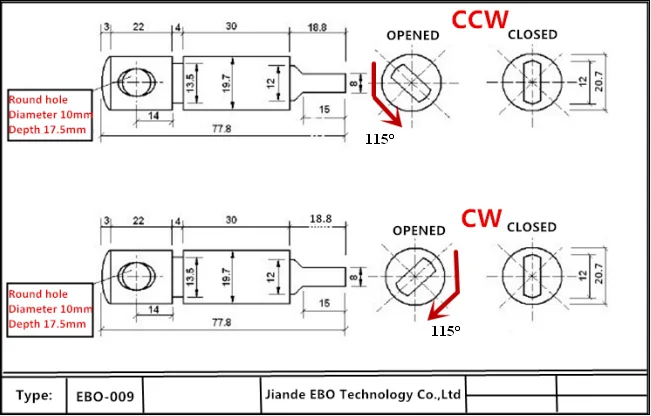

3.Product Drawing:

4.Detailed Parameters:

1.Product material	(1).body	PBT
	(2).cap	PBT
	(3).shaft	POM
	(4).vane	POM
2.Product patent No.	ZL201220027709.7 ,  201210019135.3
3.Damping oil	dimethyl silicone oil
4.Weight	47±2g/set
5.Direction	clockwise,  counter-clockwise
6.durability test Test method:opening up in 1″, free-falling when closing  Test speed:5 cycles/minute Temperature:23℃±2℃ Test torsion:2N/m
7.force durability test Test method:opening up in 1″,closing in 1″ Test Angle:100°→0° Test speed:30 cycles/minute test temperature:23℃±2℃ Test torsion:2N/m
8.temperature VS. closing time test  temperature characteristic: under the condition of the temperature in 23℃, time in  12″, torque in 2N/M,   the test results obtained as follows: when the temperature drops, time increases; when the temperature rises, time reduces;

Temperature Characteristics:

Resistance of the damper will change according to the ambient temperature.

The temperature could affect the sealing damping oil fluidity.

If the temperature is higher, the fluidity will be higher,

and the resistance is lower, the fluidity will be lower.

The suitable temperature range is -30° C to 80° C

5.application area

6.cooperative partner brands

7.packaging&shipping

Packing:Cartons,standard export packaging.For details,depending on your demands.

Shipping: our products are mainly sent by sea or air from Shanghai or Ningbo Port.

8.Our Services:

1.We are a professional manufacturer, and our products have been accepted by internationally well-known enterprises.

2.Every product we provide must pass a strict test.

3.Every production line is strictly controlled.

4.Over the years we have adhered to the "quality first, credit first, customer first, integrity-based" operating principles of market development.

9.Company Information:

Jiande EBO Technology Co.,Ltd are professional manufacturer, our products structure movement in the soft, quiet and safe, moderate impact load, in order to avoid impact damage, increase the mechanical life, reduce the noise, and improve the goods quality.

Products are exported to Germany, the United States, France, South America and other regions, and mainly customers including: BEMIS, Wirquin,etc. Every producer we provide must pass a strict test. Every production line is strictly controlled.

We have adhered to the“Technology first, quality first, credit first, customer first”, operating principles of marker development. We sincerely invite to cooperate with traveling trader at home and abroad for common development!

10.damper certification

11.Contact Information:
