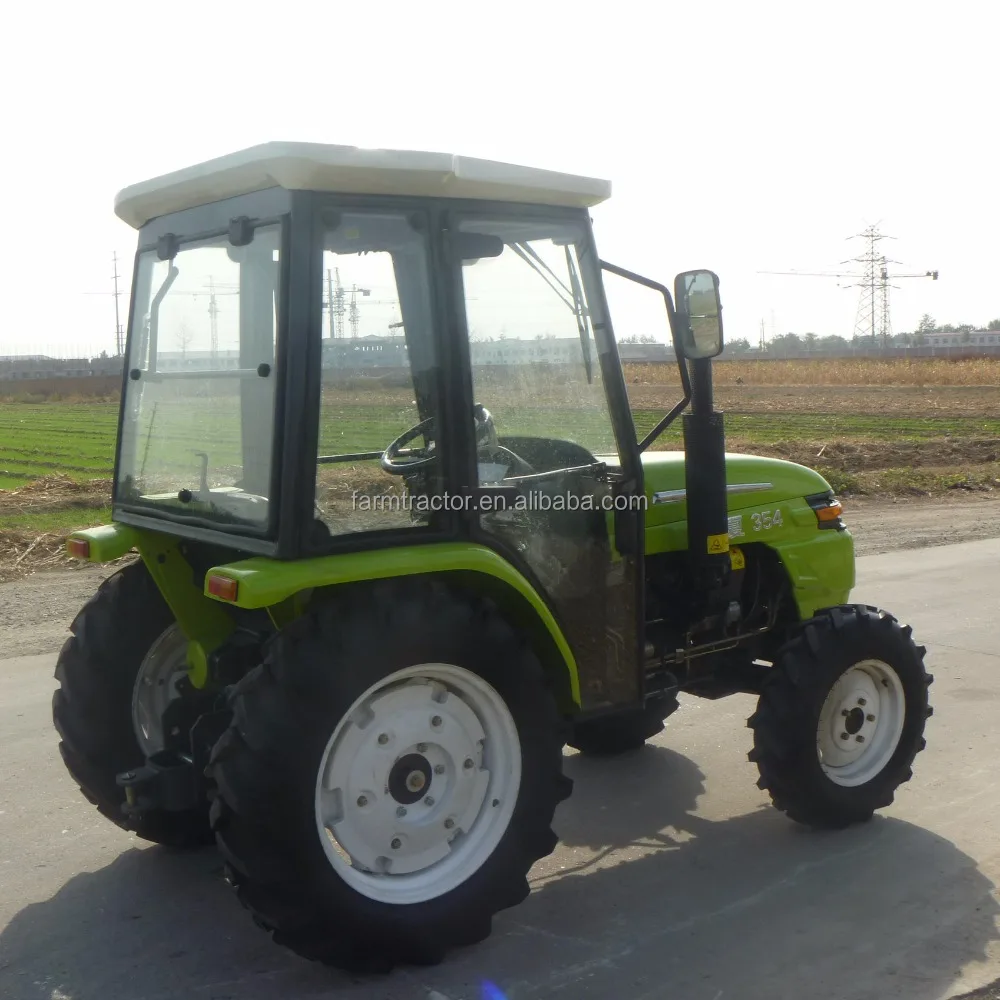

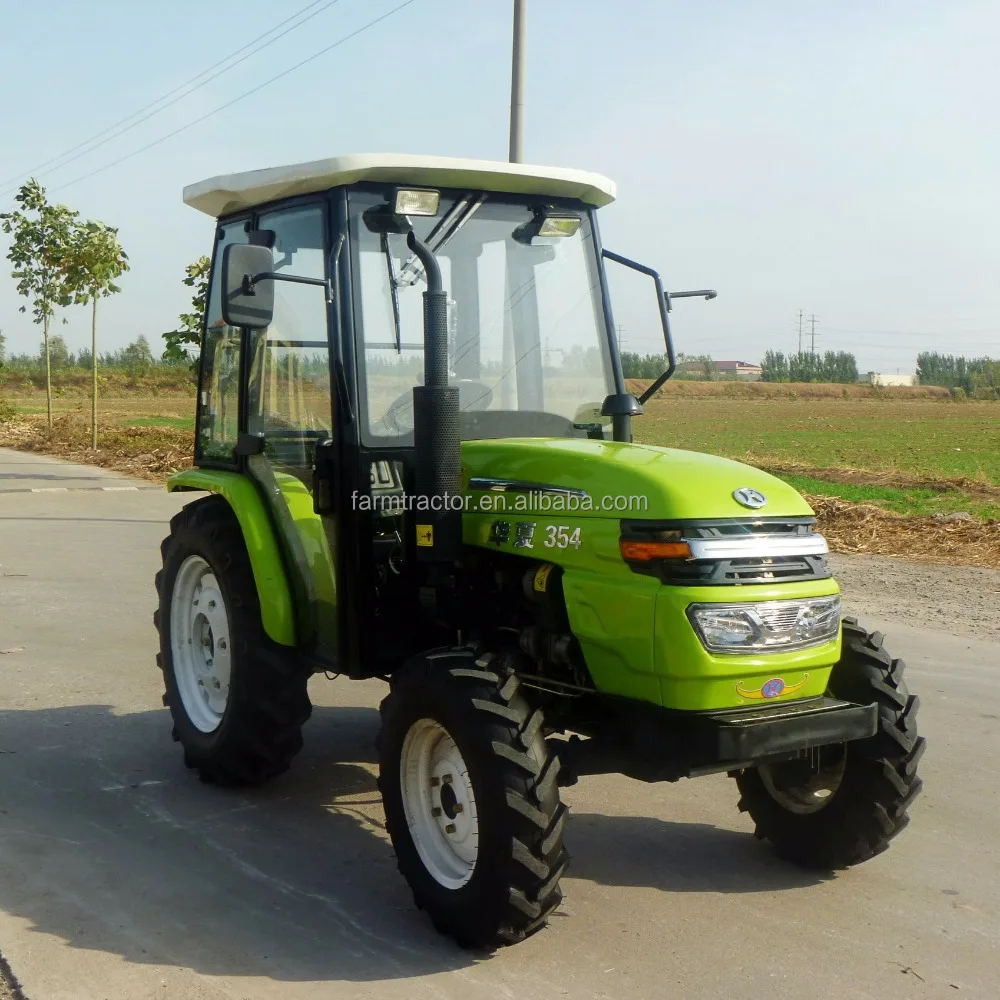

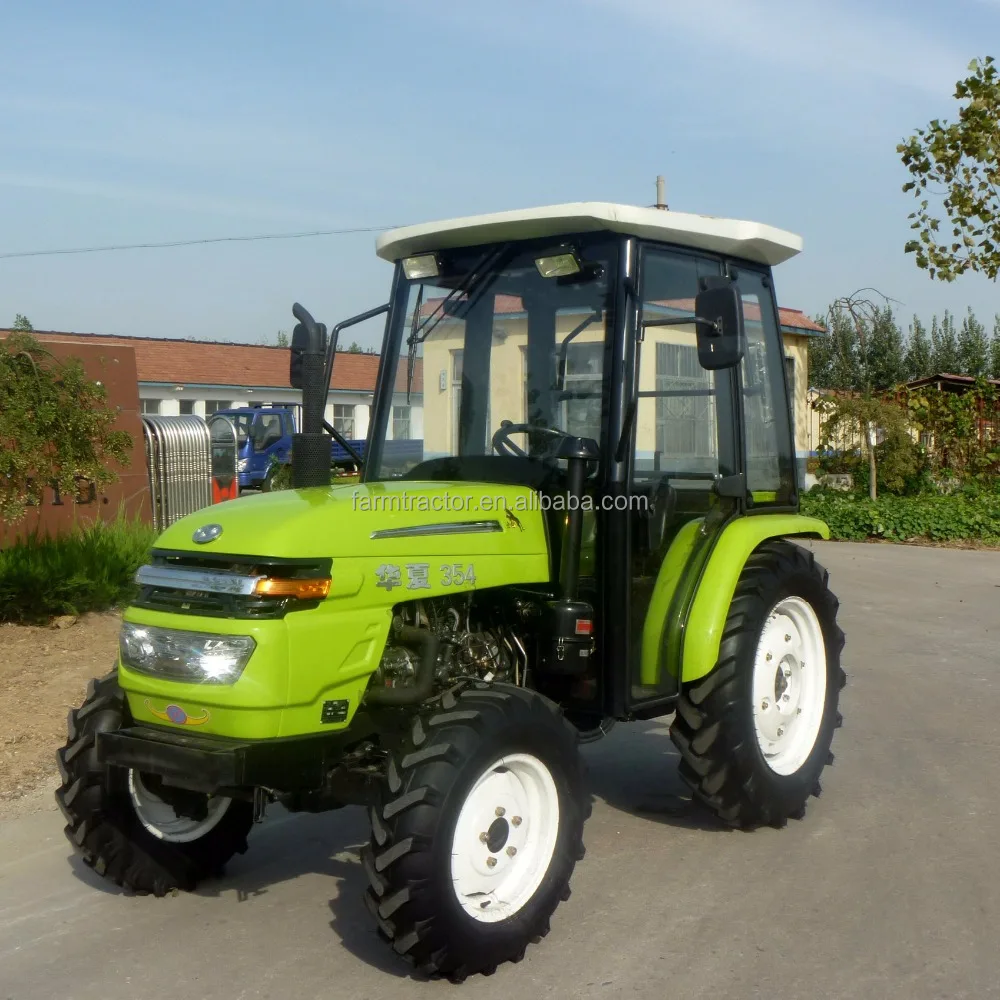

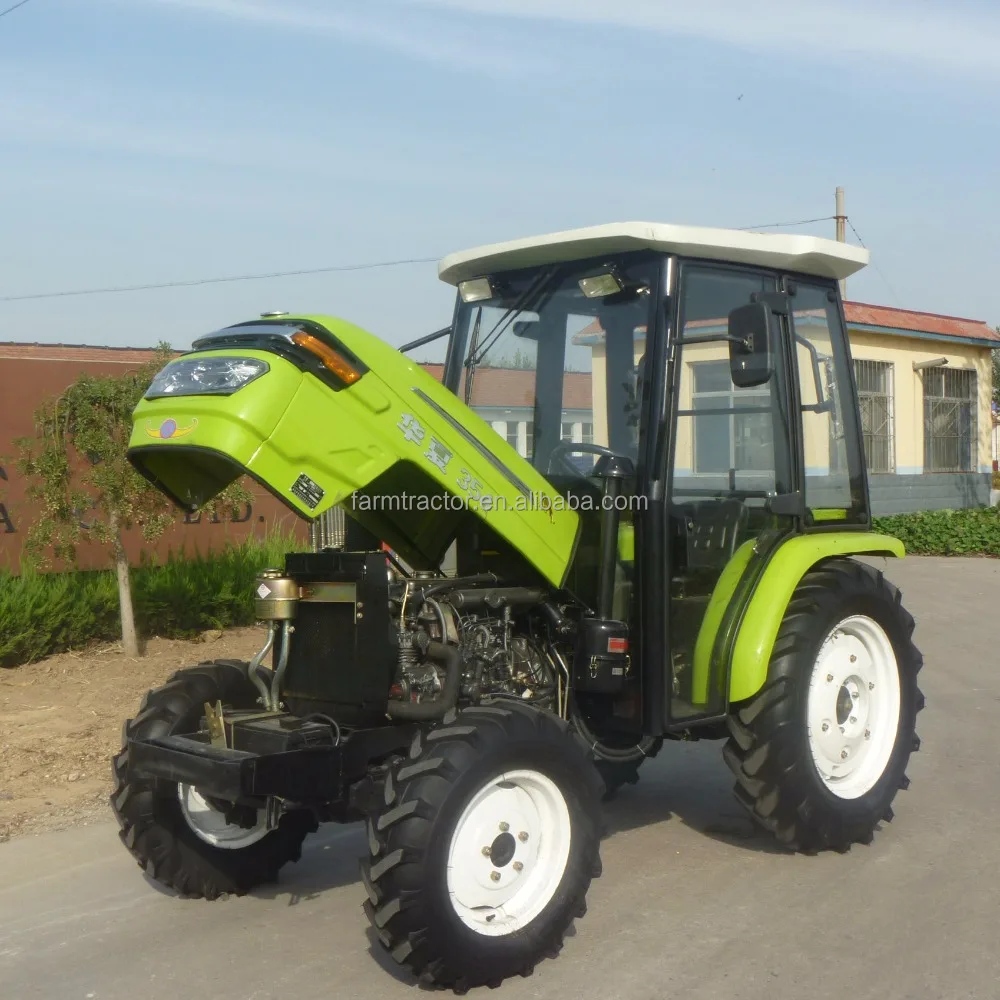

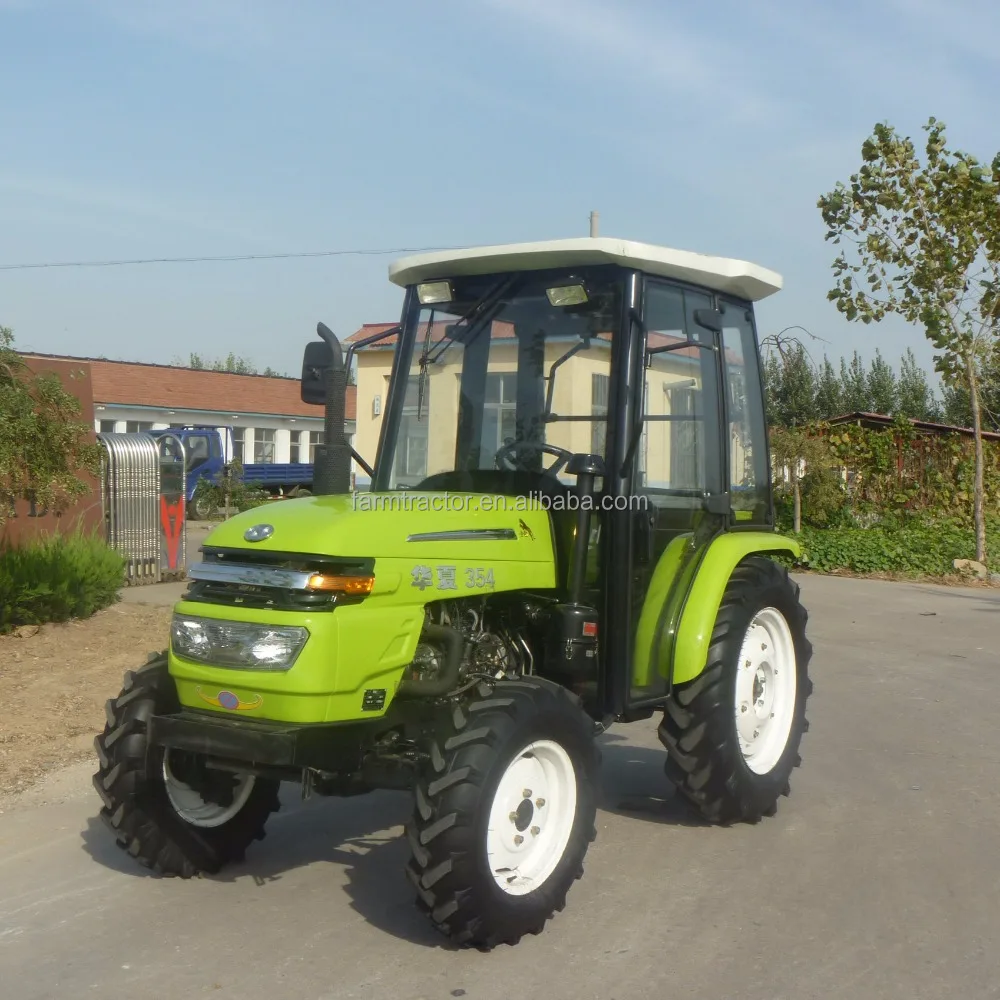

This series is middle hp tractor, which directly connected with its engine.Jaw type differential
lock can improve the pass-ability.Hydraulic output interface can make direct connection with
the dump trailer.This series tractor can have many different configurations according to
customers demands:single stage clutch or two stage clutch,(4+1)*2 eight shifts in which the
creeping shift can be selected,one or two speed PTO,fixed or adjusted tread,roll bar
and canopy,combination meter,heater cabin and so on.
From DY184 to DY454 DY 254~454 | ||||||||
Models | 184(180) | 204(200) | 254(250) | 284(280) | 304(300) | 354(350) | 404(400) | 454(450) |
Wheel drive | 4*4 (4*2) | |||||||
Dimension(L*W*H)mm | 3350*1500*1860 | |||||||
Weight(kg) | 1210-1380 | |||||||
Front wheel tread (mm) | 850,970,1000,1100,1200,1300 adjustable | |||||||
Rear wheel tread (mm) | 970 - 1300 unlimited adjustable | |||||||
Wheel base (mm) | 1750 | |||||||
Min land clearance(mm) | 330(340) | |||||||
Gear shifts | 8F + 2R | |||||||
Tyre size | 9.5-24/650-16 (9.5-24/550-16) | |||||||
Engine Specification | ||||||||
Model | JD295 | JD295 | JD2100 | JD2102 | JD/LD | JD/LD4 | JD/LD | JD/LD |
Type | 2 Cylinder or 3 Cylinder | 3 Cylinder | 4 Cylinder | |||||
Type | Water cooled ,vertical,4 stroke and direct injection | |||||||
Rated power(kW) | 13.23 | 16.16 | 18.37 | 20.58 | 22.06 | 25.7 | 29.4 | 33.1 |
Rated revolution (r/min) | 2300/2400 | |||||||
Start way | Electricity start | |||||||
Transmission | (4+1)*2 shifts | |||||||
Clutch | Single chip,dry friction,constant conjunction, single clutch,double clutch | |||||||
PTO speed | 6 Spline, dual speed 540/720 | |||||||
Clutch | Single stage clutch | |||||||
Steering | Hydraulic steering and double hydraulic pumps | |||||||
Optional parts | Roll bar | Swing draw bar | ||||||
Sun-shade ,canopy (ROPS) | Spring seat | |||||||
Multi-way valve | Double clutch | |||||||
Fender | 750-16/11.2-24 tire | |||||||
Air brake | Combination instrument | |||||||
Steel frame package | Cabin (including the heater and fan) |
....................
We are manufacturer with 18 years experience in farm tractor production and selling,have
strong technology force an superior machine and equipment with the auto assembly line which
is advanced in China.The products are in strict compliance with the international norms of quality
system and have mature at guarantee service system so they have been adopted 2000 edition
ISO9001 international quality management system certificate.
Implements available for this series of tractor.We can supply Front end loader,Backhoe,Pallet fork,
Snow blower,Bulldozer,Posting hole digger,Rotary tiller,Share plow,Disc plow,Disc harrow,Seeder,
Mower, Sprayer,Trailer and so on.
More details,kindly contract me.
Firm and safe package to protect the tractors avoiding damage
Completed units package or SKD iron frame package in containers
Weifang Huaxia Tractor Manufacturing Co., Ltd is located in the world’s capital of kite and the city
of green power - Weifang.It is the Economic Development Area of Weifang and only 3 kilometers to
the expressway station of Weifang West, the traffic is very convenient.
The area of the company and its factory is about 200000 square meters and is modern enterprise
with research,production and sale.The company has pursued perfect and done things seriously.It
has the courage of innovation and has insisted on the production idea of high standard and high
quality so its products have been optimized and upgraded constantly.And then the enterprise
has developed and grown strong steadily.Further more,HUAXIA brand products have ever been
awarded national patents ten times by the State International Property Office.
1).Manufacturer or Trading Company?
We are a leading tractor manufacturer for 14 years, and specialize in 18-55Hp tractors in China.
ADD:Gaoli Trade and Industry Park, Weifang City, Shandong Province, China
Welcome to Visit Our Factory
Contact Person: Minna_Wang
Mob: +8613625420878
Wechat: 1362542087
2).MOQ?
1 unit
3).Spare Parts?
Free toolbox and easy wear parts.
4).Shippment?
We can help you arrange shippment.
5).Delivery Time?
One container / 20~30days
6).Warranty Time?
Complete service system, 18 months since arrival of destination port
7).Payment Terms?
T/T, 30% deposit, balance against B/L Copy; L/C at sight
8).Tractor Options?
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out,Paddy Tire, Turf Tire or as per your requirements.
9).Tractor Logo?
We have our own logo. And we also can make your own logo in your order for free.
10).Tractor Implements?
Loader, Mower, Plough, Trailer, Slasher, Snow Blower or as per your requirements.
