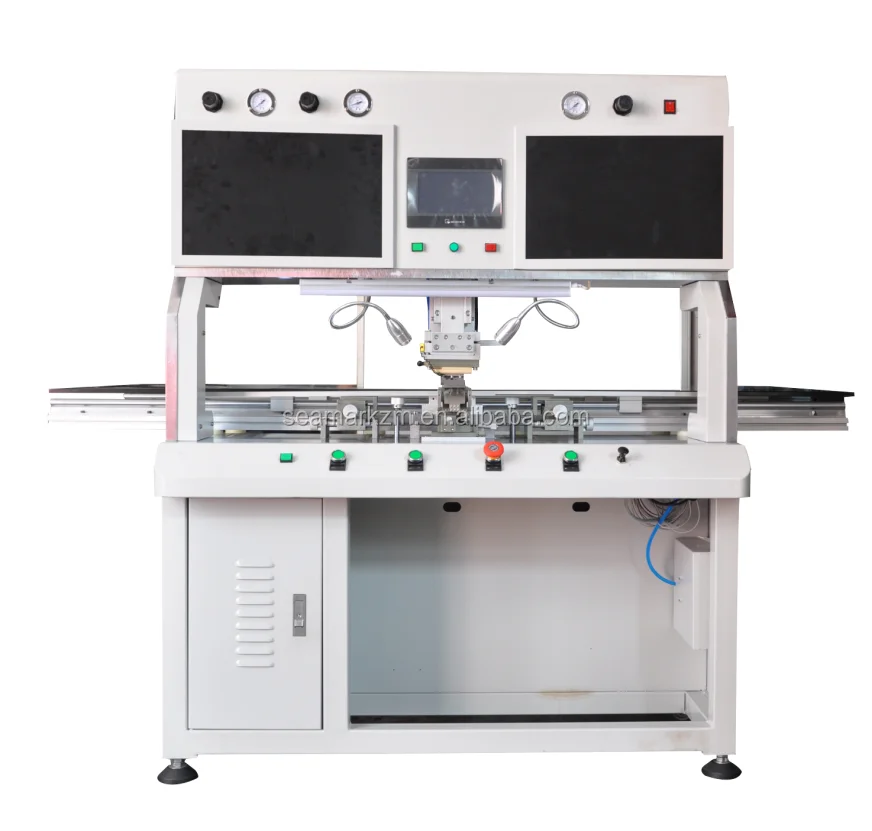

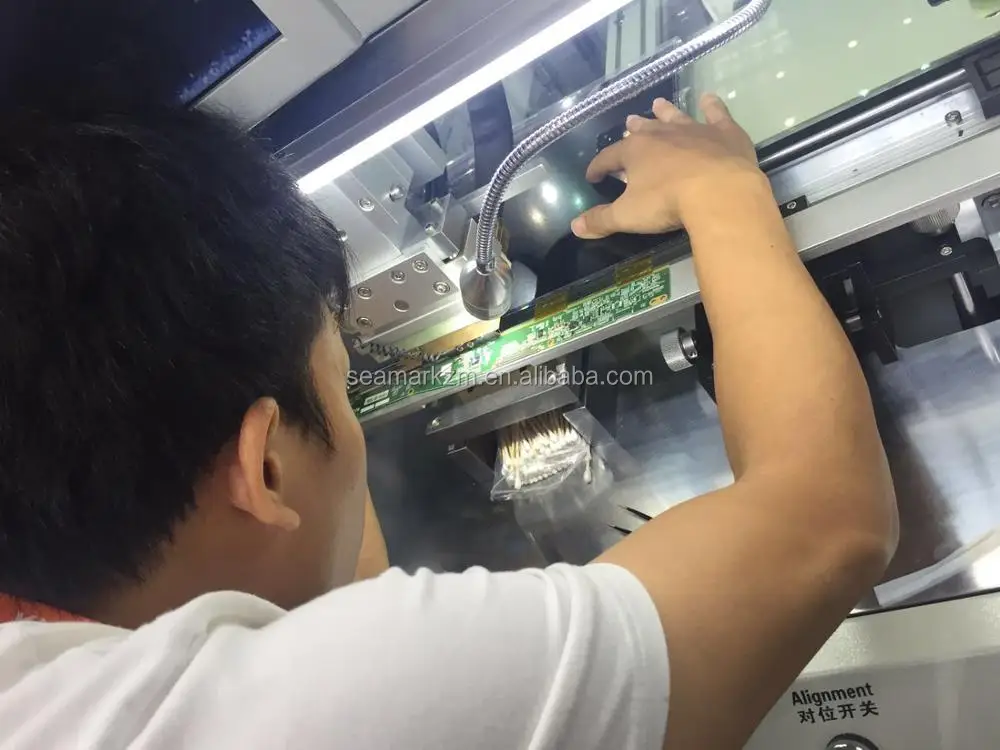

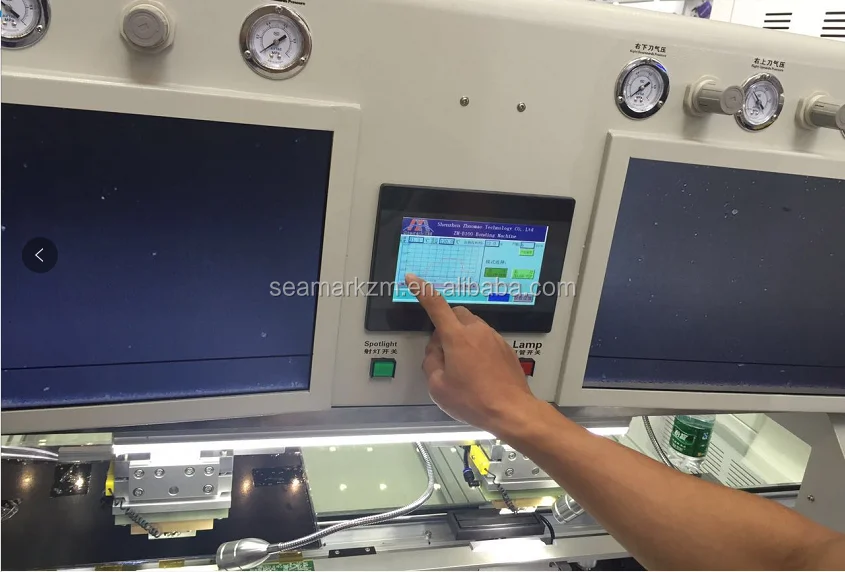

ZM B100 COF LCD TAB Bonding Machine for LCD TV Repair
Operation video for LCD Bonding Machine: https://youtu.be/epc4Uj37TMc
Product Description
ZM B100 LCD Bonding Machine for TAB COF ACF LCD Flex Cable Hot Press Bonding Machine Advantages:
1. Suitable for LCD panel screen size maximum 995mm*1770mm (80 inch)
2. Dual display electronic brake light red and red box
3. Light gate size and the parameters of the lens ratio and laser power storage and use4.Adjustable , coaxial light sources , light spot and LED backlight module
5. No fuse protection circuit breaker protection
6. Mitutoyo 4 hole/electric switch mode (linear) Objective switching system.
ZM B100 LCD Bonding Machine for TAB COF ACF LCD Flex Cable Hot Press Bonding Machine Spec:
Head NO. | 1 | 2 |
Name | Bonding machine | |
Application | FPC, COF, TAB and LCD Panel, PCB bonding | |
LCD size | 15”-85” | |
Panel thickness | 0.3mm-1.1mm(single layer glass) | |
IC No. | Multi/panel | |
Bonding direction | X or Y | |
Boning time | TFT, 1.8s/chip | |
Capacity | TAB, 380 pcs/H | |
Bonding accuracy | ±1.5um | |
Positioning accuracy | ±0.5um | |
Working environment | Clean, dust free | |
Air pressure | 0.5-0.7Mpa | |
Automatic pressure | Multi pressure, max 10 segments | |
Input | AC220V/50Hz | |
Power | 1200W | |
Pneumatic parts | Japan SMC MXS20-75/MXS20-100 | |
Heating method | Pulse heating | |
PID temperature system | Brand: Japan AZBIL Model: C36TV0UA1200 | |
Hot head | Material: Japan titanium alloy Size: 45*1.4*10 Plane precision: 0.001mm Plane thickness: 0.5mm | |
Thermocouple | K type, origin USA OMEGA | |
Controller | Japan PLC | |

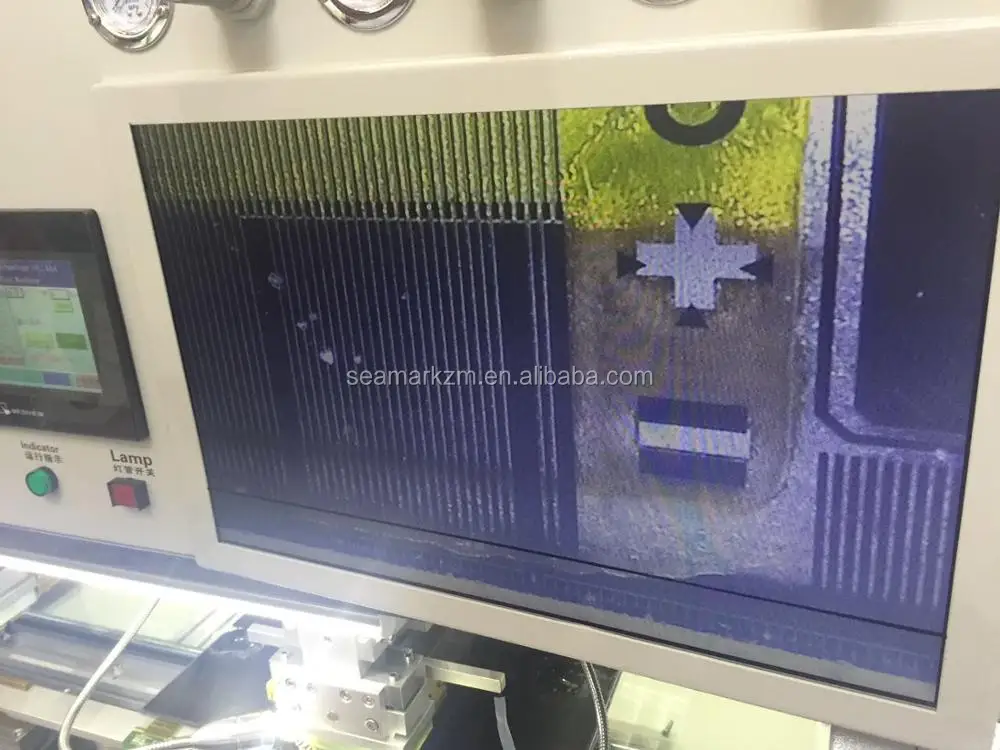

Image system | Japan image system COF positioning: down positioning | |
COF fine adjustment | Origin: Taiwan Guide rail type: U type Accuracy: 0.01mm Adjust direction: X/Y/R R range: Rough adjustment 360°; Fine adjustment ±5° | |
COF fixture | Mechanical fixed | |
Camera fine adjustment | Control: X/Y/Z micrometer Focus adjust: manual | |
LCD platform | Moveable, slide by hand | |
Alarm | Air pressure fault; Temperature fault; Thermocouple fault; Operation fault | |
Hot head positioning | Any positon | |
Parameter memory | Multi parameter group storage | |
Size | L1800*W1200*H1520mm | |
Weight | 300kg | |
ZM B100 LCD Bonding Machine without bonding adhesives COF ACF TAB Bonding Machine Price display:
Our Services
ZM B100 LCD Bonding Machine without bonding adhesives COF ACF TAB Bonding Machine Price we offer the following service:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Free professional training.
*Warranty: One year.
* Engineers available to service oversea.
Company Information
Seamark ZM Technology Group (Zhuomao Technology) was established in 2004 with over 200 employees and 5000 square meter. Zhuomao has been specializing in SMT Equipments for electronic products and LED SMT production line, such as Solder Paste Stencil Printer, Auto Pick up and Place Machine, Reflow Oven, X-Ray inspection System, and BGA Rework Station, ect. We gained more than 40 patents, and all machines passed the international CE Certification, ISO9001 Quality System Inspection Certification and so on. Zhuomao SMT Equipments not only meets the demand of domestic market, but has also been sold around the world. We have around 100 agents and cooperator in Europe, Asia, Australia and Africa, the Middle East and other countries.
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice.
Exhibition We Attened
Our Agent all over the world
Our Working Partners
FAQ
More questions for Zhuomao ZM E100 80 inch LED LCD TV ACF COF TAB Bonding Machine
1. How about the package? Is it safe during the delivery?
All of our machine is packed by standard strong wooden carton.It is safe when shipping.
2. What is the option for delivery method? and delivery time?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. What's your warranty?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4. If we come to your factory, if you will provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
5. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
For more details Heat Bonding Machine for ZM B100 COF LCD TAB Bonding Machine for LCD TV Repair please feel free to send us your inquiry or contact us via following info:
shenzhen zhuomao technology co.,ltd
Noda Xu
Mail: sales21(at)zhuomao.com.cn
Mobile/Whatsapp/Wecaht: +8613544216017
Keywords:
lcd repair machine, lcd bonding amchine, lcd panel reapri amchine, tv lcd repair amchine zm l80, lcd flex cable repair machine, mobile lcd making amchine, lcd led panel repair machine, lcd touch screen glass, lcd repair tool
Похожие товары

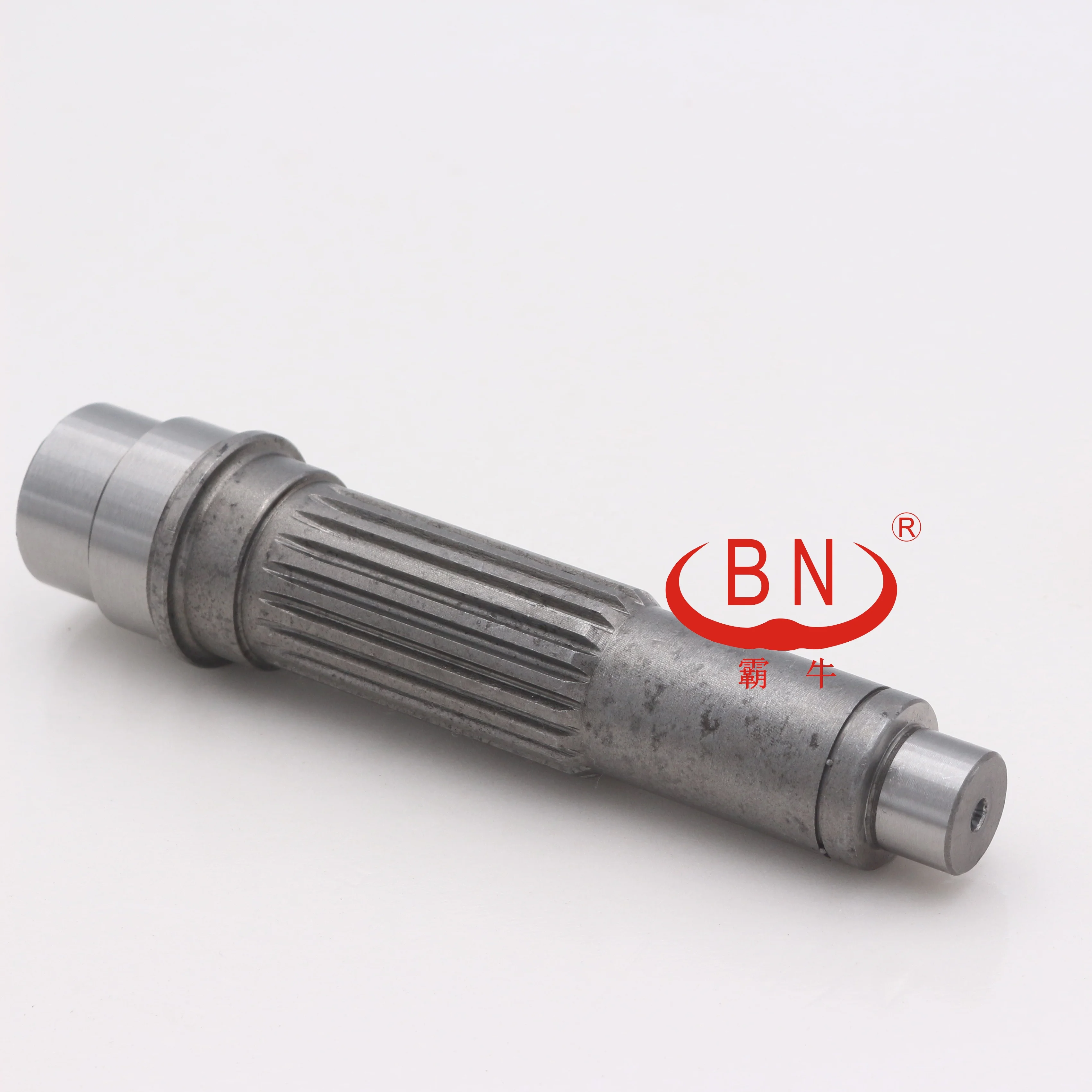

Вал двигателя для экскаватора Doosan DH55
Шляпы с короной на день рождения золотистые розовые синие бумажные шляпы для

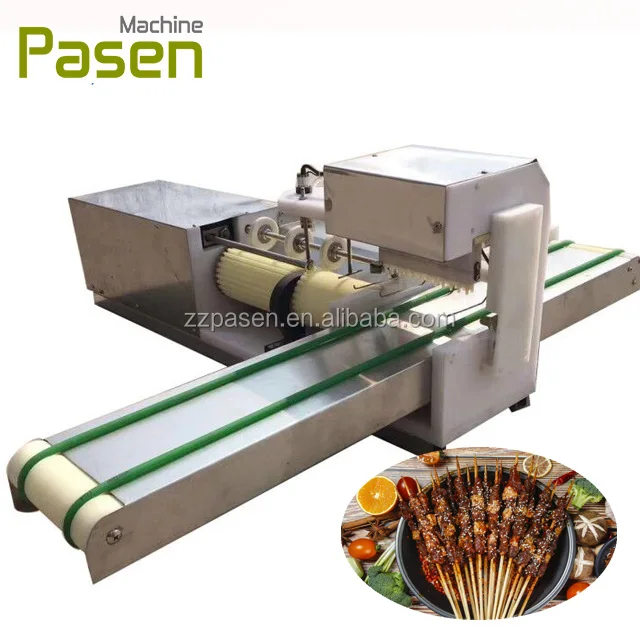

Машина для производства шпажки кебаб, автоматическая машина для производства кабаба
