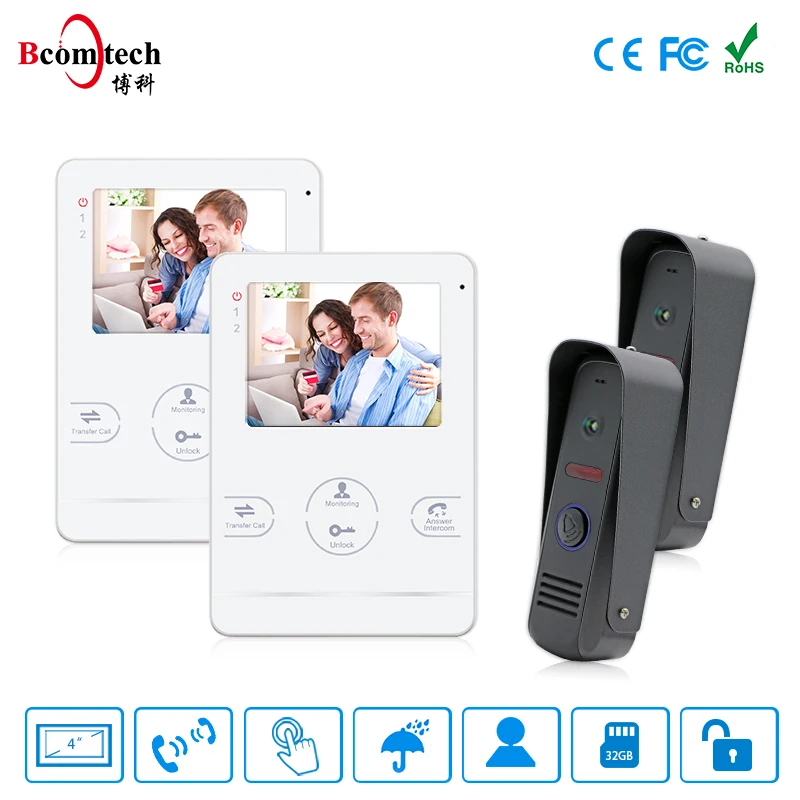

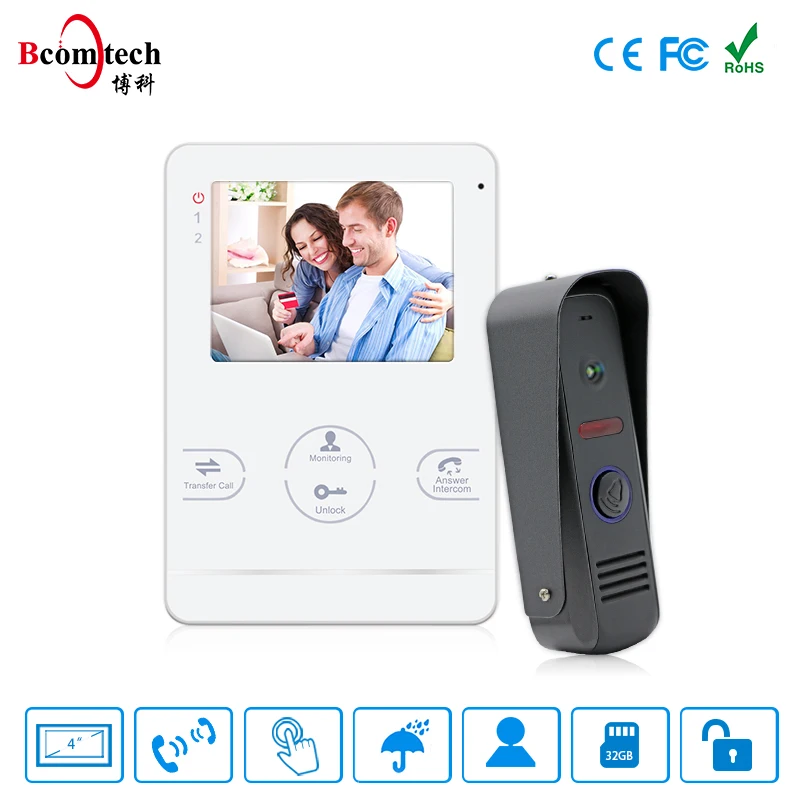

2018 HOT SALE Bcomtech 4 inch TFT LCD Color Video Door phone intercom System sensor button

Why Choose Bcomtech Video Door Phone Intercom ?

♦ 4 inch LCD clear screen, resolution is 480*240
♦ Take photos and videos store in 32GB TF card
♦ Support 2 call panel + 4 indoor monitor + 2 CCD camera & 2 alarm
♦ Two way intercom between with monitors
♦ Menu function, it will be easy to operation
♦ DIY install
♦ Unlock door function
♦ Internal memory, pictures shooting(Max.about 86 pieces, automatic cycle)
♦ Camera and monitor volume could be adjusted
♦ IR or LED clear night vision

Parameter

Indoor Monitor

Model

84402-EM

84202-EMB

Monitor

4" TFT LCD video doorphone

Resolution

320(H)*3(RGB)*240(V)

Memory

Support Max. 32GB SD card

Intercom Mode

Hands-free dual-way communication

Conversation duration

120s

Keypad

Touch button

Power Consumption

400mA Max.

Power Supply

External power DC12V

Built-in power AC100-240V

Support

2 call panerl + 4 indoor monitor + 2 CCD camera & 2 alarm

Material

Acrylic wire drawing shell

Operation Temp

-10℃ +60℃

Installation

Surface mount

EM as suffix-sensor's key + memory

EMB as suffix-sensor's key + memory + built-in power

Outdoor Unit

Model

84202-CP42

84202-CP60

84202-CP80

Camera Sensor

1/4" CMOS, 420TVL

1/4" CMOS, 600TVL

1/3" CMOS, 800TVL

3.7mm lens

3.7mm lens

3.7mm lens

View Angle

pinhole lens:3.7mm 68º/ wide angle lens:2.8mm 110o

LEDs For Night LED

IR LEDs(120º)

Power Consumption

200mA Max.

Power Supply

Supplied from indoor monitor

Material

Aluminum alloy panel

Waterproof

IP65

Operation Temp

-40℃ +50℃

Istallation

Surface mount

Supports Multi-languages

The system supports six different languages

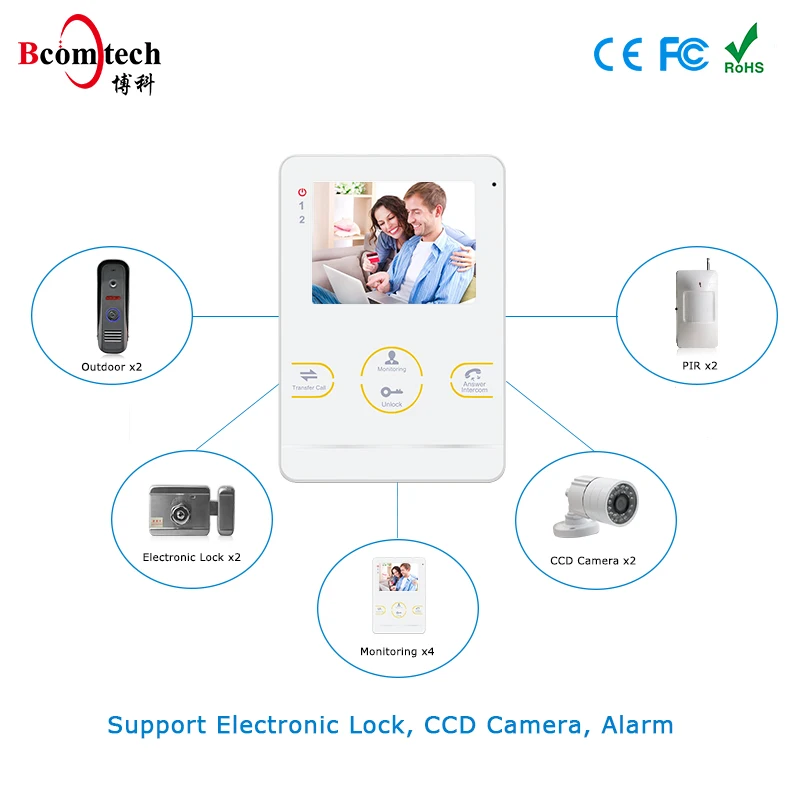

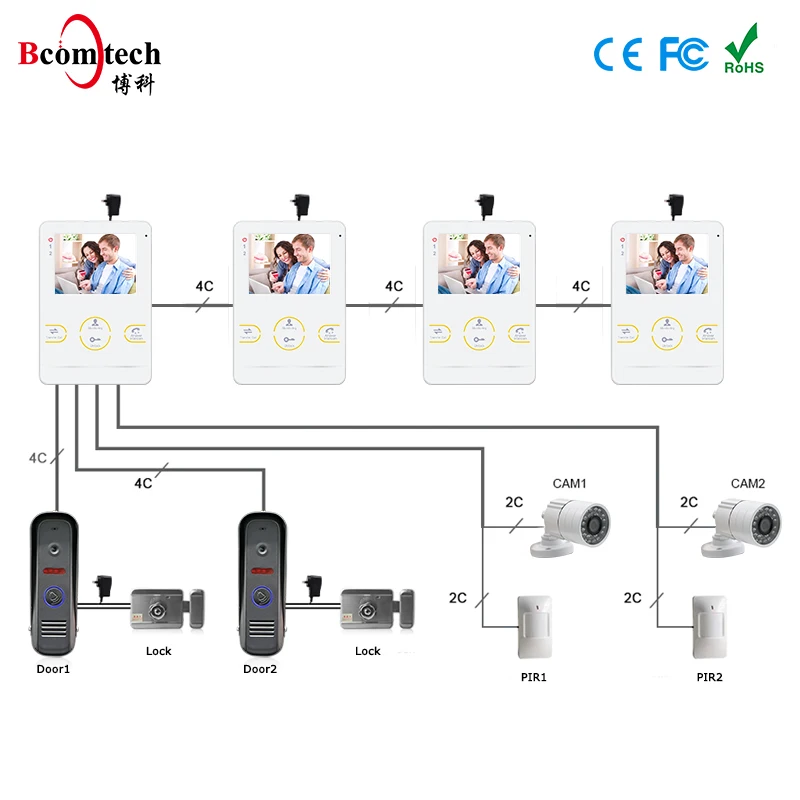

Support Electronic Lock, CCD Camera, Alarm

Our 7" video doorbell set supports connecting with PIR detector, CCD camera and alarm system. It can protect your home and property in all aspects.

Dual-way Intercom, Call Transfer Among Monitors

This item is handsfree and available for dual-way communication. It supports communication between indoor monitor and outdoor camera, but also supports communication between monitor and monitor.

IP65 Waterproof, Anti-thunderstorm Design

The outdoor panel can also works well even in bad weather.

Indoor Monitor

♦4" TFT display, acrylic wire drawing shell

♦Each call panel can set different ringtones & morning/afernoon/night with different volume size(10 level)

♦Support 2 call panels +4 indoor monitor + 2 CCD camera & alarm

♦Key-unlock, monitoring,internal-communication among indoor monitors, call transfer, recording & picture

♦External motion detection (triggle alarm recording or picture optional)

♦Monitor built-in battery for time memory (re-start machine, need reset time)

♦Support setting un-lock time, suitable for different electronic lock

♦Built-in or external power optional

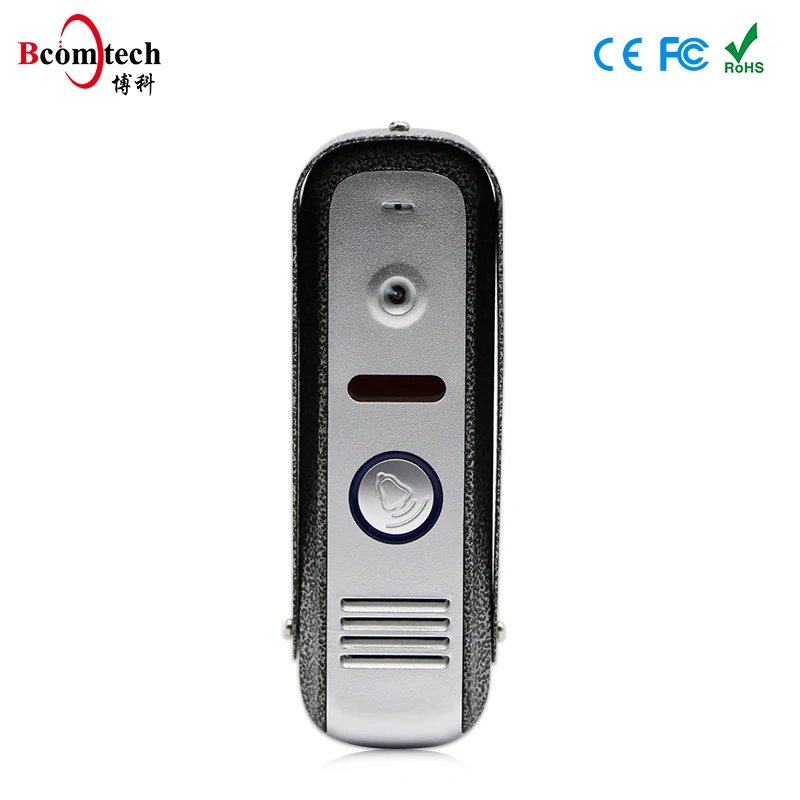

Outdoor Call Panel

♦Anti-vandal pin-hole camera 3.7mm lens

♦Rain cover, corner bracket including

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦Weatherproof IP65 aluminium ally panel

♦Adjustable Intercom Volume

♦CMOS 420TVL, 600TVL,800TVL optional

♦IR LED Offset Lighting Can Obtain Better Evening Viewing

Model

84402-EM

Model

84202-CP80

Monitor

7" TFT LCD video doorphone

Camera Sensor

1/3" CMOS, 800TVL

Resolution

320(H)*3(RGB)*240(V)

3.7mm lens

Memory

Support max. 32GB SD card

View Angle

pinhole lens:3.7mm 68º

Intercom Mode

Hands-free dual-way communication

Model

Model

Conversation duration

120s

LEDs For Night LED

IR LEDs(120º)

Keypad

Touch button

Power Consumption

200mA Max.

Power consumption

400mA max.

Power Supply

Supplied from indoor monitor

Power Supply

External power DC12V

Material

Aluminum alloy panel

Operation Temp

-10℃ +60℃

Operation Temp

-40℃ +50℃

Istallation

Surface mount

Istallation

Surface mount

Package

Villa Intercom System

Company Profile

Zhuhai Bcom Electronic Technology Co., Ltd. is an ISO 9000-certified professional OEM/ODM supplier and is equipped with first-class machinery. Each model has CE and FCC approvals, and is compliant with the RoHS Directive, ensuring easy entry into your market. All our security products are approved by FCC, CE and RoHS standards.

From mould, SMT, wave-soldering, assembly, testing to packaging, we have established a complete manufacturing system to ensure more than 10,000 pieces of products which are exported every month and delivered all over the world, mainly to Australia, Europe,the US and the Middle East.
