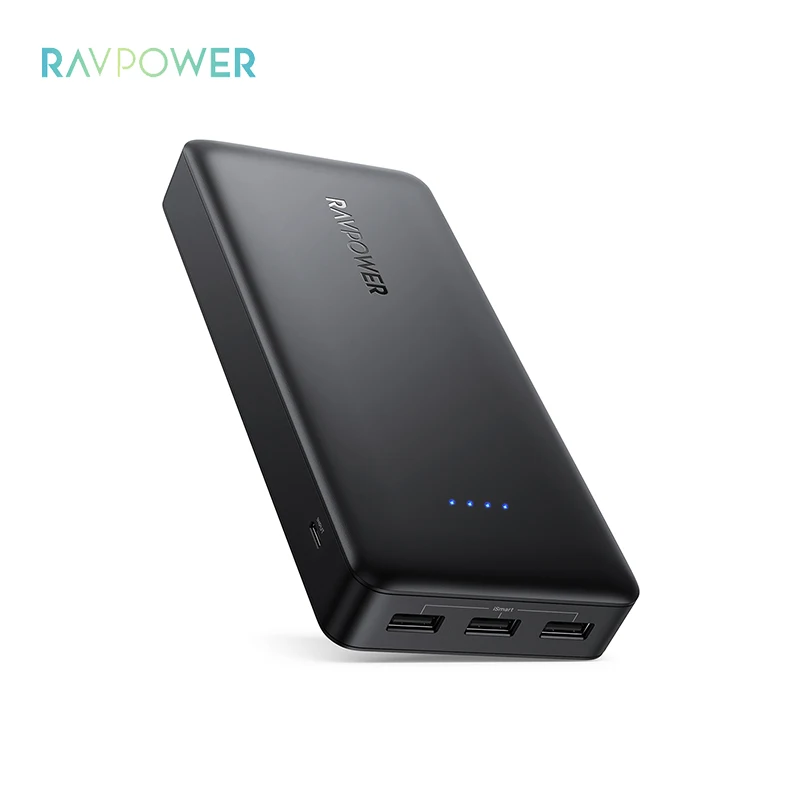

RAVPower большой емкости RP-PB064 32000 с зарядным устройством для внешнего аккумулятора 6A напряжение на выходе USB портативный Power Bank 30000
17,57 $ - 20,08 $

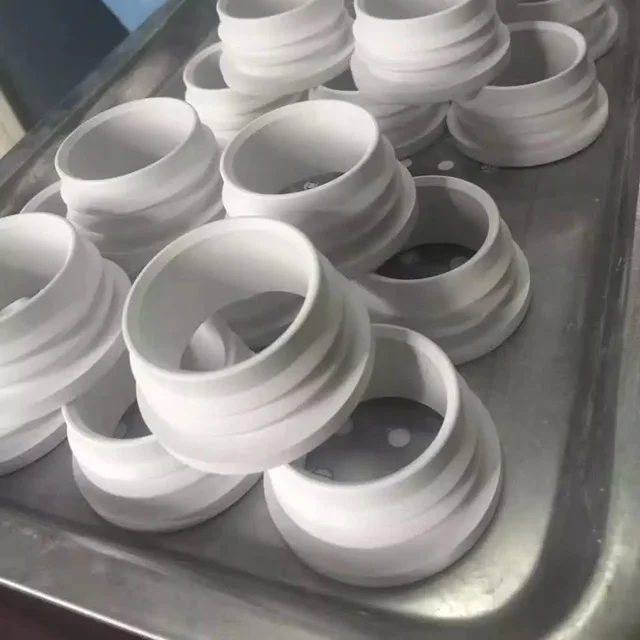

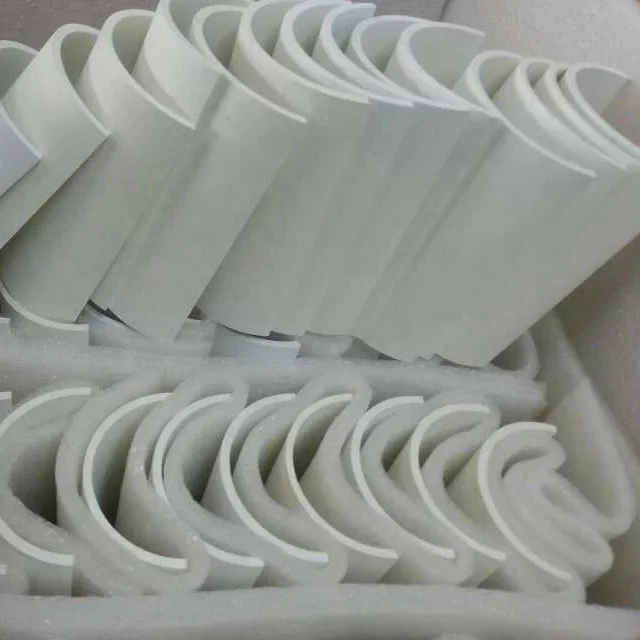

Нитрид Бора/BN керамические изоляционные аксессуары/гильзы/кольца для поликристаллический кремний и слитков печь
- Категория: >>>
- Поставщик: Xiamen Mascera Technology Co. Ltd.
Сохранить в закладки 60729435285:
Описание и отзывы
Характеристики
Product Description
Product Name | Boron Nitride/BN Ceramic Insulating Accessories/Liners/Rings for Polysilicon Ingot Furnace | ||
Material | 99% Hot Pressed Boron Nitride/HPBN Ceramic/BN Ceramic | ||
Color | Light Grey | ||
Usage | High Temperature Insulation Parts for Furnace | ||
Available Max. Size | 420mm (length or width) | ||
Available Shapes | rings, discs, rods, tubes, sleeves, bushings, shafts, rollers, balls, blocks etc | ||
Hot Pressed Boron Nitride (HPBN) Ceramic has the highest operating temperature in inert gas and vacuum environment. It has excellent electrical insulation (the breakdown strength is 4 times of Alumina Ceramics), high thermal conductivity, low thermal expansion coefficient, excellent thermal shock resistance, it is usually used for electrical insulating components for vaccum furnace. It can be used as metal smelting crucibles because it will not react with most molten metals like Cu, stainless steel, Fe, Sn, Zn and Sb. Moreover, Boron Nitride can be quickly machined into high accuracy components by the normal mechanical machining methods.
Typical Applications of Boron Nitride parts:
●Electrical Insulating parts for vacuum furnace/polysilicon ingot furnace/semiconductor device
●Crucibles or containers for high purity molten metals
●Break rings for continuous casting of metals
●Ceramic nozzles for metal powder gas atomization
●Heat resistant ceramic parts
Mascera produces Boron Nitride materials with different composition:
●99% Boron Nitride
●BN + Ca
●BN + Al2O3
●BN + ZrO2
●BN + AlN
Data Sheet
Material Type | BN-99 | BN + Ca | BN + Al2O3 | BN + ZrO2 | BN + AlN |
Binder | B2O3 | CaB2O4 | AlBO3 | B2O3 | AlBO3 |
Density (g/cm3) | 1.95-2.0 | 2.0-2.1 | 2.25-2.35 | 2.9-3.0 | 2.5-2.6 |
Flexural Strength (Mpa) | 30 | 35 | 85 | 120 | 110 |
Compressive Strength (Mpa) | 58 | 70 | 150 | 200 | 185 |
Electrical Resistivity (Ω.cm) | >1014 | >1013 | >1012 | >1012 | >1013 |
Max. Service Temp. (℃) @air condition | 900 | 900 | 1000 | 1000 | 1000 |
Max. Service Temp. (℃) @vacuum condiction | 1900 | 1900 | 1700 | 1800 | 1800 |
Max. Service Temp. (℃) @inert gas condition | 2100 | 2100 | 1700 | 1800 | 1800 |
Thermal Conductivity (W/mk) | 30 | 32 | 35 | 30 | 55 |
Thermal Expansion Coefficient (25 - 1000℃) (10-6/k) | 1.5 | 1.6 | 1.9 | 6.0 | 3.0 |
Products Show
Ceramic materials
Alumina Ceramics
●Strong wear resistance
●Good electrical insulation
●High temperature resistance
●High mechanical strength
Zirconia Ceramics
●High fracture strength
●Strong wear resistance
●High durability and hardness
●Similar CTE with steel
Boron Nitride Ceramics
●High temperature resistance
●High thermal conductivity
●Non-wetting with metals
●Good electrical insulation
Silicon Nitride Ceramics
●High Fracture Strength
●High Strength in a wide temperature range
●Strong wear resistance
Silicon Carbide Ceramics
●High Strength in a wide temperature range
●High thermal conductivity
●Good thermal shock resistance
Aluminum Nitride
●Very high thermal conductivity
●High mechanical strength
●Good electrical insulation
●Similar CTE with Si
Product packaging
Our Company
XIAMEN MASCERA TECHNOLOGY CO., LTD. is a China supplier which specialized in R&D and custom manufacturing of technical ceramic components. We provide a broad range of high performance ceramic materials including alumina ceramic, zirconia ceramic, silicon nitride ceramic, silicon carbide ceramic, boron nitride ceramic and aluminum nitride ceramic.
We have completed production lines for molding, sintering, high precision machining, quality inspection of technical ceramic components. Our products are in conformity with ISO9001:2015 quality management system and we are capable to deliver ceramic components of fully dense, accurate size and surface finish control, prompt lead time.
Since our foundation, Mascera has committed to providing ceramic components of highest quality and has built faithful partnership with our customers. Currently, our products have been exported to more than 30 countries and widely applied in industries like machinery, automotive, chemistry, medical, energy, electronic, semiconductor, aerospace, telecommunication etc.
We have completed production lines for molding, sintering, high precision machining, quality inspection of technical ceramic components. Our products are in conformity with ISO9001:2015 quality management system and we are capable to deliver ceramic components of fully dense, accurate size and surface finish control, prompt lead time.
Since our foundation, Mascera has committed to providing ceramic components of highest quality and has built faithful partnership with our customers. Currently, our products have been exported to more than 30 countries and widely applied in industries like machinery, automotive, chemistry, medical, energy, electronic, semiconductor, aerospace, telecommunication etc.
FAQ
Q1: What is MOQ for production?
A: MOQ will differ in material, size, machining difficulty, we will let you know MOQ for each part when inquiry.
Q2: Can i get a sample for test?
A: For ceramic parts we have in stock, we can provide free sample if goods value is not high; for ceramic parts which is newly developed, mold cost or sample cost will be needed.
Q3. Can you produce according to the samples or drawings?
A: Yes. most of our ceramic parts are customized, we have rich experience in tailor-made parts. We have capability to control the parts in required size accuracy and surface finish
Q4. How can i pay to you?
A: We accept payment of T/T, credit card, Western Union, Paypal.Payment terms is 50% payment in advance and 50% before shipment.
Q5. Can i get a replacement for damaged or defected products?
A: Yes, we will remake new products for you when damage or defect are found, if you could not wait for extra time, we will refund to you or issue a credit to use in future orders.
A: MOQ will differ in material, size, machining difficulty, we will let you know MOQ for each part when inquiry.
Q2: Can i get a sample for test?
A: For ceramic parts we have in stock, we can provide free sample if goods value is not high; for ceramic parts which is newly developed, mold cost or sample cost will be needed.
Q3. Can you produce according to the samples or drawings?
A: Yes. most of our ceramic parts are customized, we have rich experience in tailor-made parts. We have capability to control the parts in required size accuracy and surface finish
Q4. How can i pay to you?
A: We accept payment of T/T, credit card, Western Union, Paypal.Payment terms is 50% payment in advance and 50% before shipment.
Q5. Can i get a replacement for damaged or defected products?
A: Yes, we will remake new products for you when damage or defect are found, if you could not wait for extra time, we will refund to you or issue a credit to use in future orders.
Похожие товары

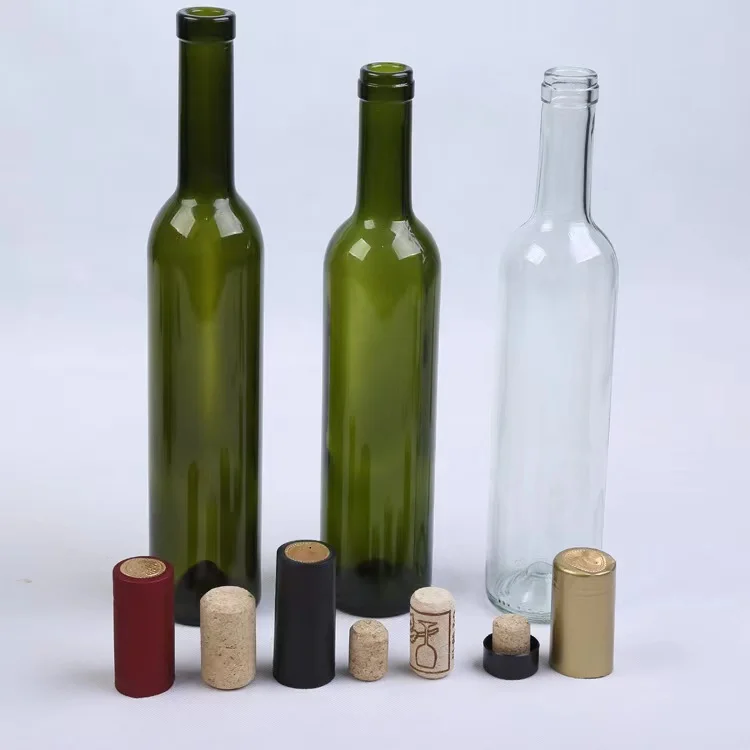

Официальный бренд, винная стеклянная бутылка 250 мл, винная бутылка на заказ, штопор, винная фляжка
0,15 $ - 0,28 $

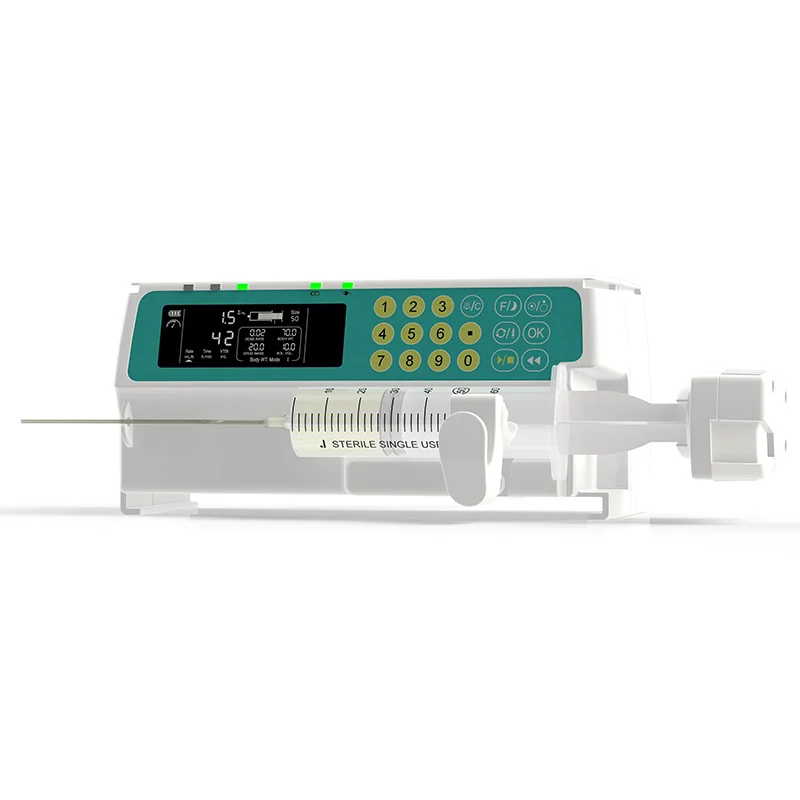

Дешевая заводская цена автоматический точный диагностический Реактив шприцевой насос инфузионный насос
240,00 $

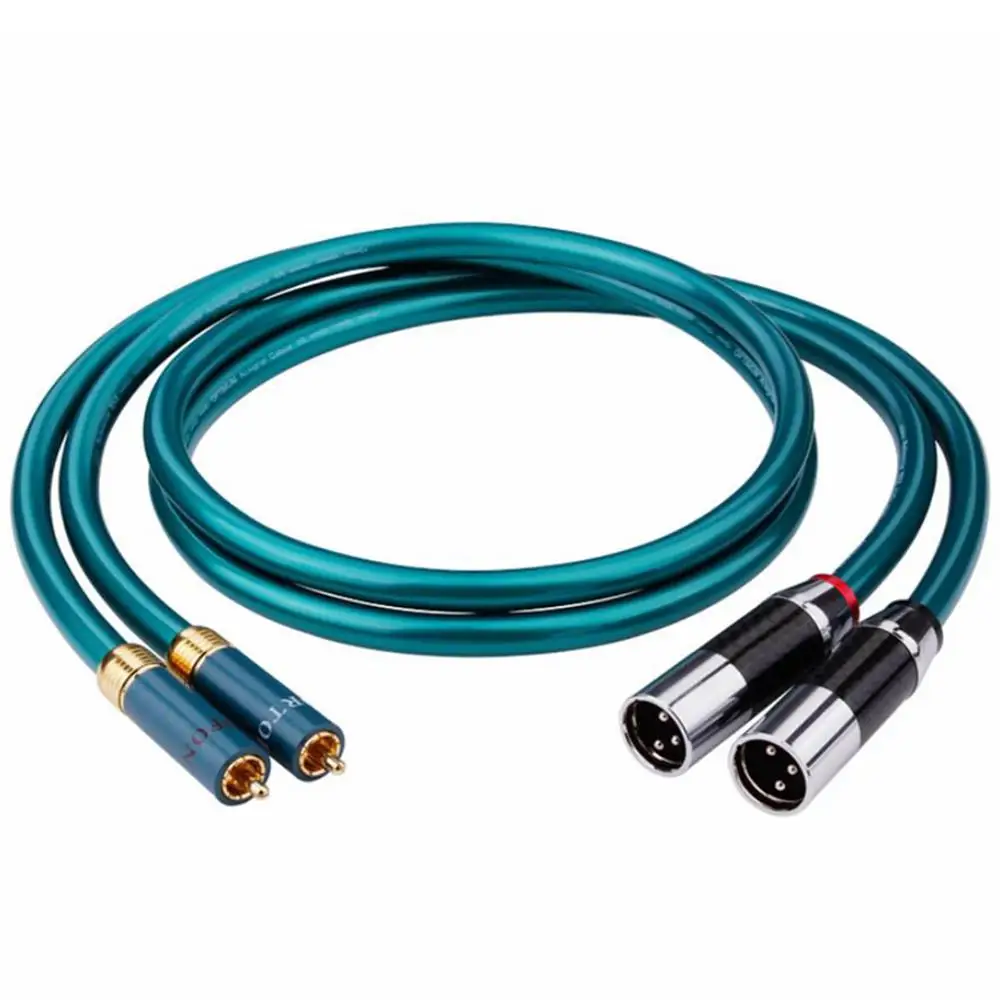

1 пара высокой чистоты OCC Hi-Fi RCA к XLR Женский Мужской Аудио кабель сигнальный кабель
28,50 $ - 34,50 $

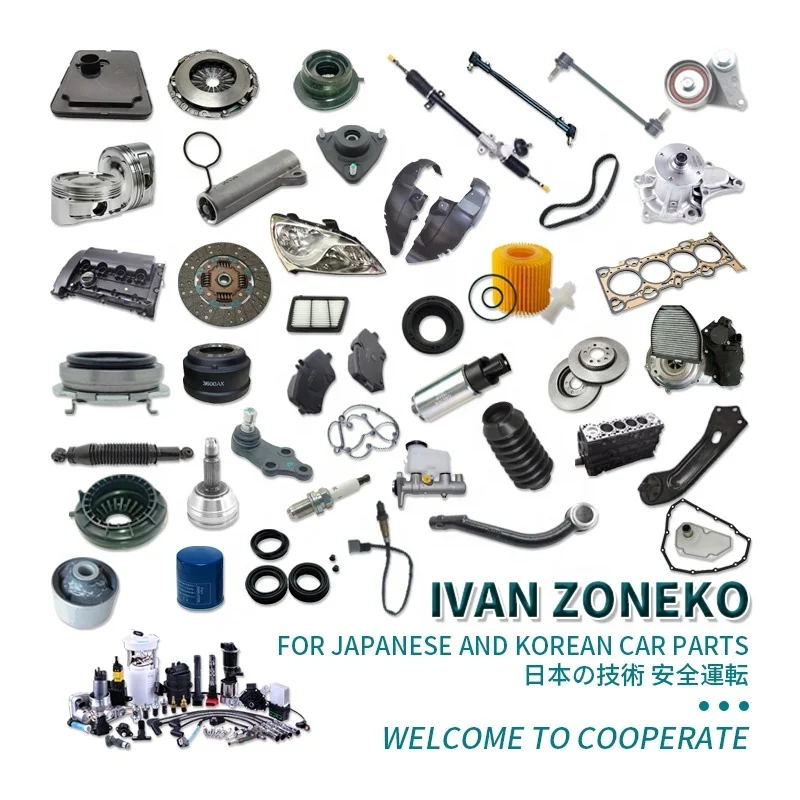

Автозапчасти Ivanzoneko для Hyundai, Toyota, Hilux, Corolla, Mazda, Mitsubishi, Subaru, Chevrolet, Kia, Nissan, Isuzuki, Isuzu, оптовая продажа из Китая
Диатомита-фильтр помощи QH-1000 #

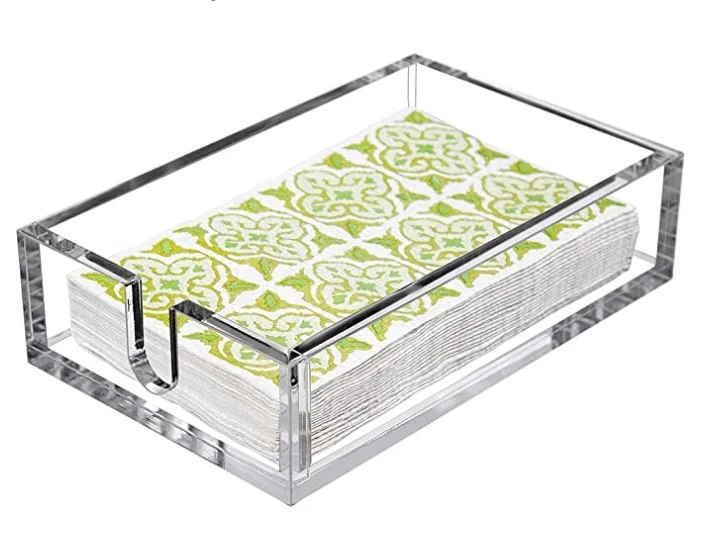

На заказ акриловые стол полотенце держатель для салфеток из акрила и органического стекла ванная комната рук бумаги салазка

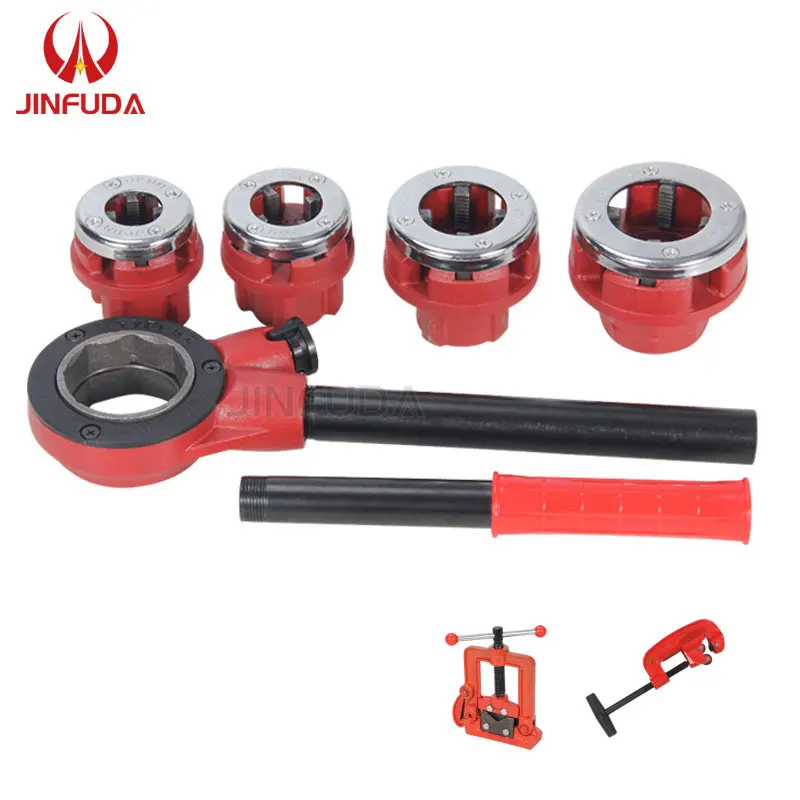

С зажимом и резаком, бытовая промышленная портативная ручная Резьбовая машина для труб 1/2 дюйма до 1u 1/4 дюйма
