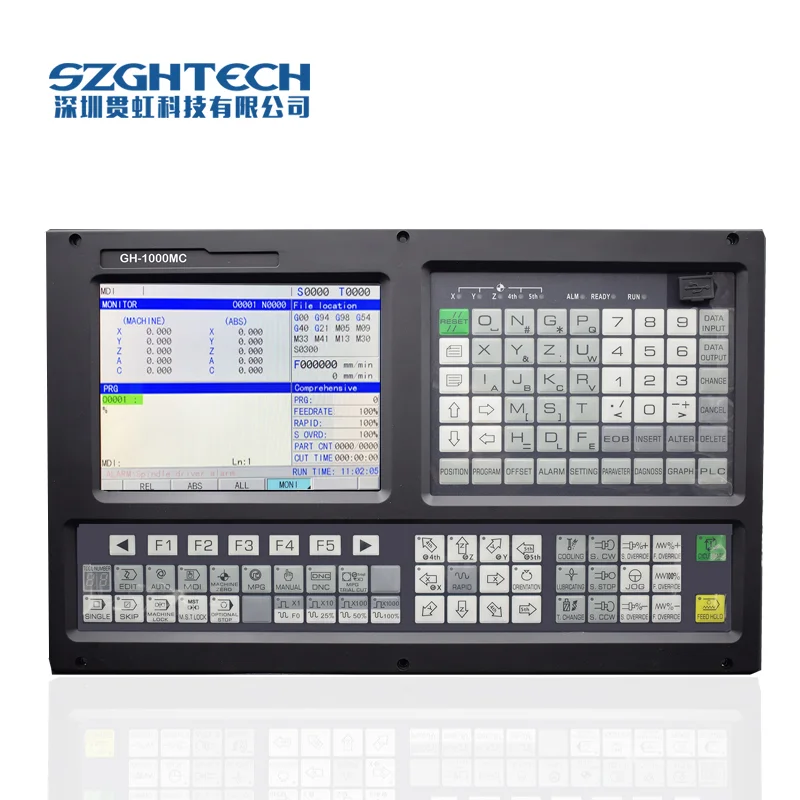

Высокая стабильность доска комплект 3 оси usb филировать cnc контроллер mach3

Name: Высокая стабильность доска комплект 3 оси usb филировать cnc контроллер mach3
SKU: 60730482375
Availability: InStock

Цена:*

Количество:

High stability board kit 3 axis kit usb cnc milling controller mach3

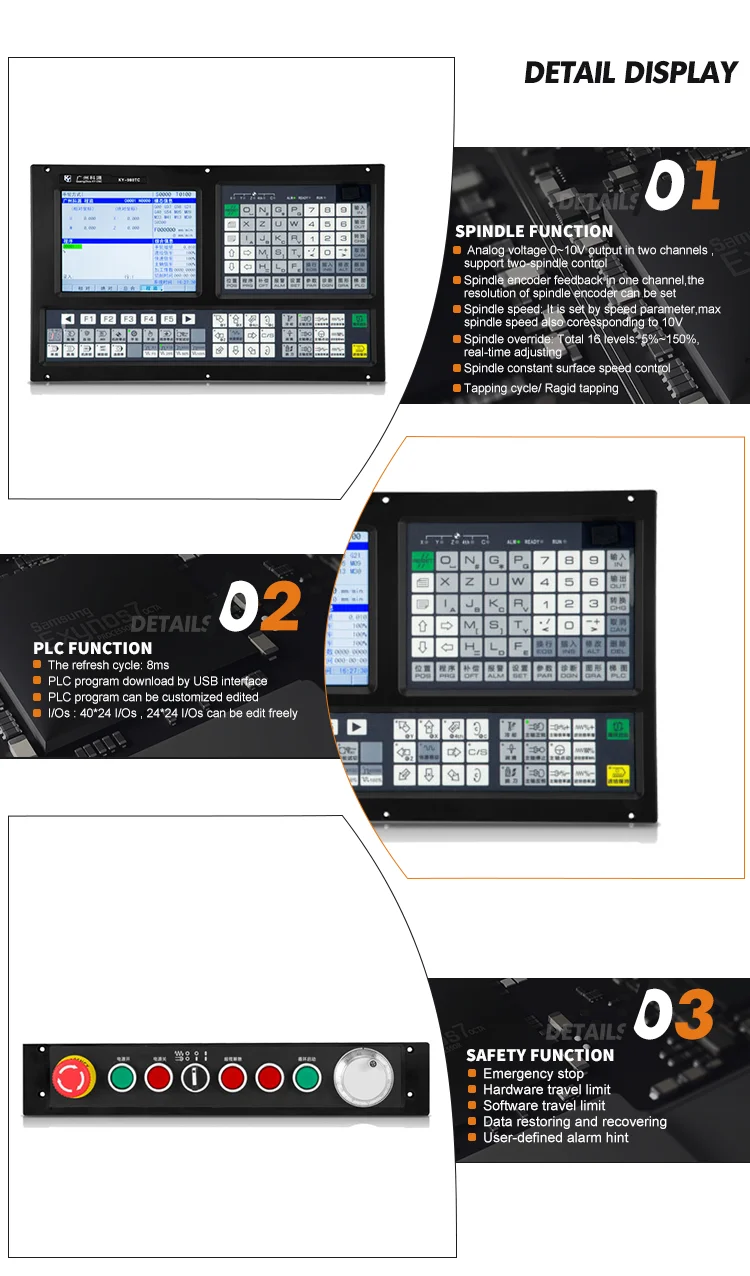

Product Description

Number of control axes	3axes (X, Y, Z)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	one axis or simultaneous multi-axis
Interpolation method	straight line, arc, thread interpolation
Tool offset	length compensation, nose radius C compensation
Spindle functions	gear, dual analog control, rigid tapping
Handwheel functions	panel type, plug-in hand-held
Screen saver function	screen saver function
Communication function	RS232, U disk interface
Compensation function	knife compensation, between compensation, screw compensation, radius compensation
Program editing	male / English, relative / absolute programming
Limit function	software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	any setting
User macro program	Yes
Electronic gear functions	Yes

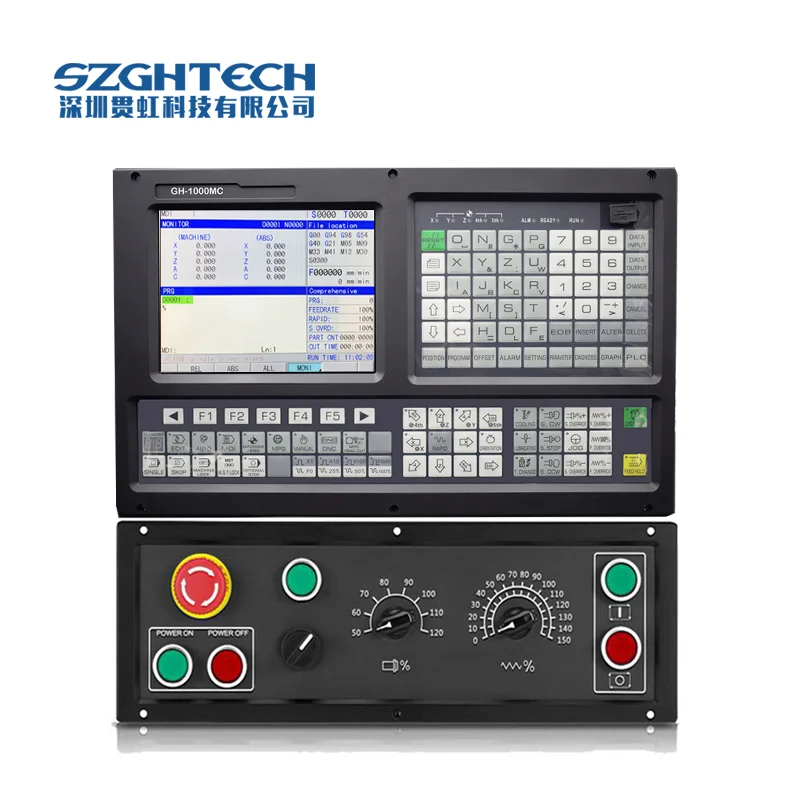

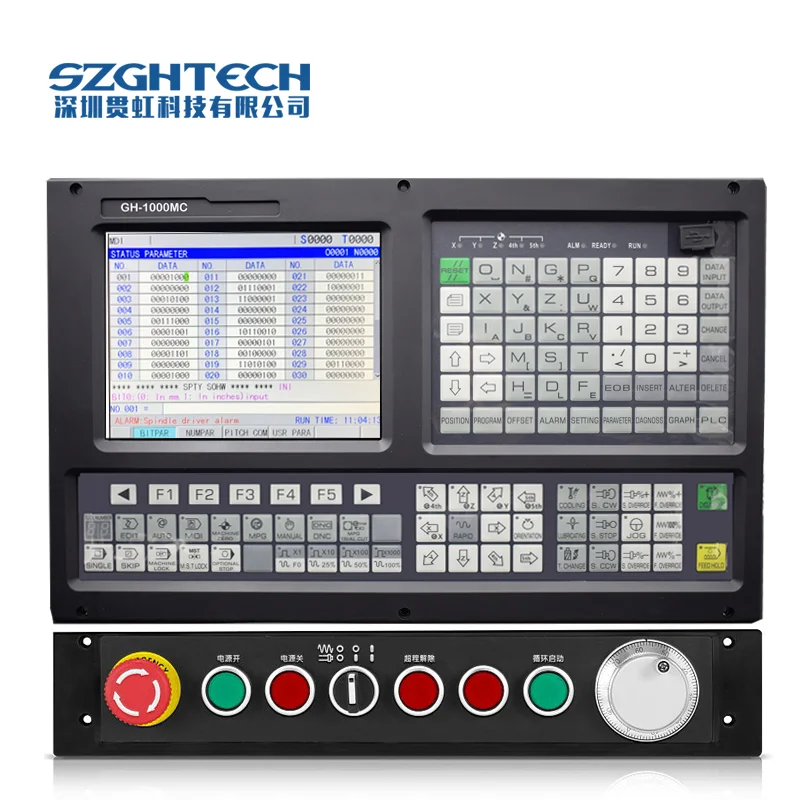

Vice-panel	A-type panel with hand wheel; B band band switch
Applicable machine tools	milling machine, boring machine, drilling machine
