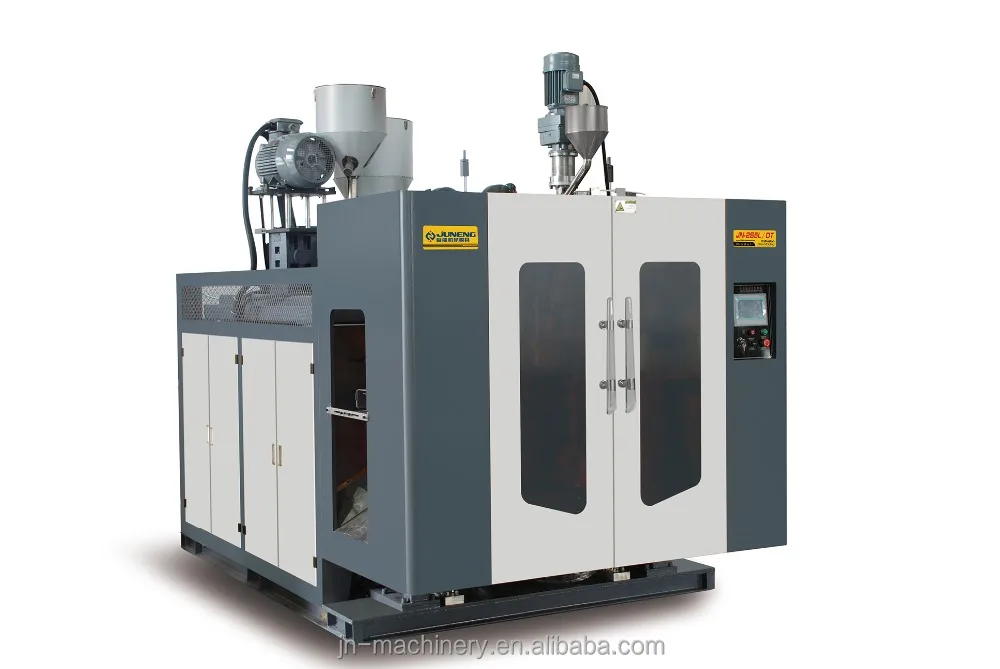

Машина для выдувного формования пластиковых стульев по хорошей цене

Machine Features

<<JUNENG>> Machine Structure

<<JUNENG>> Machine General Specifications

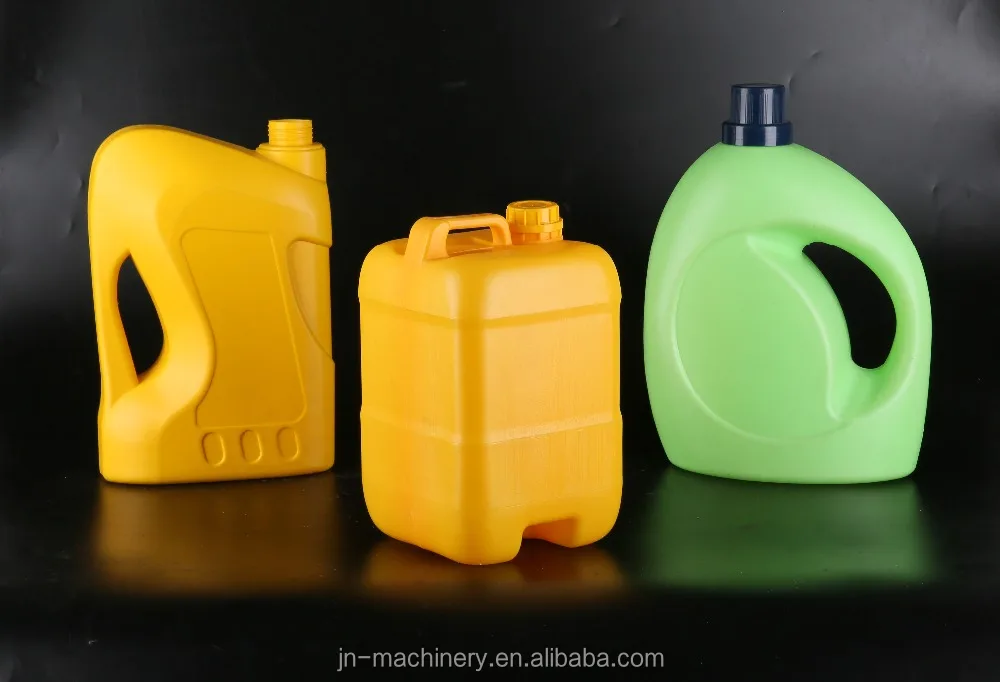

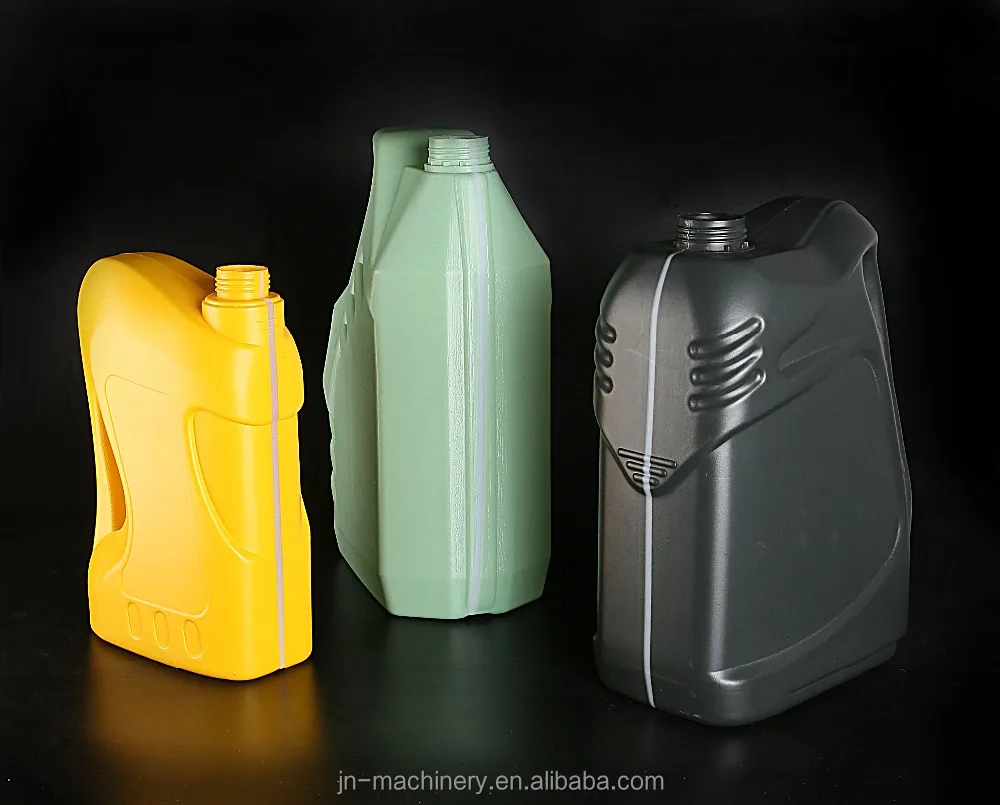

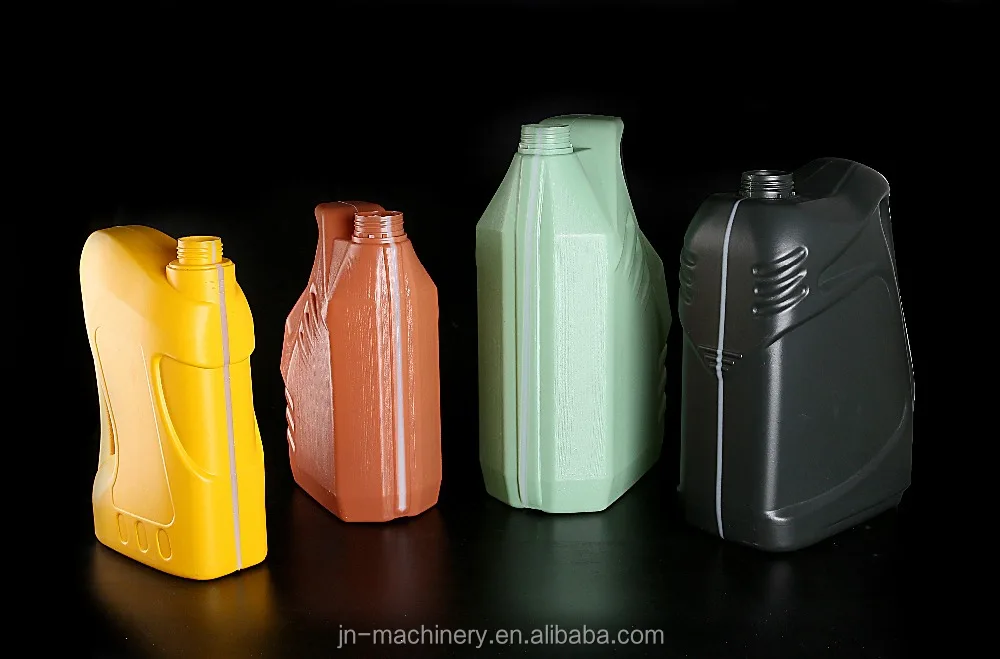

<<JUNENG>> Production Possibilies

Control System

Control System:Mitsubishi® or Siemens® PLC can be chosen

Parison Programmer:MOOG® 100 points can be used.

Touch Screen:Touch Screen can be chosen the Mitsubishi®, Siemens®, Hi-TEC® and so on.

Clamps & Carriages

1. Transfer stroke and clamping stroke on horizontal columns. Each column slides on indented rolled bronze bushings. All columns are made from chromeplated C45 steel.


2. Mold opening and closing sequences are safeguarded by a non-contact switch in order to ensure accuracy of each motion.


3. Equipped with hot knife or cold knife for cutting parison(s).

Extrusion System

1. Advanced central feed extrusion, optimal flow channel design which results in faster color-change.


2. Heads can be configured with up to 4 parisons depending on size of container and machine model.


3. Optionally 100 points parison control can be supplied for accurate control of blown product wall thickness distribution.


4. Multiple heating zones evenly distributed throughout different part of die-head to ensure accurate temperature control of the molten plastic material.


5. Extrusion head is made from a combination of tempered 38CrMoALA and stainless steel S136H. It is manufacturer into shape in-house at high precision CNC center in order to ensure highest quality and performance of this part.

Blowpin System

• Blowpin movements are actuated by Vickers®  directional hydraulic valves,


• Stations are equipped with an interchangeable “T”plate, fitted with four points adjustable


• blow pin holder for ease of centering.


• Equipped with photoelectric sensors to ensure continuous accuracy of positioning.


• Water-cooled, double-wall design blowpins for rapid venting.

Hydraulic Components

Vickers® , Taiwan Northman®  directional valves and main system vane pump.

Hydraulic oil pre-heat feature and automatic temperature control available upon request.



Pneumatic Components

Independent gauges for flow adjustment of parison support air and parison decompression.

FESTO® pneumatic controls.

Deflashing

Deflash movements actuated by pneumatic cylinder.

Independent or in-line spin trimmer unit available upon request.

Electrical components

• Delta® VFD


• Schneider® AC contactor


• Schneider® thermal overload protection relays.


• Schneider® Circuit breakers


• Mitsubishi® PLC control system


• Schneider® DC power supply.


• Electrical cabinet equipped with cooling fans to regulate temperature. Optionally air conditioner unit can be installed for improved cooling.





1. Machining

2. Spraying

3.Assembling

blow oulding machine

1.PACKING: STANDARD EXPORT PACKING

2.DELIVERY:60 DAYS AFTER CONFIRM THE PRODUCTS DRAWINGS.

All the equipments, moulds(except the blowing moulds) and auxiliaries supplied by our company, we will provide all of the techniques and technology, and supply free install and adjusting operation, ensure the technology reliability and rationality.

You have two choices,One is your technical people come to our company, we teach your person how to operate the machine, how to maintain it and so on, but all of the cost should be paid by yourself.

Two is we supply engineer to you, you provide the cost of the visa, passenger tickets(round-trip ticket), room and board. Beside you need pay our person 100USD per day, and also we will pay our person. The place is supplied by yourself.
