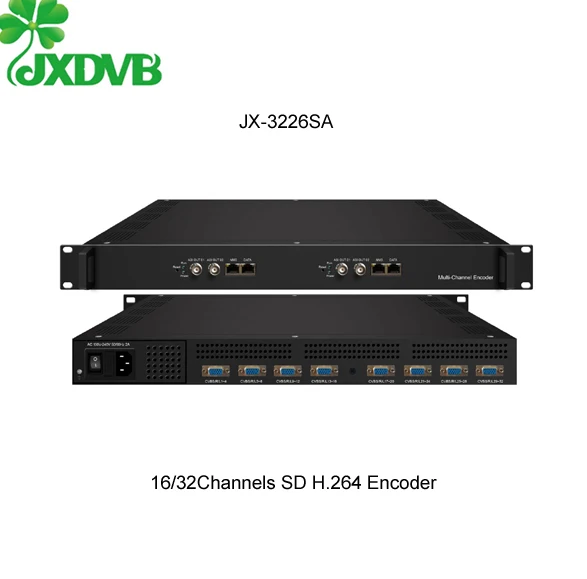

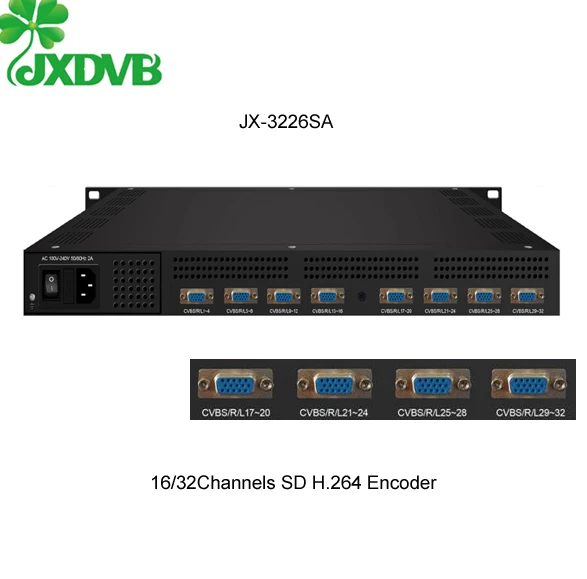

16 каналов SD H.264/Mpeg2 IP видео кодировщик

Сохранить в закладки 60731220105:


Цена:1 500,00 $ - 1 600,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


16Channels SD H.264/Mpeg2 IPTV Video Encoder


Skype:   live:jiexiang02  to contact Jaylyn

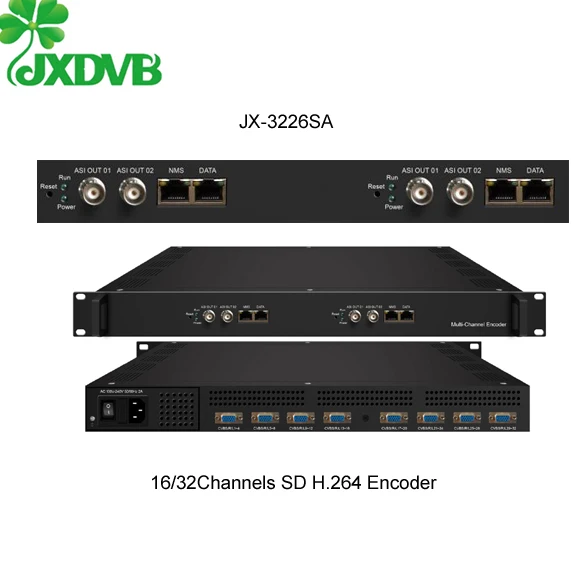

1 (3).jpg


1 (7).jpg

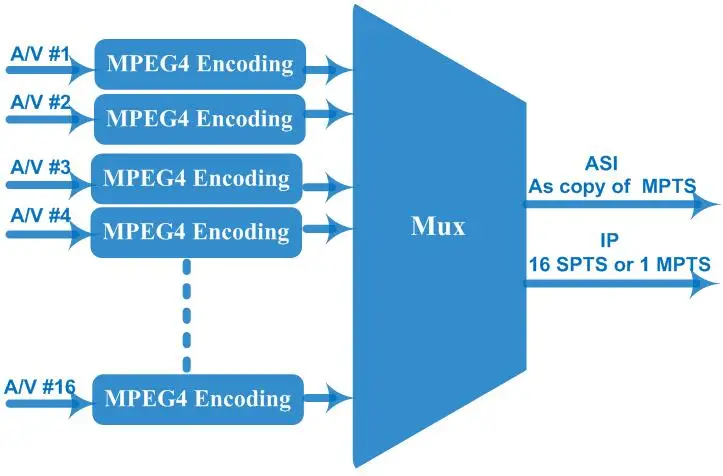

1 (6).jpg







































































































Input

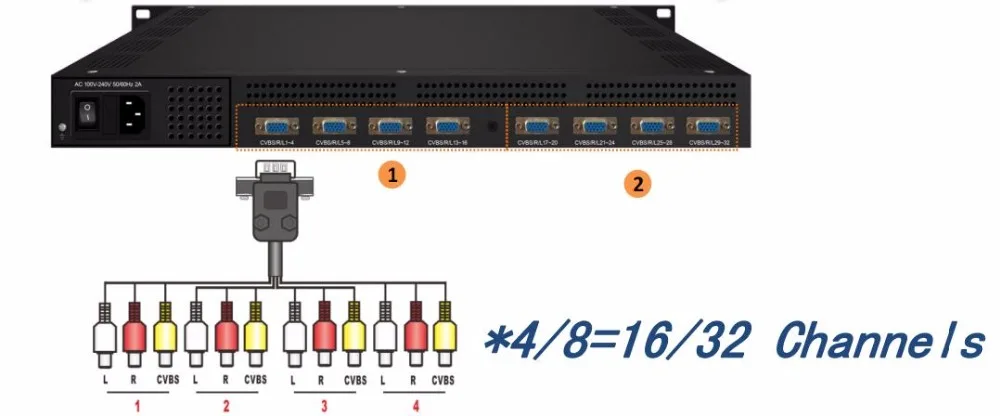

16/32 CVBS inputs , DB15-To-RCA interface



Video



Resolution



720×576i, 720×480i,







Encoding



MPEG4 AVC/H.264(HP/MP/BP)







Bit-rate



1Mbps~5Mbps each channel







Rate Control



CBR/VBR







GOP Structure



IPP (P frame is adjustable)







Aspect Ratio



4:3; 16:9



Audio



Encoding



MPEG-1 Layer 2







Sampling rate



48KHz







Resolution



24-bit







Audio Gain



0-255 adjustable







Bit-rate



64/128/192/224/256/320/384Kbps each channel



Stream output



IP (1*MPTS and 16/32*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast)







1 MPTS output through 2 ASI output ports (one for back up), BNC interface



System function



Network management (WEB)







English language







Ethernet software upgrade



Miscellaneous



Dimension(W×L×H)



482mm×328mm×44mm







Environment



0~45℃(work);-20~80℃(Storage)







Power requirements



AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
