House Building Roof Tile Roll Forming Making Machine Most Popular

Product Application

Different roof tile forming machines can produce different shapes of steel roof tile according to the client's profile drawings and requirements. The roof tile is new building materials with various thickness and colors. The finished products are used as the roof of gymnasiums, airports, theartres, factories, houses,garages, exhibition centers etc.
The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.

Main Features

1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

DECOILER

(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

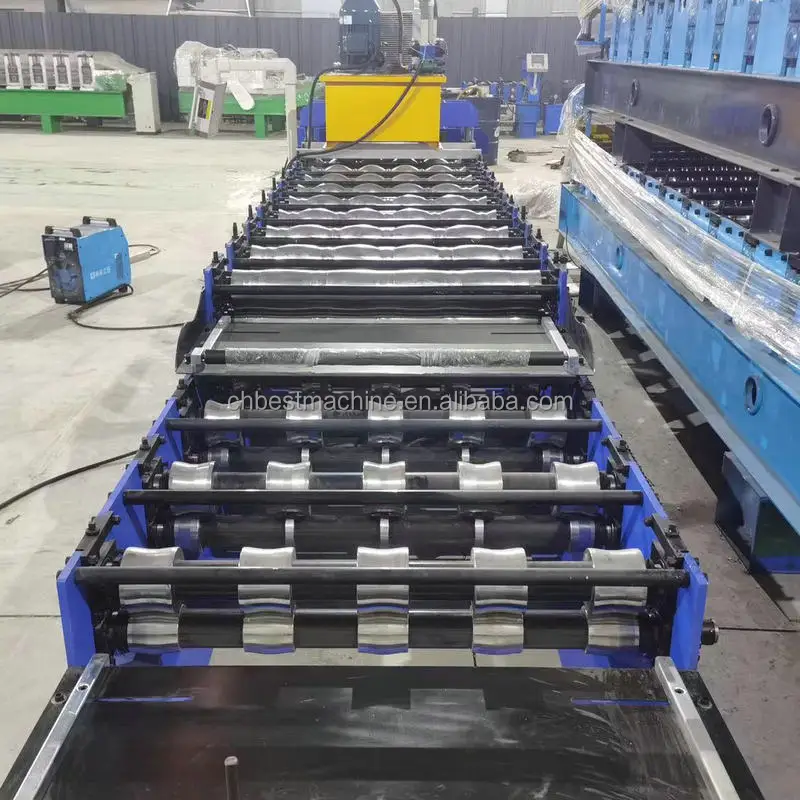

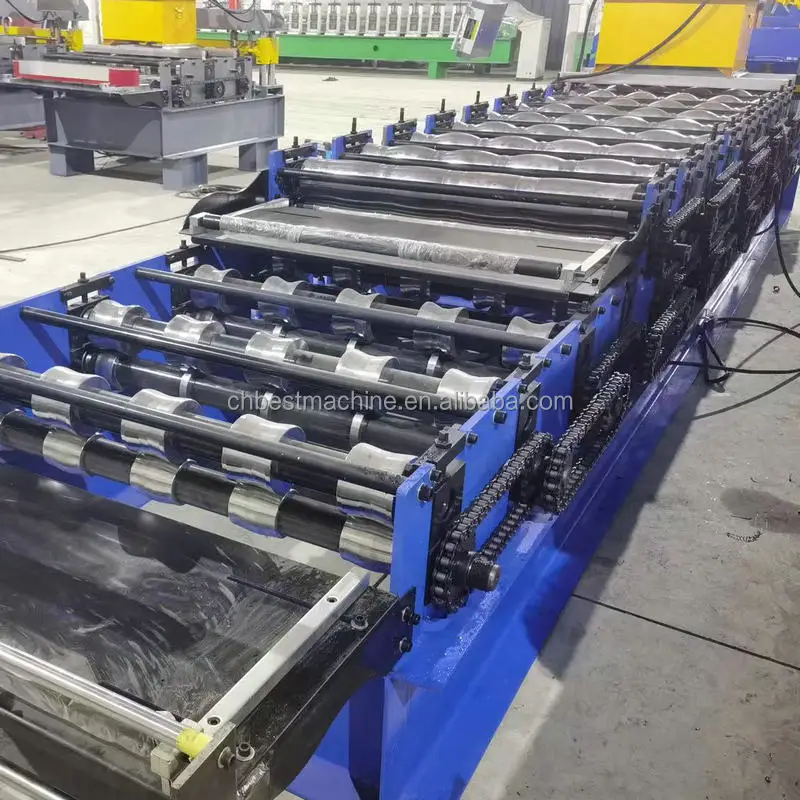

ROLL FORMING MACHINE

(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 9roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 70mm

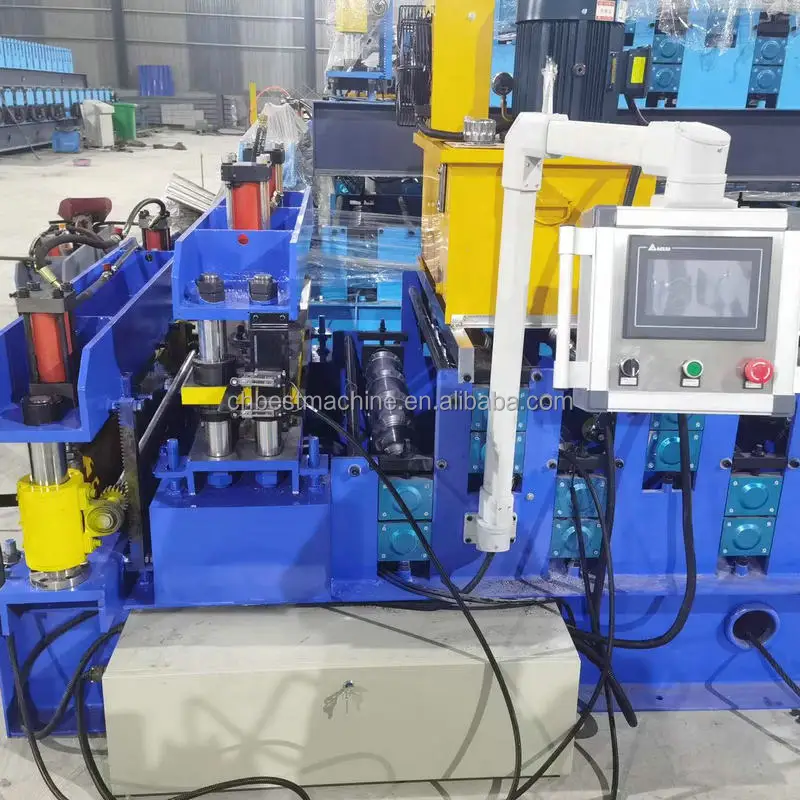

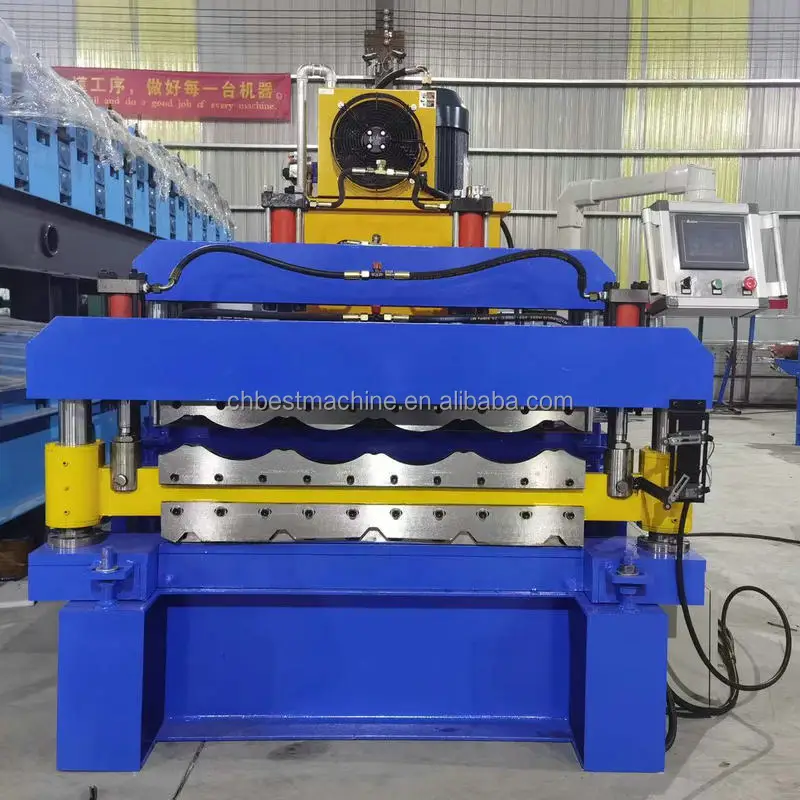

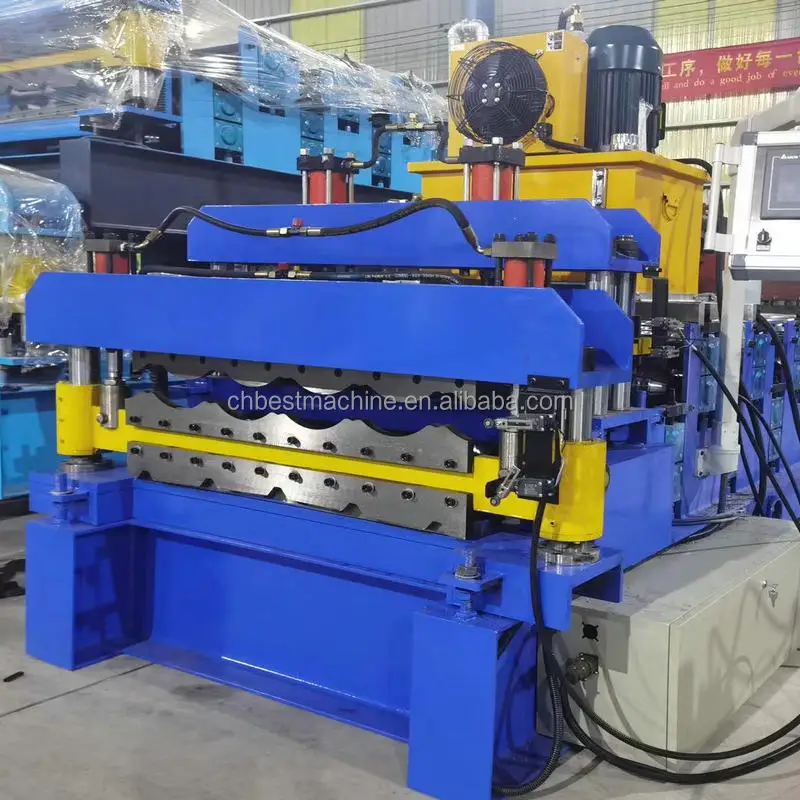

PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58-62°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW
(5) Press tool material: Cr 12 steel after heat-treated

PLC CONTROL BOX

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m
