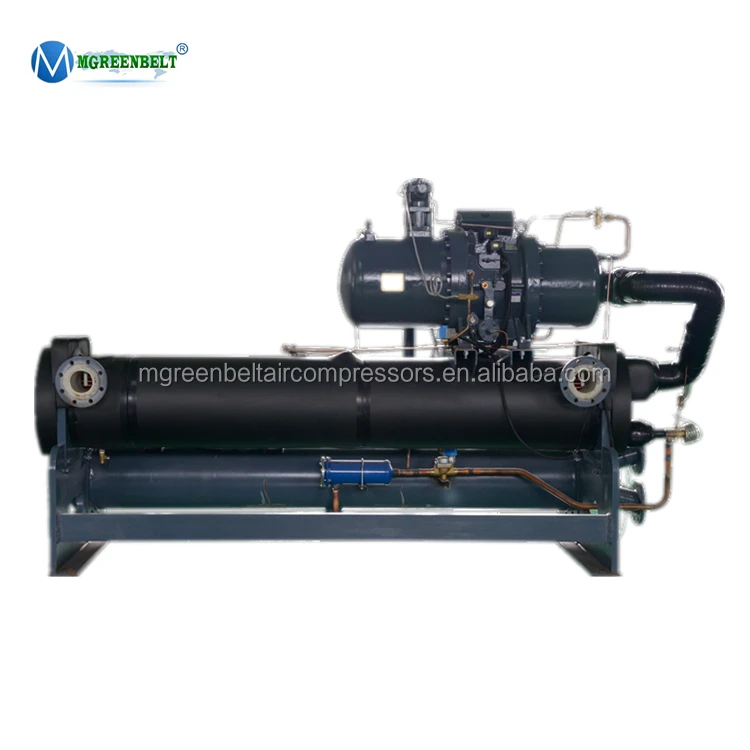

Охлаждения чиллера системы 352KW 380V винтовая холодильная камера с водяным охлаждением

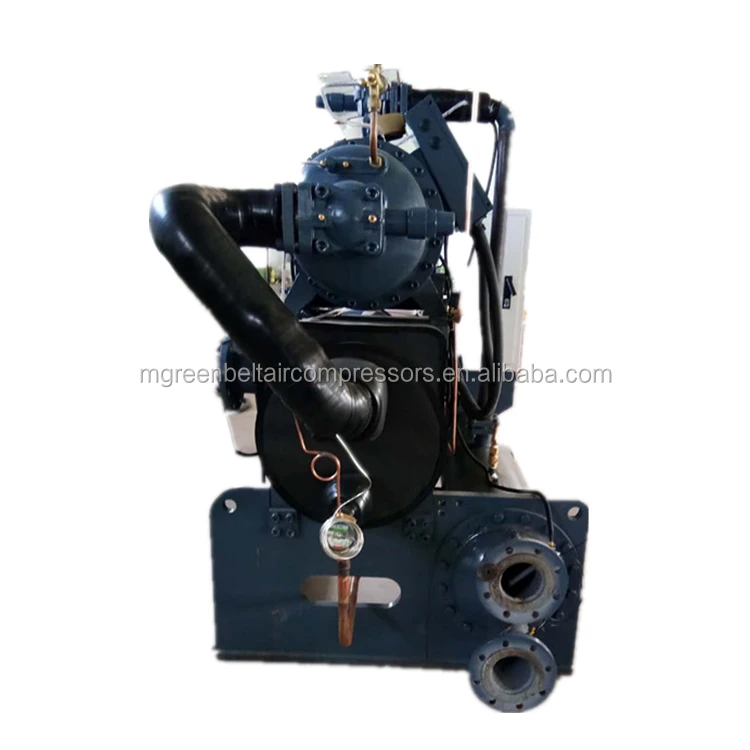

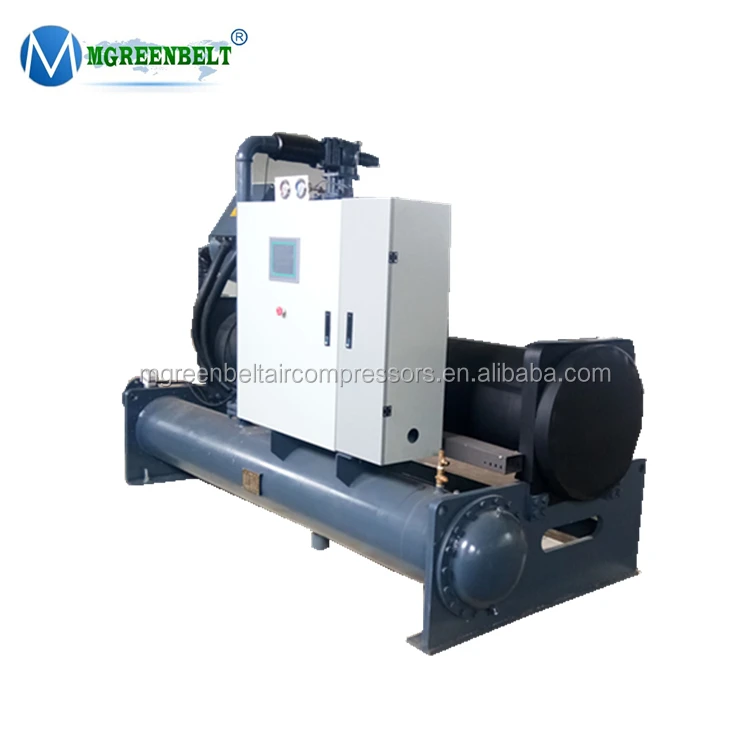

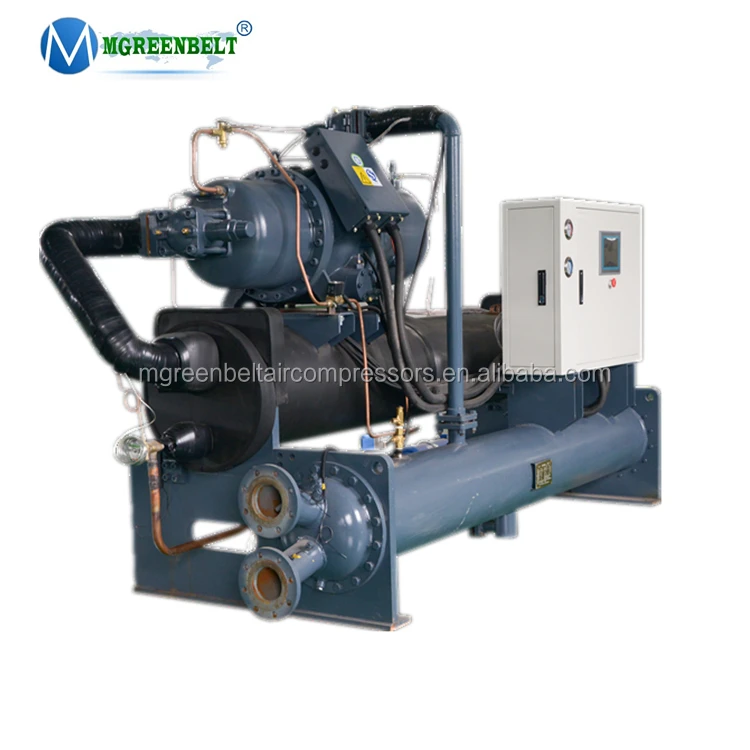

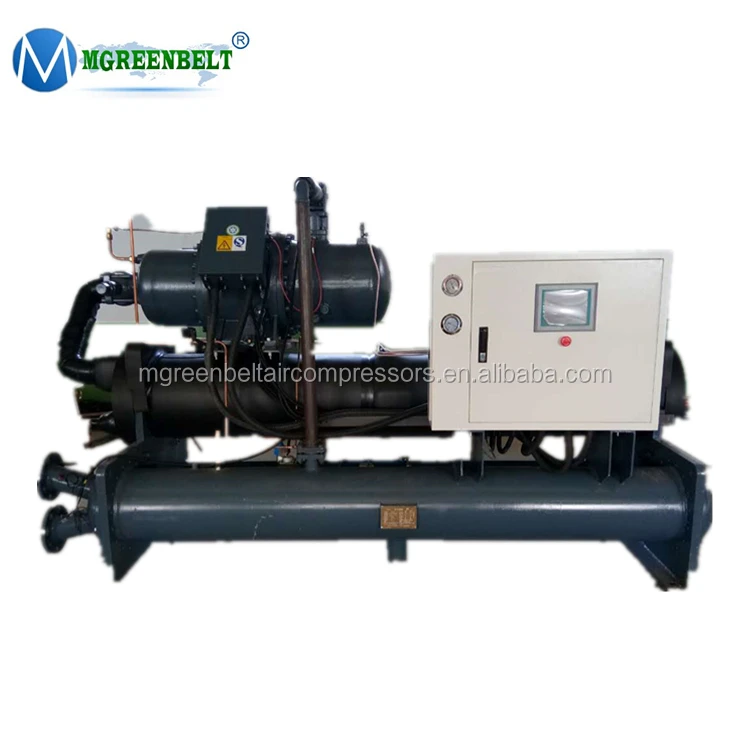

Product Application:Refrigeration Chiller System 352KW 380V Water Cooled Screw Chiller 100Ton

This series Screw Type Air Cooled Water Chiller 100Ton can be applied to one big plastic injection machine or several injection machines at the same time, with one large water tank outside to be cooled by the chiller, the consistent and reliable supply of the proper temperature to the process which means less scrap, more quality products.

Main Features of Refrigeration Chiller System 352KW 380V Water Cooled Screw Chiller 100Ton

1. Twin screw compressor brand is employed, with high efficiency, low noise level, less wearing and long operation time.
2. Four stage volume control or 0%-100% automatic regulation.
3. Use PLC microcomputer control from Germany SIEMENS. LCD touch screen, both English and Chinese human-machina intertace.
4. Complete breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.
5. Wider range of varibale chilled water temperature to meet the low temperature industrial requirements.

Product options of Refrigeration Chiller System 352KW 380V Water Cooled Screw Chiller 100Ton
1. Salt water evaporator
2. Stepless energy regulation
3. Pump/Cooling tower control
4. Special power supply
5. Remote communication connector

Product specfication
1.Refrigerant: R22/R407C
2.Evaporator max water pressure drop: 1.0Mpa
3.Evaporator: fouling factor 0.018m2.℃/KW
4.Condenser: fouling factor 0.044m2.℃/KW
5.Power supply: 380V/3P/50Hz
6.Allowable voltage fluctuate: ±5%
7.Allowable frequency fluctuate: ±2%

Chiller 100Tons compressor:

Select semi-closed 5:6 asymmetric twin-screw compressor from world-renowned brand. The possibility of shaft seal leakage is zero. Using a rotating exhaust design, the lastest development of the fourth generation line, optimize the circumference speed, excellent design of gear so that the unit has higher compression efficiency. Motor chamber compression chamber integrally cast, high precision. Double pressure compensated rotor housing, very strong, no expansion even in the state of high pressure, and it effectively reduces the noise.

Chiller 100Tons heat exchanger

The condenser and evaporator of this series unit adopts shell and tube heat exchanger, using new high efficient heat exchanger structure. Heat exchanger adopts the most advanced and effcient heat exchanger tube bundle with unique geometric characteristics and enhanced tube nucleate boiling required vaporization core, strengthen the fluid in the tube and delay perturbationat the same time, the water side fouling, heat transfer enhanment, the inside wall in order to get the best performace, comparade to the previous design, the unique design of the heat transfer efficiency is increased by 30%.
Evaporator evapotation tube with inner grooved on outer concave tooth enhanced heat transfer technology, condenser tube with inner grooved cutter teeth technology, improves the evaporator and condenser heat transfer efficiency and the evaporation temperature, and improve the energy efficiency ratio for the unit.

Chiller 100Tons CONTROL SYSTEM

A good Chinese-English interactive interface is to achieve automatic control function before the LCD display real-time statues of the machine work, precise monitoring unit operating at optimun state, the touch pannel sealed, waterproof, dustproof, corrosion-resistant, long-key life. Equipped with cooling pumps, cooling water pumps and cooling tower fan interlock control function.

High quality electrical components, insure our 100Ton long working life.

Certificate of chiller 100tons

Our screw compressor water cooled chiller machine got the CE Certificate;

All components motor with UL certificate;

China Top 1 service brand;

China TOP 10 quality industrial chiller suppluer.

Kenya Dairy(milk factory) customer

This is a model MG-70CL screw compressor water cooled water chiller 100ton; after finally communication we suggest customer a proposal with 205kw cooling capacity, -5 deg C temperature outlet, becuase their tank required 0 deg C; after 3 years working, customer send back this picture and said" Your water cooled chiller is working perfect!!!"

They required with cooling capacity based on their working need, after finally confirm by our engineer team, we finally suggest them add a 8 m3 buffer tank, so that it can save much energy for them, at last they order 3 sets of our screw compressor water cooled water chiller; and this year they make the second order.

Different chiller 100tons project from all over the world.

Our team

Customer visit us

If you have questions? please don't hesitated to contact us:

1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
