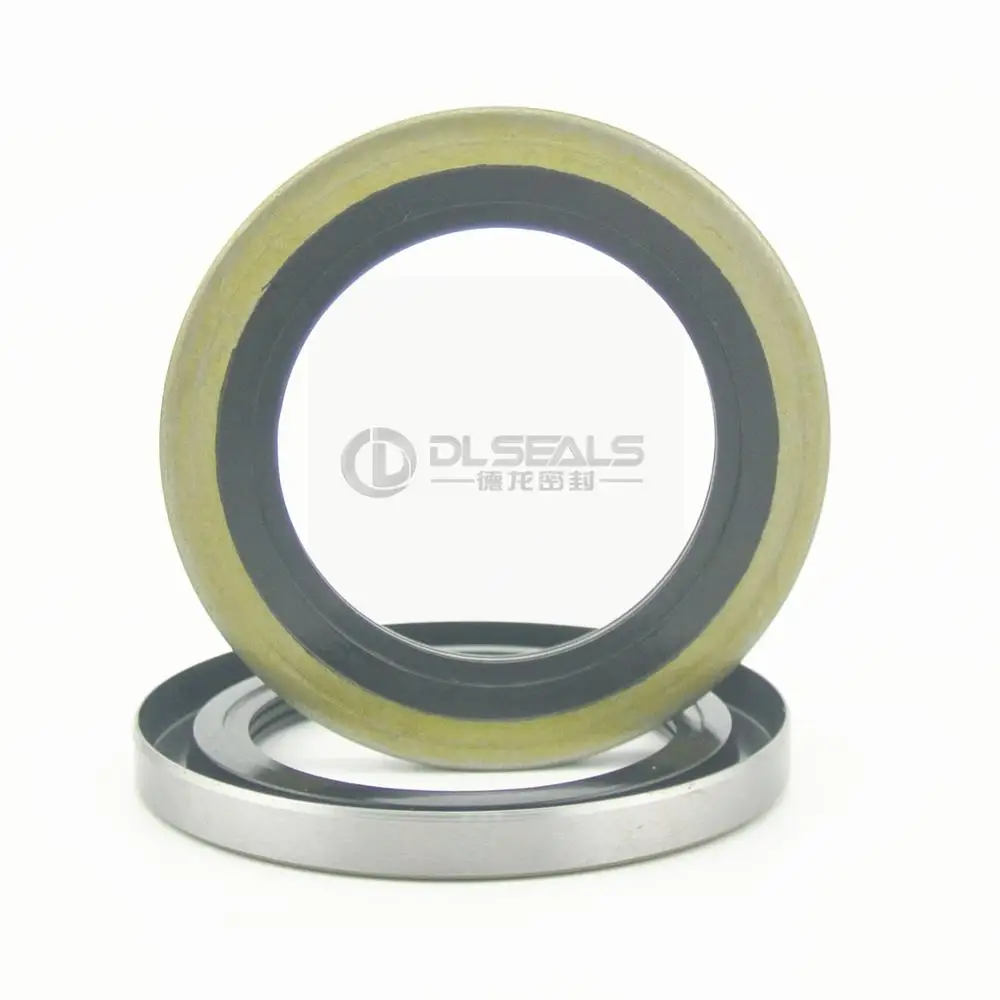

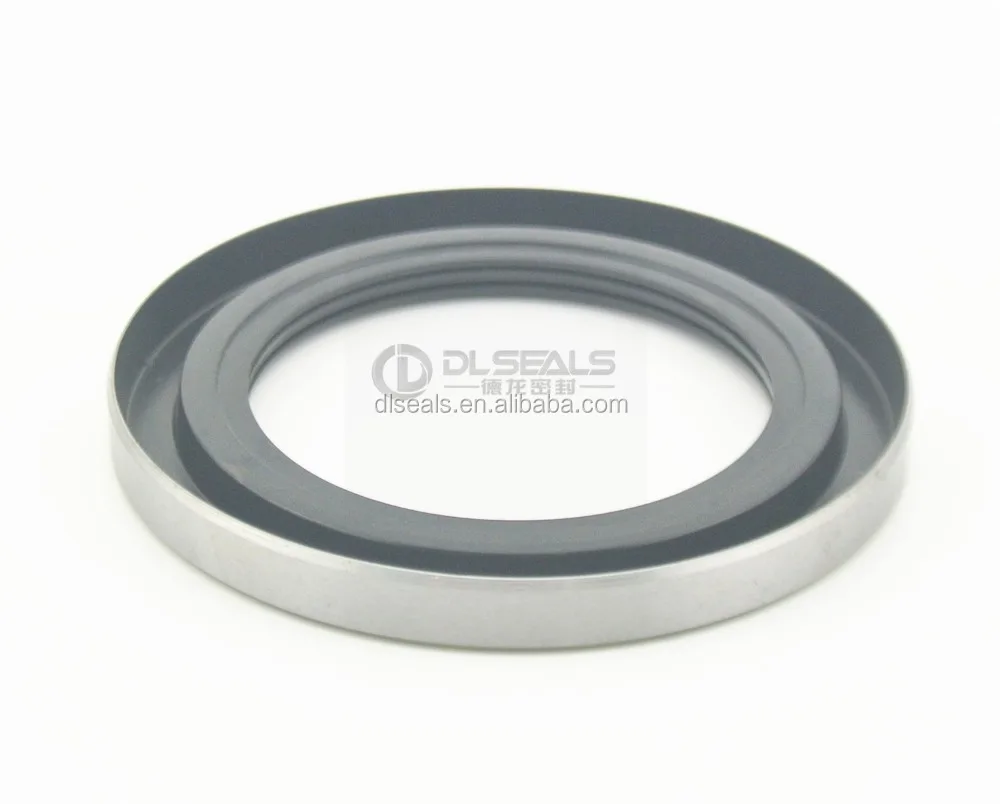

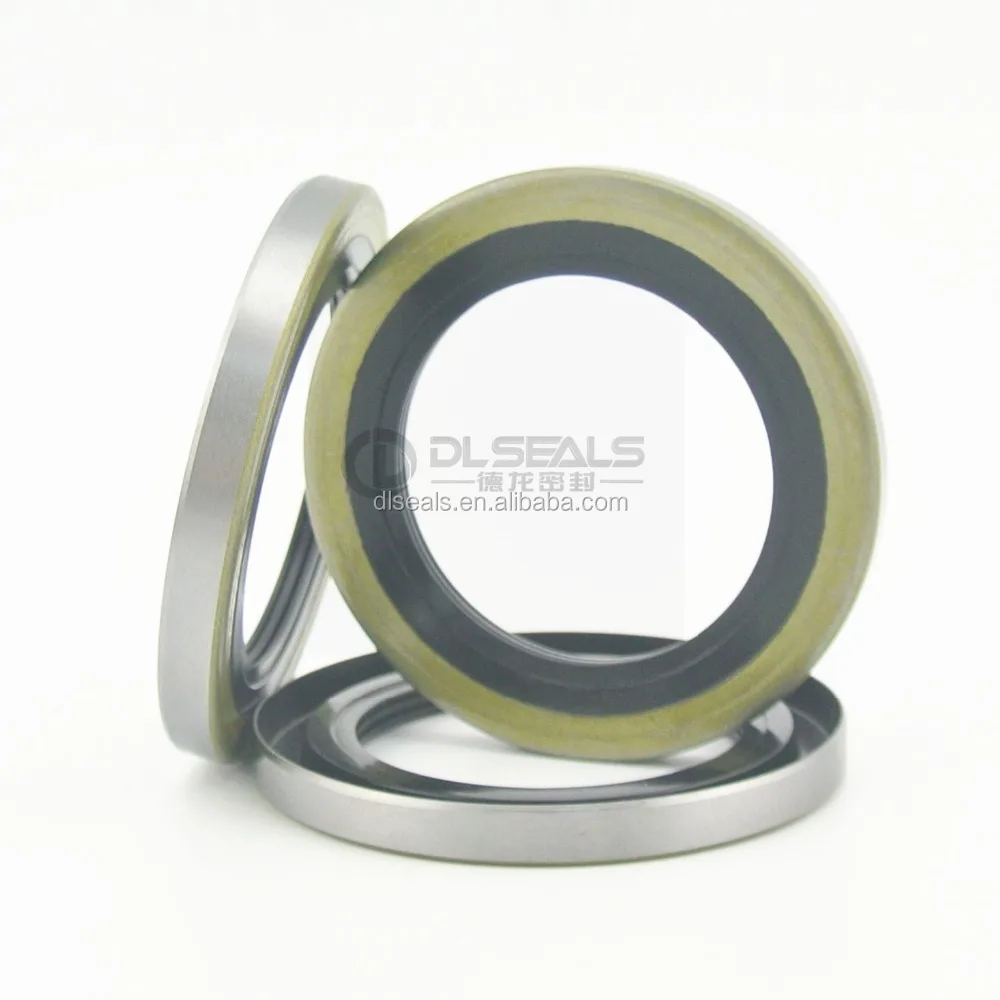

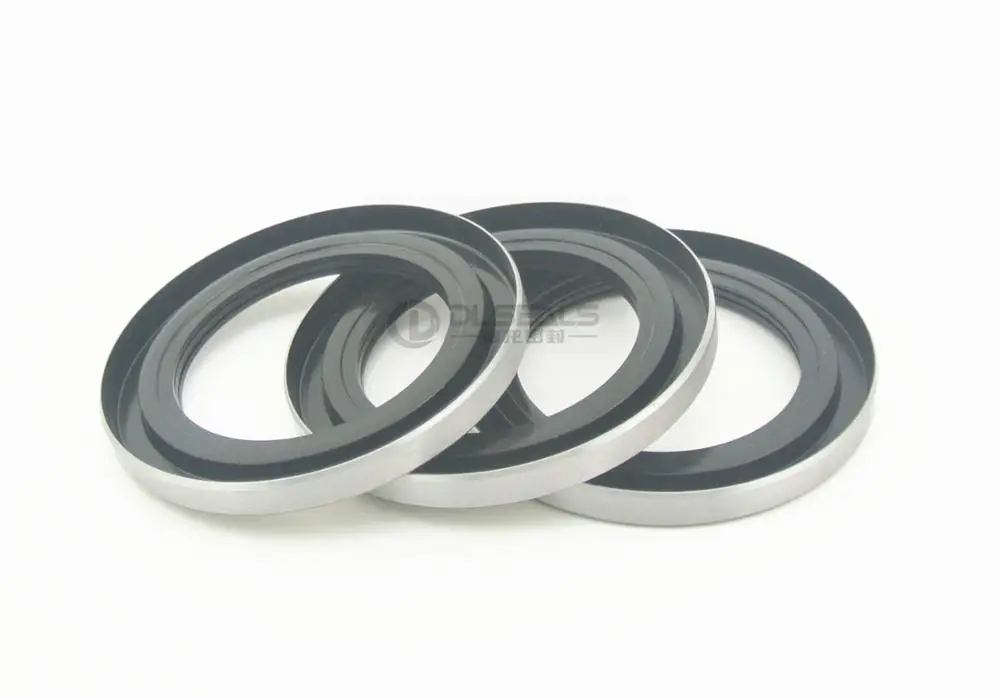

DLSEALS индивидуальное уплотнение CR19510 размер 2 896 1 945 0 325 вращающийся вал TCM масляное

Rotary and Shaft Seals

Rotary seals and Shaft Seals are used in components with oscillating or rotating parts to keep lubrication fluids in while preventing ingress of mud and water. Trelleborg seals help improve components life and long term performance.

Static Seals

In a static sealing application there is no movement between sealing surfaces or between the seal surface and its mating surface.

oil seal material

Oil seals are available in numerous lip materials. Popular materials include felt, leather, urethane, nitrile, polyacrylate, ethylene-acrylic or polyacrylic, silicone, fluoro-elastomer, tetrafluoro-ethylene propylene and PTFE. Use of one material over another is application specific, as materials will have different temperature and speed ranges.

lip seal

Lip type shaft oil seals are widely used in rotary screw airends and come in a variety of designs and materials. This seal functions to retain the oil inside the airend, but also to keep air, dust and dirt from sucking in along the rotating shaft when the machine is off load. (When the inlet valve closes, if the airend continues to rotate, a vacuum may be pulled on the inlet end.)

NBR(nitrile butadiene rubber)

*Service Temperature
For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and formula.
*Application
NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low temperatures.

FKM, Viton(Fluorocarbon)

*Service Temperature
For general type Viton the service temperature is better limited to approximately from -26 C to 232 C in static applications, though the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15 C and 200 C.
*Application
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in automotive, chemical processing, aerospace and many other industries.

Silicone Rubber (Q, MQ, VMQ, PVMQ)

*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that need approval for food handling equipment and appliances.

PTFE

*Service Temperature
PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide temperature range of -100°F to +400°F (-73°C to 204°C).
*Application
PTFE is the common sealing material used for making wear ring, backing-up ring, o ring, gasket, etc. It can be found in metallurgy machinery, petrochemical machinery, engineering machinery, and light industrial machinery.
