Z4 250 31 48V 1000W бесщеточный двигатель постоянного тока
- Категория: >>>
- Поставщик: Wuxi Xianfeng Electric Manufacturing Co. Ltd.
Сохранить в закладки 60733196890:
Описание и отзывы
Характеристики
Products Description

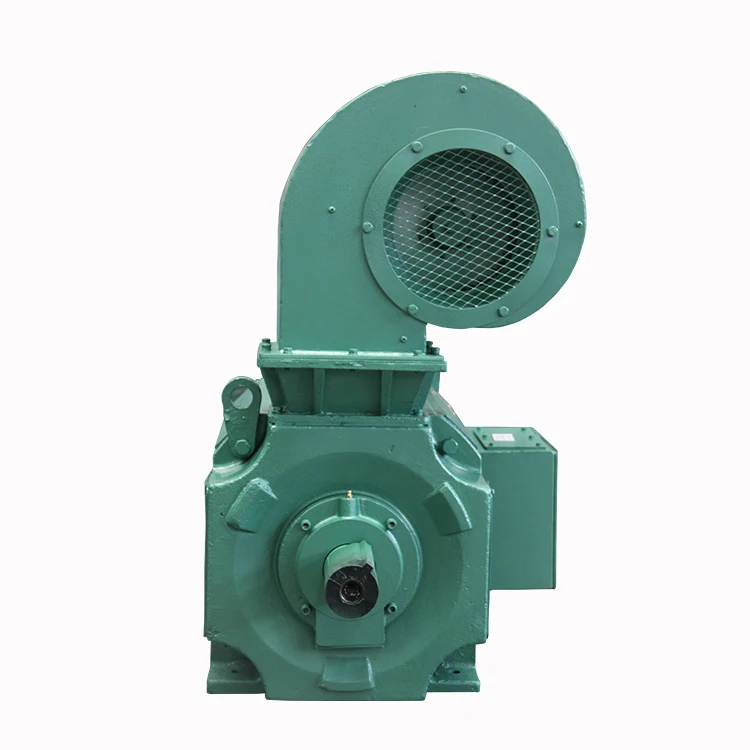

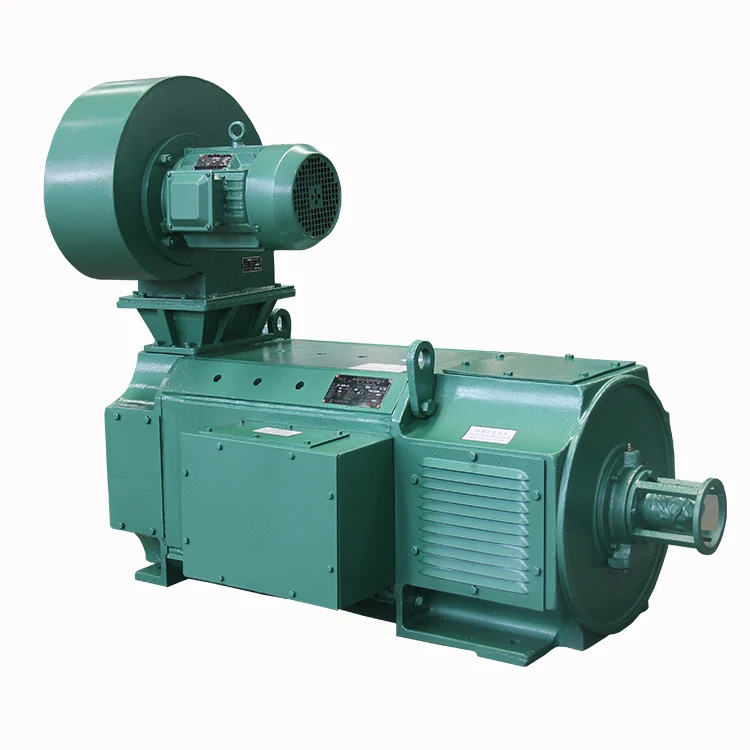

Z4 Series DC Motors
This series motors are found wide use for prime mover in various machinery, such as mill auxiliary in metal urgical industry, tetal cutting machine tool, paper-making, print textile, peinting and dyeing, cement-making, plastic extruding machine woodwork machine etc.
Outline mounting dimensions of the motors comply with IEC 72 Standard, except for the axial distance between the mounting holes.
Performances and technical requirements of the motors can be checked in accordance wotj OEC 34-1 Standard of the international Electro technical commission. or DIN 57530 Norm of the Deutsche Industrie-Norm.
Type | Rated Out put Pn | Rated Speed 400V | Rated Speed 440V | Speed with Field Weaking nF | Arm. Curr. In | Field Power Pf | Arm. Circuit Resistance R | Arm. Circuit Inductance La | Field Inductance Lf |
kW | r/min | r/min | r/min | A | W | Ω(20°C) | mH | H | |
Z4-355-12 | 406 | 900 | 1500 | 1094 | 4700 | 0.01259 | 0.36 | 37.6 | |
450 | 1000 | ||||||||
321 | 680 | 1500 | 877 | 0.02087 | 0.59 | 28.1 | |||
355 | 750 | ||||||||
Z4-355-11 | 253 | 540 | 1500 | 697 | 0.02952 | 0.91 | 22 | ||
280 | 600 | ||||||||
180 | 450 | 1500 | 506 | 0.0502 | 1.5 | 8.91 | |||
200 | 500 | ||||||||
166 | 360 | 1200 | 478 | 0.066 | 1.8 | 22.4 | |||
185 | 400 | ||||||||
Z4-355-22 | 361 | 680 | 1600 | 978 | 0.01583 | 0.44 | 15.6 | ||
400 | 750 | ||||||||
284 | 540 | 1500 | 783 | 0.02676 | 0.81 | 34.7 | |||
315 | 600 | ||||||||
225 | 450 | 1600 | 624 | 0.03462 | 1 | 20.5 | |||
250 | 500 | ||||||||
Z4-355-21 | 180 | 360 | 1200 | 511 | 0.05642 | 1.6 | 35.5 | ||
200 | 400 | ||||||||
Z1-355-32 | 406 | 680 | 1100 | 1098 | 6000 | 0.01362 | 0.39 | 19 | |
450 | 7501 | ||||||||
320 | 540 | 1600 | 877 | 0.02153 | 0.7 | 24.3 | |||
355 | 600 | ||||||||
284 | 450 | 1500 | 789 | 0.0293 | 0.91 | 18.5 | |||
315 | 500 | ||||||||
Z4-355 31 | 197 | 360 | 1200 | 559 | 0.04957 | 1.3 | 34.6 | ||
220 | 400 | ||||||||
Z4-355-42 | 361 | 540 | 1300 | 985 | 0.01836 | 0.64 | 29.6 | ||
400 | 600 | ||||||||
320 | 450 | 1200 | 882 | 0.02361 | 0.76 | 17.7 | |||
355 | 500 | ||||||||
225 | 360 | 1200 | 627 | 0.0358 | 1.2 | 17.7 | |||
250 | 400 | ||||||||
Z4-355-12 | 406 | 900 | 1500 | 1094 | 0.01259 | 0.36 | 37.6 | ||
450 | 1000 | ||||||||
321 | 680 | 1500 | 877 | 0.02087 | 0.59 | 28.1 | |||
355 | 750 | ||||||||
Z4-355-11 | 253 | 540 | 1500 | 697 | 0.02952 | 0.91 | 22 | ||
280 | 600 | ||||||||
180 | 450 | 1500 | 506 | 0.0502 | 1.5 | 8.91 | |||
200 | 500 | ||||||||
166 | 360 | 1200 | 478 | 0.066 | 1.8 | 22.4 | |||
185 | 400 | ||||||||
Z4-355-22 | 361 | 680 | 1600 | 978 | 0.01583 | 0.44 | 15.6 | ||
400 | 750 | ||||||||
284 | 540 | 1500 | 783 | 0.02676 | 0.81 | 34.7 | |||
315 | 600 | ||||||||
225 | 450 | 1600 | 624 | 0.03462 | 1.0 | 20.5 | |||
250 | 500 | ||||||||
Z4-355-21 | 180 | 360 | 1200 | 511 | 0.05642 | 1.6 | 35.5 | ||
200 | 400 | ||||||||
Z4-355-32 | 406 | 680 | 1100 | 1098 | 6000 | 0.01362 | 0.39 | 19 | |
450 | 750 | ||||||||
320 | 540 | 1600 | 877 | 0.02153 | 0.7 | 24.3 | |||
355 | 600 | ||||||||
284 | 450 | 1500 | 789 | 0.0293 | 0.91 | 18.5 | |||
315 | 500 | ||||||||
Z4-355-31 | 197 | 360 | 1200 | 559 | 0.04957 | 1.3 | 34.6 | ||
220 | 400 | ||||||||
Z4-355-42 | 361 | 540 | 1300 | 985 | 0.01836 | 0.64 | 29.6 | ||
400 | 600 | ||||||||
320 | 450 | 1200 | 882 | 0.02361 | 0.76 | 17.7 | |||
355 | 500 | ||||||||
225 | 360 | 1200 | 627 | 0.0358 | 1.2 | 17.7 | |||
250 | 400 |
Company Profile
Wuxi Xianfeng Electric Manufacturing Co.,ltd
Founded in 1984, the company occupies a floor space of 38,000 m2 and a building area of 28,000 m2.it become a comprehensive
enterprise,who is designing,manufacturing and distribution of industrial motors.As company grows, Wuxi Xianfeng takes "customers first, integrity and win-win" as the business principle, will strive for a more outstanding company image and expects a bright prospect with our customers.
enterprise,who is designing,manufacturing and distribution of industrial motors.As company grows, Wuxi Xianfeng takes "customers first, integrity and win-win" as the business principle, will strive for a more outstanding company image and expects a bright prospect with our customers.
We commit ourselves to abiding by the environmental, occupational health and safety laws and regulations, and fulfilling our duties in environmental protecting and occupational health safeguarding.
We commit ourselves to the fulfillment of our social responsibility and obligation, properly harnessing resources, protecting our environment, enhancing occupational health and safety management with the ultimate goal of zero harm in our production process.
Certifications
Product packaging
Exhibition
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1998,sell to Domestic Market(90.00%),Africa(5.00%),Southeast Asia(2.00%),Mid
East(2.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
DC Motor,Electromagnetic Speed-Regulating Motors,Frequency Convertible Motor,Torque Induction Motor
4. why should you buy from us not from other suppliers?
Wuxi Xianfeng Electric Manufacturing has 30 years manufacturing experience. Products exported to Asia, Europe and and other
countries. Especially the Z710-G series DC motor was creative in China, appied in metalurgy indudstry, has stable performance.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German
We are based in Jiangsu, China, start from 1998,sell to Domestic Market(90.00%),Africa(5.00%),Southeast Asia(2.00%),Mid
East(2.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
DC Motor,Electromagnetic Speed-Regulating Motors,Frequency Convertible Motor,Torque Induction Motor
4. why should you buy from us not from other suppliers?
Wuxi Xianfeng Electric Manufacturing has 30 years manufacturing experience. Products exported to Asia, Europe and and other
countries. Especially the Z710-G series DC motor was creative in China, appied in metalurgy indudstry, has stable performance.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German
Contact
Sean Xia
Phone: +86 13771016570
Wechat: +86 13771016570
Website: //www.wxxfmotor.com
Wechat: +86 13771016570
Website: //www.wxxfmotor.com
Email: sean@shengling88.com
Skype: Sean Xia
WhatsApp: 13771016570
Похожие товары

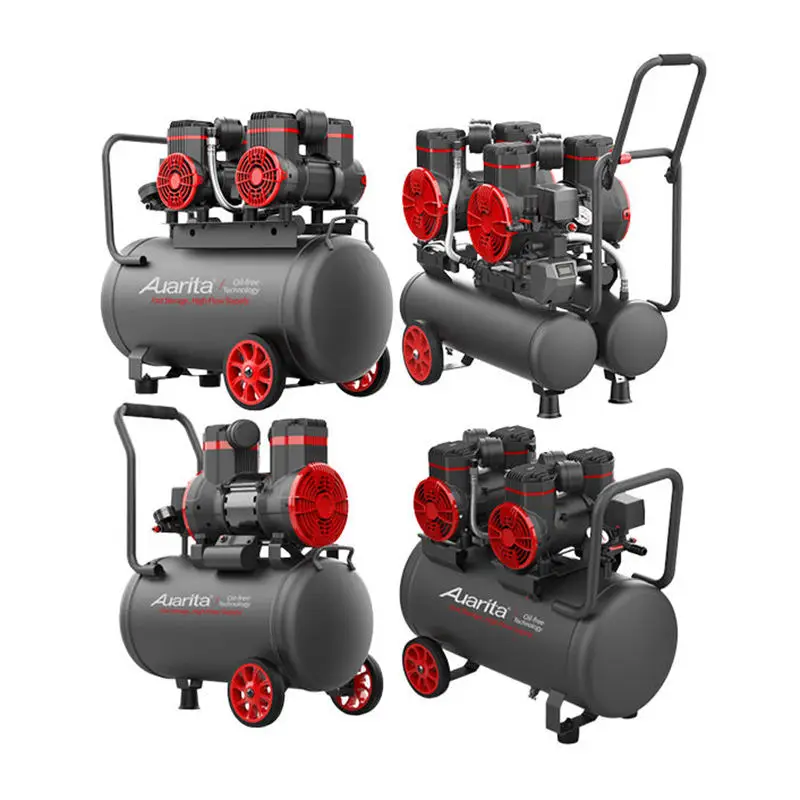

Воздушный компрессор Auarita портативный 110 вольт двойной поршень Электрический безмасляный воздушный

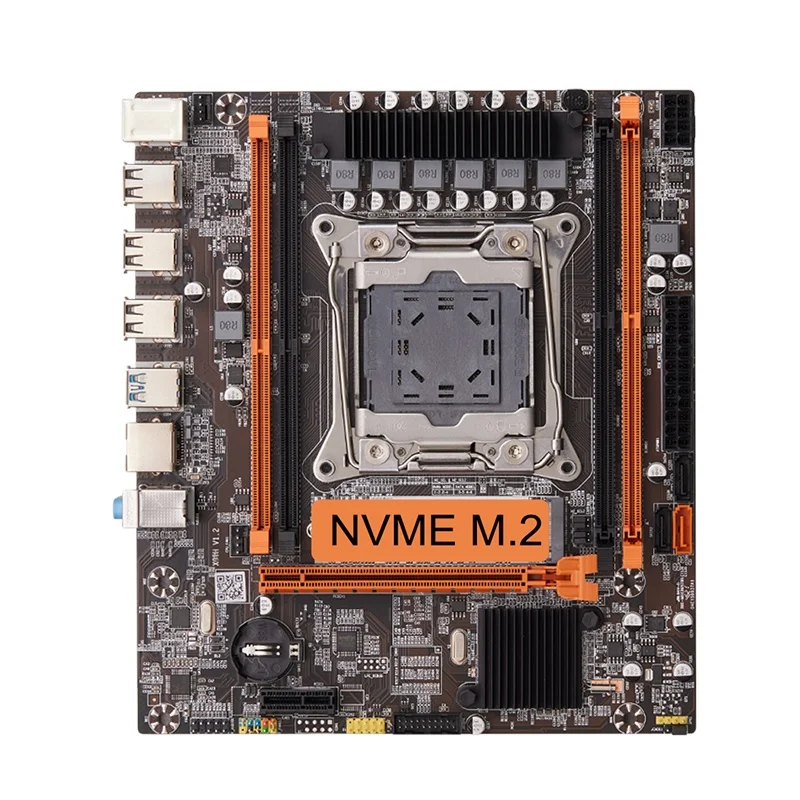

X99 lga 2011-3 комплекты материнских плат xeon e5 2680 v3 cpu x99 игровая материнская плата cpu полный комплект комбо для кулера компьютера

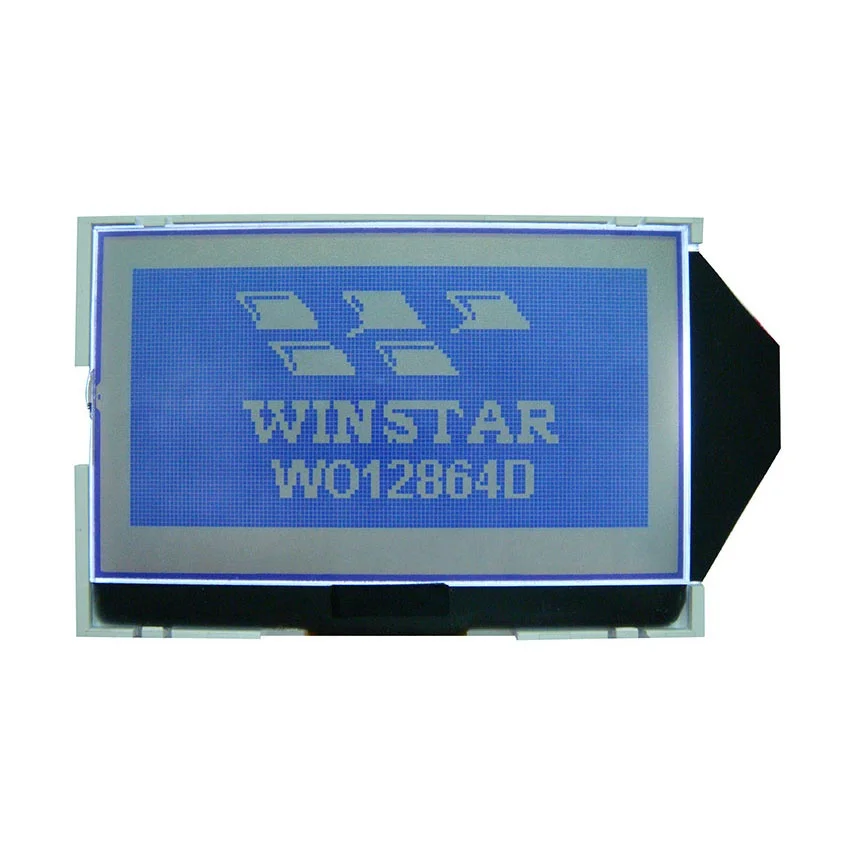

ЖК-экран 12864 дюйма Winstar WO12864D2 3V 2,93 дюйма COG модуль ЖК-дисплея 128x64
Printwindow FH6-0735-000 сенсорный экран для Canon IR2020 IR2022 IR2016 IR2018 IR2025 IR2525 Сенсорная панель Запасные детали для копировального аппарата
6,00 $ - 10,50 $

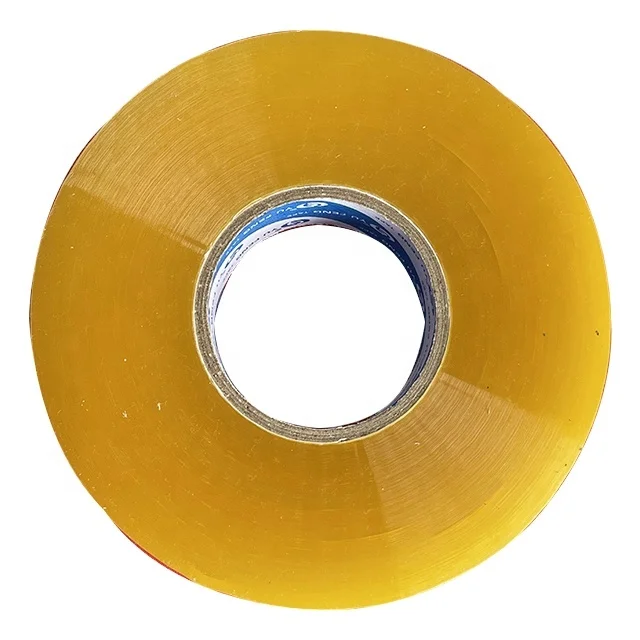

Картонная уплотнительная пленка лента с высокой клейкой прочной прозрачной желтой упаковочной лентой из БОПП
0,29 $ - 0,59 $

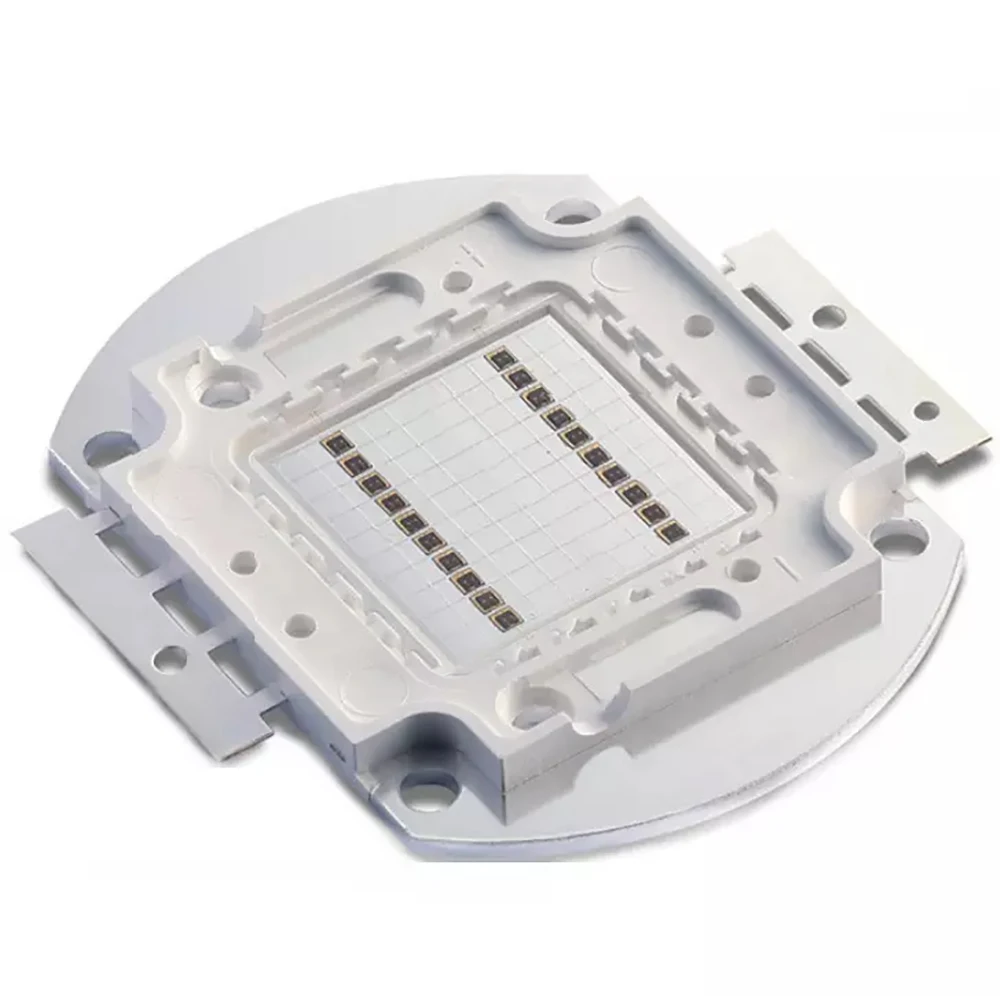

Синяя светодиодная лампа 20 Вт, 420 нм, 430 нм, 440 нм, 470 нм, 20 Вт, Синяя светодиодная лампа с чипом высокой мощности
15,00 $ - 18,00 $

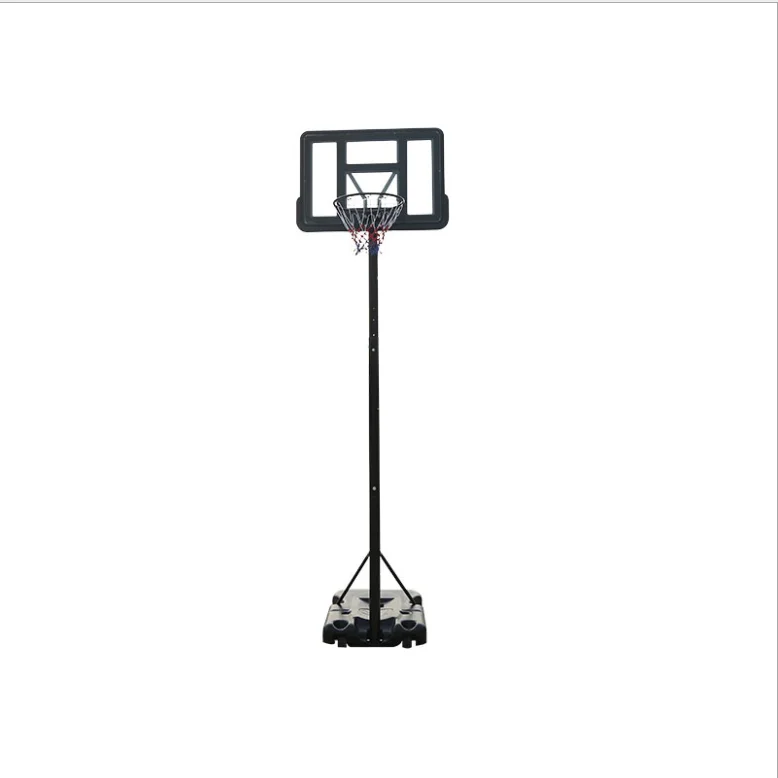

Подвижная баскетбольная подставка TOPIND, подвижная Мобильная баскетбольная площадка, взрослая подставка для баскетбола для тренировок
Новые поступления
Новинки товаров от производителей по оптовым ценам
300 Вт безопасный для посудомоечной машины 5-скоростной турбо с крючками для теста, венчик, электрический ручной миксер
571,11-666,30 ₽
Медицинский портативный прибор для гемодиализа катетер и кровообращения диализа почек ухода за здоровьем
Многофункциональная роскошная водонепроницаемая палатка из брезента для кемпинга однокомнатная всесезонная с настраиваемым размером новый стиль рынка Ближнего Востока
45 688,76-56 159,10 ₽
Санитарно-гигиеническое сиденье для
Счетчик купюр с низким уровнем шума на тонкопленочных транзисторах, автоматическое определение разных валют, 4,2 дюйма
50 448-52 351,70 ₽
Ожерелье из нержавеющей стали изящное ожерелье с чакрами на заказ модное позолоченное ювелирное изделие водонепроницаемой подвеской без
121,84-217,03 ₽

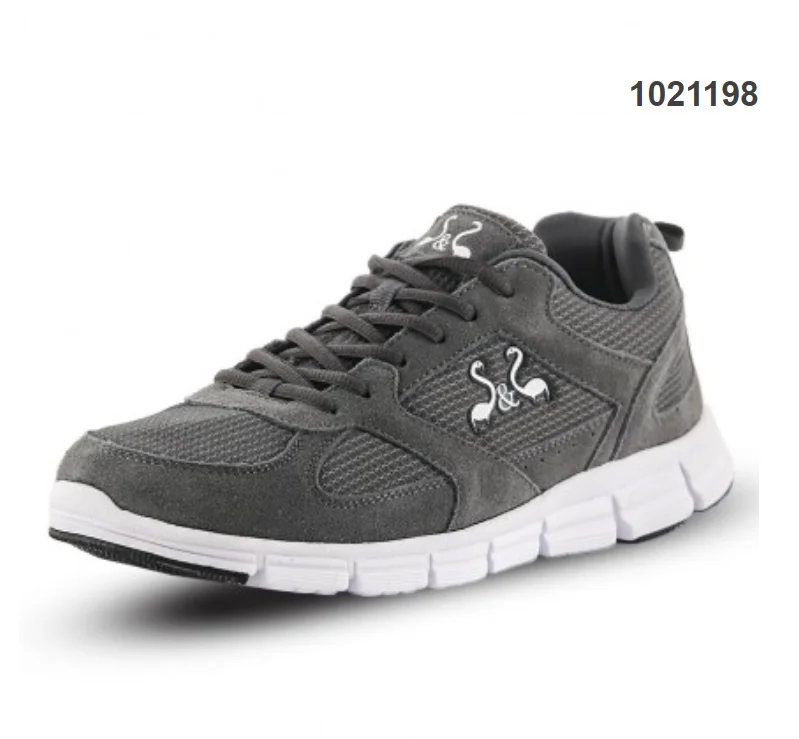

Мужские спортивные кроссовки с логотипом
