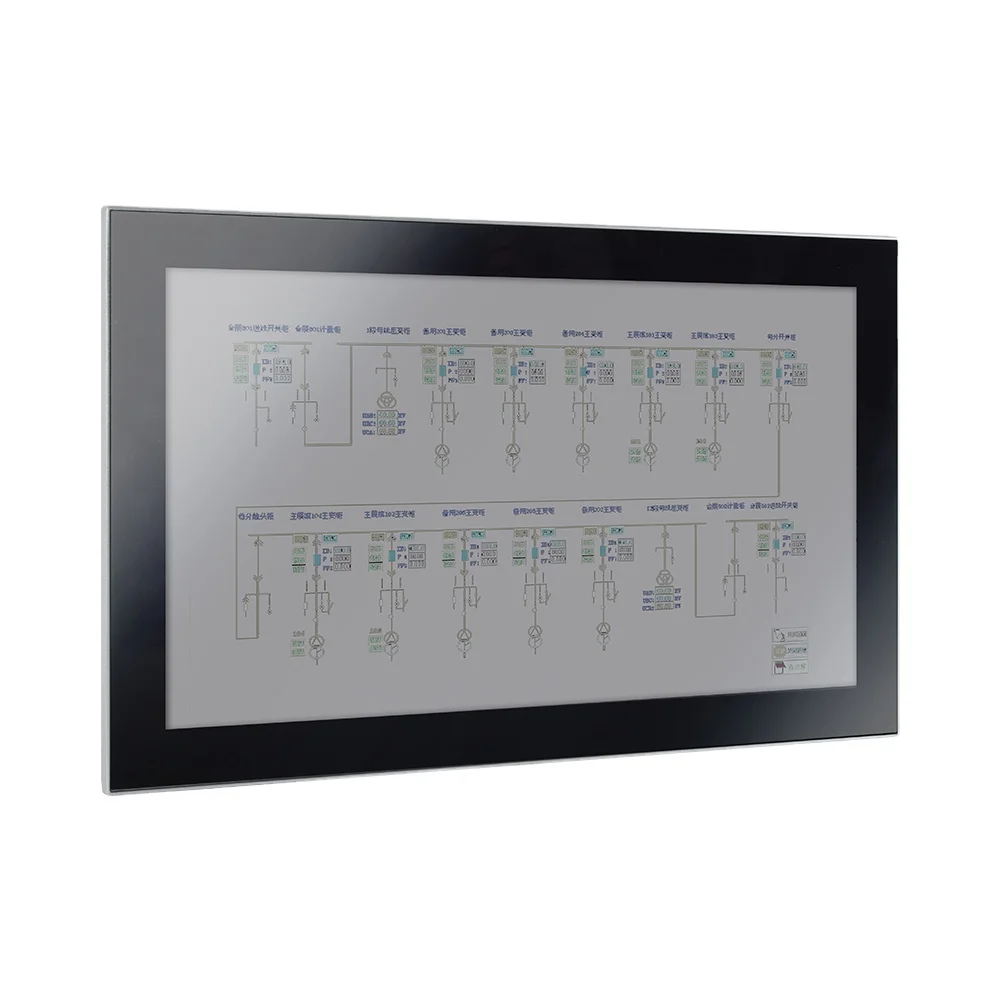

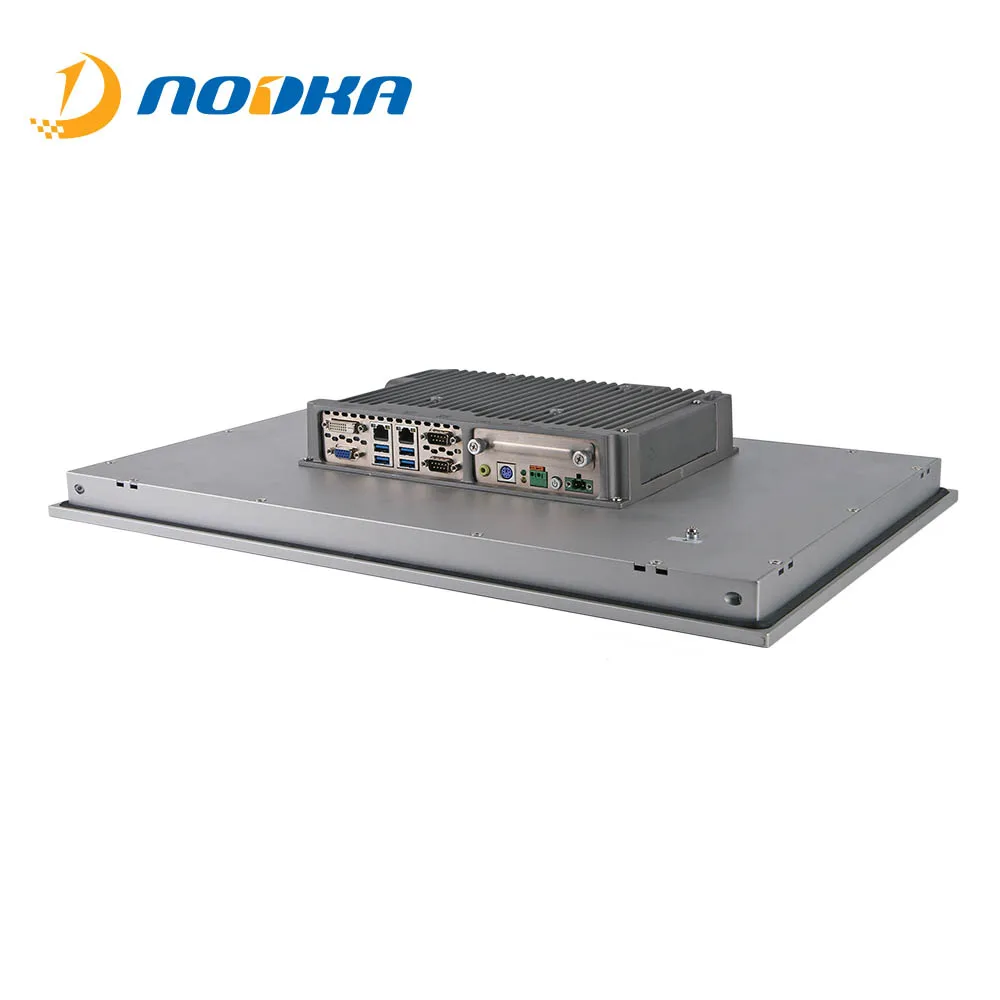

Настенное крепление 21 5 дюйма все в одном промышленная сенсорная панель ПК компьютер для решения
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Shanghai NODKA Automation Technology Co. Ltd.
Сохранить в закладки 60733424451:
Описание и отзывы
Характеристики
Product Description
Processor | Celeron J1900 ,Celeron 3855U ,Core i5-7200U |
Base Frequency | Dual Core 2.0GHz, Dual Core 1.6GHz ,Dual Core 2.5GHz |
Chipset | Integrated PCH-LP |
Memory | 1 x 204-pin DDR3L-1333MHz SODIMM, support up to 8GB |
Storage Medium | 1 x 2.5" SATA bay + 1 x mSATA |
OS | Support Win7/Win8/WES7/Win10 /Linux/Ubuntu/VXWORKS/QNX |
LAN | 2 x i210 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection |
AUDIO | Realtek ACL662 Audio controller |
USB | 4 USB3.0/2.0/1.1 |
COM | 2 RS-232 / RS-485 with surge protection,RS485 support automatic flow control |
Expansion | 1 Mini-PCIe slots,scalable 3G,Wifi card,1 EasyBUS slot |
Back I/O | DVI-I/2 x GLAN /4 x USB/2 x COM/2 x PS2/Line-out/Mic-in |
Mounting | VESA and PANEL Mounting |
Power Input | DC12V/DC24V |

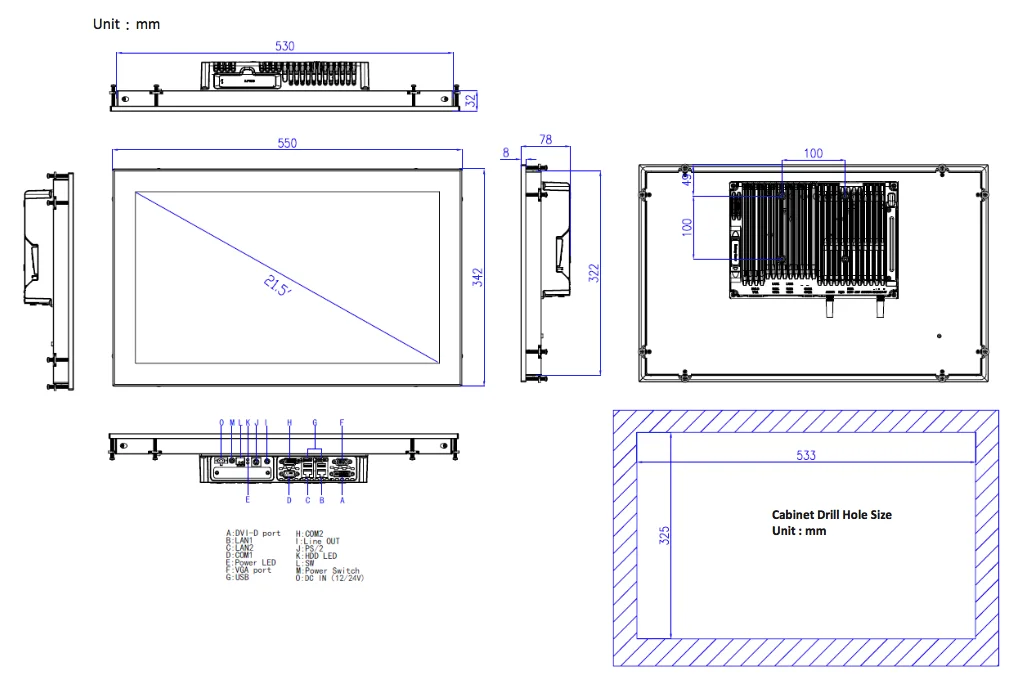

Overall size | 550mm x 342mm x 78mm (21.65" x 13.46" x 3.07") |
Cut Size | 533mm x 325mm (20.98" x 12.80") |
Weight | 8.25kg |
LCD Size / Type | 21.5" Full HD TFT |
Resolution | 1920 x1080 |
Maximum color | 16.7MB |
Active Area (W x H) | 476.64×268.11mm( 18.77" × 10.56") |
Backlit | LED |
Backlit MTBF | 30,000 hours |
Pixel Pitch | 0.248×0.248 |
Brightness | 250cd/sqm |
Contrast ratio | 3000:1 |
Max view angle | (L)89/(R)89/(T)89/(B)89 |
Touch Screen Size/Type | Multi-point capacitive touch screen |
Transmittance | >75% |
Controller | USB |
Driver support | Win7, Win8, Win10, Linux |
Multi-point | 10 points (win-dows system) |
Surface hardness | Mohs' Number 7H |
Working temp. | -20 ~ 60° C (-4~140℉)( Use a wide temperature SSD ) 0 ~ 45° C (32~113℉) (Use ordinary temperature HDD/SSD) |
Storage Temp. | -30~+80℃( (-22 ~ 176℉) |
Relative humidity | 5~95%(No condensation) |
Vibration at work | SSD applied: 1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis |
Work shocks | SSD applied: 10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms |
EMC | CE/FCC Class A |
Water-proof | Front panel IP65 |
Ordering information
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
ODM OEM service
Set up with excellent design and development capabilities of customized services team.
Assurance Supplier
I am an Alibaba.com Trade Assurance Supplier.You can place an order with me on Alibaba
Our Company
WHO WE ARE
Nodka was founded in 2001 in Shanghai, after 16 years development, Nodka becomes a leading Chinese industrial solution manufacturer, and has Mainboard (R&D) center in Shenzhen, and precision sheet metal machinery machining center in Suzhou.
With branch offices in 14 major domestic cities in China and 1 European sales and service center in the Netherlands.
WHAT WE DO
Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Monitor
Industrial computer (Mini PC)
OEM and ODM service
Factory
Our Factory located in Suzhou city, about 5000 sq.m.
Workshop
5 production lines and 1OEM production line
Team
This is a vibrant team, believe we can do it
Warehouse
Include materials, semi-finished products, finished products and samples
Packing & Delivery
Packing Details : Carton
Delivery Details : 3-30 days after received the payment
1. Mini pc, Panel PC, Monitor
2. Box of accessories
3. Fixed shock absorber foam
4. Put into the carton
5. Carton sealing
6. Complete package
Our Certifications
Achievement
NODKA is qualified enterprise for ISO9001 quality management system, and products not only to obtain various certifications in China, but also be involved with promotion and development for various Industrial applications
Exhibition Photo
Embedded World
Embedded world show was hold in March in Nuremberg, it gathered from all over the world in the field of embedded professional manufacturers, agents,and attract visitors.Nodka is a professional manufacturer which has established a good reputation and quality in China market,to enter the overseas market is the inevitable trend of the development of the company.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
Industrial Automation Show
CIF was hold on November in Shanghai National Convention and Exhibition Center every year, and Nodka attend the exhibitions every time since 2012.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
SIMM in Shenzhen of China
The 18th Shenzhen International Machinery Manufacturing Industry Exhibition (SIMM) held in Shenzhen Convention and Exhibition Center.This is the 1st time that Nodka show on SIMM, and the new product based on Skylake-U platform is the first show in China market.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us as below:
Похожие товары

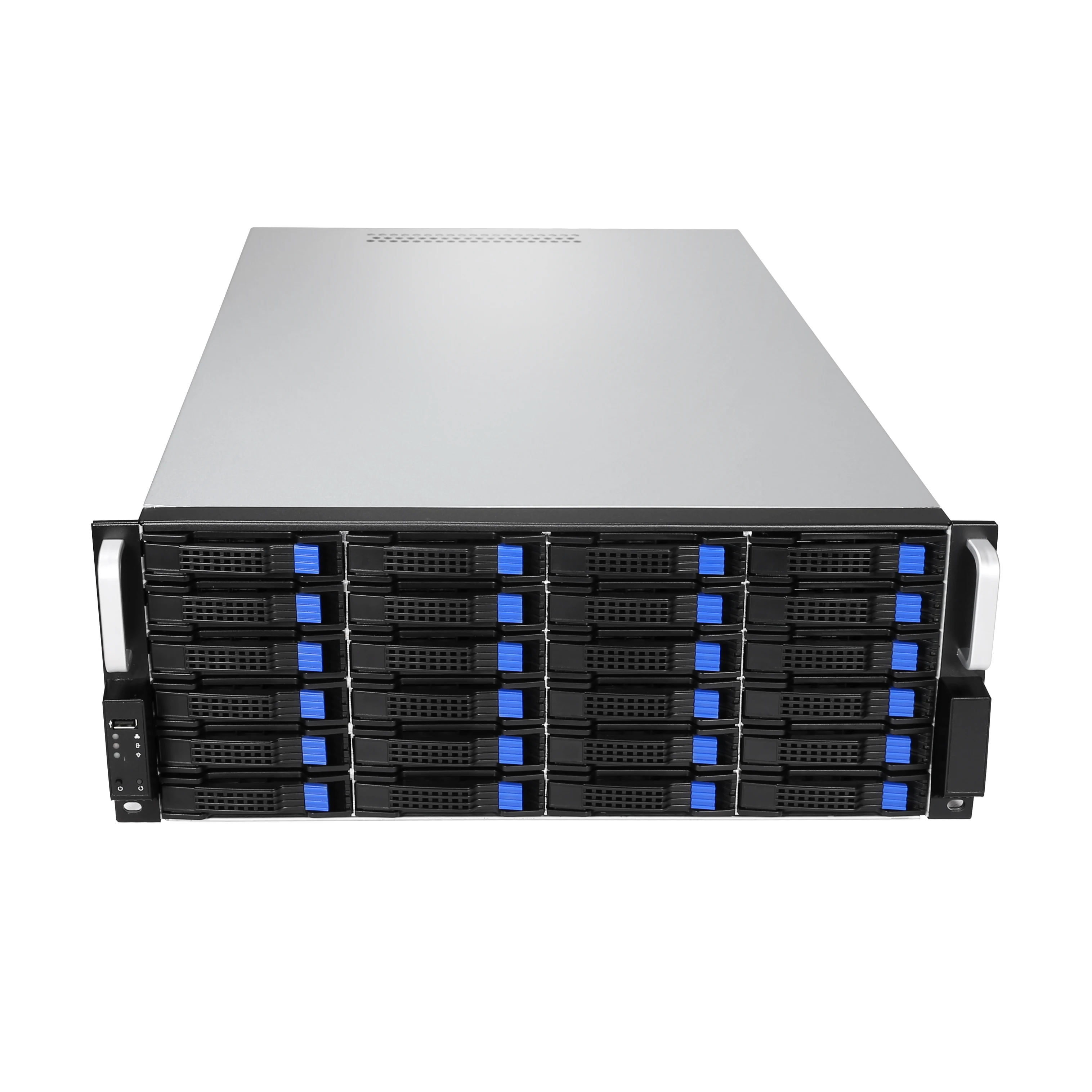

4u промышленный жесткий диск для хранения в стойке 3 5 дюйма Sata 6
250,80 $ - 272,80 $
OEM Высокое качество сенсорный экран дисплей Емкостное промышленное оборудование безвентиляторная панель
Bestview 7 дюймов панель ПК промышленный сенсорный экран J1900 i3 i5 i7
15 'RFID промышленный сенсорный экран панель ПК для Интернета
Промышленный сервер 3u стойка корпус Поддержка жесткого диска 3,5/2,5, горячая замена печатная плата стойка
188,00 $ - 195,00 $

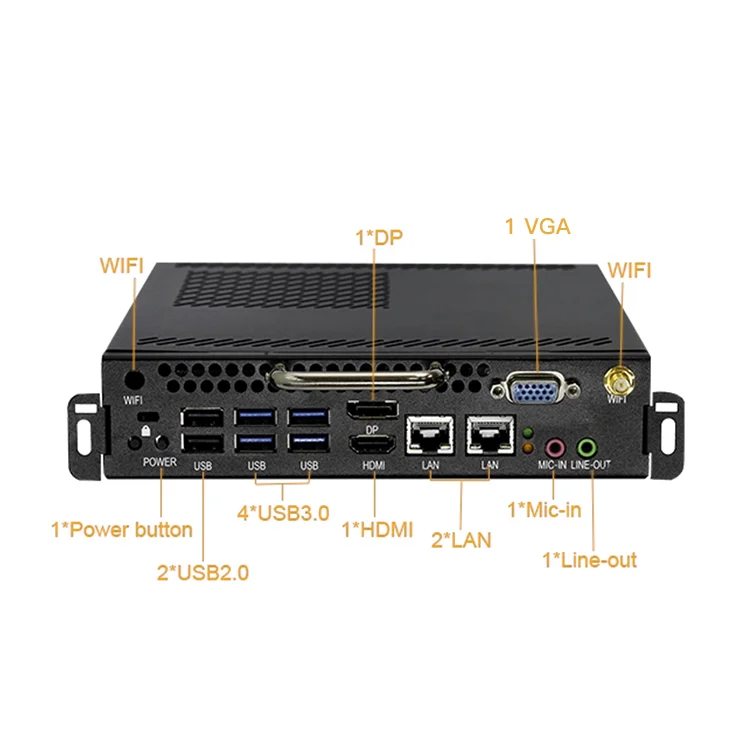

OEM профессиональный производитель OPS 4K компьютерно-интегрированное двухъядерный I3/I5/I7 OPS мини ПК 12V-19V Dc
