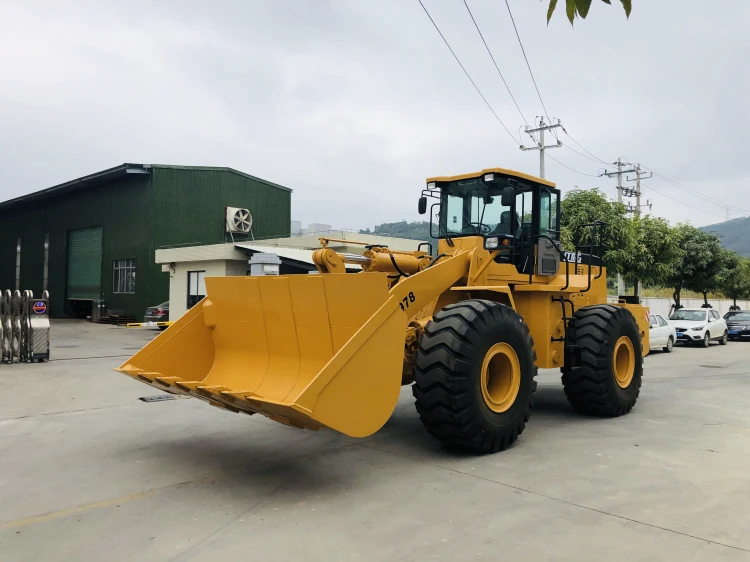

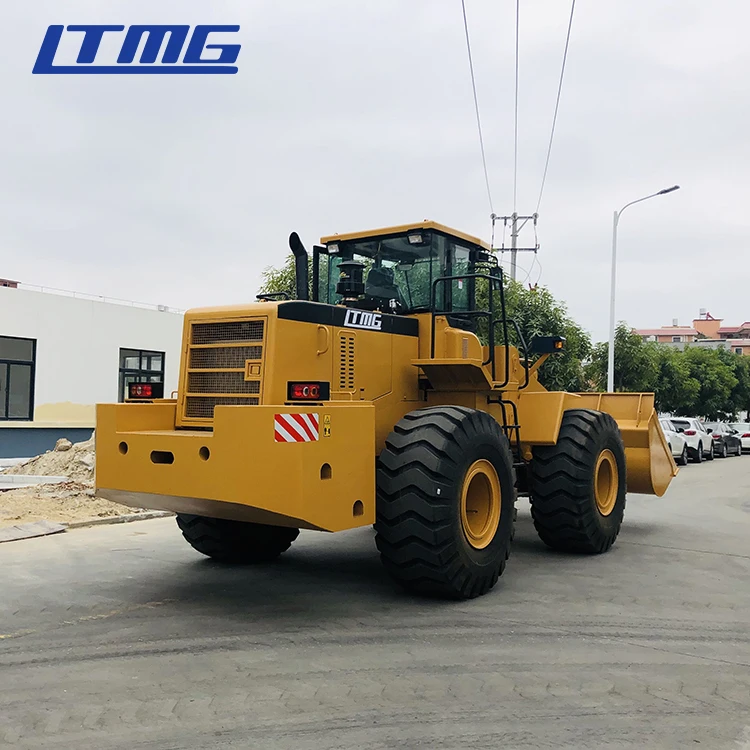

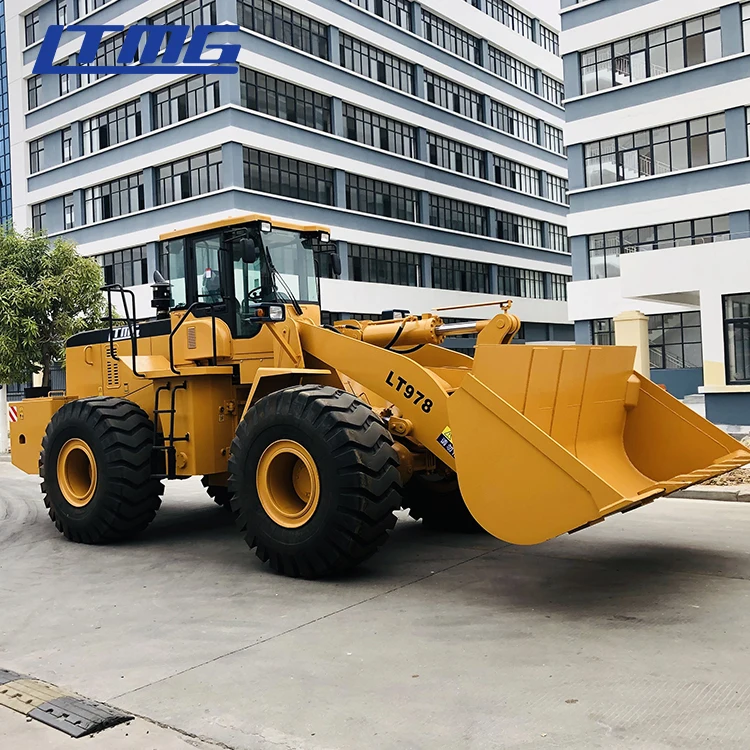

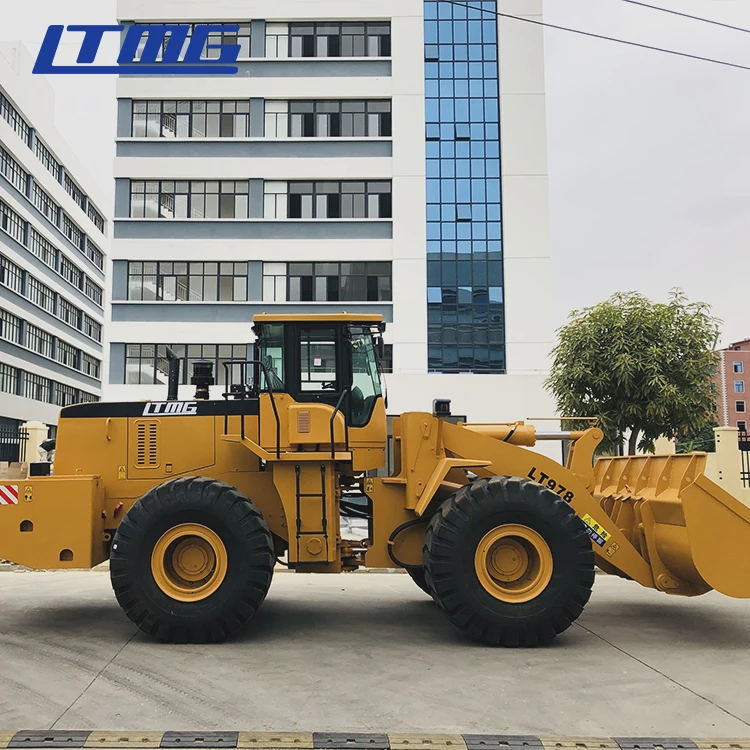

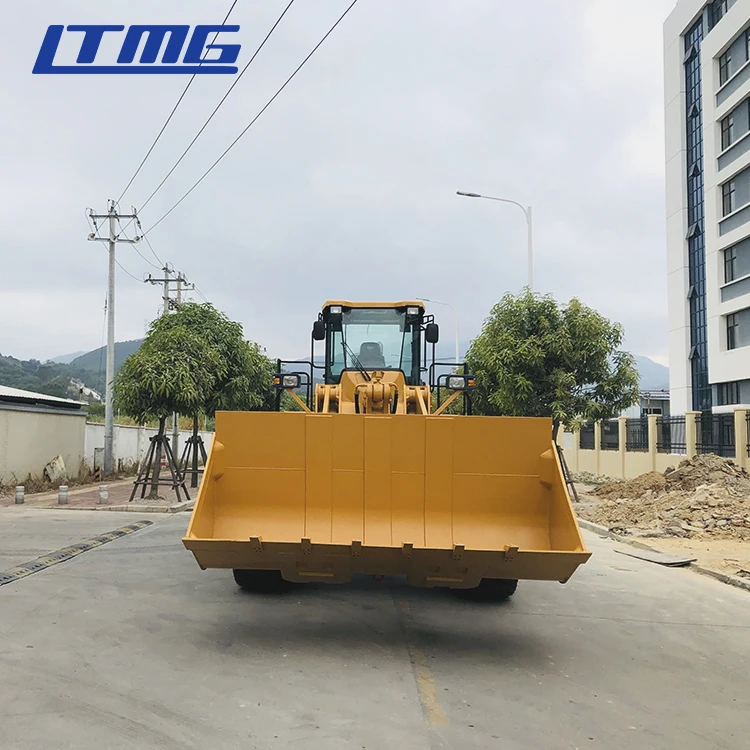

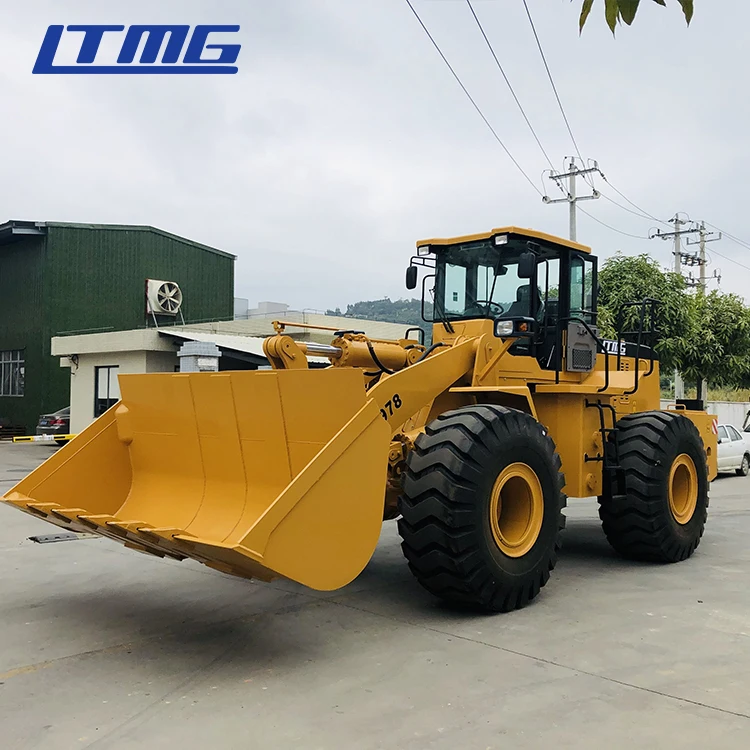

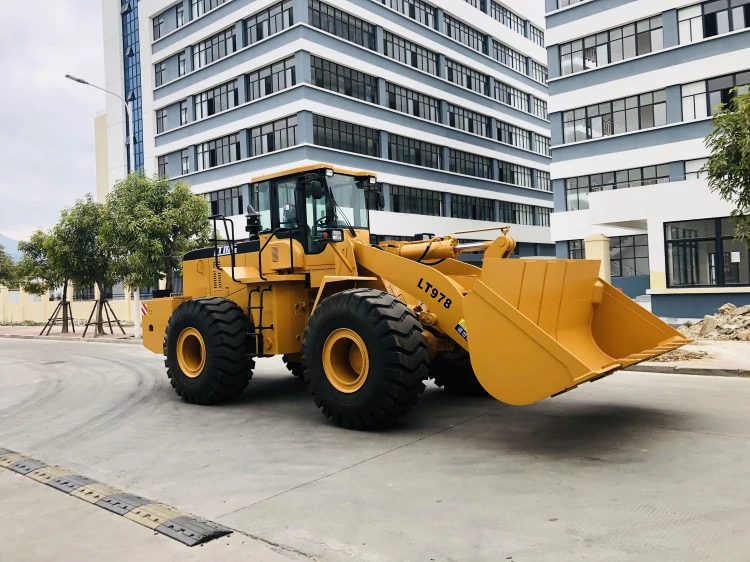

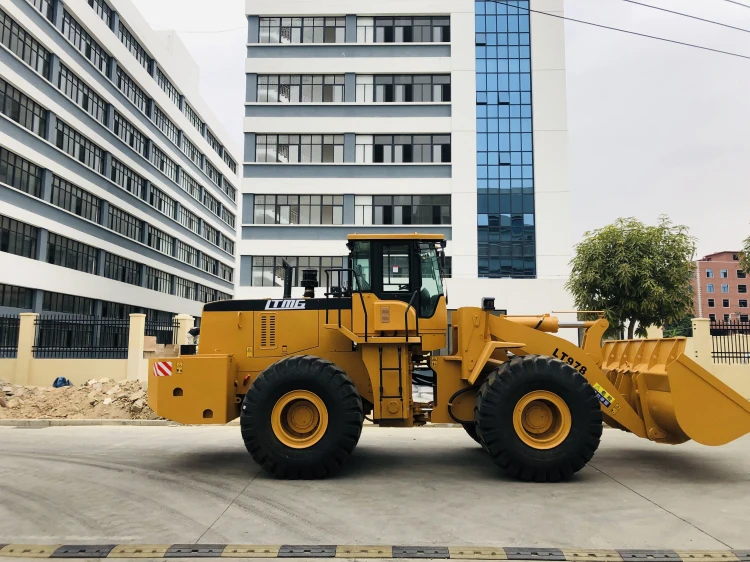

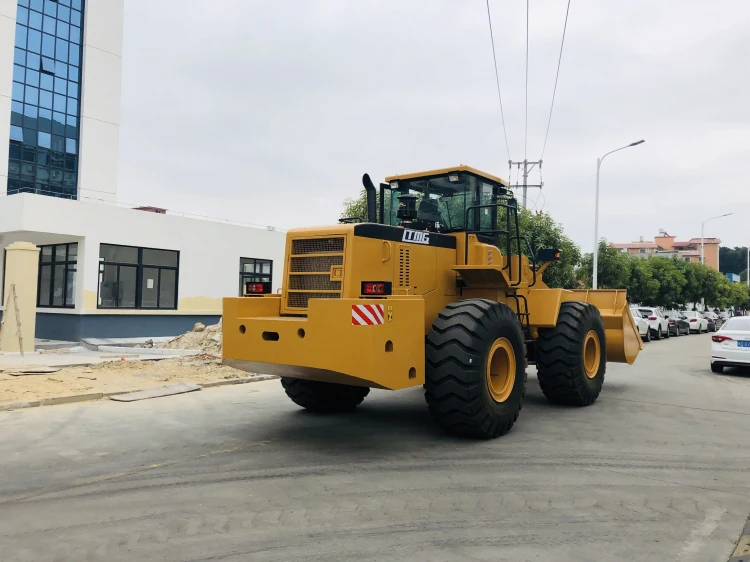

The specification of LTMG Heavy Loader 7 ton Wheel Loader | ||
Model | LT978 | |
Operating weight | 25,000kg | |
Bucket Volume | 4 -6 m3 | |
Engine | Weichai | |
Rated engine power | 199KW | |
Rated rotate speed | 2200r/nin | |
Max. torque | 920N.m | |
Max. dumping height | 3450mm | |
Rated load | 7,000 KG | |
NO. of shifts | Forward 4 For Reverse2 | |
Driving speed | ||
Forward/Reverse I | 0-7km/h | |
Forward/Reverse II | 0-11km/h | |
Forward/Reverse III | 0-23km/h | |
Forward/Reverse IV | 0-38km/h | |
Grade ability | ≥25° | |
Turning angle | 35° | |
Overall length | 8600mm | |
Overall width | 3230mm | |
Overall height | 3800mm | |
Wheel base | 3600mm | |
Track base | 2410mm | |
Transmission | Beilian | |
Cycling time | 12s | |
Tire type | 26.5R25 | |
1. Axle: Reinforced Q axle features larger carrying capacity and can forbid the oil leak efficiently, high reliability and convenient to maintenance.
2. Brake systems: Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.
3. Steering system: The coaxes flow-amplified, hydraulic compensated steering system makes operation easy and performance reliable.
4. Hydraulic systems: To adopt confluence of dual-pump confluence and difference technology, rational use of engine power, reduce energy consumption effectively.
5. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6.Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
