Низкорамная тележка TITAN 60t 80 тонн haulass с фиксированной шейкой съемный прицеп lowboy
- Категория: >>>
- Поставщик: Shandong Titan Vehicle Co. Ltd.Shandong Ltd.
Сохранить в закладки 60733947071:
Описание и отзывы
Характеристики
TITAN 60t 80 ton haulass low loader dolly fixed neck lowboy trailer detachable

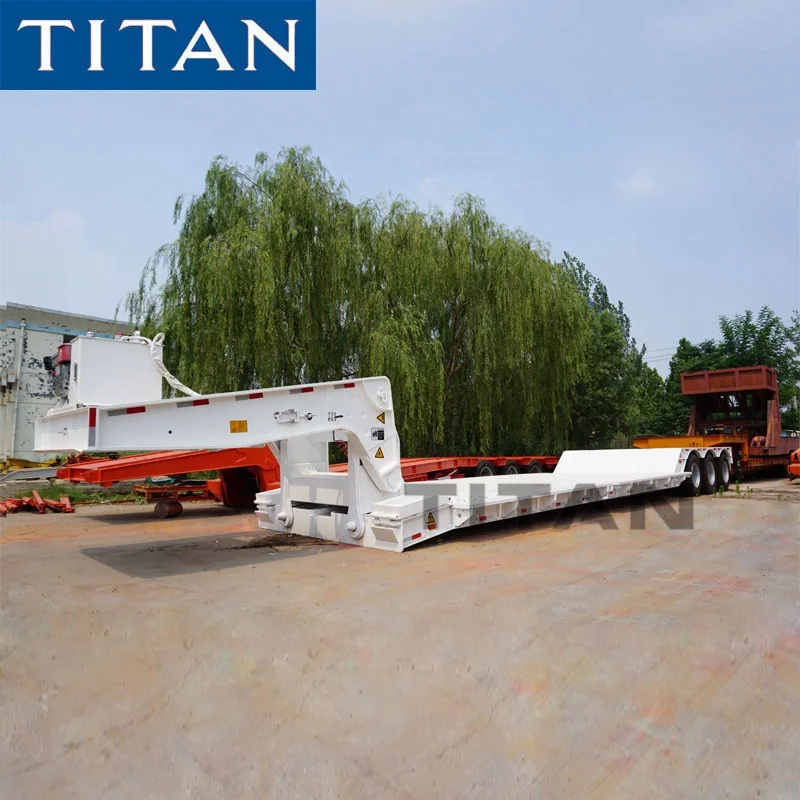

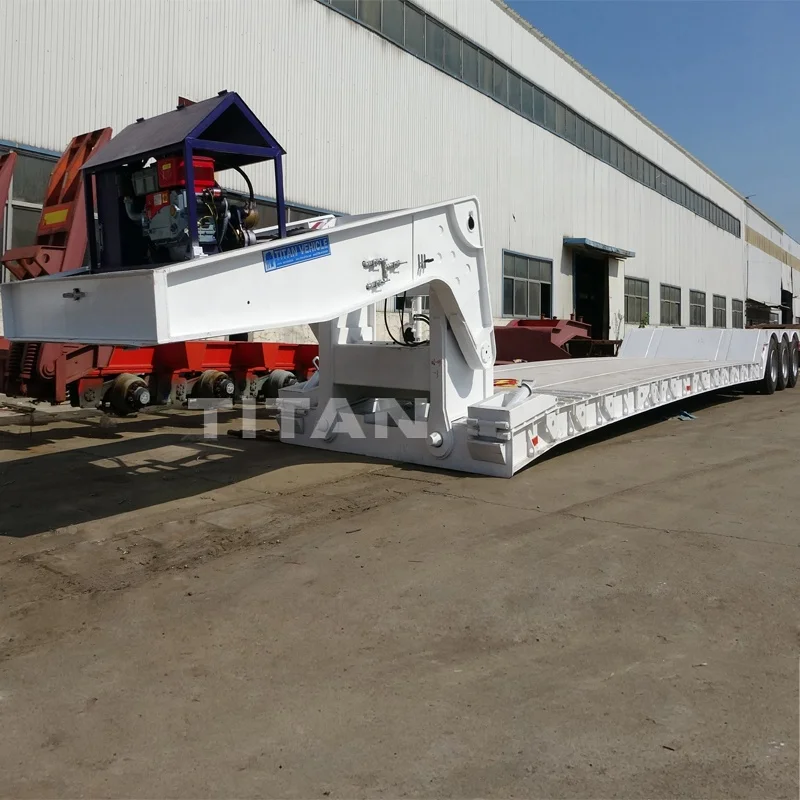

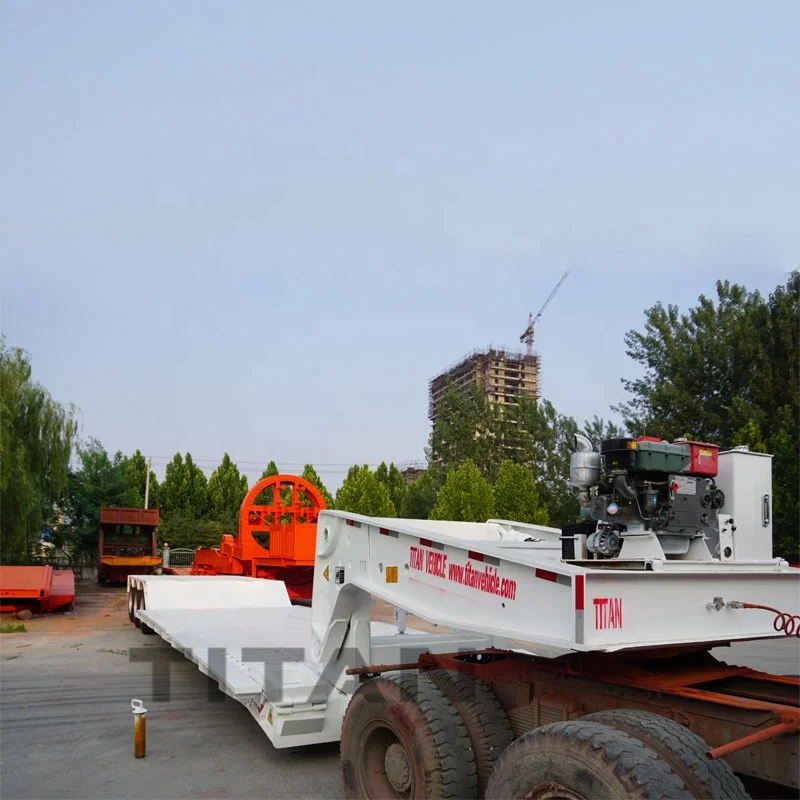

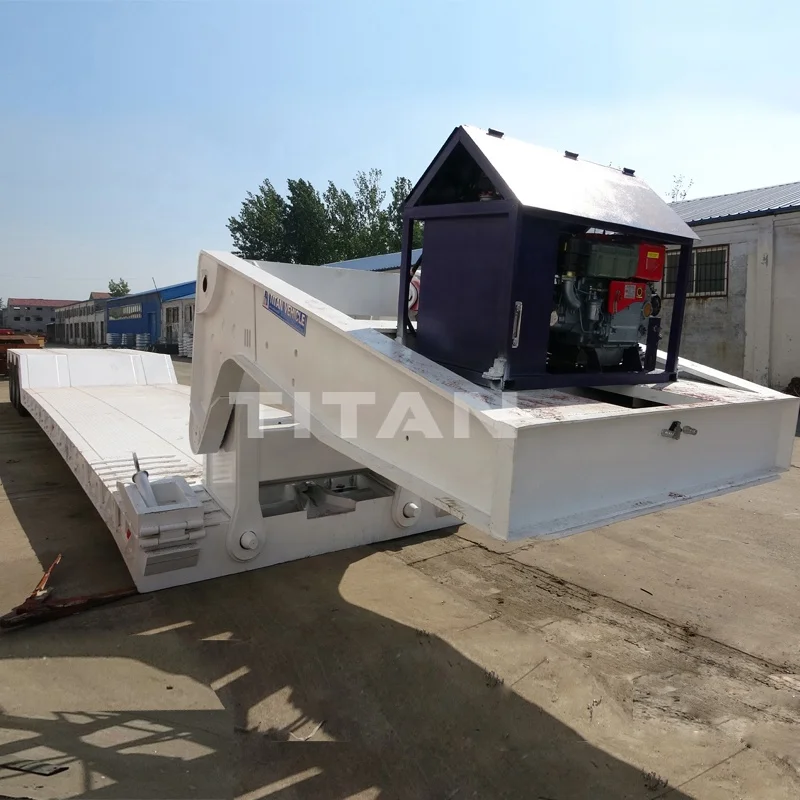

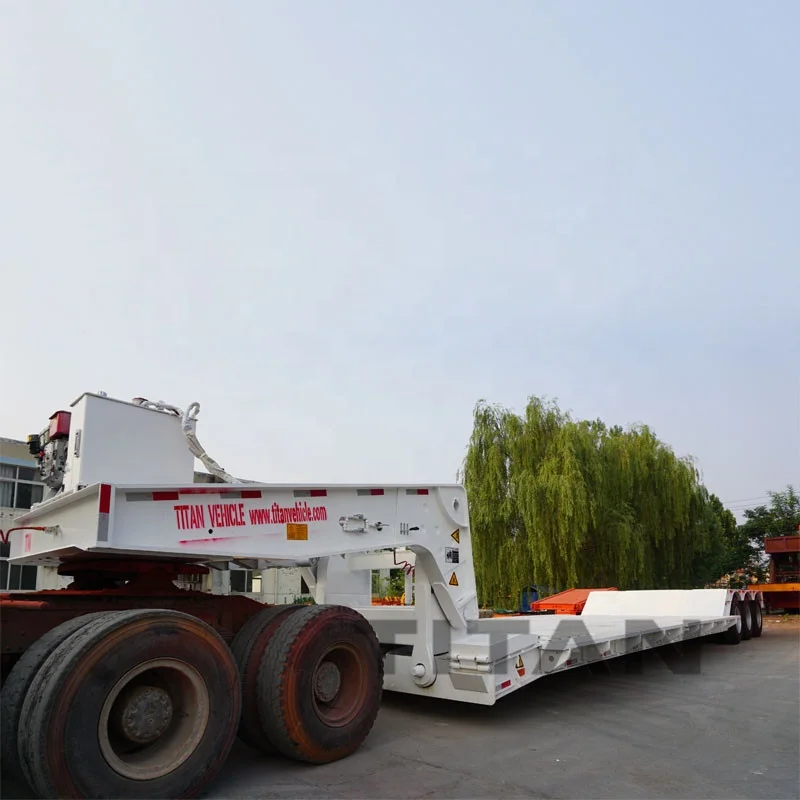

TITAN Detachable Gooseneck Lowbed Trailer with 80 ton loading capacity which is the best trailer to transport transport construction machinery, like crawler, crane, excavator, crawler loader and other crawler machinery. With the low loading platform and voluminous loads trailers are in great demand, TITAN detachable gooseneck lowbed trailer is the best solution for your transportation needs. TITAN detachable lowbed trailer are noted for their highly robust structure steel and high loading capacity from 60 ton load capacity to 150 ton load capacity. TITAN can provide you the customize detachable lowboy trailer to meet your transport requirements.
Features - TITAN 80 Ton Detachable Gooseneck Lowbed Trailer
Hydraulic gooseneck lowbed trailer, easy for constrution equipment like crawler climb on the deck.
Highly robust structure steel with tensile and durable construction, 80 Ton loading capacity.
The working platform is as close to the ground as possible for transport of high and voluminous loads.
250 mm side swing bracket on the both sides for increasing the overall width of lowboy trailer.
Length and width of dimensions of lowbed trailer is available custom made.
Product Description
If you are interested in further details, welcome to search "Titan vehicle" on Youtube ,thanks !
Specification
| Dimensions | |
| Payload | 80000kg~120000kg |
| Overall Size | 15800*3000*2200mm |
| Material | HG60 High strength steel |
| Main Chassis | The height of the longitudinal beam is 500mm |
| Axels | 13 T / TITAN axle |
| Suspension | Heavy duty mechanical suspension system |
| King Pin | Trailer is equipped with 2" or 3.5" king pin (as requested) |
| Tyres | Trailer supplied with 12 tyres X 12R22.5 plus 1 spare wheel |
| Braking system | WABCO valve |
| Painting | treatment of sand blasting Two layers of primer two layers of final coating of colour |
| Electrical | Trailer equipped with 24 volts full electrical circuit, with rear and side lamps, reflectors and license plate light |
Product Video Show
60 TON LOWBOY TRAILER VIDEO
80 TON LOWBOY TRAILER VIDEO
120 TON LOWBOY TRAILER VIDEO
Our Advantage
1,Titan lowbed trailer adopts HG60 high strength steel material , the yield strength of HG60 steel is more than 620Mpa, more durable and stronger than ordinary steel, and its loading capacity is 5 times more the trailer which adopt Q345 steel .
2, Titan lowbed trailer adopts 550mm main beam ,effectively increase 20% loading capacity than the normal trailer which uses 500mm main beam ,and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on different kinds of roads .
3, Titan lowbed trailer adopts 200mm width main beam ,increase 20% loading capacity than the normal trailer which uses 140mm width maind beam ,ensure driving smoothly .
Customer Evaluation
Customer Visiting
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.
2.Q: What kind of payment do you accept?
A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.
3.Q: What's your delivery time?
A: It depends on the products.
| Products | Delivery time |
| Low bed trailer, Container trailer, skeleton trailer, side wall trailer, | 10-15 days |
| Fuel tanker trailer, bulk cement trailer | 20 days |
| Special trailer, like detachable gooseneck trailer, hydraulic modular trailer | 25 working days |
4.Q: What's warranty time?
A: The ordinary semitrailer is 10 years, and the heavy duty trailer, special trailer and tanker warranty time is 8 years.
5.Q: What's your after-sale service?
A: We provide after-sale service for lifetime, and the supply of spare parts for lifetime.
We can provide remote video guidance, and provide door to door service.
If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
Похожие товары
2024 закрытый тандемный автомобильный прицеп гоночный небольшой полуприцеп (11)
13 000,00-18 000,00 $

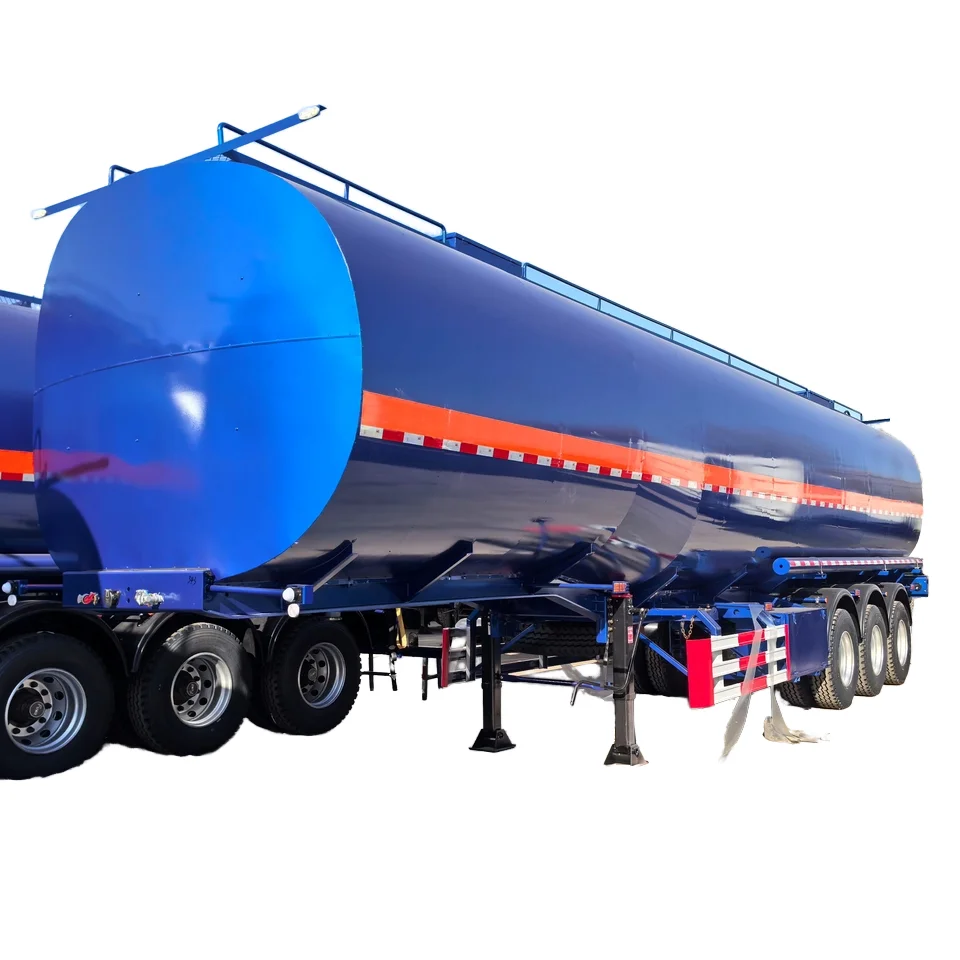

3 оси химический жидкий 98% концентрат химическое транспортное средство транспортировка Автоцистерна грузовик полуприцеп для продажи
10 000,00-12 000,00 $

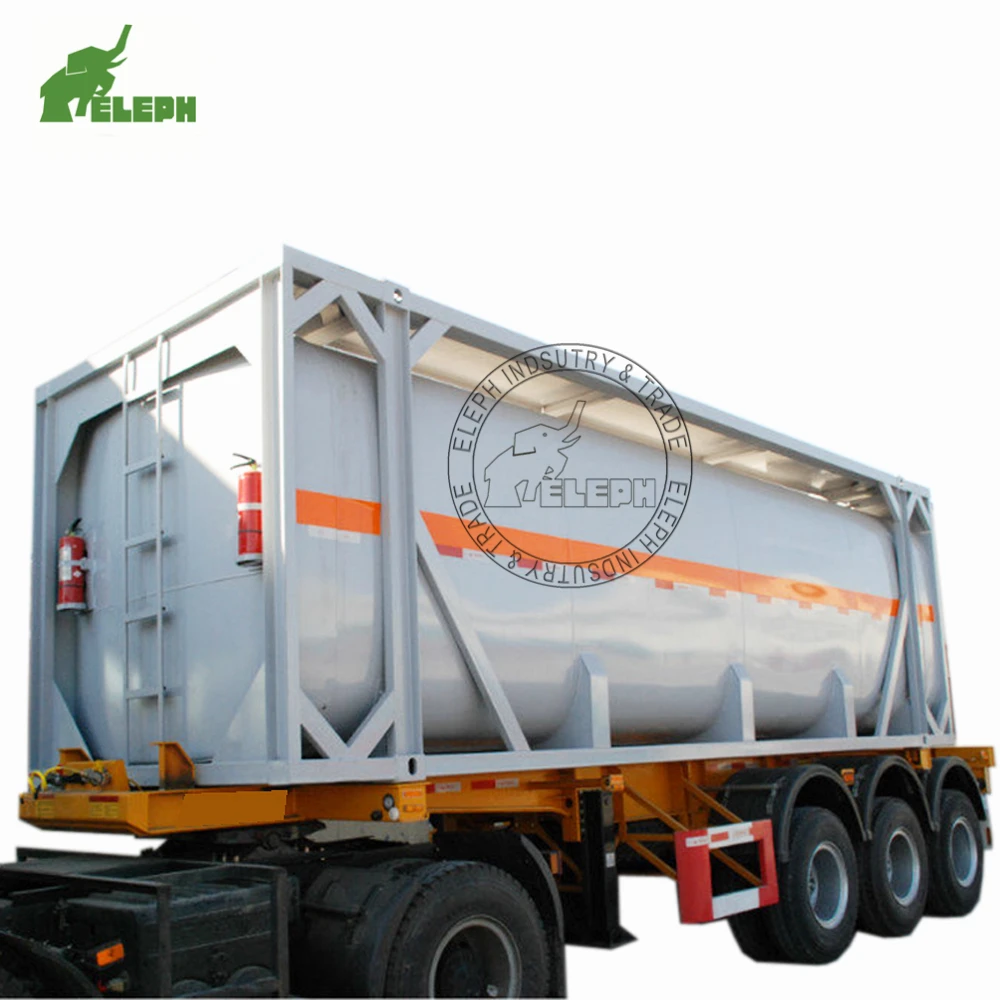

40ft перегородка cng танк контейнер
11 800,00-12 000,00 $

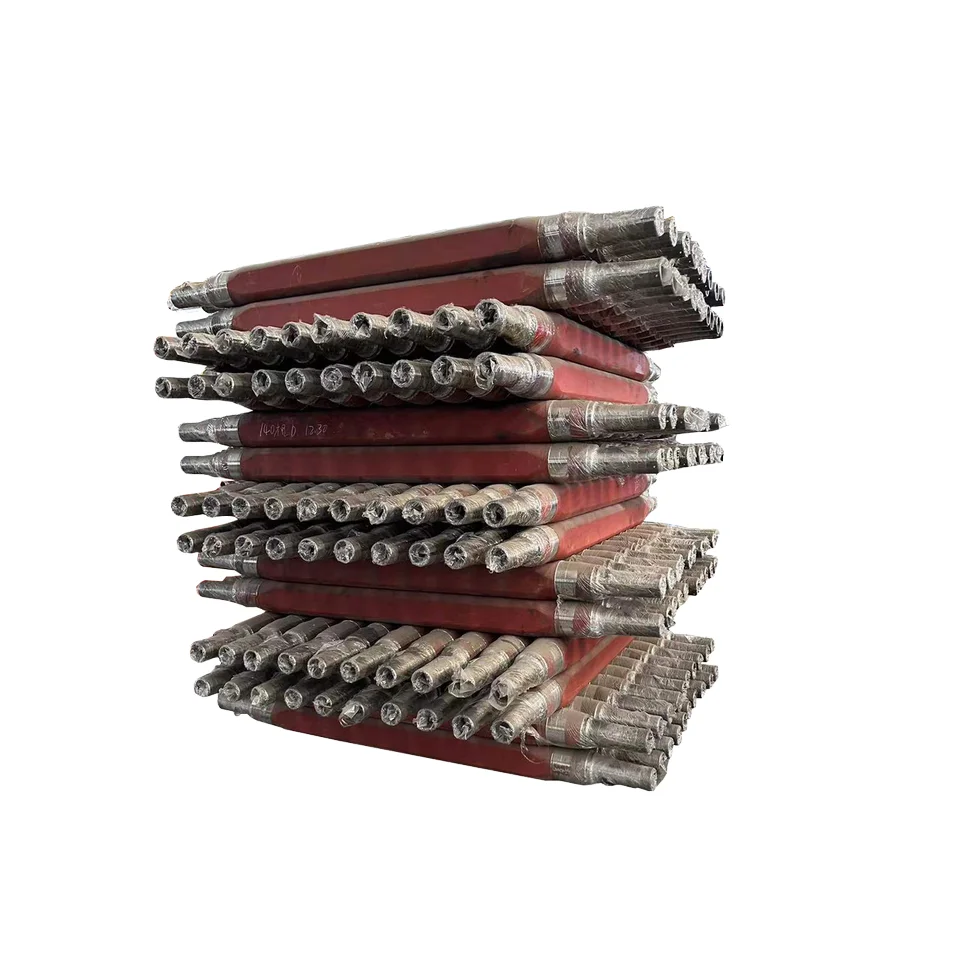

Ось полуприцепа 13 тонн bpw fuwa ось прицепа для запчастей
393,10-463,30 $

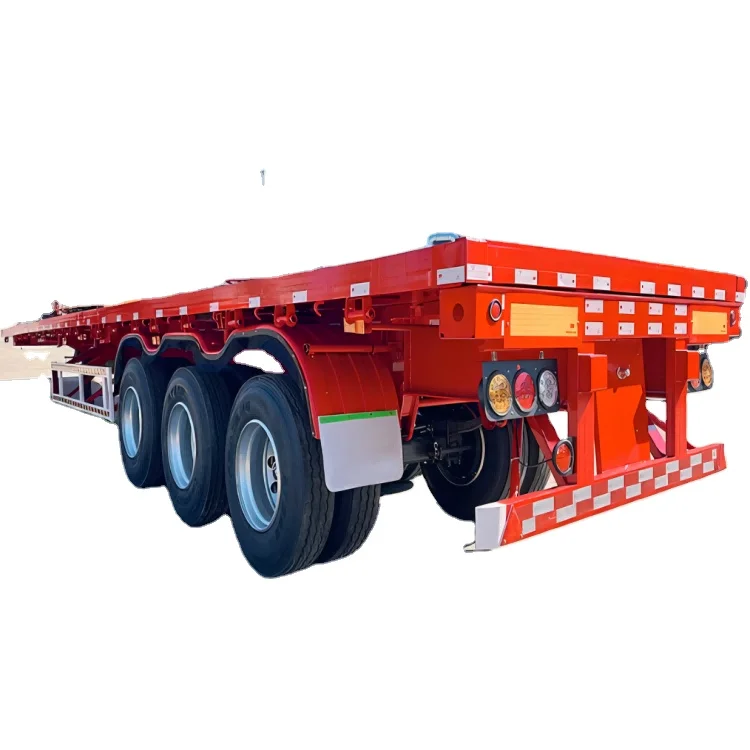

Jinma Holdings бортовой контейнер полуприцеп грузовик прицеп 3-осевой 40-футовый стальной автомобиль продажа в Дубае 30 т ~ 90
3 600,00-5 300,00 $

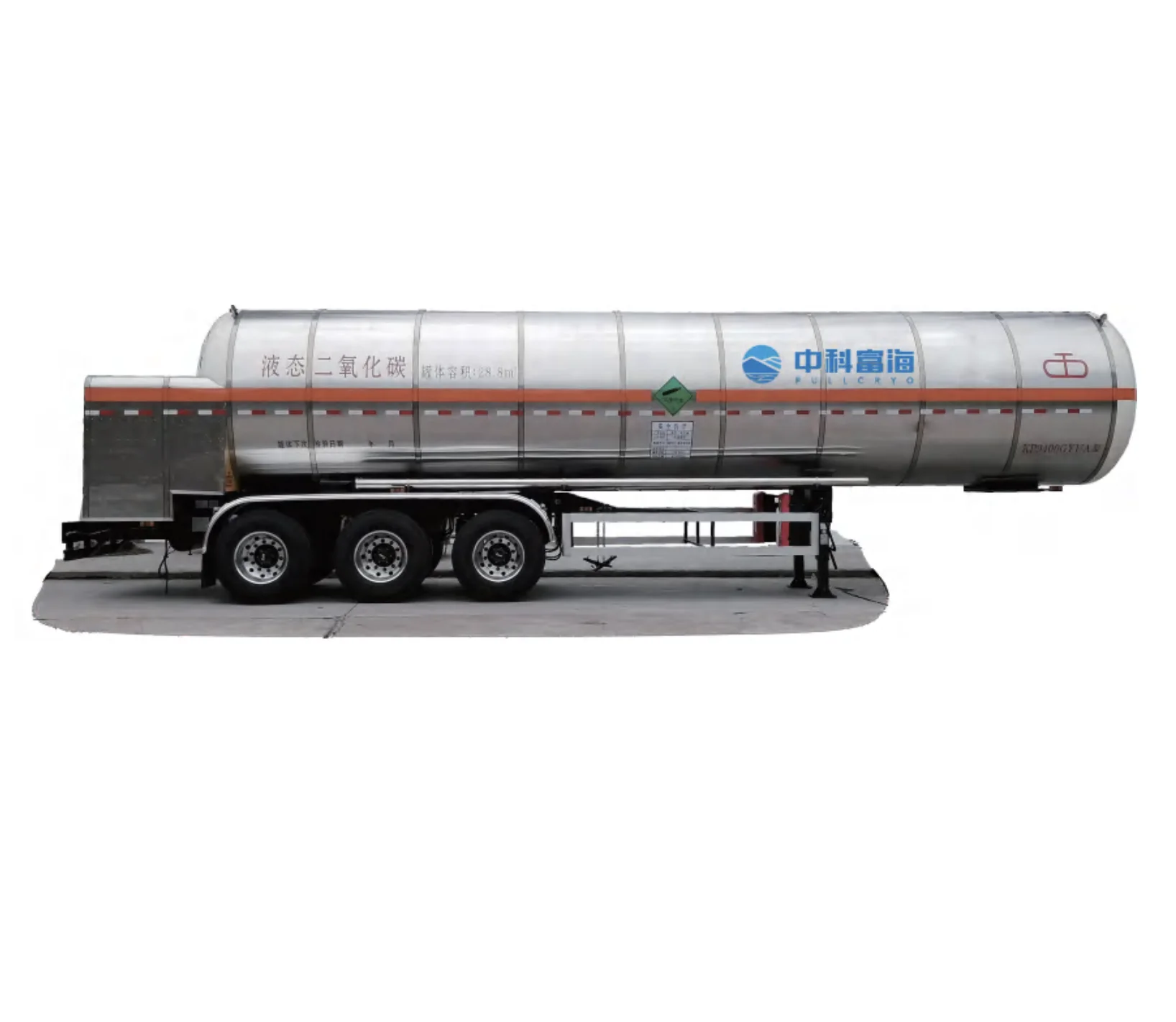

Жидкий углекислый газ криогенные грузовики для пищевой промышленности
34 800,00 $

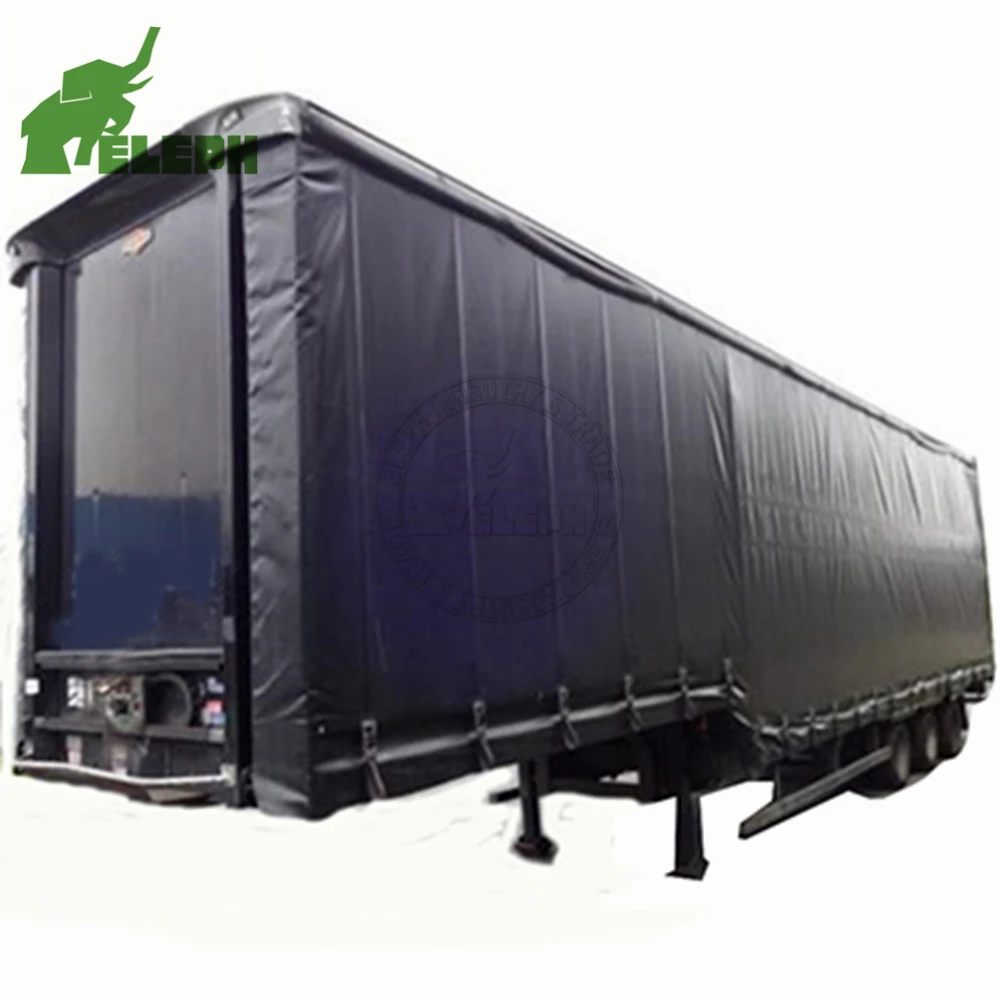

Сверхмощный 60 тонн ПВХ брезент для бокового прицепа безопасной грузовой перевозки
