item | Specification | ||||
Main steel frame | column | Q235, Q345 Welded H Section Steel | |||
beam | Q235, Q345 Welded H Section Steel | ||||
Secondary Frame | Purlin | Q235 C and Z purlin | |||
Knee Brace | Q235 Angle Steel | ||||
Tie Rod | Q235 Circular Steel Pipe | ||||
Brace | Q235 Round Bar | ||||
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | ||||
Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet | |||
Wall Panel | Sandwich Panel / Corrugated Steel Sheet | ||||
Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window | |||
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | ||||
Rainspout | PVC | ||||
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | ||||
Wind Resistance Grade | 12 Grade | ||||
Earthquake-resistance | 8 Grades | ||||
Structure Usage | Up to 50 years | ||||
Finishing Options | Vast array of colors and textures available | ||||
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized |
Characteristics | ||||||
1.Wide span: single span or multiple spans, the max span is 36m without middle column. | ||||||
2.Low cost and maintenance: unit price range from USD25/m2 to USD70/m2 according to customers request. | ||||||
3.Fast construction and easy installation: time saving and labor saving. | ||||||
4.Nice appearancem and Long using lifespan: up to 50 years. | ||||||
5.Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving. |
For more information,pls contact us!
WIDE APPLICATION

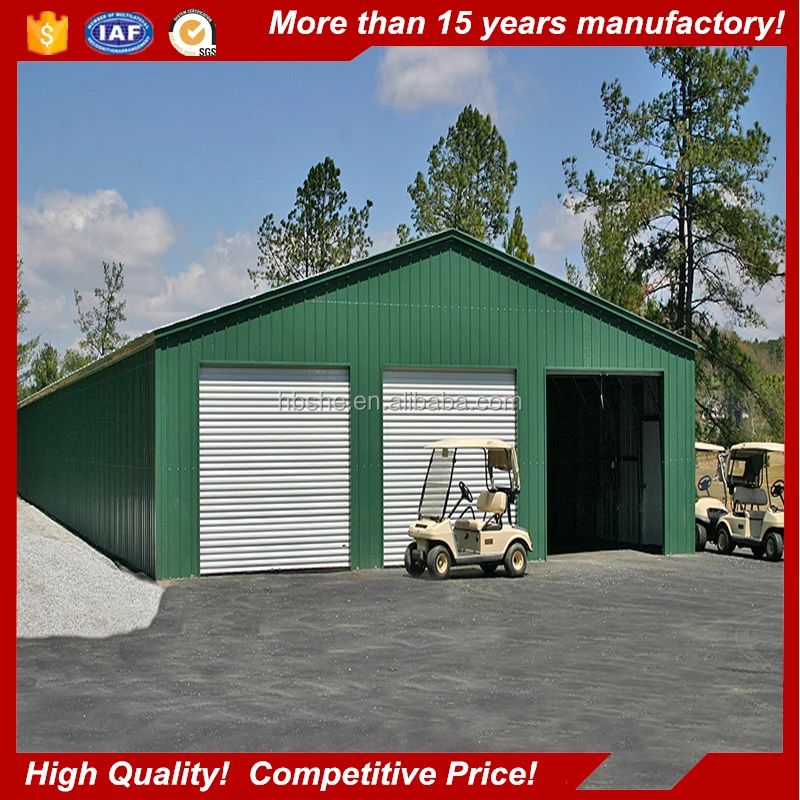

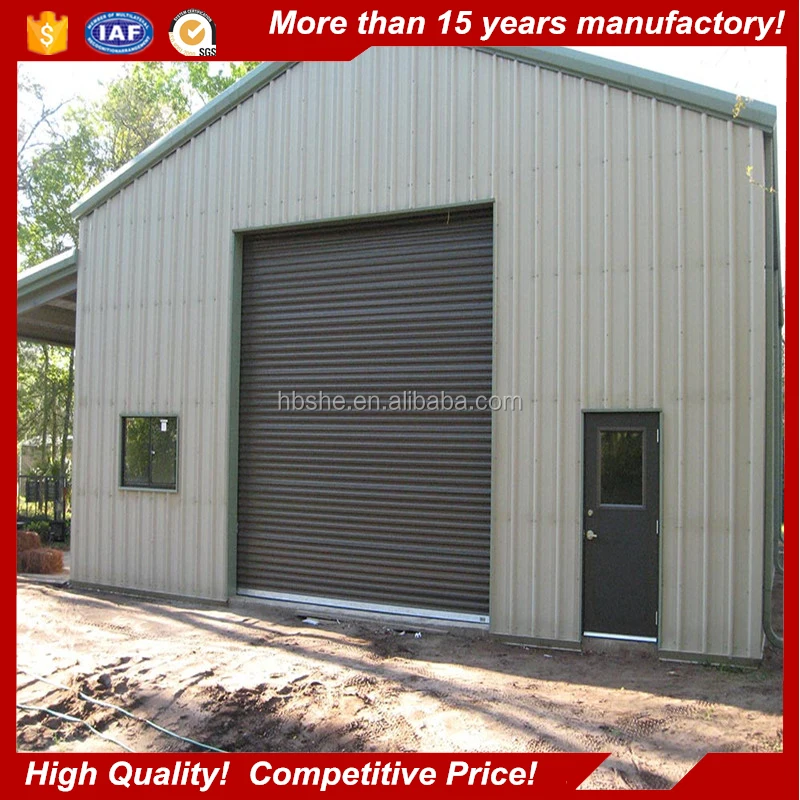

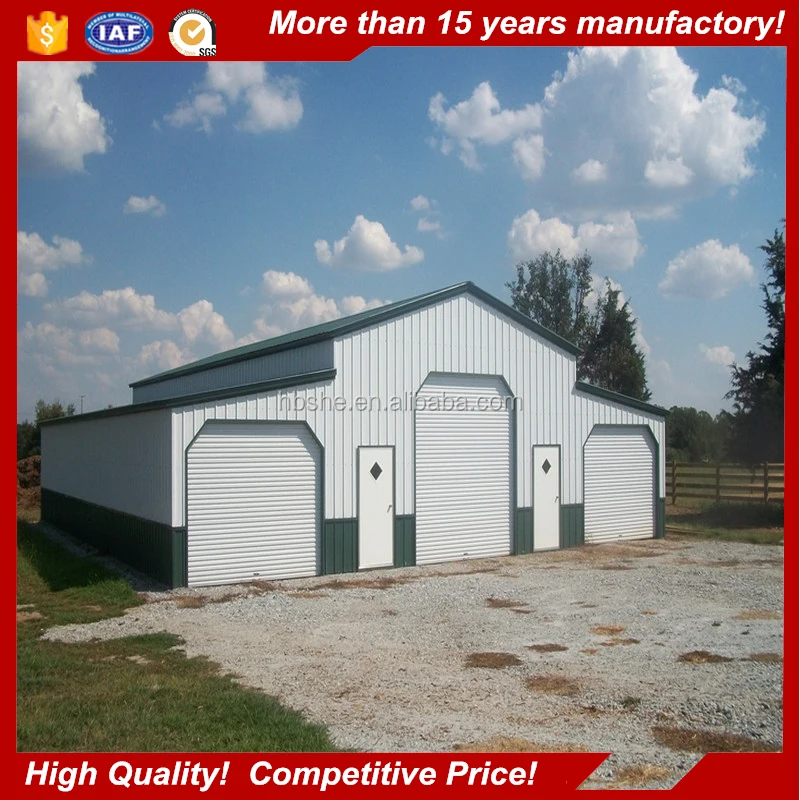

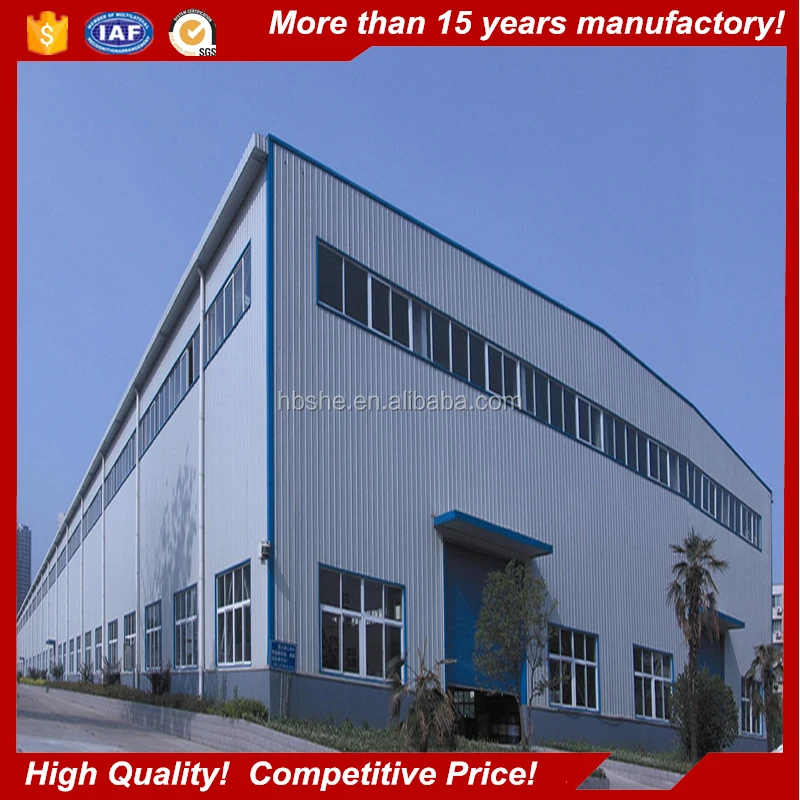

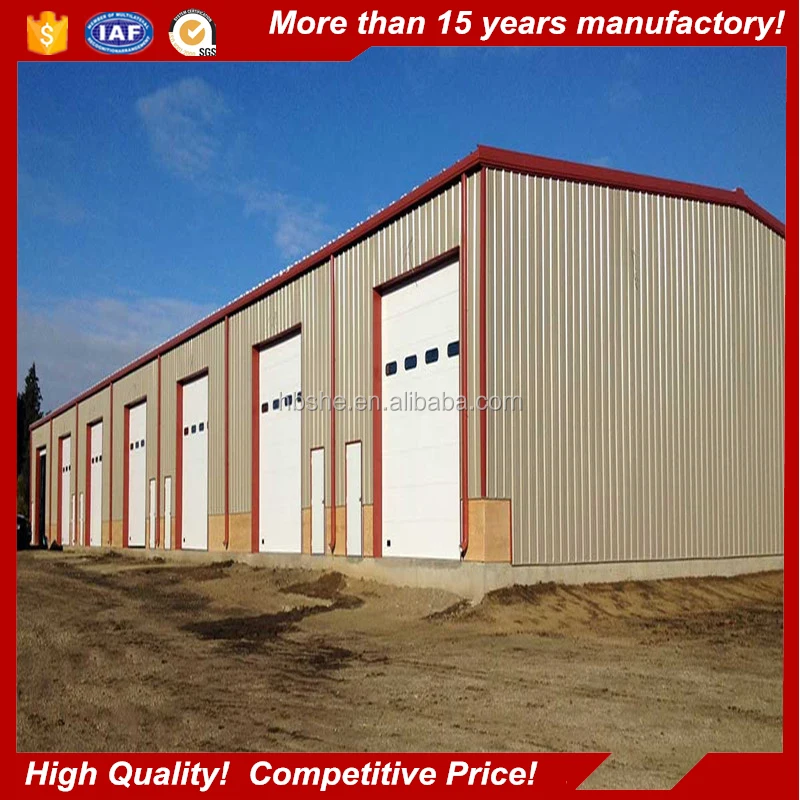

The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
