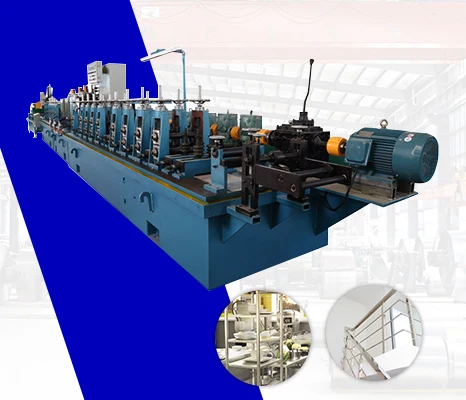

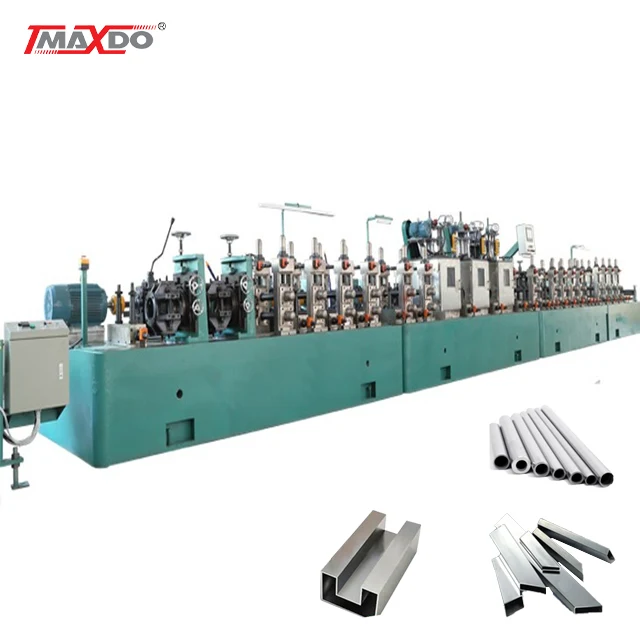

Maxdo Stainless Steel Pipe Making Machine
- Категория: Pipe Making Machinery >>>
- Поставщик: Foshan Mai Duo Machinery Co. Ltd.
Сохранить в закладки 60735289529:
Описание и отзывы
Характеристики
Product Description
Stainless steel pipe making machine is mainly used for the continuous molding process of stainless steel and carbon steel (round pipe, square pipe and special-shaped pipe) for decoration and industrial use. After unwinding, forming, welding, grinding, sizing, straightening, fixed length and cutting Produced by other processes.
Model | MDZ-40 |
Diameter range | 9.5-50.8mm |
Thickness | 0.25-2.0mm |
Moter power | 7.5kw |
Speed | 0.5-16m/min |
Machine size | 21.5*1.2m |
Biaxial uncoiler
Coil oD: Φ1200-1600mmCoil inner diameter: Φ400-600mn
Coil width: 35-180mm
Coil thickness: 0.5-2 0mm
Maximum weight of coil: 3t
Function: Coil load bearing and decoil
Forming Unit
Horizontal axis diameter:Φ40mmVertical axis diameter:Φ 25mm
Bottom diameter of the roller: Φ100mm
Forming speed: 0.5-16m/min
Motor power: Main motor 7.5KW
Function: Roll forming the stainless steel coil
for producing different specification of steel pipe
Grinding Unit
containing by three groups of verticalholder and three pieces of semiautomatic grinding wheels
Function: Removing the part which is higher than the base metal
Cutting machine
Cutting length:≥2m
Cutting accuracy: +3mm/6m
Operating speed: 0. 5-16.0m/min
Saw power: 3.0KWAC
Function Sizing& cutting the end-products
Cutting accuracy: +3mm/6m
Operating speed: 0. 5-16.0m/min
Saw power: 3.0KWAC
Function Sizing& cutting the end-products
Product Characteristic
01
The whole machine is made ofworld's top five hundred
BAOSTEEL material, machine
Vibration aging treatment
02
Adopt DONGFENG Autotransmission enhanced turbine
gearboxes, ensure stability of
transmission system
All the key parts are processing
by CNC machine center to
ensure the precision of
equipment.
04
For ensuring the products quality,all the standard machines are with
full automatic grinding head.
05
For ensuring the flexibility allthe standard machines are
matching with two sets of four
directions freely straightening frame.
06
Adopt independent full automaticHydraulic cutting system, increase
the cutting stability.
Product Parameter
Model | Diameter range(mm) | Thickness(mm) | Speed(m/min) | Machine size(L*W) |
MDZ-S40 | 6-32 | 0.25-1.5 | 0.5-16 | 21.5*1.2m |
MDZ-40 | 9.5-50.8 | 0.25-2.0 | 0.5-16 | 21.5*1.2m |
MDZ-L40 | 12.7-63.5 | 0.25-2.0 | 0.5-16 | 21.5*1.2m |
MDZ-50 | 25.4-76.2 | 0.4-2.5 | 0.5-10 | 24*1.4m |
MDZ-60 | 50.8-114 | 0.7-3.0 | 0.3-8 | 26*1.5m |
MDZ-80 | 76-168 | 1.0-4.0 | 0.3-4 | 32*2.4m |
MDZ-100 | 114-219 | 1.5-6.0 | 0.5-4 | 36*2.6m |
MDG-40 | 8-51 | 0.5-2.0 | 1-22 | 29*1.5m |
MDG-50 | 25-65 | 0.5-3.0 | 1-15 | 32*1.5m |
MDG-60 | 50-114 | 0.6-3.5 | 1-10 | 32*1.8m |
MDG-80 | 89-168 | 1.0-4.5 | 1-5 | 40*2.5m |
MDG-100 | 114-219 | 1.0-5.0 | 0.3-3 | 43*3.0m |
Related Products
Packing&Shipping
Why Choose Us
Company Introduction&Contact
FOSHAN MAXDO MACHINERY CO.,LTD is located in FOSHAN city which is the stainless steel production base in china.Our company mainly manufactures stainless steel pipe making/ polishing machine and polishing materials,all products are specialized for stainless steel polishing.We has a professional research and develpment team. 40%products are exported around the world.
Our business philosophy is working hard to meet customers'requirements, continuous innovation and development, providing the first-class quality and all-around services to our customers.
FAQ
Q:Where is your company and what your company do ?
A: Our company is located in Foshan city ,Guang dong province. We have two factories in Foshan, one factory makes stainless steel pipe making/polishing machine , another factory makes stainless steel polishing materials.
Q: What is the advantages of your company?
A: Our company has more than 20 products and patented technology through independent research and development. We also have a strong sales team, a professional engineer team, a superior technician team and excellent managers. We can providing whole plant design, exhaust equipment making, pipe making & polishing technology, staff training, and our engineers are available to serve machinery overseas.
A: Our company has more than 20 products and patented technology through independent research and development. We also have a strong sales team, a professional engineer team, a superior technician team and excellent managers. We can providing whole plant design, exhaust equipment making, pipe making & polishing technology, staff training, and our engineers are available to serve machinery overseas.
Q:What are the payment terms?
A:We can accept T/T, Western Union, Irrevocable L/C, D/P.
Q: What is our delivery day?
A: 35-45 days.
Q: What about our after sales services?
A: Our engineers are available to serve machinery overseas and we can also offer machine technology and operation training.
Q:What about emergency machine problems?
A: We have video technical support and online support.
Q: What about the spare parts and polishing materials?
A: Except China we have warehouse in India for machine spare parts and polishing materials.
Q:Does the logo can be printed on the products or package?
A:Yes, your logo and company's information can be printed on the products by stamping or printing.
A:We can accept T/T, Western Union, Irrevocable L/C, D/P.
Q: What is our delivery day?
A: 35-45 days.
Q: What about our after sales services?
A: Our engineers are available to serve machinery overseas and we can also offer machine technology and operation training.
Q:What about emergency machine problems?
A: We have video technical support and online support.
Q: What about the spare parts and polishing materials?
A: Except China we have warehouse in India for machine spare parts and polishing materials.
Q:Does the logo can be printed on the products or package?
A:Yes, your logo and company's information can be printed on the products by stamping or printing.
Похожие товары

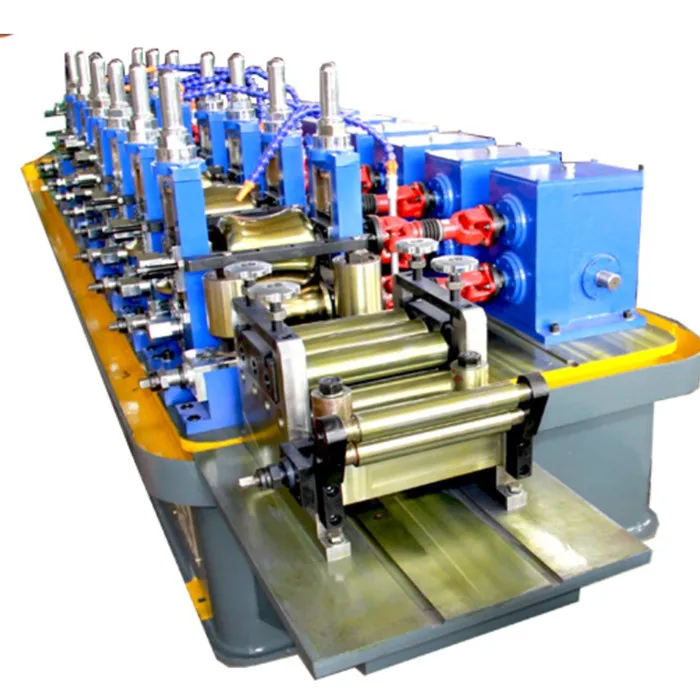

Автоматическая производственная линия сварочного аппарата для труб

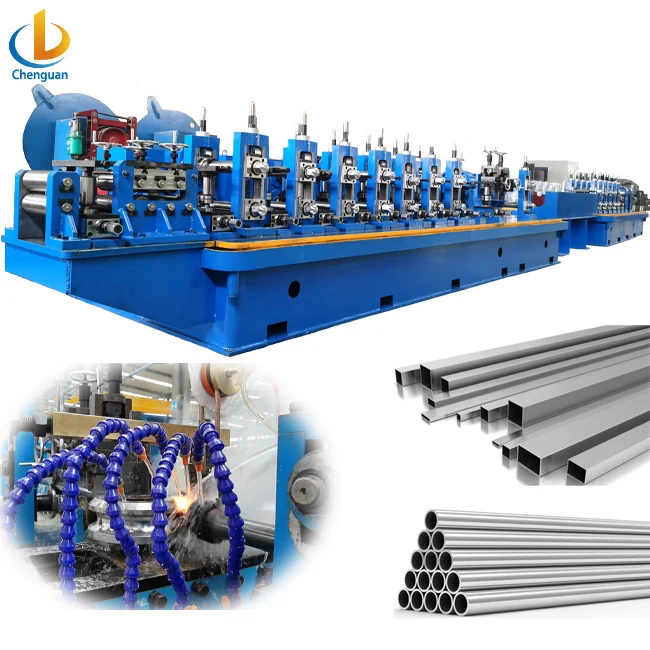

Машина для изготовления пустотелых труб/сварочная машина для изготовления труб из нержавеющей стали, производственная линия для изготовления труб из углеродистой стали, Индия

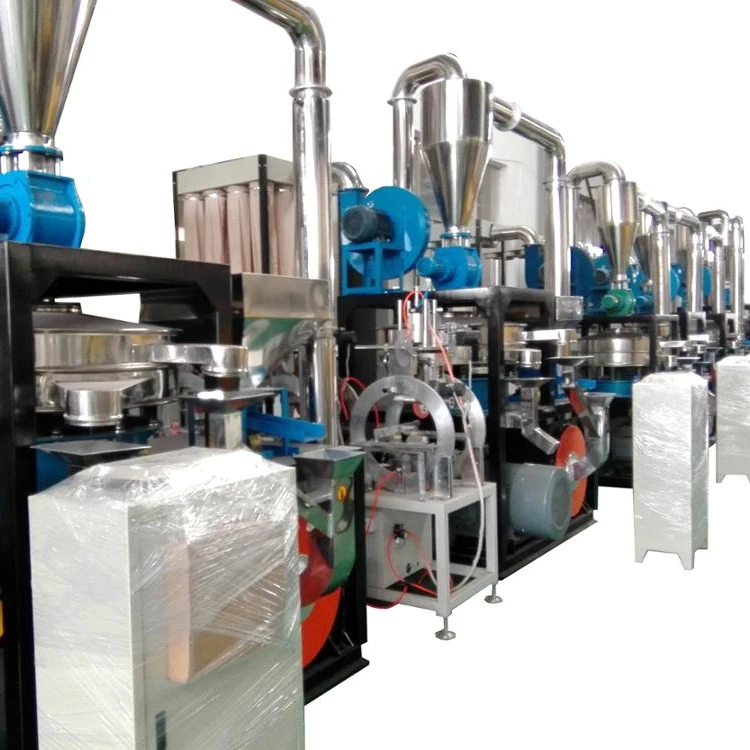

Эва (этиленвинилацетат) ПВХ обрывки на дробильную мельницу miller/мягкие pp/pe/водосточной трубы машина пульверизатор порошка

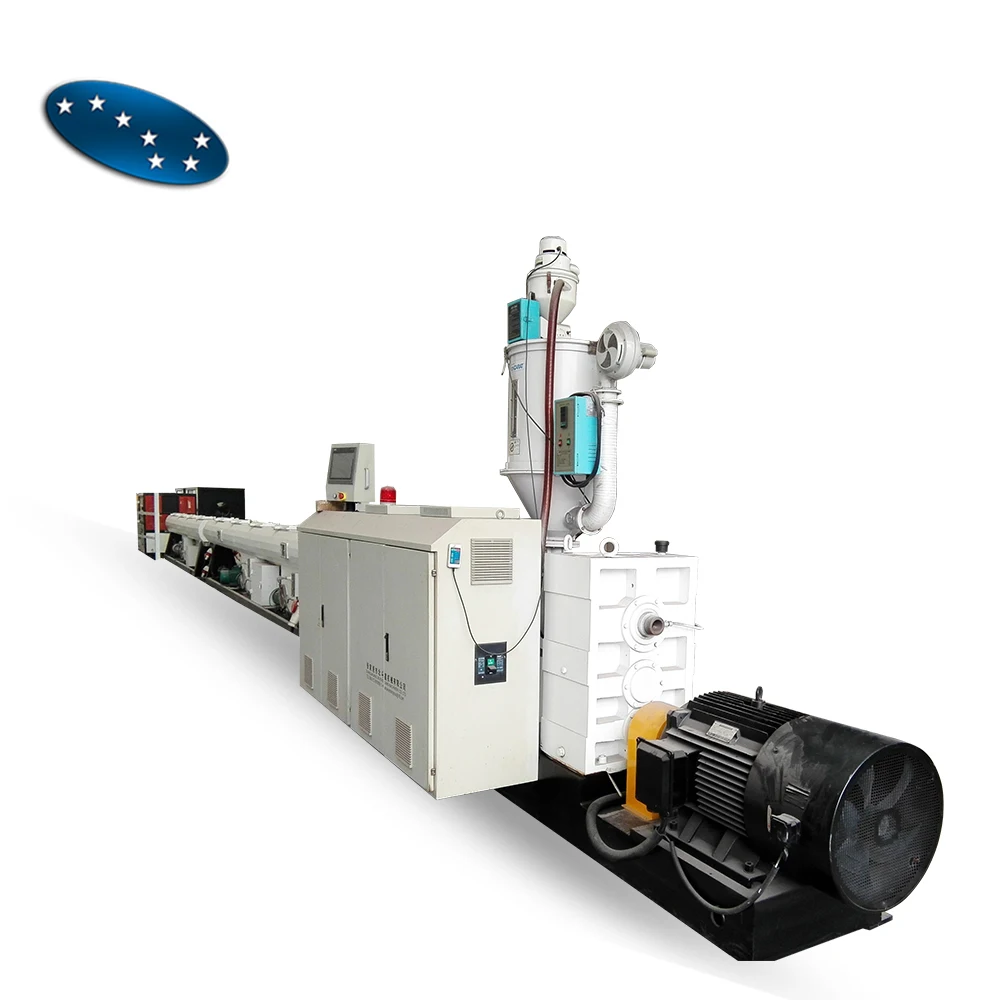

Линия по производству полиэтиленовых труб 315-630 мм

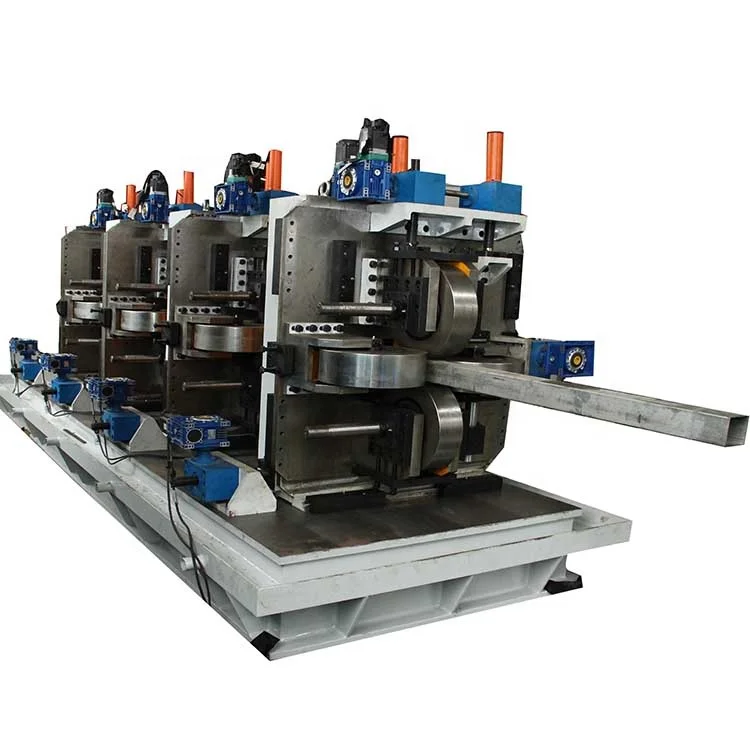

Машина для изготовления стальных труб, мельница для труб, стальная машина для изготовления квадратных труб, стальная труба, цена на продажу
85 500,00 $ - 90 500,00 $

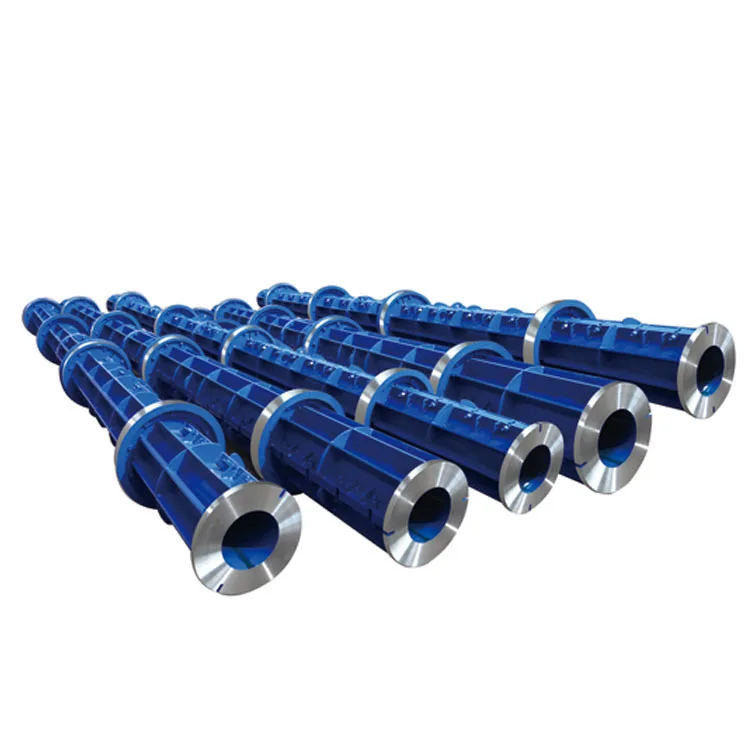

Стали Полюс машина
