Product Instruction

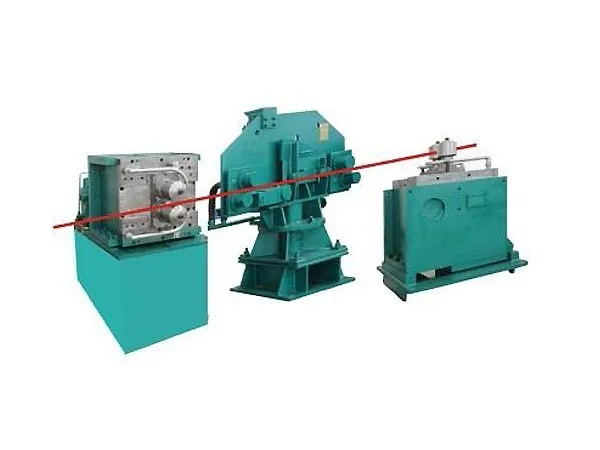

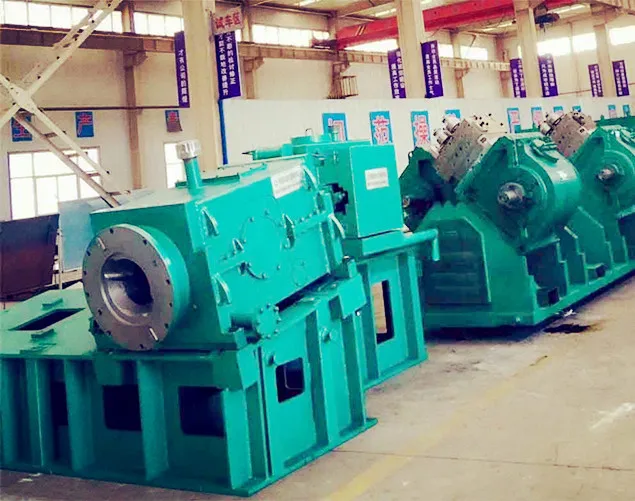

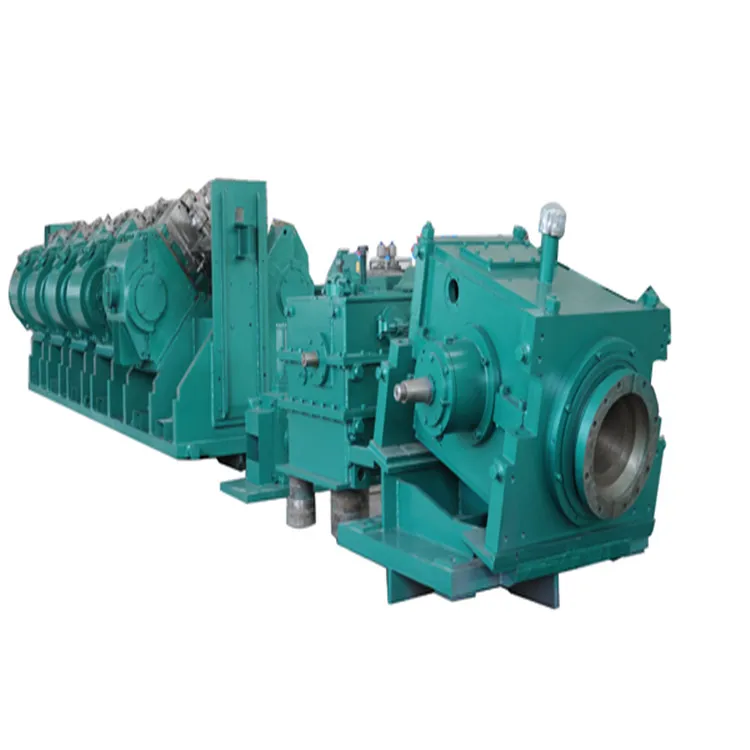

Wire rod block mill is composed of top crossed 45°high-speed wire-rod mills / finishing mills. The finishing mill group/wire rod mill is located in high-speed wire-rod workshop. Through several unit rack the continuous micro-tension rolling mill will be transported upstream Ø17 ~Ø21mm of rolling, rolling become Ø5.5 ~ Ø16mm finished wire. The working speed of 90m/s, 135m/s etc.

Main Features

1) Mill stand use top crossed 45℃ composition form to achieve no twisting, no contact axis, little axis and shock for equipment, besides, it decrease the center of gravity height, the stability increased as well, while, the total weight has decreased and it is very easy to maintain. Ten stands are concentrated transmission.

2) Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.

3) Roller box and bevel gearbox adopt outside combinational instruction.

4) Roller loop is tungsten carbide, it is connected on the cantilever roll shaft, we use the specific hydraulic changing roll equipment to replace roll loop, it is convenient and easy.

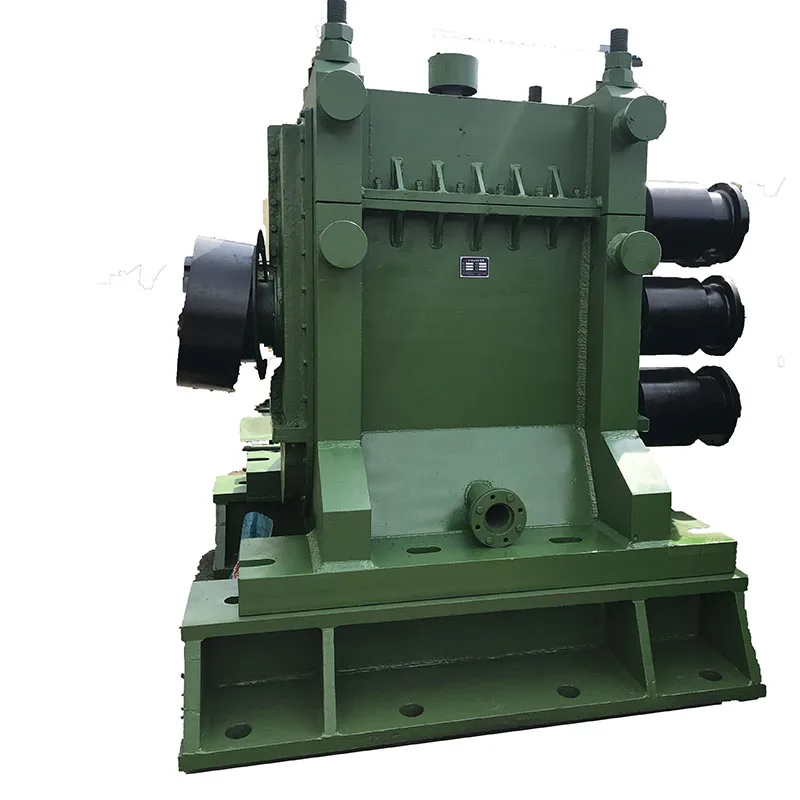

Rough Rolling Mill

Brand: HANI

Original: China

Description: The roughing mill stands are used to reduce the thickness of the steel while at the same time extending the overall length. Rolling mill stand is an important part of a work stand, roll bearing chock and roller adjustment device is installed on the frame. Mill stand bears rolling force, must have sufficient strength and rigidity.

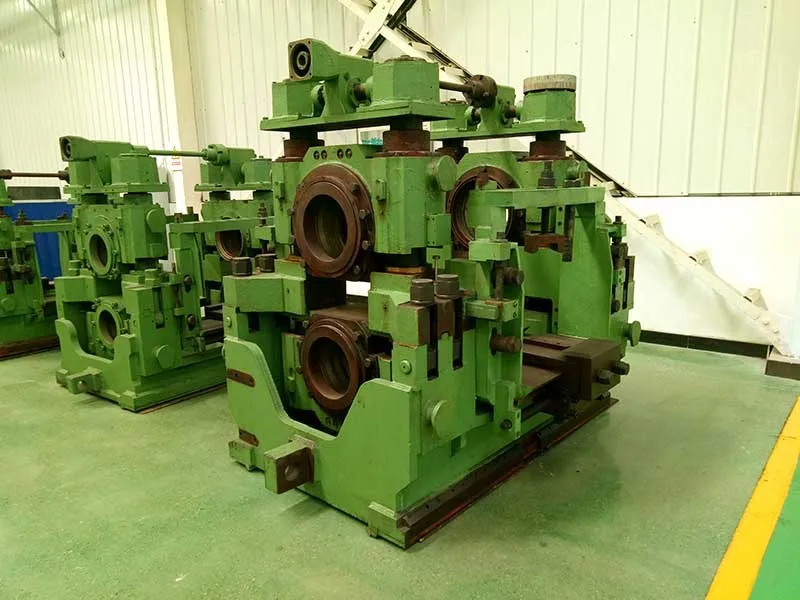

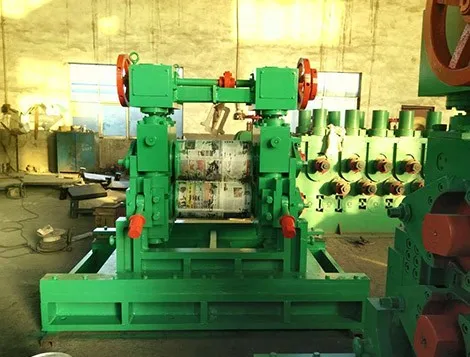

Short Stress Rolling Mill

Brand: HANI
Original: China
Description: Short Stress Rolling Mill mainly used in the re-bar rolling mill production line, with following advantage:
1. High stiffness mill to ensure product precision, easy to implement negative deviation rolling;
2. To achieve symmetrical adjustment;
3. Long bearing life, reduce product costs;
4. Pre-adjusted performance, fast roll change, finished product rate.

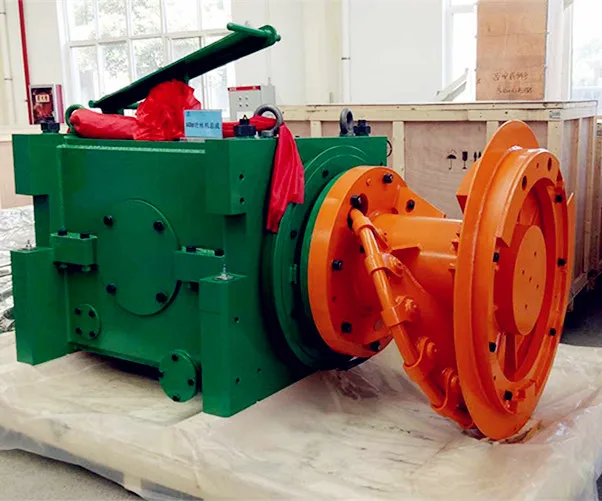

Ф285 Vertical Pre-finishing Mill Transmission Box

Brand: HANI
Original: China
Description: Transmission Box is melt with thick steel with great quality to reach the high intensity & heavy load capacity that the case required. Case should take stress aging treatment before the produce to reach the stability that needed. In order to ensure the installation precise standard, box need to adopt total assemble produce.

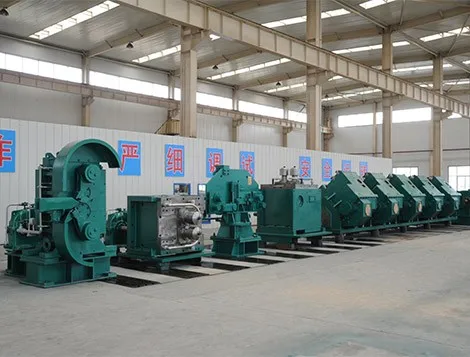

135 Finishing Mill Group

Brand: HANI
Original: China
Description: The finishing mill is the extra-heavy top cross 45° high-speed wire rod finishing mills designed for the high-speed wire rod production line, which is located in the high-speed wire rod workshop. Rolling by 10 units rack continuous micro-tension rolling mill, rolling the Φ17~Φ21 mm of rolled piece transported from upstream into Φ5.5~Φ16 mm finished wire rod. The mill guaranteed exit speed is 90 m/s. (When the specification of finished product is Φ5.5 mm)
