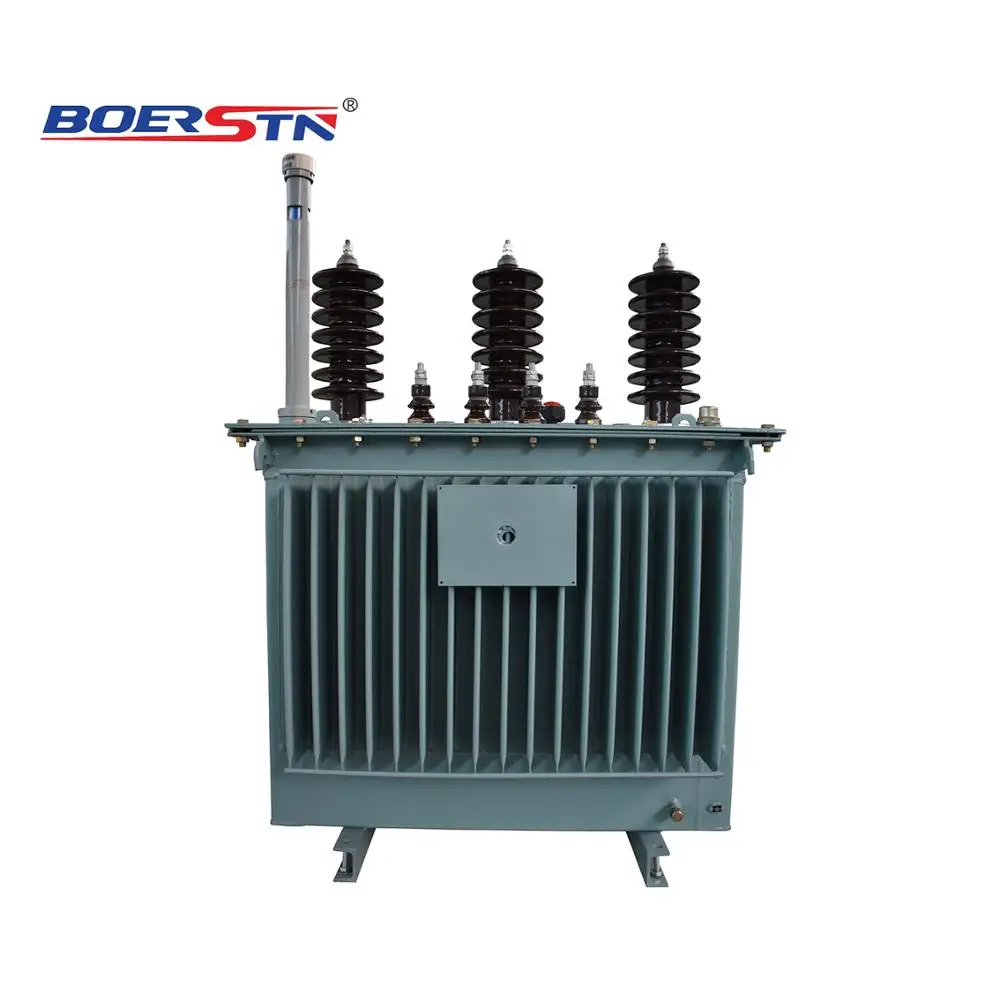

33KV 100KVA 200KVA 300KVA 400KVA 500KVA 800KVA 700KVA 1600KVA масляный распределительный трансформатор

1.Power Capacity: 100KVA                 (Our co.can make 30KVA Upto 20 MVA)

2.Voltage Level: 33/0.415 KV               (can be made as buyers requirements)

3.Type of Voltage Regulation: Off-circuit or On-Ioad

4.Tapping Range:  ±2x2.5 %              (can be made as buyers requirements)

5.Frequency: 50Hz or 60Hz

6.Phases: Three

7.Connection Symbol: Dyn11

8.Short- circuit Impedance:  Standard Impedance

9.Altiude is not exceeding 1000m,ambient temperature not exceeding 40OC. If it can't meet such conditions,we will modulate parameters in accordance with standard.

10.Copper windings, oil immersed type

11.cooling method: ONAN

Package: Each one is packaged in a single wooden box

Lable on Transformer

1. Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
2. High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
3. High-quality wooden laminating insulation pieces, which won’t split or move even under the influence of short circuit.
4. Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
5. High-quality rubber sealing material, which can prevent the transformers form aging or leakage.

“BOERSTN ELECTRIC" is engaged in manufacturing,development,service ,solution,maintenance & marketing of H.V./L.V. power distribution equipments,switchgears,transformers,substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:

·         H.V.& L.V.switchgears

·         Power Distribution Board (PDB)

·         M.V solid insulated switchgears (SIS)

·         compact substations /Package substation/kiosk substation

·         single phase & three phase pad mounted transformers(PMT)

·         Gas insulated switchgears(GIS)

·         Cable Brach box

·         Ring main units (RMU)

·         Oil-immersed transformers and dry type transformers

·         Vacuum circuit breakers (VCB),Air circuit breakers(ACB),vacuum switch and contactors.
