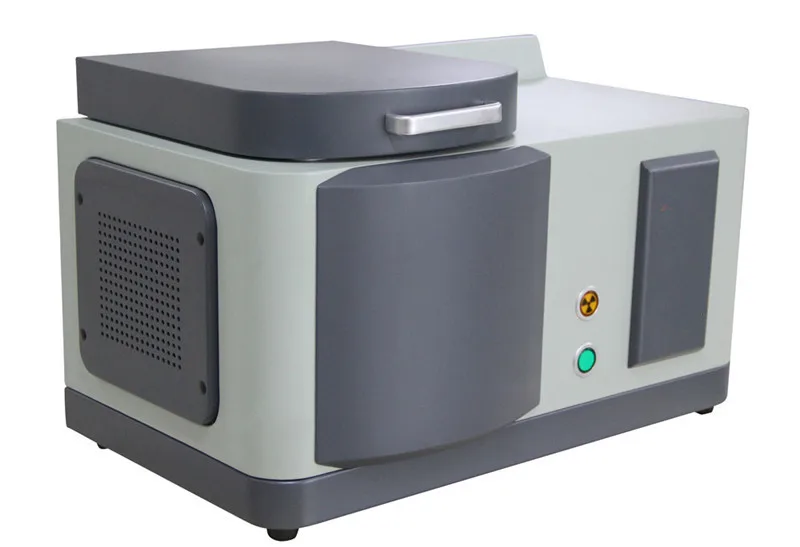

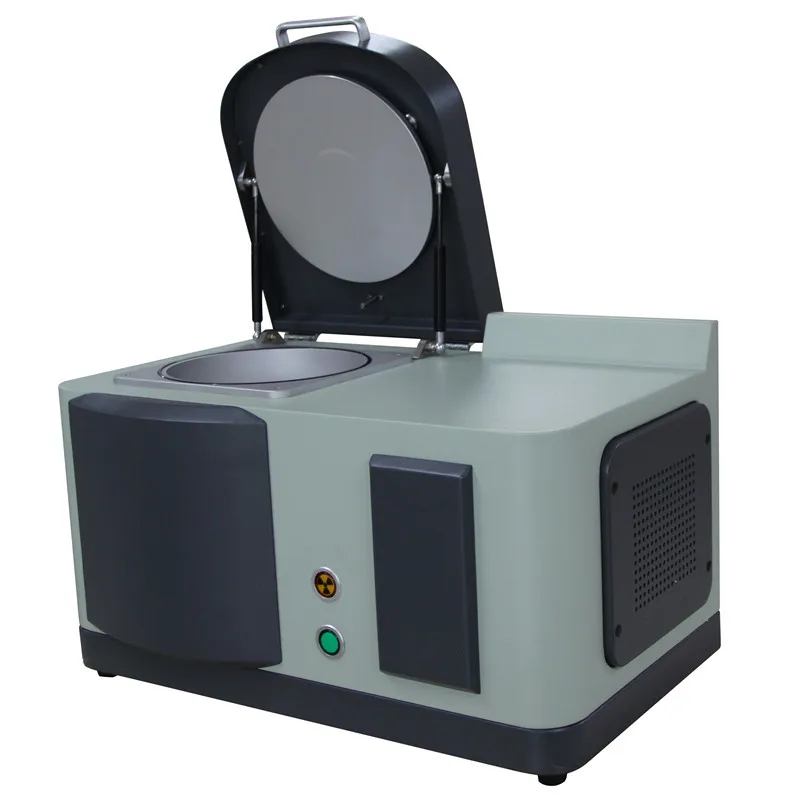

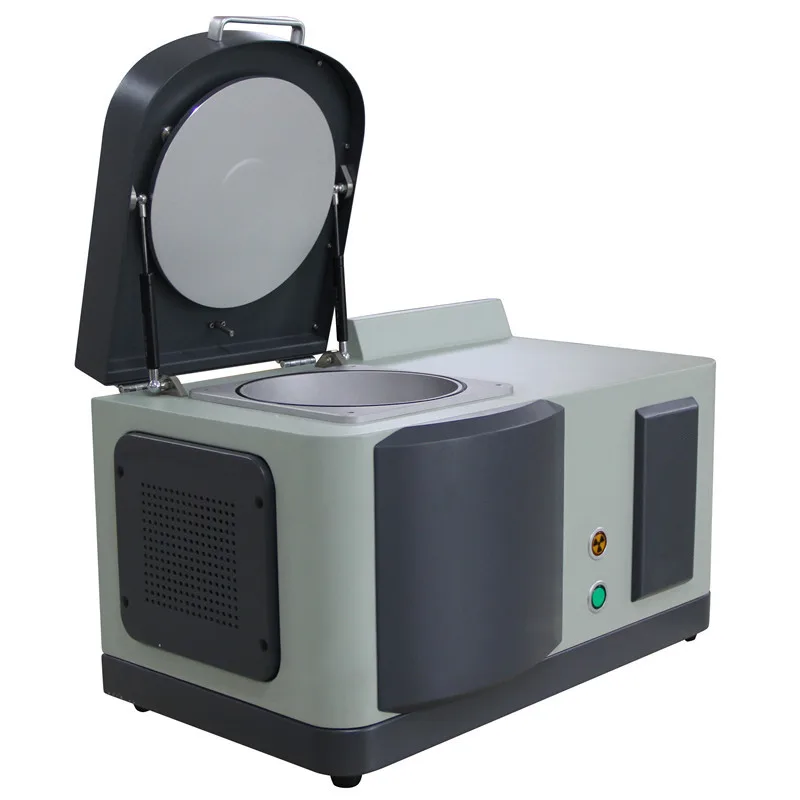

TY-9800 X-ray Fluorescence Spectrometer

High-Performance XRF Spectrometer for Multi Elemental Analysis

 Specification

Accurate, Fast, Non-Destructive, Straightforward, Environmentally Protective

For the elements in the range of Na-U

Halogen-free testing, ROHS/ELV testing

Coating thickness measurement

Identification of jewelry, precious stones, precious metals

Master the unknown material

Outstanding sensitivity leads to up to a factor 3 improved precision

Low measurement cost, easy to operate

Summary

The TY-9800 X-ray fluorescence spectrometer represents a quantum leap in energy dispersive X-ray fluorescence technology. It is an advanced precise analytical instrument that reaches the lead level. It has obvious advantages that don’t need to do special treatment on samples, quick analysis, high analysis accuracy, simple operation and low measurement cost. Also it provides breakthrough advances in multi-elemental analysis of major, minor, and trace element concentrations. New developments in excitation and detection deliver outstanding sensitivity and detection limits — yielding remarkable gains in precision and accuracy. It can help test ROHS or ELV and can help follow the toy regulations to ensure the products are green and environmental protection. It deliver much of the analytical power of top-grade laboratory bench top analyzers. And provide exceptional performance, at wide concentration levels, for all of the relevant elements in the range of Na-U.

Applications

TY-9800 X-Ray Fluorescence Spectrometer can perform qualitative and quantitative analysis of elements excluding carbon element on all types of materials. It performs well on elements including Mg, Al, Si, S, P, Mn that are difficult to analyze on other instruments.

1. Steel Industry: Content analysis of element excluding carbon element in pig iron, cast iron, alloy steel, slag, ore, sinter, pellets, iron powder, iron ore.

2. Refractory Material and Cement Industry: Content analysis of refractory materials and cement samples.

3. Nonferrous Industry: The instrument can perform content analysis of Al-alloy, stainless steel, Cu-alloy, Pb-Zn mine, Cu-mine, Ag-mine, and Mo-mine.

4. Quality Inspection Department: Content analysis of elements including Pb, Cd , Cr, Hg, Br and halogen in ROSH instructions.

5. Coating Thickness Measurement: The instrument can perform accurate non-destructive measurement on thickness of all cladding layers on metallic and non-metallic materials.

Parameter
