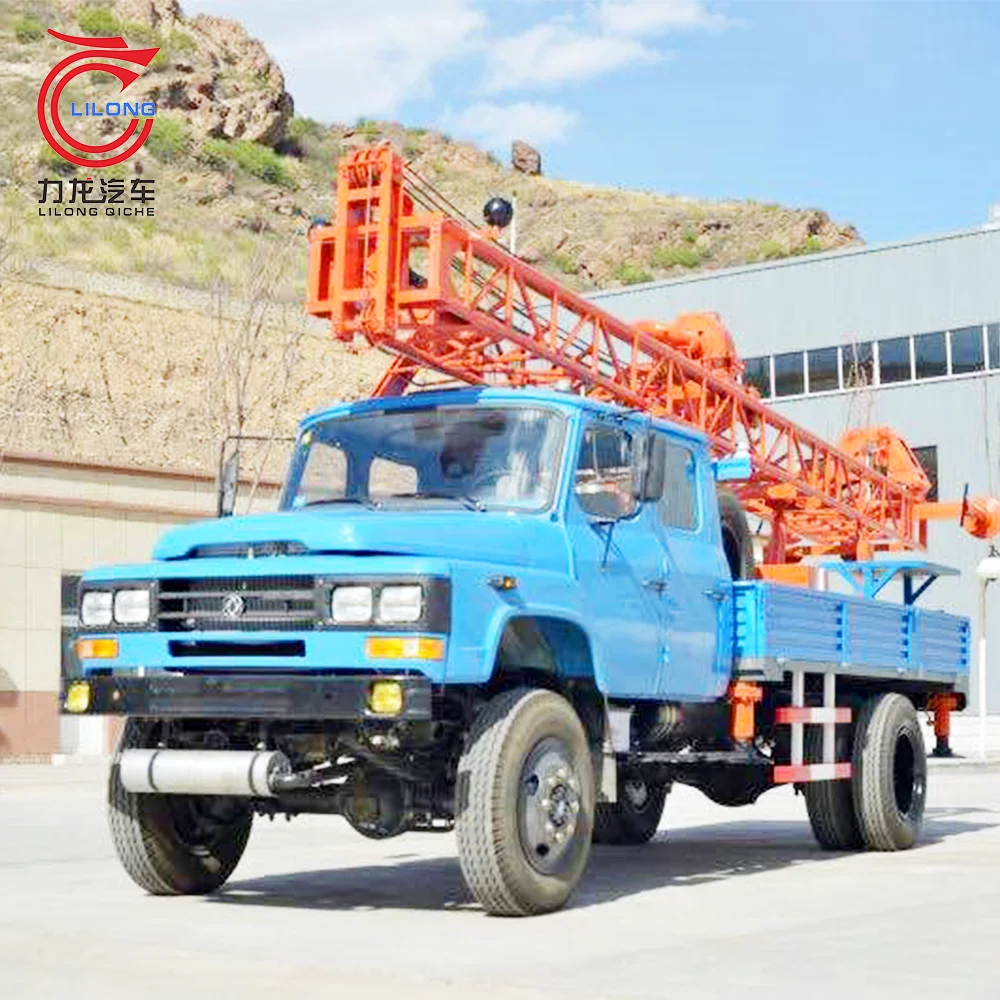

Высококачественная буровая установка для скважин на глубину 200 м по лучшей цене лидер продаж установки грузовике Уганда

Сохранить в закладки 60737220119:


Цена:8 566 436,10 ₽ - 8 674 872,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

Main purpose and characteristics

1.Water Well Drilling is used in urban village, agricultural irrigation, industrial and other water wells drilled, engineering construction such as high-rise buildings, Bridges, geological mining ports, ports, DAMS and other basic pile drilling, borehole of ground source heat pump, exploration and geological survey

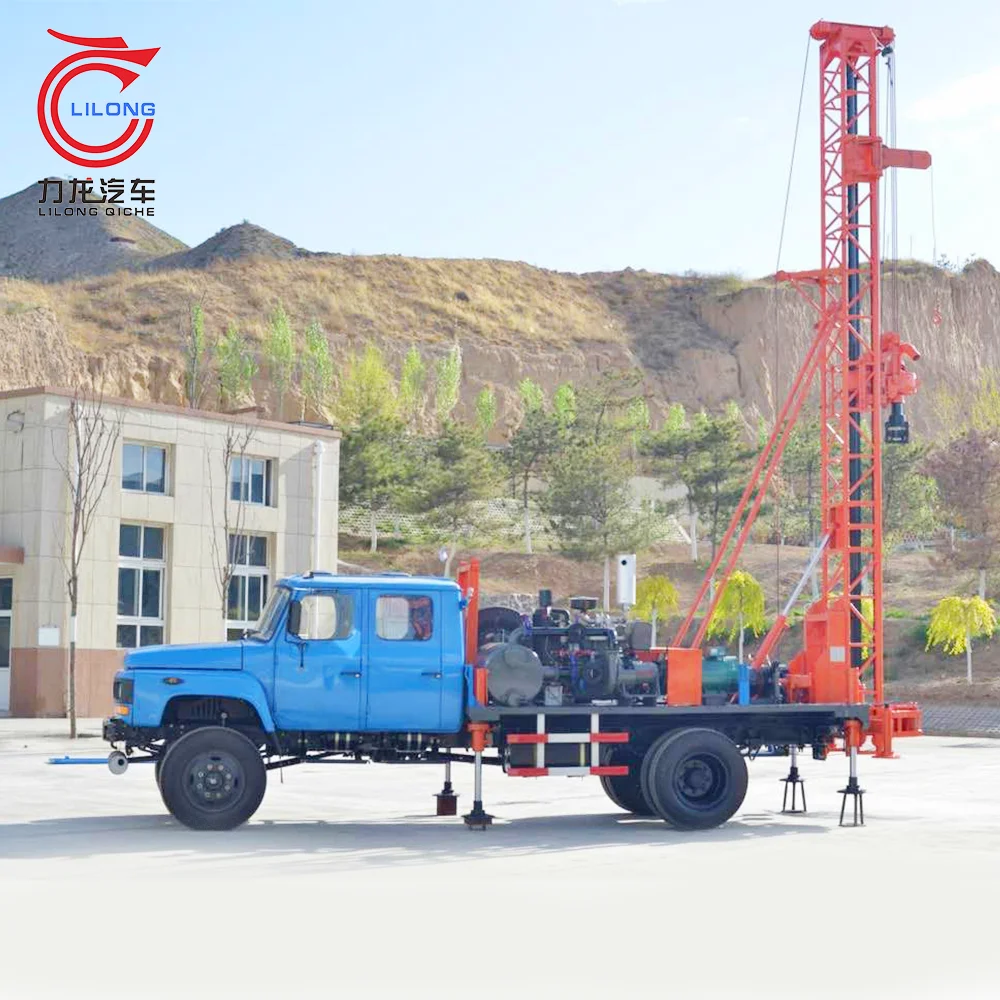

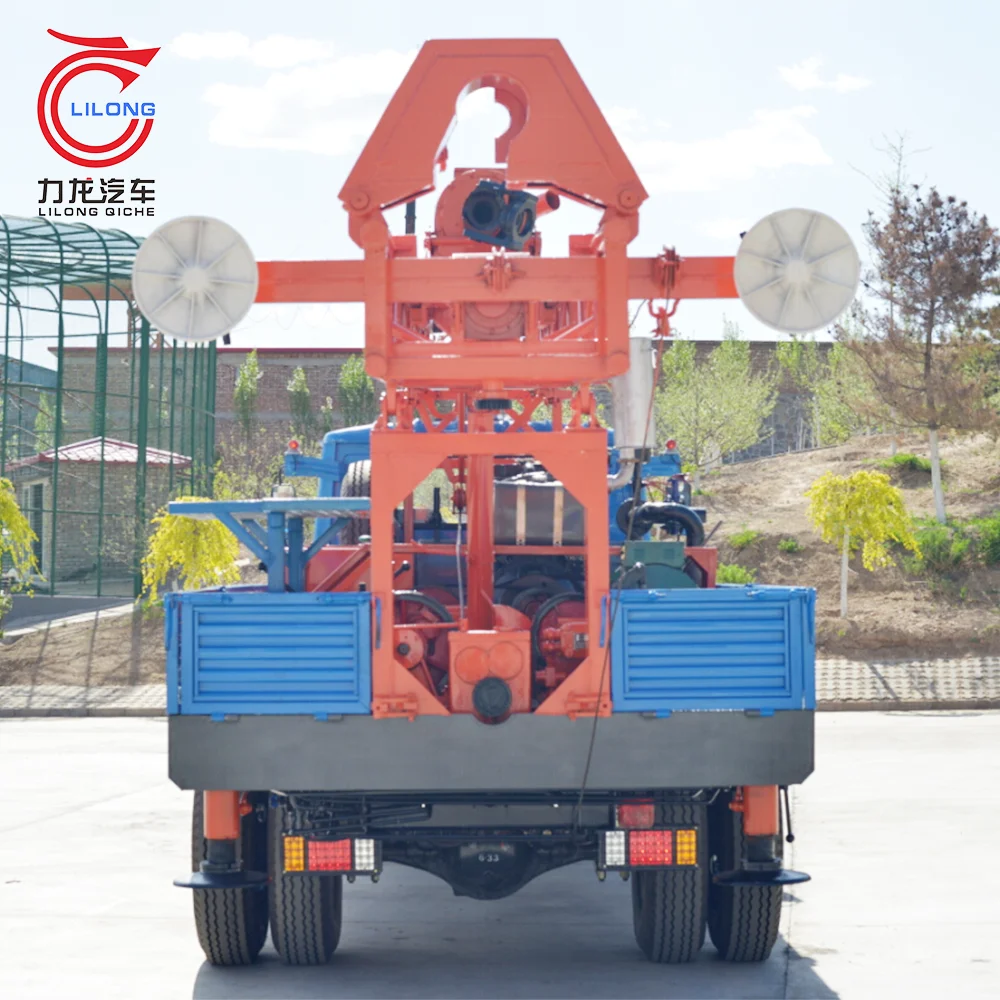

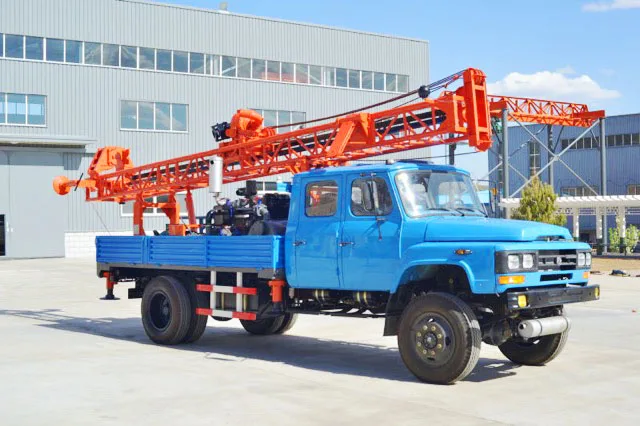

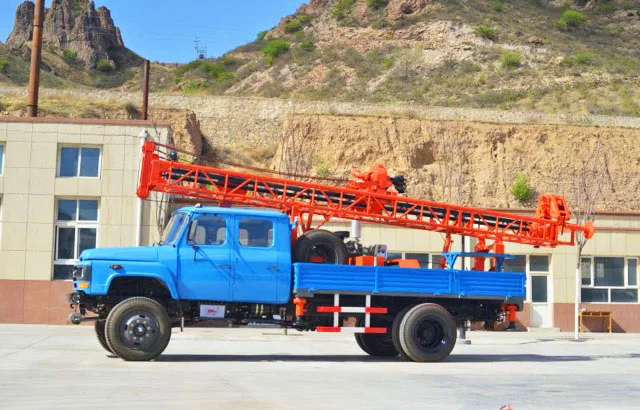

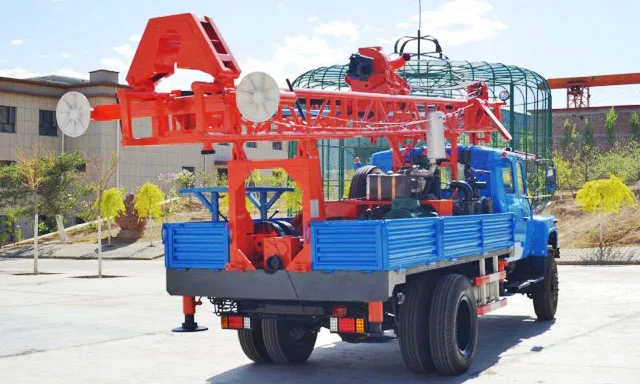

2.It is a self-propelled vehicle used four-drive cross-country chassis with strong power strong climbing, suitable for mining area and harsh environments. Diesel engine, gearbox, the reversing box, power head, lifting hoist, the derrick, chassis, control system, orifice device, hydraulic system, BW600/30 mud pumps, generators, etc are all installed on the chassis.

3.The machine can be used in mud drilling and air drilling technology, suitable for construction work of clay layer, sand soil layer and rock layer.

4.The machine has large torque, large lift force, strong power, simple operation and easy to add unloading pipe. Low investment and high efficiency is the best choice for users.

Specification

\t
Main Parameters
\t
Drill hole diameter (mm)
\t
90-1200
\t
Drilling depth (m)
\t
250
\t
Drill pipe length (m)
\t
3-6
\t
Drill rod diameter (mm)
\t
Φ60, Φ73, Φ89, Φ95, Φ133
\t

Drilling technology
\t
Mud Positive and Reversal circulation
\t
Air Positive and Reversal circulation
\t
Impactor
\t
mid-pressure and high pressure pneumatic
\t
Driving head diameter (mm)
\t
Φ35, Φ60, Φ80, Φ120
\t
Lifting power (T)
\t
15
\t
Driving head lifting speed (m/s)
\t
0.25, 0.15
\t

Driving head rotation speed (r/min)
\t
A (forward: 13-22-48) (reverse: 10-17-36)
\t
B (forward: 48-84-184) (reverse: 37-65-142)
\t
Main winch lifting power (T)
\t
2.5
\t
Pressure capacity (T)
\t
2
\t

Overall dimension (mm)
\t
Operating condition:5100*2150*6850
\t
Transport condition: 6450*2150*3100
\t
Chassis support form
\t
Hydraulic
\t
Type of rise and fall
\t
Hydraulic
\t
Weight (kg)
\t
8400
\t
Chassis
\t
East red-802 type
\t
Engin
\t
diesel
\t
Drill driving power (kw)
\t
49
\t
Pump
\t
LBN-20 Positive and Reversal circulation pump group
\t
Pump flow(m3/h)
\t
80

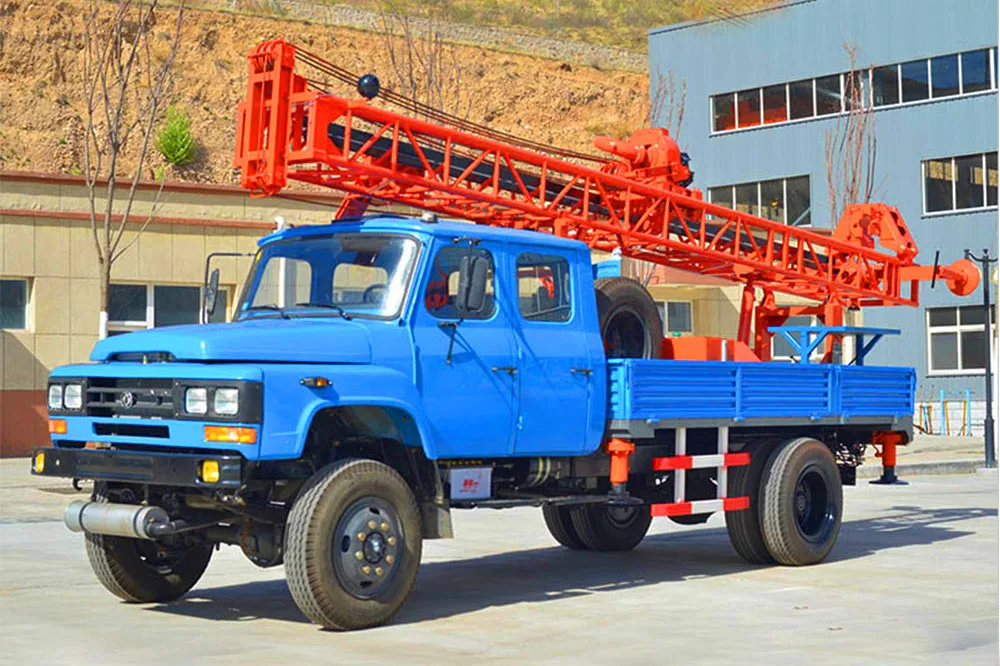

Detailed images

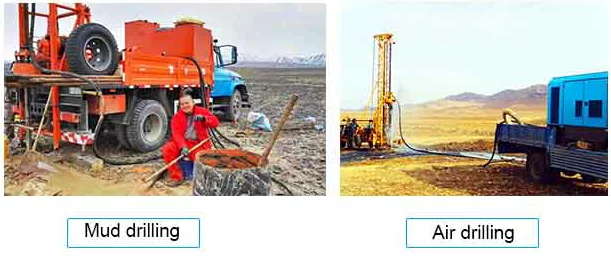

Drilling Technology
