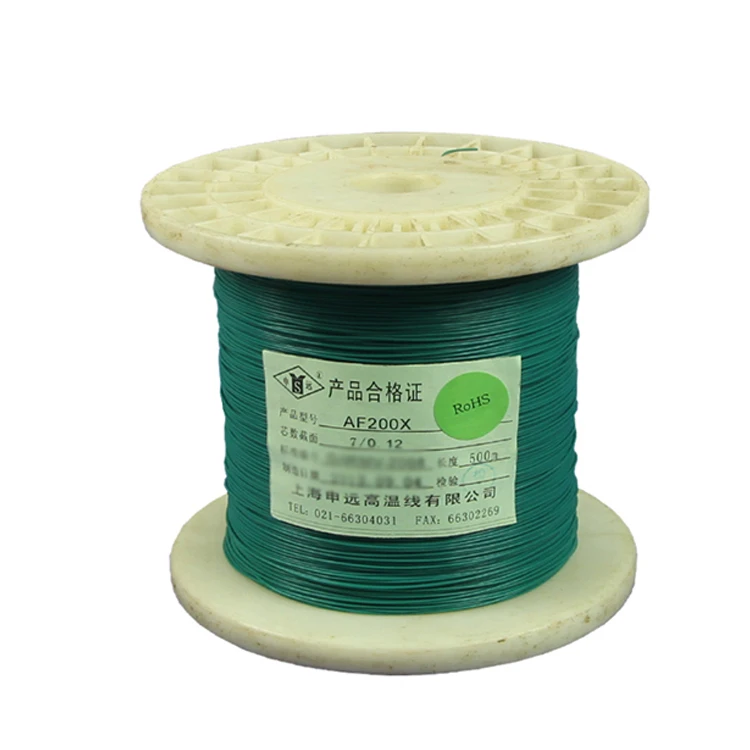

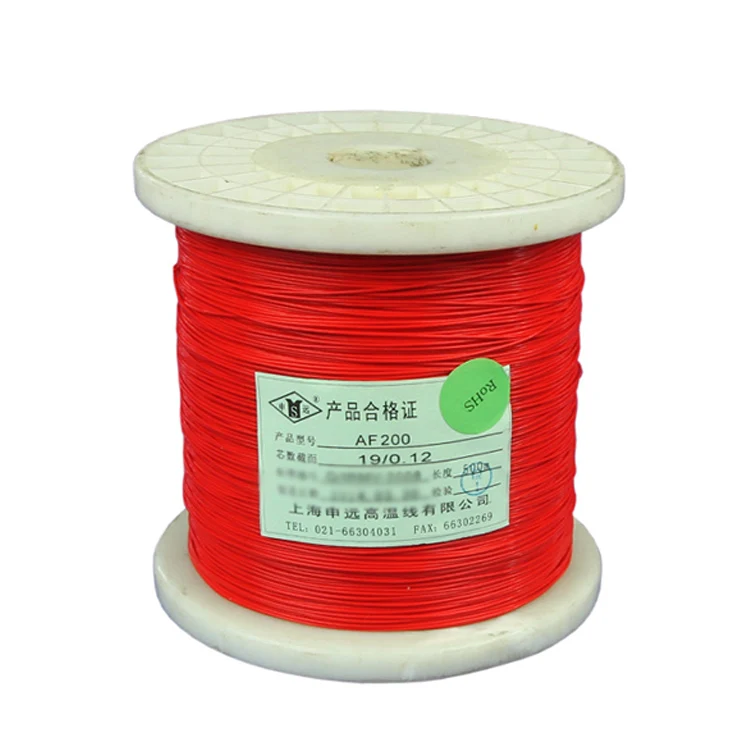

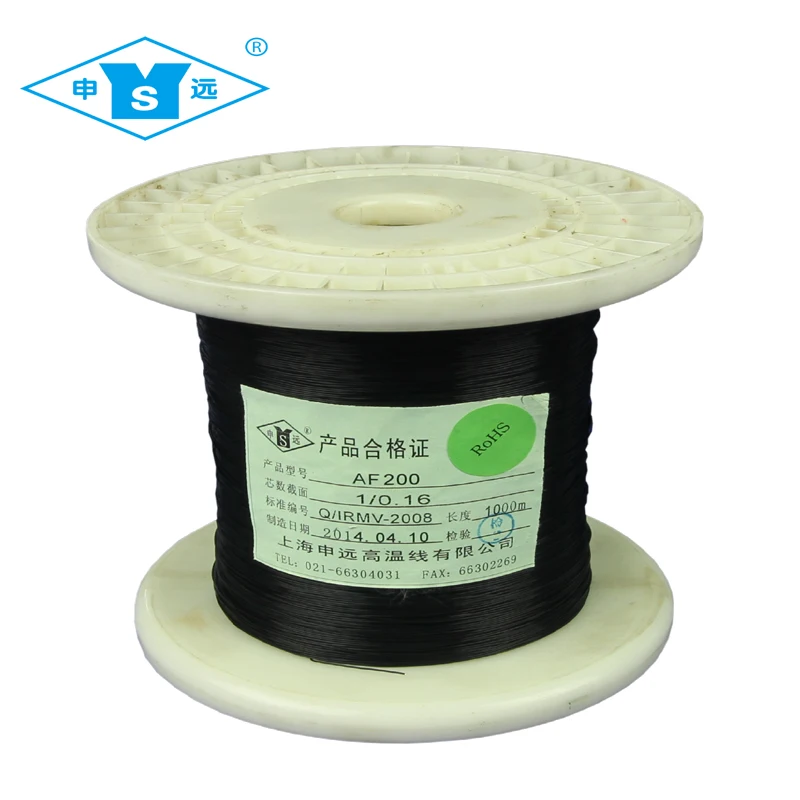

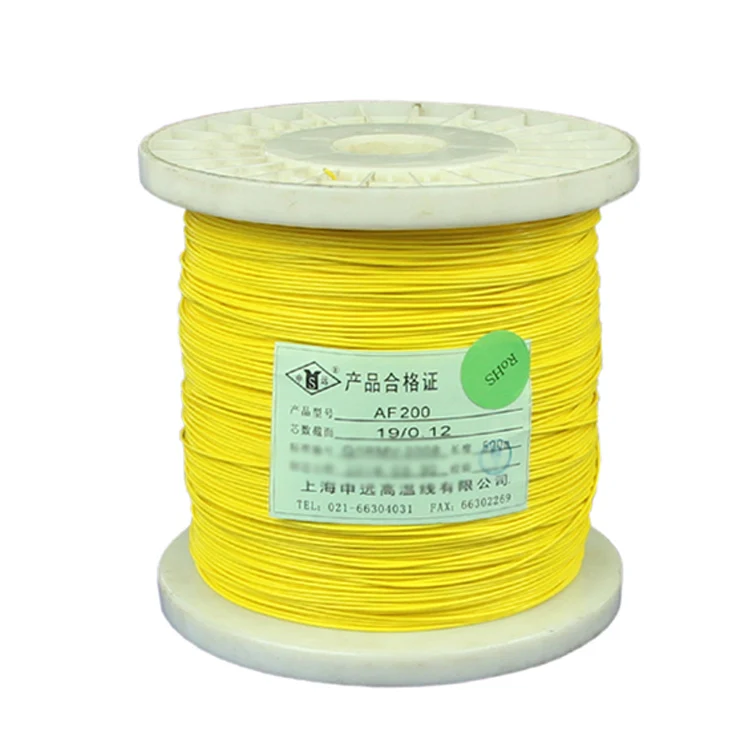

260 градусов C никелированный медный проводник 20AWG PTFE insul. Провод

260 градусов C никелированный медный проводник 20AWG PTFE insul. Провод

Категория: >>>
Поставщик: Shanghai Shenyuan Hi-Temp Wire Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

_20190918171246

(1) Rated voltage: 600V
(2) Operating temperature: -80 ~ +250 ℃
(3) Conductor: Stranded silver plated copper wire or nickel plated copper wire
(4) Insulation: PTFE
(5) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc

(6) Product features:
Has excellent corrosion resistance, almost insoluble in any organic solvent, can be anti-oil, strong acid, anti-alkali, strong oxidants, etc .; has excellent electrical insulation properties, high voltage, high frequency loss, no moisture absorption, insulation resistance Large; with excellent fire resistance, aging resistance, long service life.

(7) Application:
Electronic industry, can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.

(8) Production Time:

7~12 days for 1,000~300,000 wires;

large quantity order Can be negotiable.

Sample wires are available for you to check the quality.

AWG	Conductor construction NO.×mm	Insulation Thickness mm	Outer Diameter mm	m/coil
10	37×0.43	0.33	3.67	305
12	19×0.49	0.33	3.11	305
14	19×0.37	0.33	2.51	305
16	19×0.30	0.33	2.16	305
17	19×0.26	0.33	1.96	305
18	19×0.23	0.33	1.81	305
20	19×0.18	0.33	1.56	305
20	1×0.80	0.33	1.46	305
22	19×0.16	0.33	1.46	610
22	1×0.65	0.33	1.31	610
24	7×0.20	0.33	1.26	610
24	1×0.50	0.33	1.16	610
26	1×0.40	0.33	1.06	610
28	1×0.32	0.33	0.98	610
30	1×0.254	0.33	0.914	610

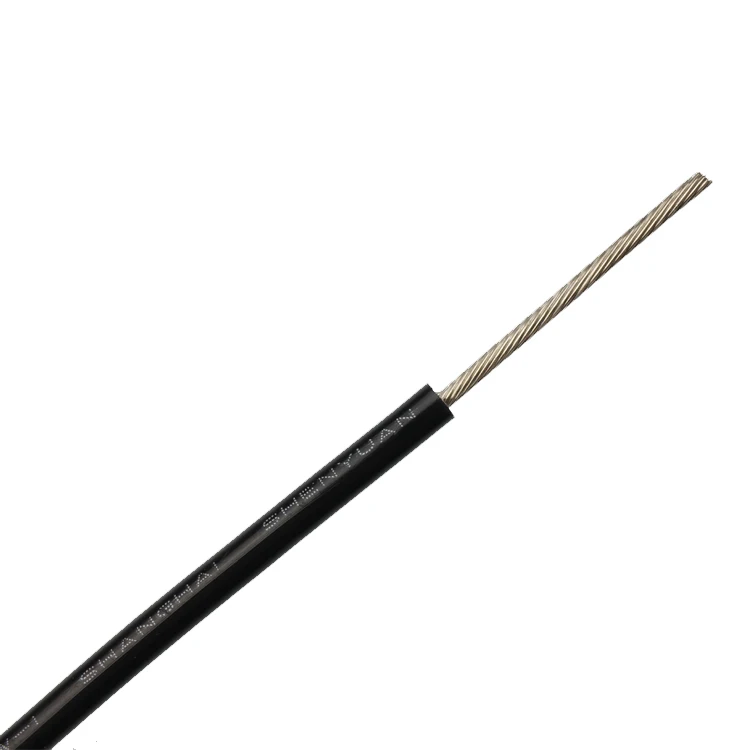

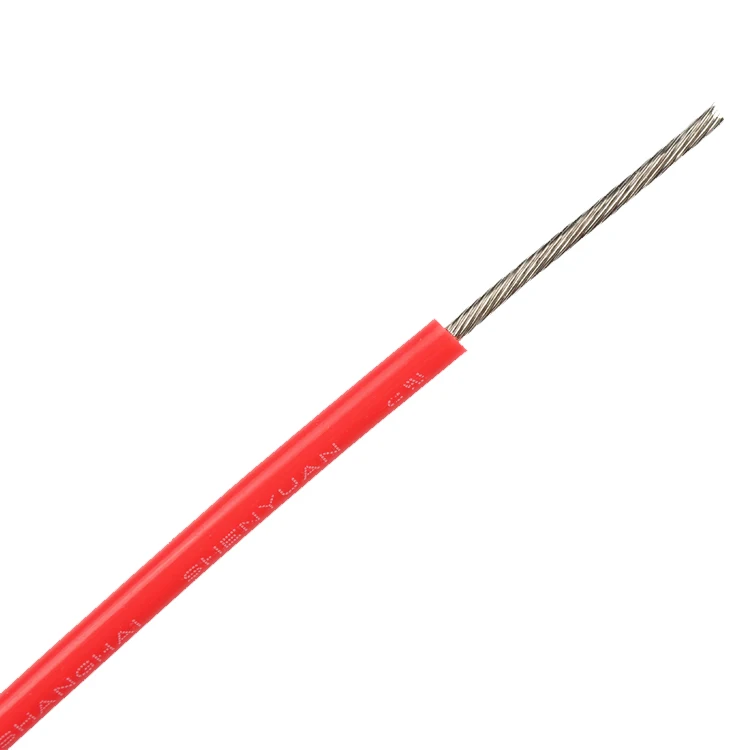

FEP 1332-BLACK 04 FEP 1332-RED 05 _11_04
