Industrial High Quality Coffee Spray Dryer / Milk Spray Drying Machine









Product Description


Spray Drying Machine is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Spray Drying Machine is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.





Product Feature


The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality. The production procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and management.





Technical Parameter


































































 Model



HT-LXP5



HT-LXP10



HT-LXP15



  Inlet temperature (°C)



140~350 Automatically controlled



180-230



180-230



 Outlet temperature (°C)



 <80-90



<80-90



<80-90



 Water evaporation capacity(kg/h)



5



10



15



Drying form of centrifugal nozzle



Electric



Electric



Electric



 Rate of atomizer (r.p.m)



25000







18000



Diameter of atomizing disc(mm)



50







100



Max. power of electric heater(kw)



9



34



36



Overall dimension (m)



1.8×0.93×2.2



2.2×1.3×2.3



3.0×2.0×2.8



Dried powder recovery rate (%)



≥95



≥95



≥95






 Other models:





































































HT-LXP25



HT-LXP50



HT-LXP150



HT-LXP25



180-250



180-250



250-300



250-300



<80-90



<80-95



85-90



<80-100



25



50



150



300



Electric



Electric



Electric



Electric



24000











13000~20000



80















60



99



95



218.5



9.0*3.0*5.0



9.0*3.0*5.0



Can be adjusted with the site position



Can be adjusted with the site position



≥95



≥95



≥95



≥95

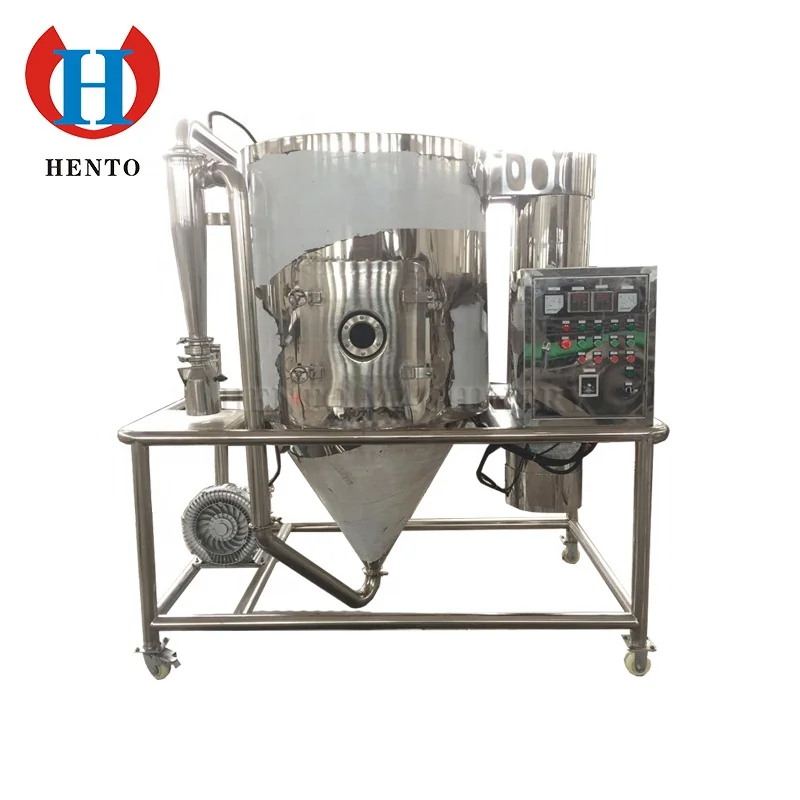

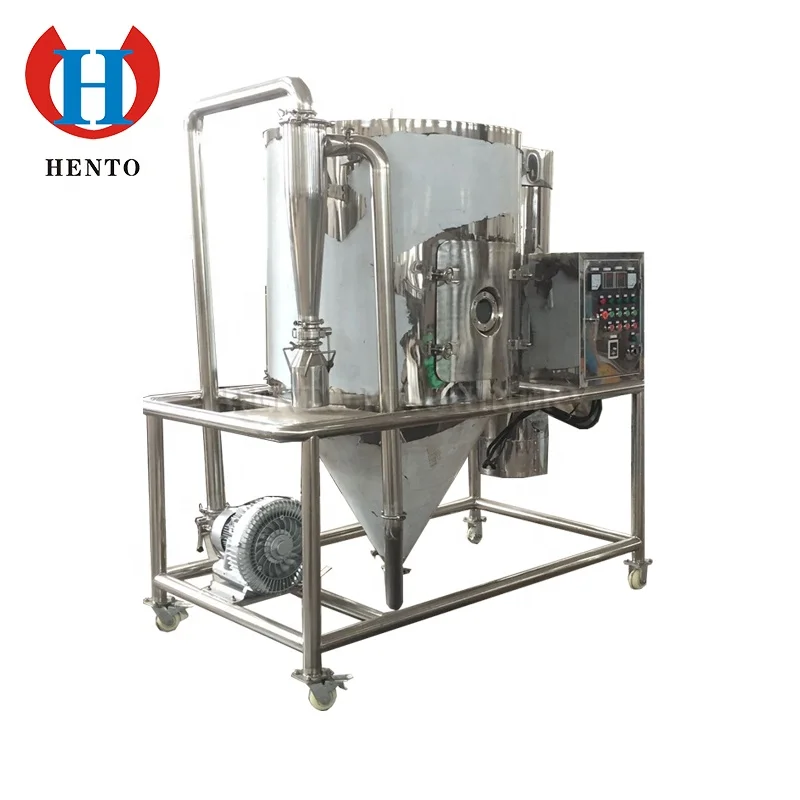

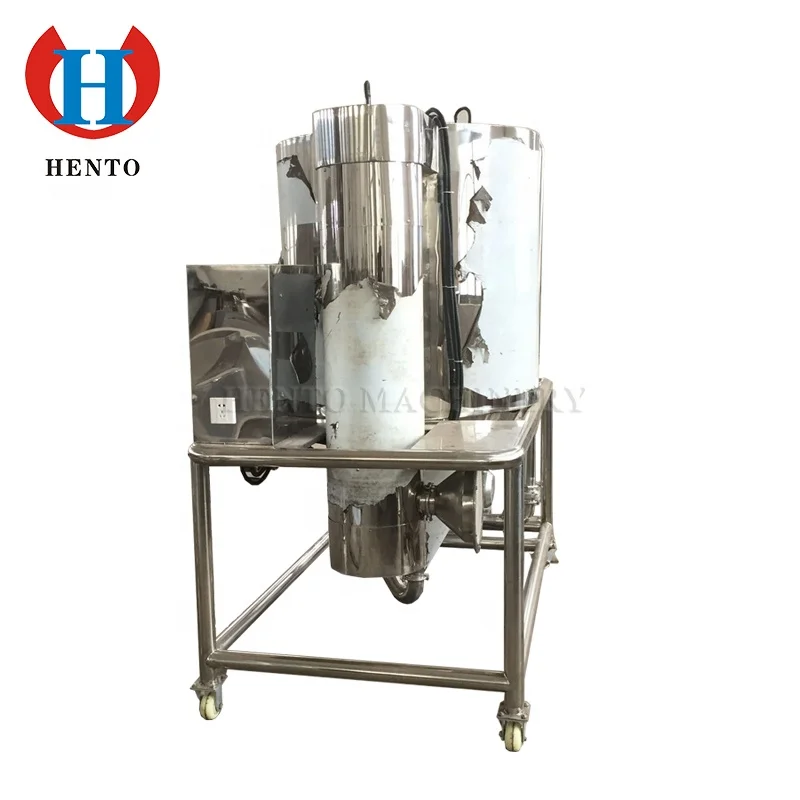

Pictures of Product
