Product Description

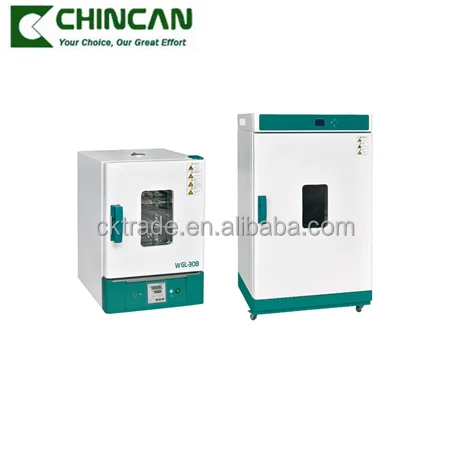

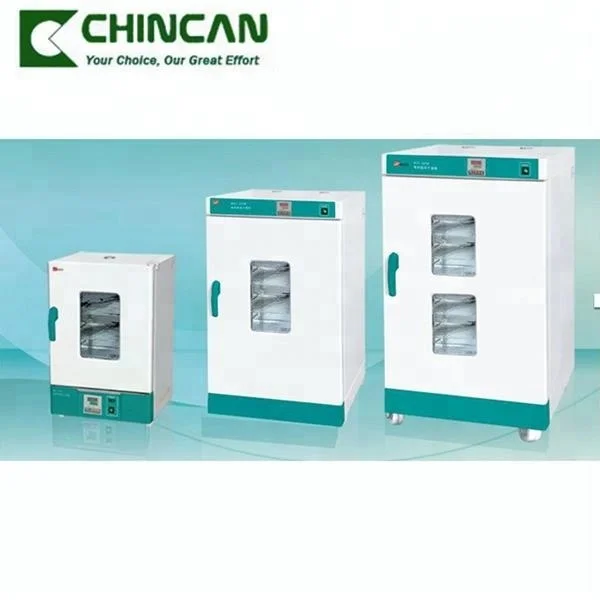

 WGL Series Forced Air Drying Oven with CE Certification




Uses:


This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.





Characteristics:


1. Vertical type, cold rolling steel electrostatic spraying exterior.
2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.
3. Favin stainless steel or cold rolling steel inner chamber; Foursquare semicircle transition; Flexible positioning and removable shelf. Airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.
4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise test in temperature control and easy to read.
5. Door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.



Optional Accessory:
1. RS485/232 interface: Connect to network for temperature switch control
2. Micro type printer: Elapsed temperature record printing
3. Independent power cut protection: Protect specimen
4. Independent temperature limits system: Auto-break-off when over temperature limit.





Technical parameter:
































































































Model



WGL-30B



WGL-45B



WGL-65B



WGL-125B



WGL-230B



WGL-625B



Voltage



220V/50Hz



380V/50Hz



Tem-range (℃)



Room Tem+20~250



Tem-undulating



± 1.0℃



Tem-distinguish ability



0.1℃



Ambient Tem.



5-40º C



Heating power



0.8



1.2



1.6



2.3



3



5



Inner chamber size (mm)



310x310x310



350x350x350



400x360x450



500x450x550



600x500x750



660x760x1250



Exterior size (mm)



 460x510x695



500x550x735



550x550x840



636x680x915



730x670x1220



853x880x1840



Packaging size (mm)



600x540x820



660x590x870



670x630x960



890x790x1350



890x790x1350



1050x1080x2140



Shelf load (Kg)



15 / 2pcs



25 /2pcs



25 /3pcs



N. W. (Kg)



33



37



44



60



94



120



G. W. (Kg)



40



45



54



72



120



160

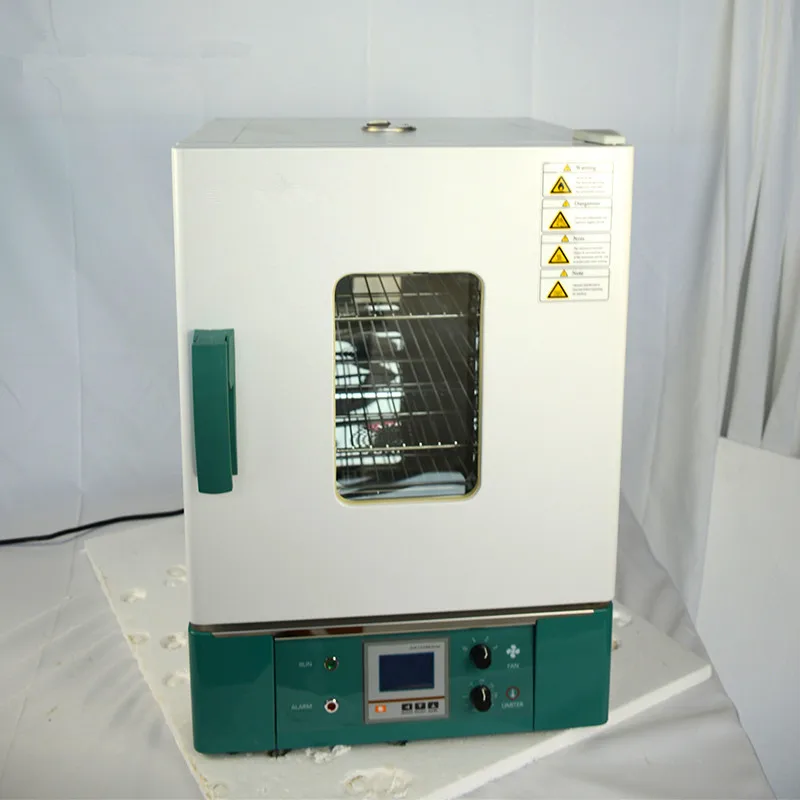

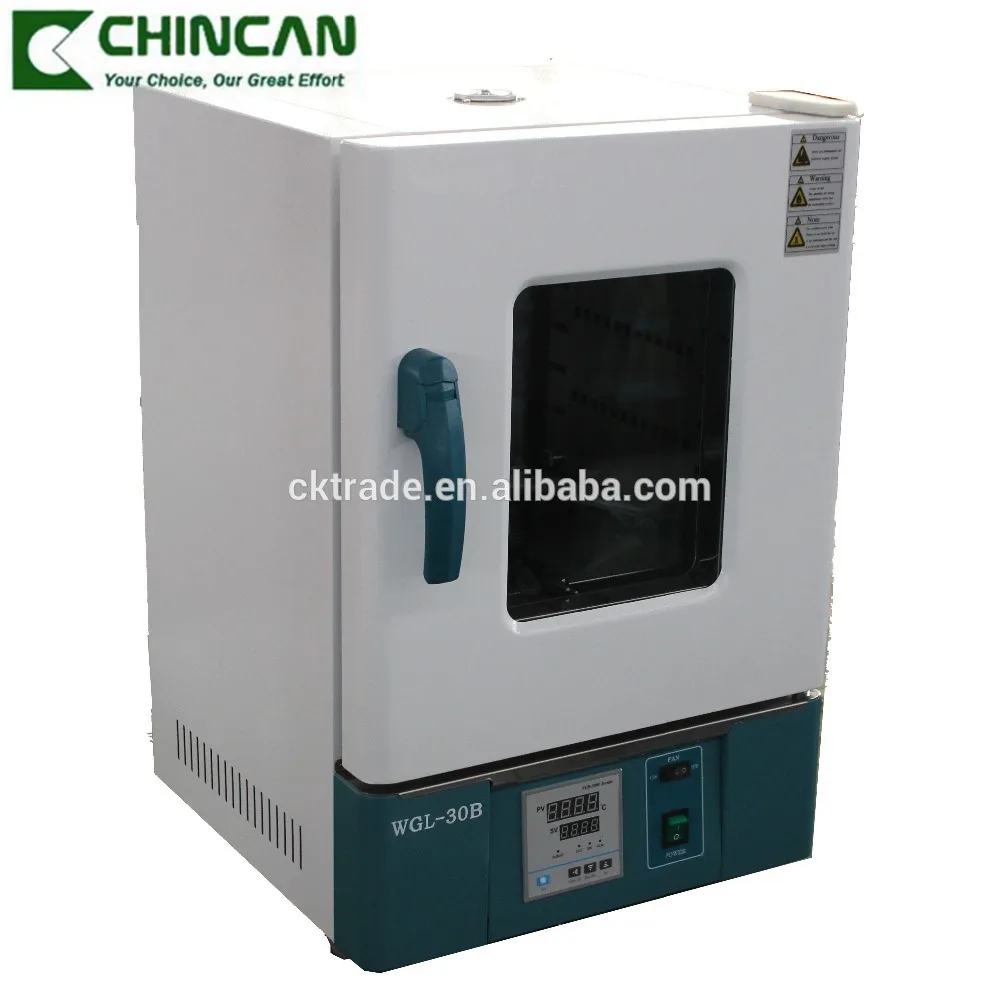

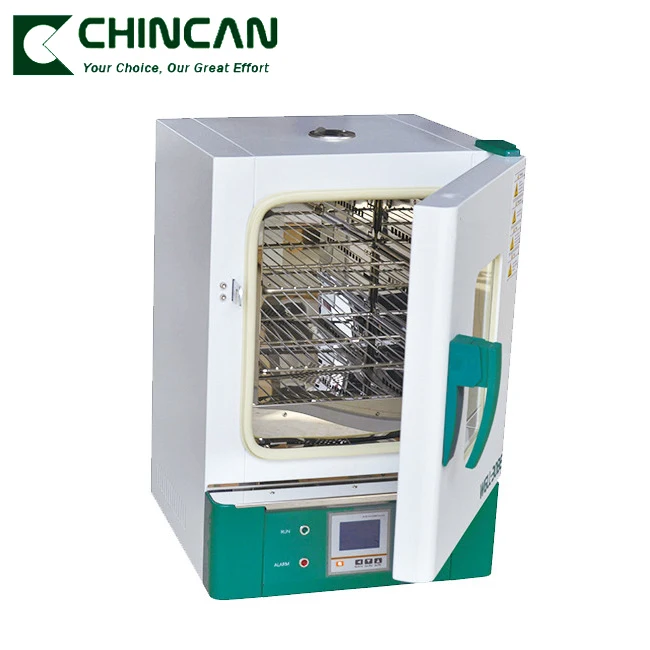

Detailed Images


WGL 1.jpgWGL.jpgHTB.webp.jpg








Certifications







Packaging & Shipping








Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.


Shipping Method: Air / Sea / Express.





This year Shipping shows:


Packing and Shipping.png





Buyer Feedback













Recommended Products


Hot-selling Products:
















Company Information





 Chincan brochure.jpg





FAQ


Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
CHINCAN also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.

Q: How long is your delivery time?
A: Usually, delivery time is 10-15 days depend on the order quantity & inventory.

Q: How about your quality warranty ?
A: Normally all CHINCAN products are supplied with a warranty of 12 Months from the date of shipment.

Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
If you have another question, pls feel free to contact us as below.
