 Neutral Grounding Resistor

Neutral Grounding Resistors (NGRs) are used to limit the fault current for safety of equipment and personnel in industrial systems.
In solid grounding, the system is directly grounded and the fault current is limited only by the soil resistance. The fault current can be very high and can damage the transformers, generators, motors, wiring and other equipments in the system. The NGRs are inserted between neutral and ground in order to increase the net resistance in the event of an earth fault and limit the current to a safe level.

Product Application

1) City power supply.
2) Rail way.
3) Industrial park.
4) Oil & Chemical industry.
5) Ocean platform.
6) Power station.
7) Iron & steel inductry.
8) Nuclear & Biological energy.

Main Features

1) Stainless-steel resistor elements.
2) Bolted resistor element connections instead of welded connections providing assemble of spare parts on site immediately.
3) Typically, cold plate painting enclosuren.
4) High thermal capacity to absorb high currents.
5) Rugged shock-resistant construction.

6) Corrosion resistant stainless steel nameplate.

7) Current transformer & Disconnect switch as required

Low voltage Neutral Grounding Resistor for generator

1) System Votage: 0.4KV

2) Default Current: 5A

3) Resistance Value: 46 Ohm

4) Rated Time: 2H

5) Protection Degree: IP20

6) Dimenison: 490*520*852

7) Weight: 45kG

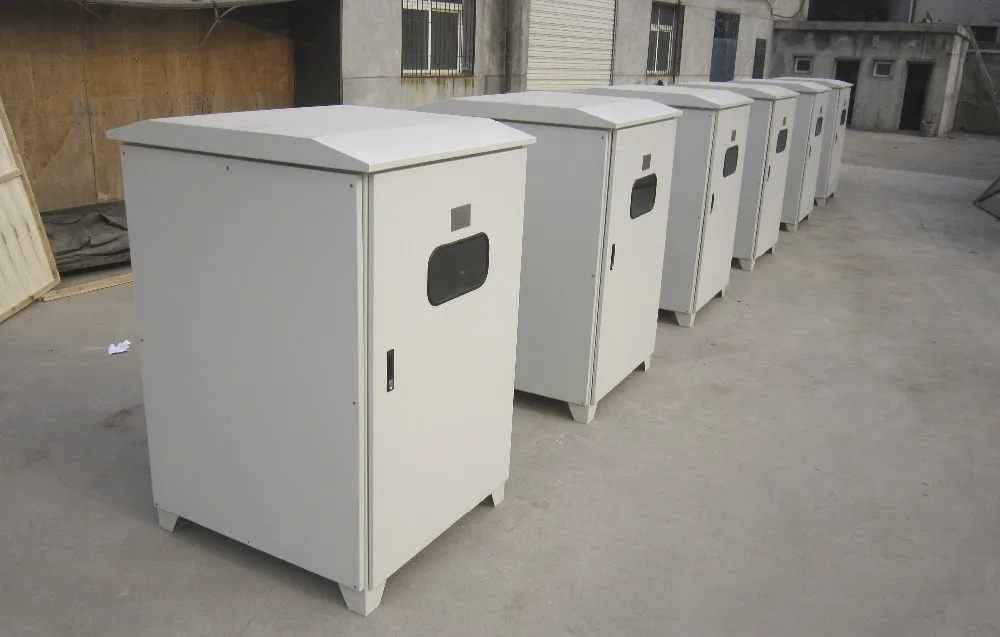

6KV Neutral Grounding Resistor for transformer

1) System Votage: 6KV
2) Default Current: 200A
3) Resistance Value: 18 Ohm
4) Rated Time: 10S
5) Protection Degree: IP32
6) Dimenison: 490*520*852
7) Weight: 45kG

8) Environment: outdoor use

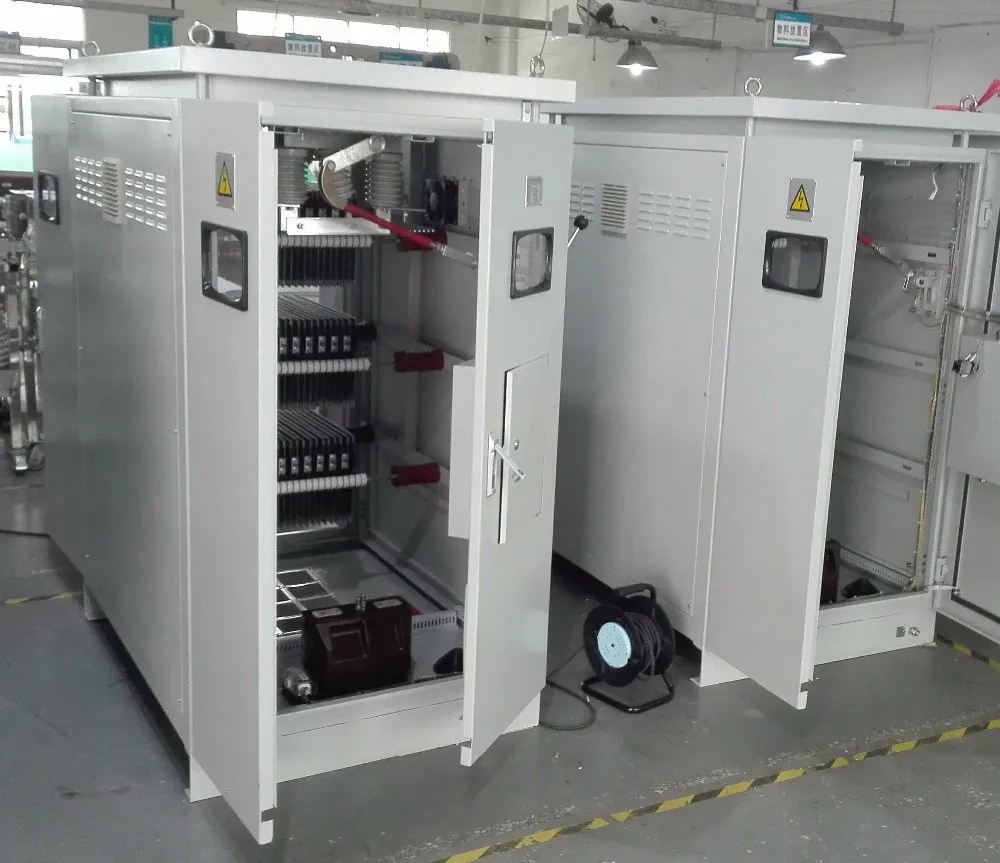

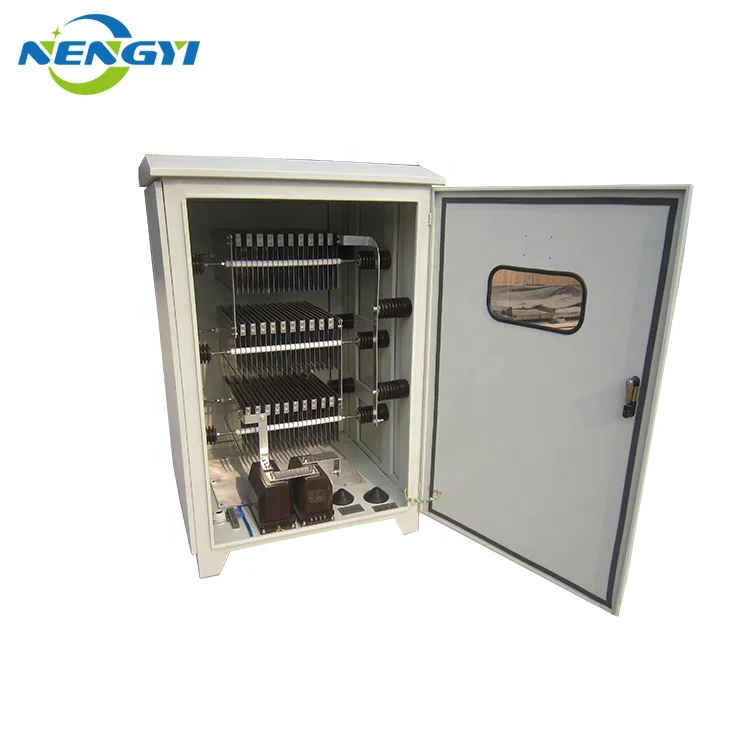

10KV Neutral Grounding Resistor with CT & Disconnect Switch

1) System Votage: 10KV
2) Default Current: 100A
3) Resistance Value: 58 Ohm
4) Rated Time: 10S
5) Protection Degree: IP32
6) Dimenison: 620*620*1400
7) Weight: 120kG
8) Environment: outdoor use

20KV Neutral Grounding Resistor with CT

1) System Votage: 20KV
2) Default Current: 289A
3) Resistance Value: 40 Ohm
4) Rated Time: 10S
5) Protection Degree: IP54
6) Dimenison: 1400*1400*1800
7) Weight: 1200kG
8) Environment: outdoor use

Warranty

* Two years warranty.
* Engineers available to service machinery overseas.

Payment Term

1. For sample, shipment upon receipt of full payment;
(Payment method: paypal, credit card, T/T, Western Union)
2. For bulk order, customers should pay 30% deposit first, 70% balance should be paid before delivery.
(Payment method: T/T)

Packing

1. After test, products will be packed Wooden Case

Shipping

1. By air or by sea for batch goods. (Your option)
4. Delivery Time: 7-25 days for batch goods.

1. What is the minimum Order Quantity(MOQ) ?

No quantity limited, sample order is acceptable.

2. What is the leading time? ?

20-25 days for mass production orders(based on different quantities, OEM, etc.)

3. What is your terms of payment?

We accept payment 30% as deposit, and 70% by B/L.

4. What is your terms of delivery?

FOB,  CIF, DDP.

5. Are the product competitive?

We provide good quality products certificated by CE, RoHS with competitive quotation.

6. How long is the warranty?

12 months warranty

7. How is the after sale service?

If necessary, engineers available to service machinery overseas.
