Полностью автоматическая машина для чистки печатных плат IGBT промышленность PCB/SMT

Описание и отзывы

Характеристики

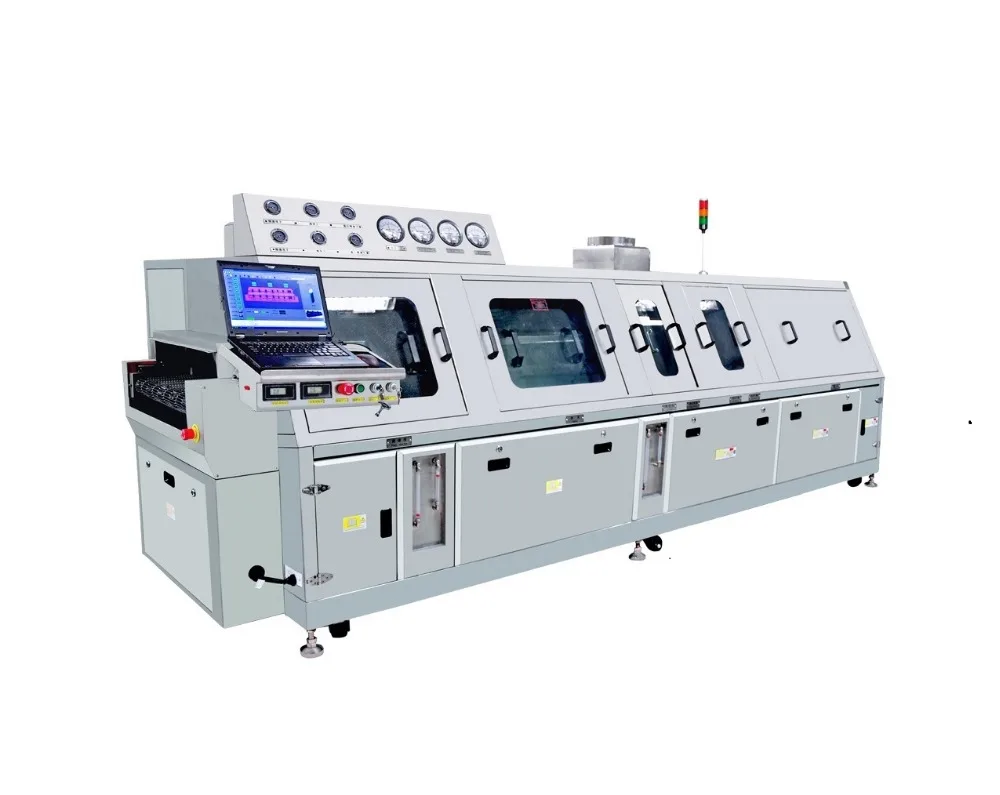

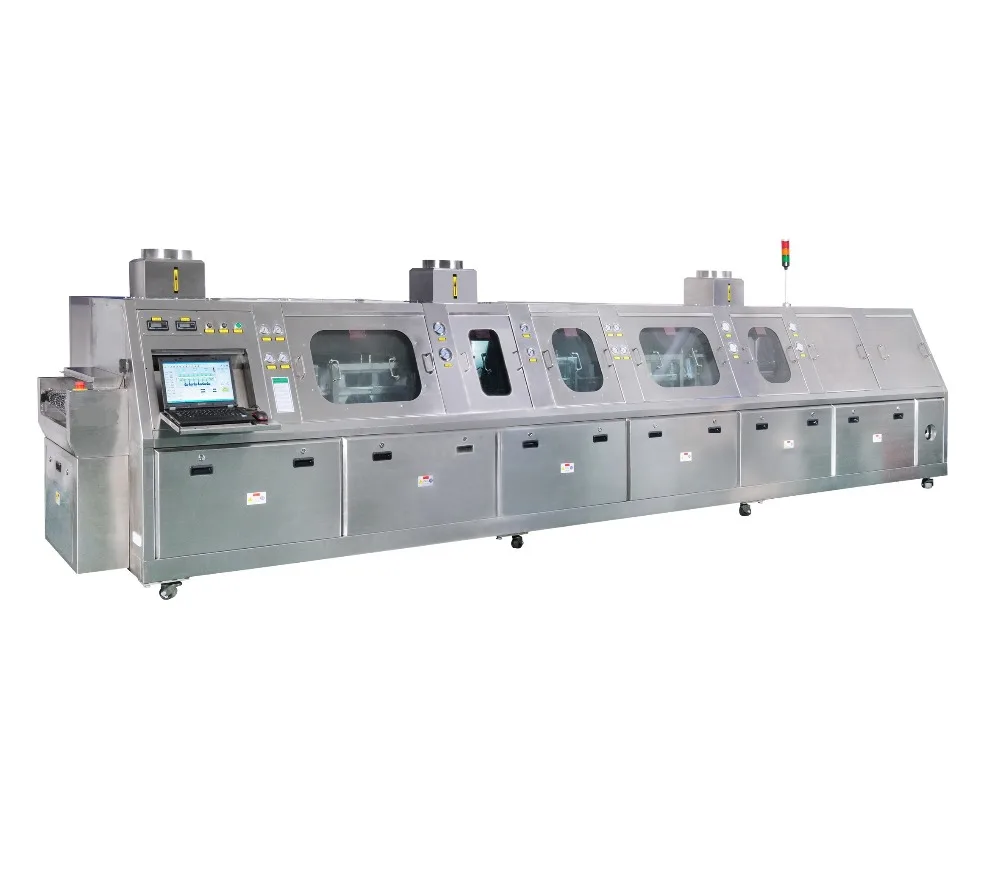

Full Automatic PCB Cleaning Machine for cleaing IGBT and SMT PCBA Cleaning line Application PCB Fabrication Industry

Product Description:

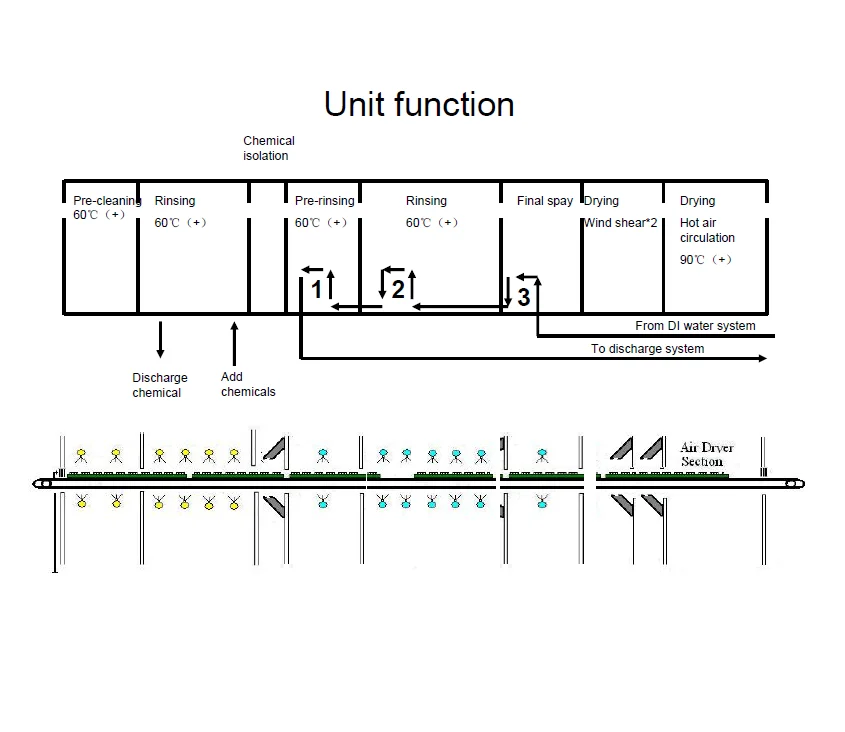

  - Suitable for cleaning large quantities PCBA, online completion of washing, rinsing and drying all the processes
  - Excellent cleaning effect, the effective removal of rosin, water soluble flux, disposable flux and other organic and inorganic contaminants
  - Excellent chemical isolation and low running costs
  - Stainless steel canbinet with good reliability andcan resisit any hurt by acid and alkali cleaning chemistry.
  - PCBA fixture can be placed on a small plate
  - Conductivity monitoring rinsing liquid to ensure cleanliness
  - Wind knife cut water + long infrared hot air circulation drying section
  - Selection of spray waterjets, make better cleaning effect
  - 14 inches of computer control system of Chinese / English operation interface
  - Flexible operation of washing or chemical cleaning
  - The lower cost of investment
  - Shorter delivery date

  - Localization service team and adequate supply of spare parts

System configuration:

  - Belt conveying system :
    Width : 24 inch,12inch (Option)
    Hold the board system:Belt can hold the board(Option)
    Optional belt shape: normal shape, convex and concave
  - High pressure wind shear + infrared hot air circulation drying unit
  - 14 inches of computer control system of Chinese / English operation interface
  - Production counting and board drop induction system
  - Rinsing water resistivity monitoring system
  - Chemical liquid filtration system
  - The side air compression drying system (Option)
  - Chemical liquid water cooling recovery system(Option)
  - Chemical liquid concentration on-line monitoring system (Option)
  - Automatic chemical liquid adding system ( option)
